Description

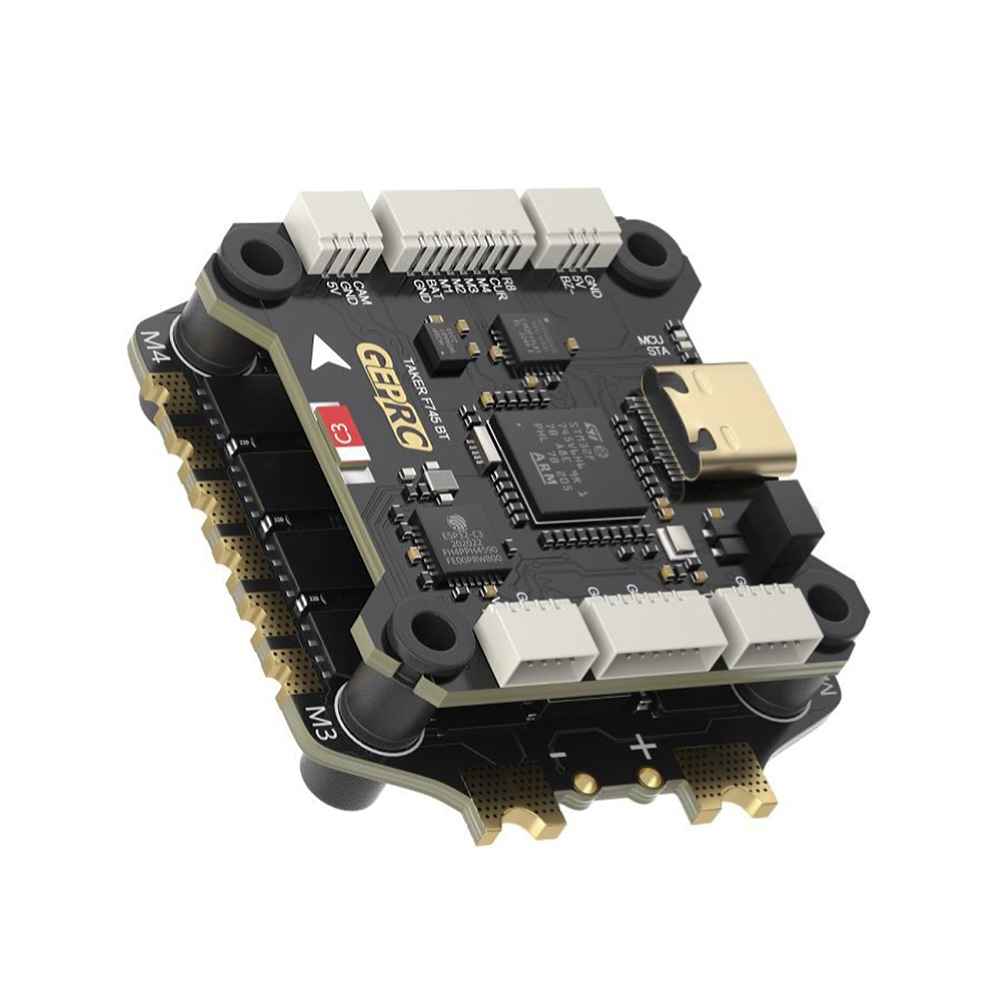

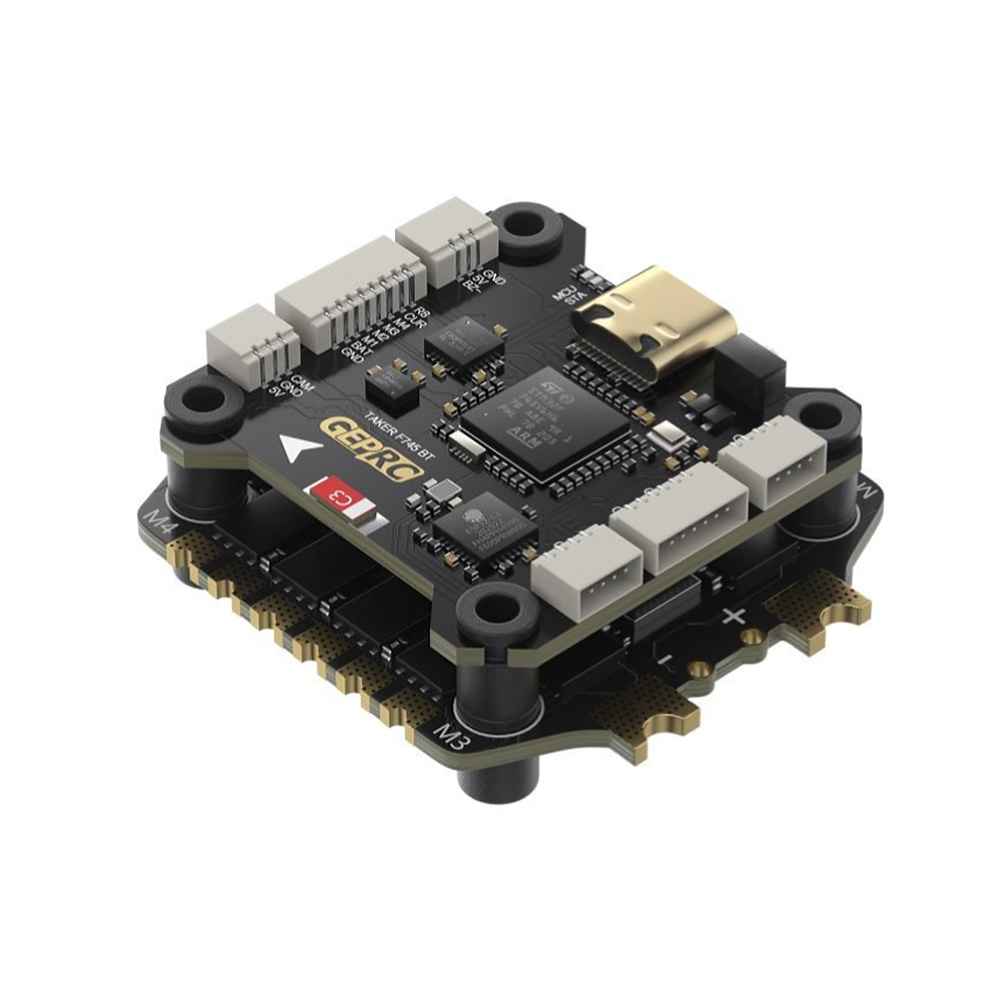

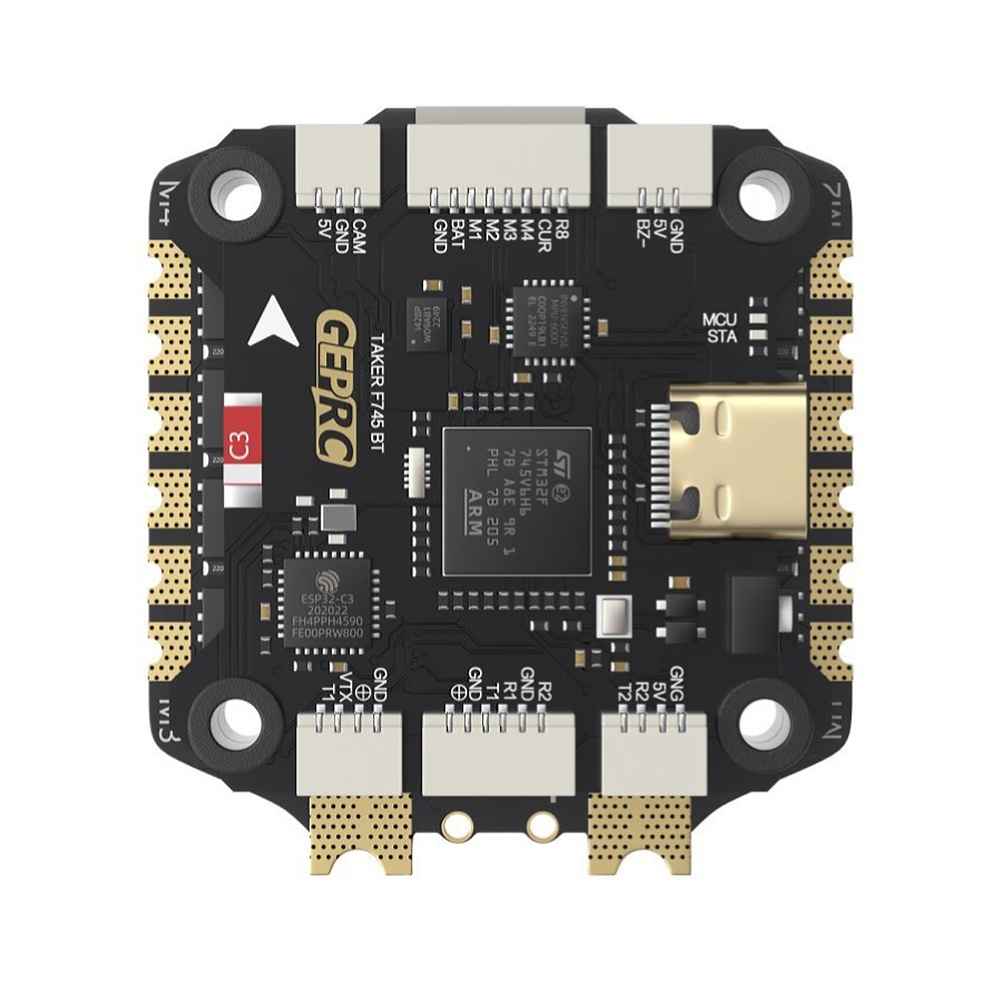

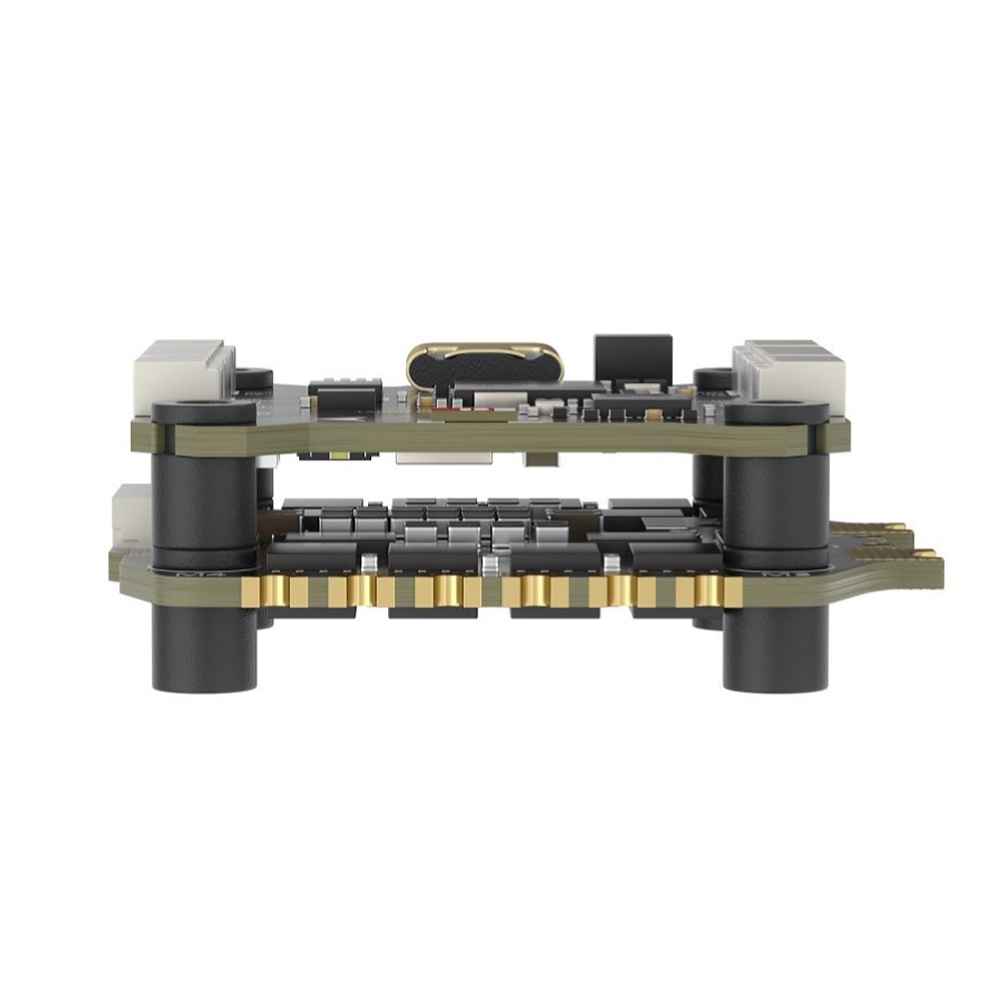

30.530.5mm GEPRC TAKER F745 BT Flight Controller with H60_BLS 60A 4IN1 ESC 5V 12V BEC Output 8Bit STACK for FPV Racing Drones
The GEPRC TAKER F745 BT 8Bit 60A stack is a high-performance flight controller system designed for FPV racing drones. It features the STM32F745VGH6 chip with a Cortex-M7 core, capable of running at 216MHz, providing excellent performance for both racing and freestyle flights. The dual gyroscope setup with MPU6000 and ICM42688-P ensures precise control, while integrated Bluetooth enables wireless parameter adjustments. The stack includes a built-in 512MB black box for data logging and is compatible with X8 models and various software like Betaflight, INAV, and Ardupilot. It offers dual independent BEC outputs and plug-and-play functionality, featuring seven UART ports, an integrated barometer, and the TAKER H60_BLS 4-in-1 ESC for smooth flight experiences.
Introduction券
The GEPRC TAKER F745 BT 8Bit 60A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32F745VGH6 chip with a Cortex-M7 core running at up to 216MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, itㄙs well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H60_BLS 4-in-1 ESC, it delivers an exceptionally smooth flight experience.
Features:
– Adopts the high-performance STM32F745 as the main controller
– Equipped with MPU6000 and 42688-P dual gyroscopes
– 512MB high-capacity black box storage
– Bluetooth parameter tuning
– Upgraded Type-C USB interface
– Plug-and-play, no soldering required.
– Integrated barometer
– Features 7 UART ports
– Independent BEC with 12V@2.5A and 5V@3A outputs

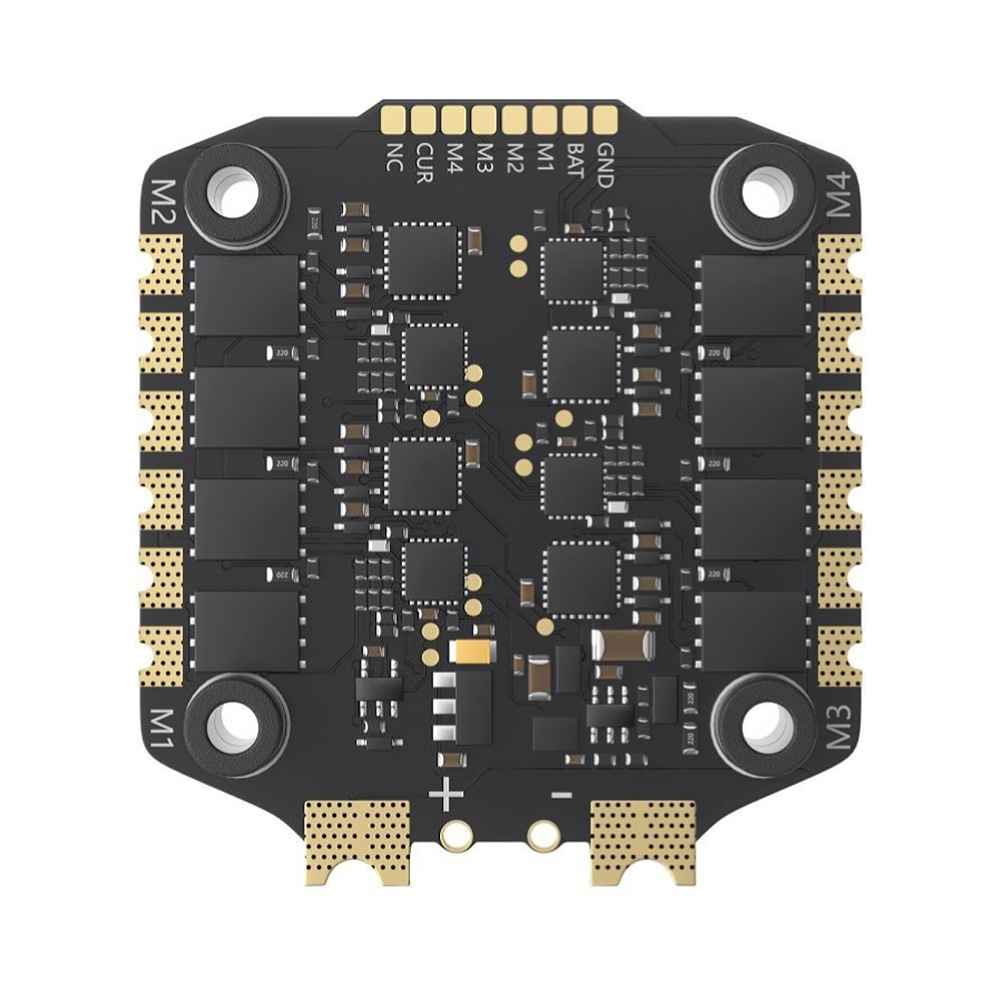

– Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.
Specifications:
Package Included:
1 x FC board
1 x ESC board
1 x Capacitor
1 x DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x Buzzer connection cable
1 x XT60 power cable
4 x M3 30 screws
4 x M3 25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
