Description
30.5*30.5mm TEARCKEP F405 F4 V3S PLUS Flight Controller 5V 9V BEC Output with 50A 60A V3 2-6S 4in1 BLS ESC Stack for RC FPV Racing Drone
The TEARCKEP F405 V3S PLUS Flight Controller is designed for RC FPV racing drones, featuring a 30.5×30.5mm installation hole. It includes an MPU6500 gyroscope and STM32 F405 microcontroller, with Dshot support and OSD configuration via Betaflight. Compatible with various receivers including ELRS, CRSF, SBUS, IBUS, and DSMX, it also supports a MicroSD card black box and car video filter. The BEC outputs 5V3A/9V3A and the firmware is upgradeable to OMNIBUSF4SD/BF/INAV. The V3 BLHELI-S 50A/60A 4in1 ESC supports LIPO 2-6S input, with a continuous current of 55A/60A and maximum current of 65A/70A. It features DShot150-600, Multishot, Oneshot, and PMW drive signal support.
Specification:
Brade: TEARCKEP
Model: F405 V3S FC 50A 60A ESC
|
NameSpecification
|

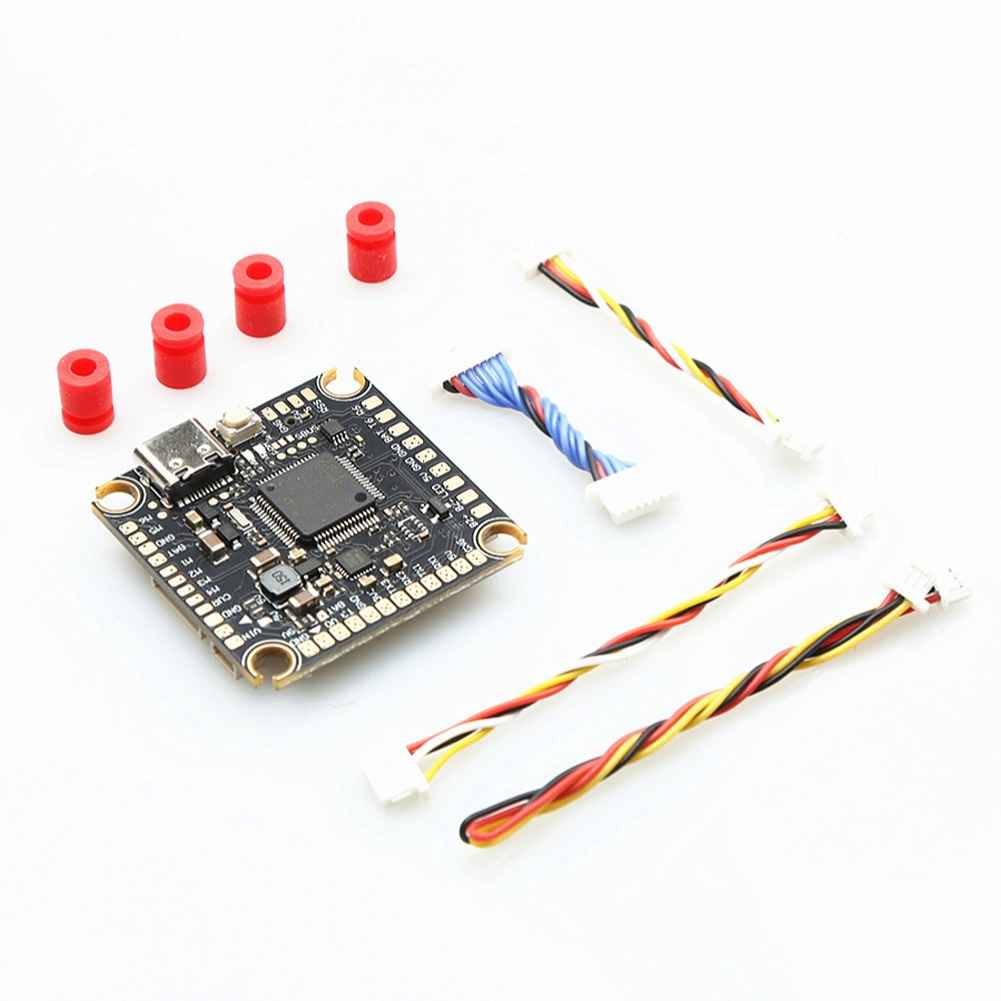

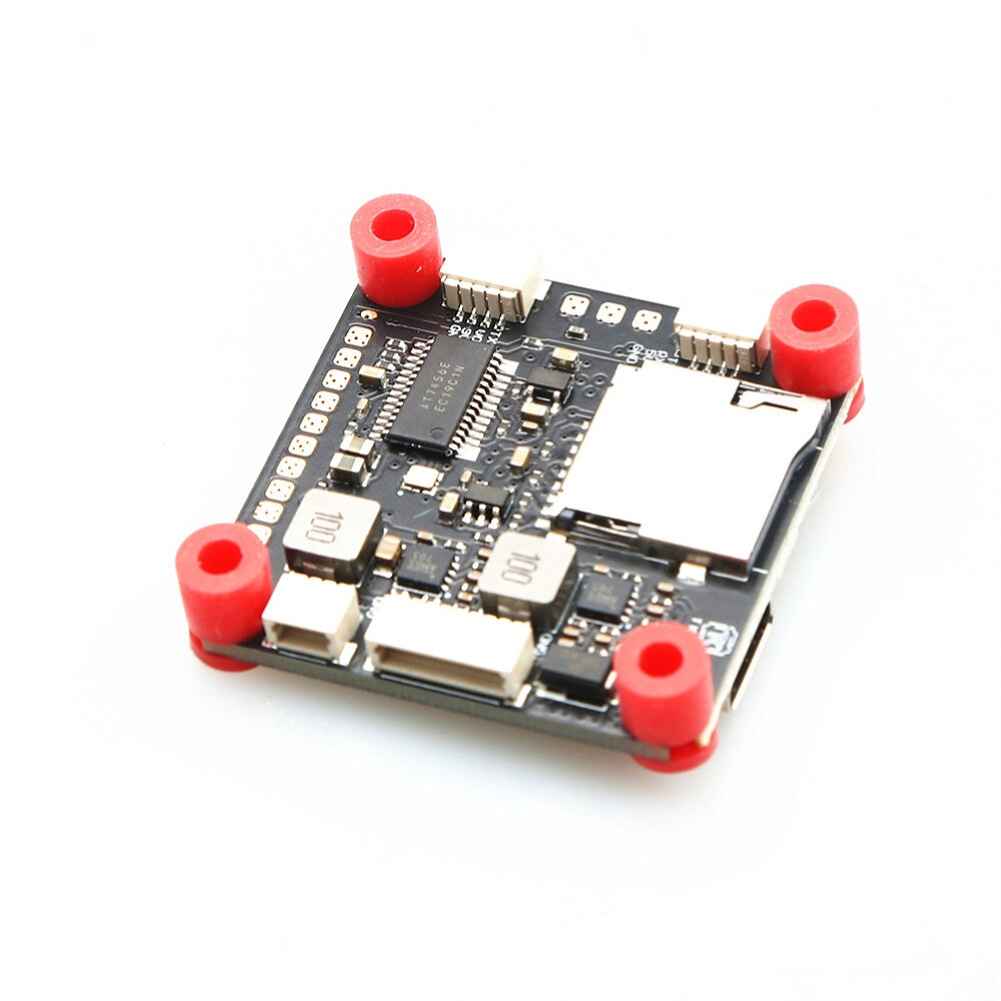

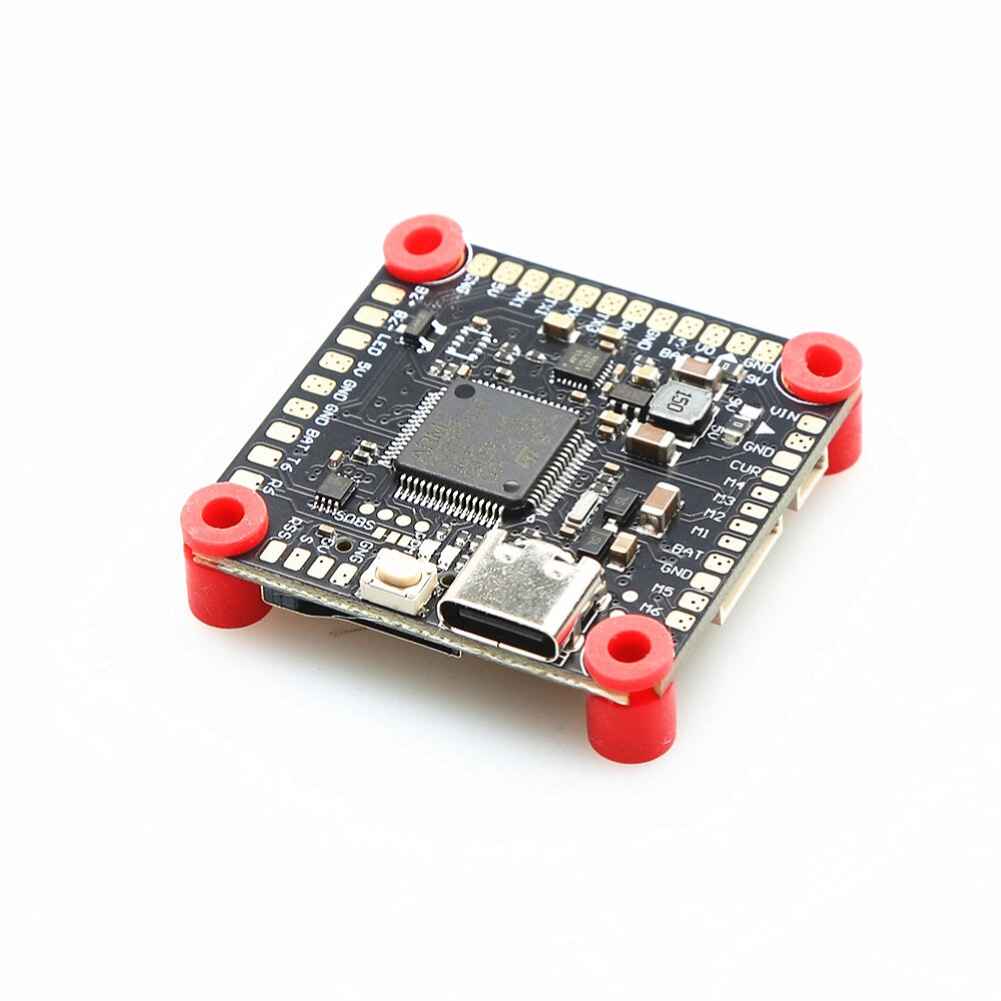

F405 V3S PLUS Flight Controller
Installation Hole: 30.5×30.5mm
Gyroscope: MPU6500
– STM32 F405 Microcontroller
– Dshot Support
– Drag and drop OSD configured through Betaflight
– Supports receivers such as ELRS/CRSF/SBUS/IBUS PPM/Spketorum DSMX, etc
– MicroSD Card Black Box
– Car video filter
BEC: 5V3A/9V3A
Firmware: OMNIBUSF4SD/BF/INAV (upgradable)
Size: 36x36mm
Weight: 13g
Suitable Models: 5 inches, 6 inches, 7 inches, 8 inches, 9 inches, 10 inches, 13 inches, 15 inches, traversing aircraft/drones, etc
|

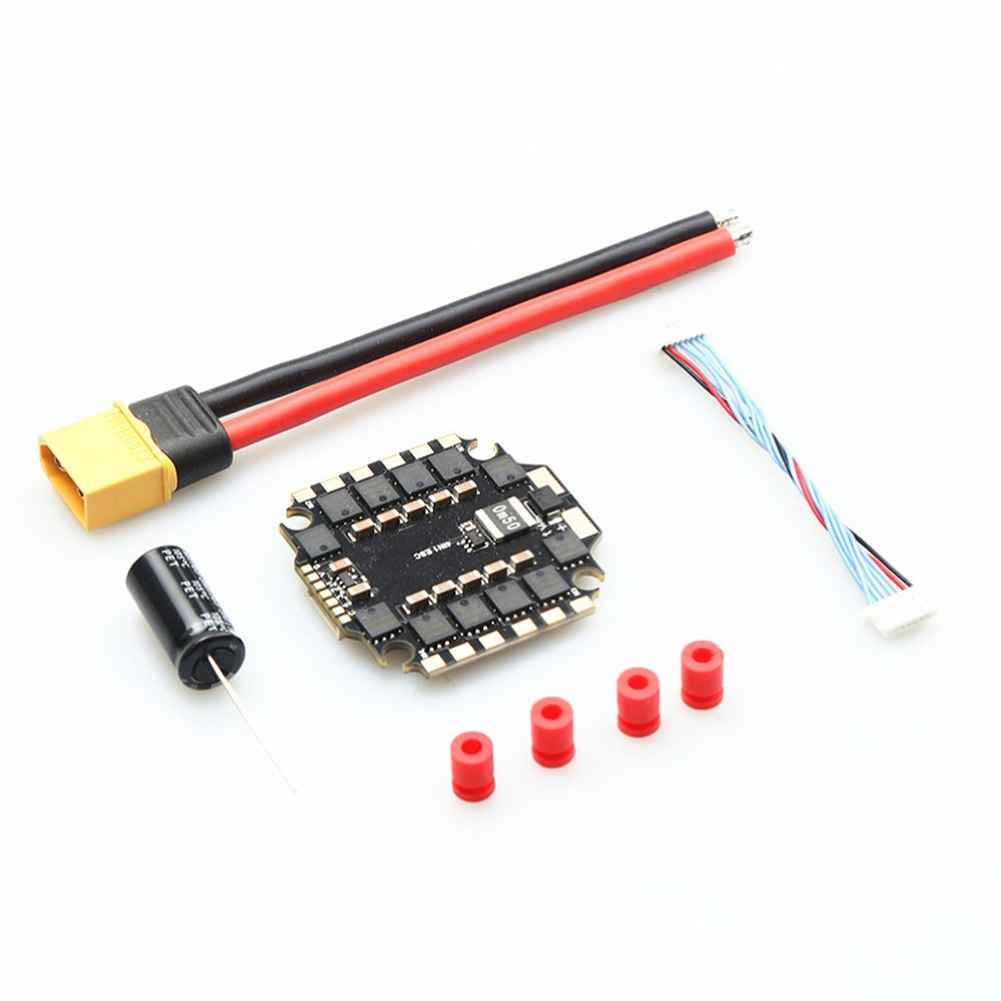

V3 BLHELI-S-50A 4in1 HV 2-6S ESC
Aperture: 30.5 * 30.5mm
Firmware: BLHELI-S J_H_30_REV16_7
Input voltage: LIPO 2-6S
Continuous current: 55A
Maximum current: 65A (10 seconds)
Processor: EF8BB21
Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW
Current sensor: supports
Size: 41 * 39 * 5mm
Weight: 15g
|
V3 BLHELI-S-60A 4in1 HV 2-6S ESC
Aperture: 30.5 * 30.5mm
Firmware: BLHELI-S J_H_30_REV16_7
Input voltage: LIPO 2-6S
Continuous current: 60A
Maximum current: 70A (10 seconds)
Processor: EF8BB21
Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW
Current sensor: supports
Size: 41 * 39 * 5mm
Weight: 15g
Package Included:

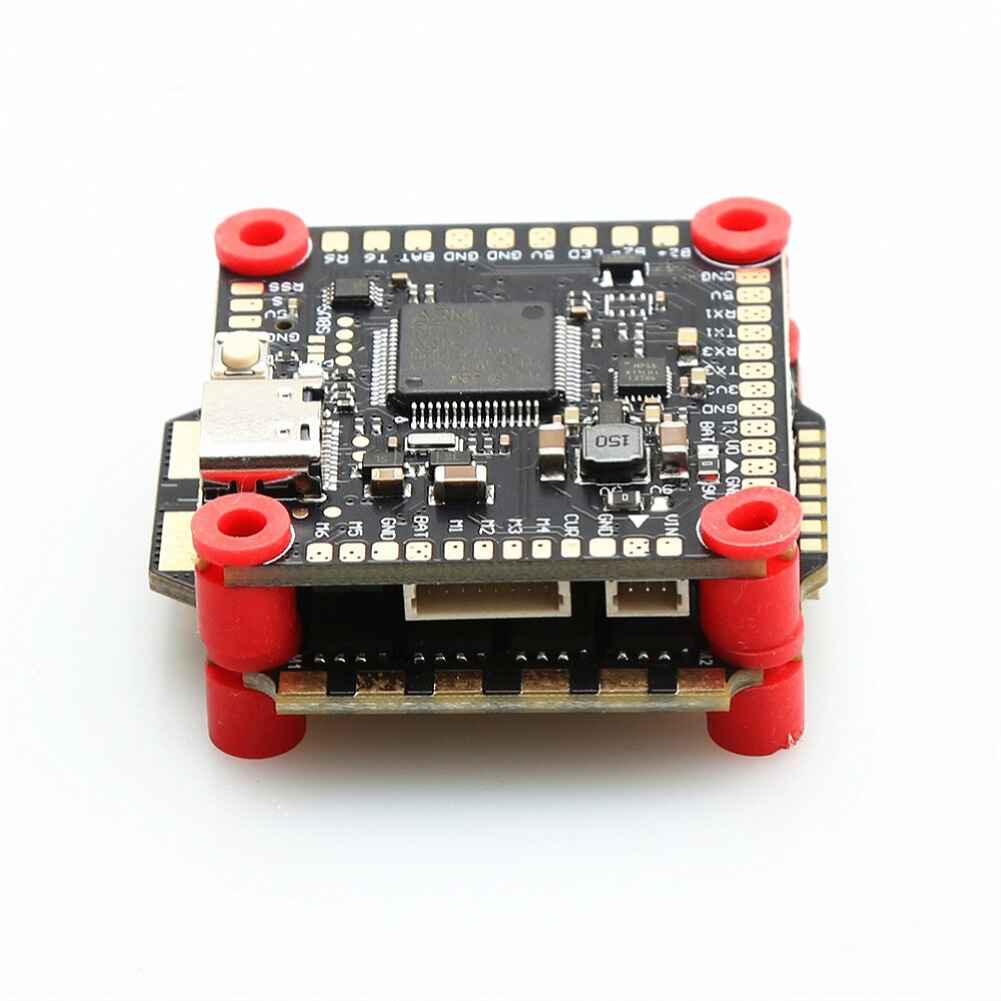

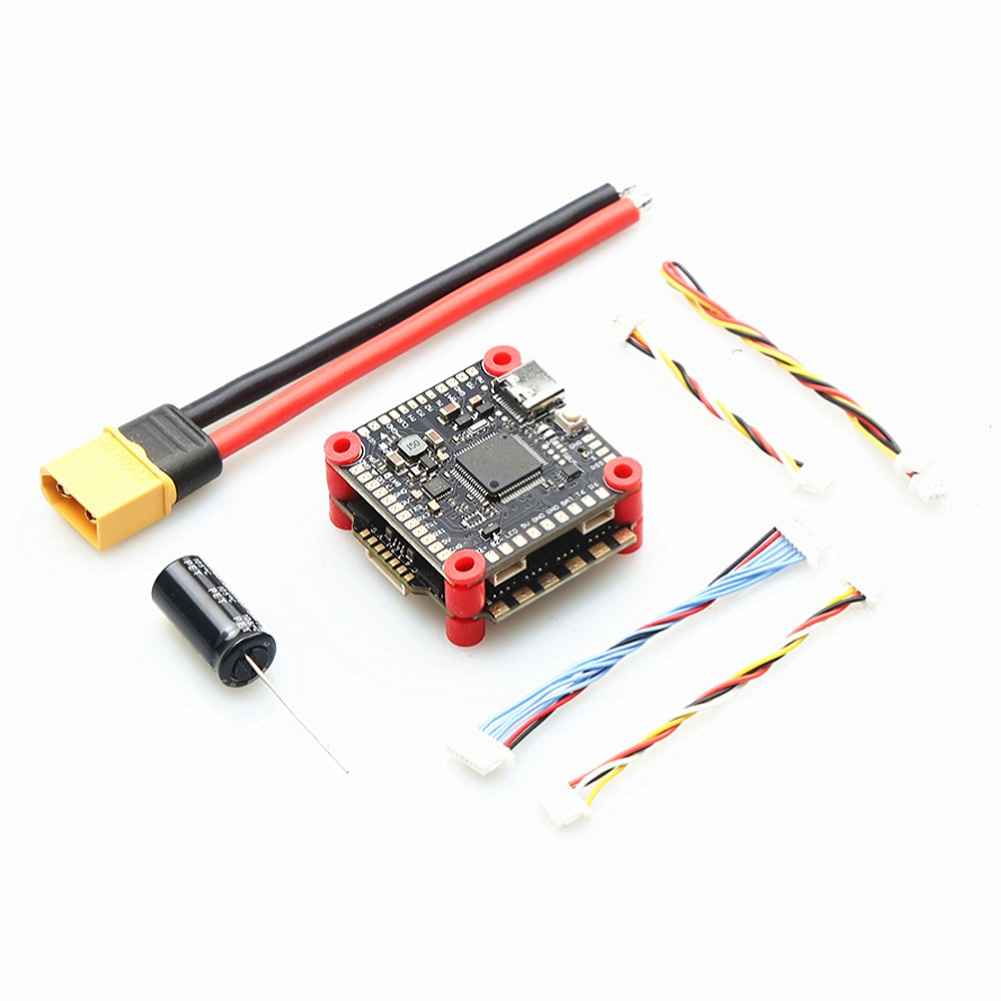

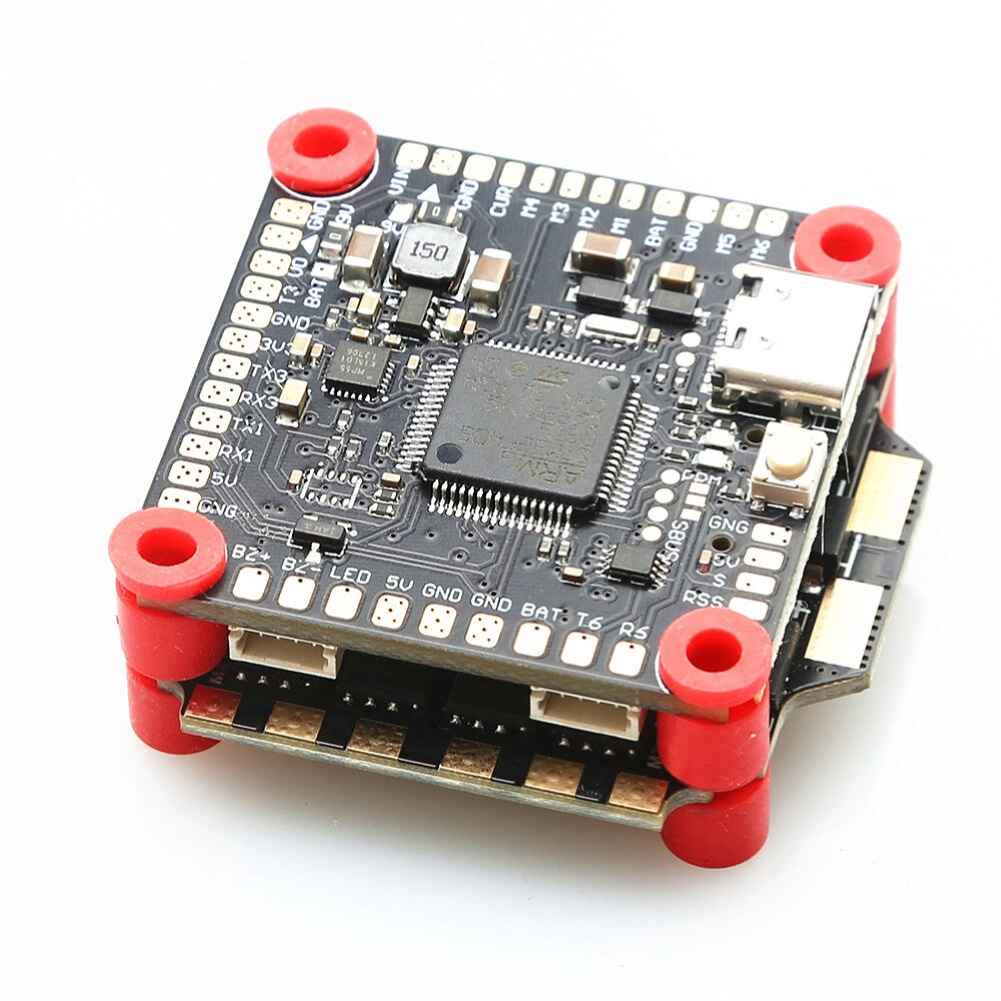

1 x F405 V3S PLUS FC or 1 x V3 50A/60A 4in1 ESC or 1 x F4V3S 50A/60A Stack
