Description

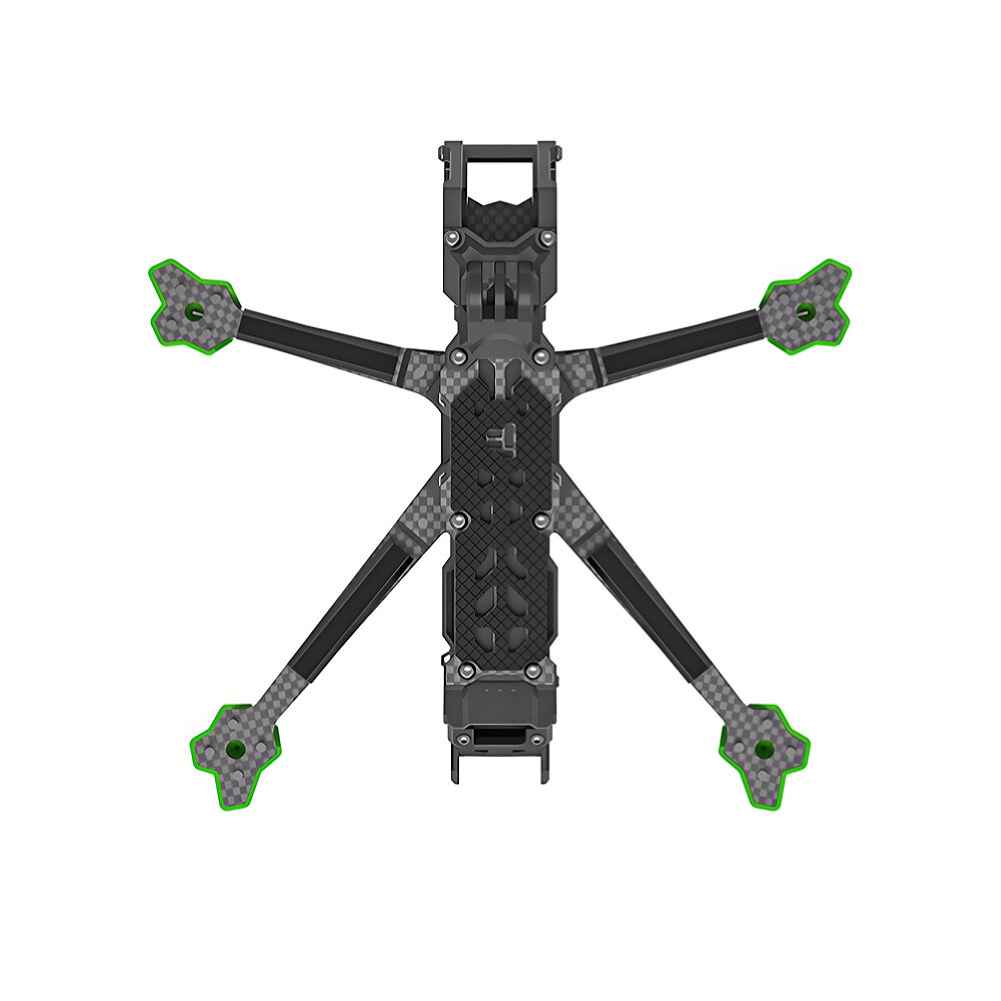

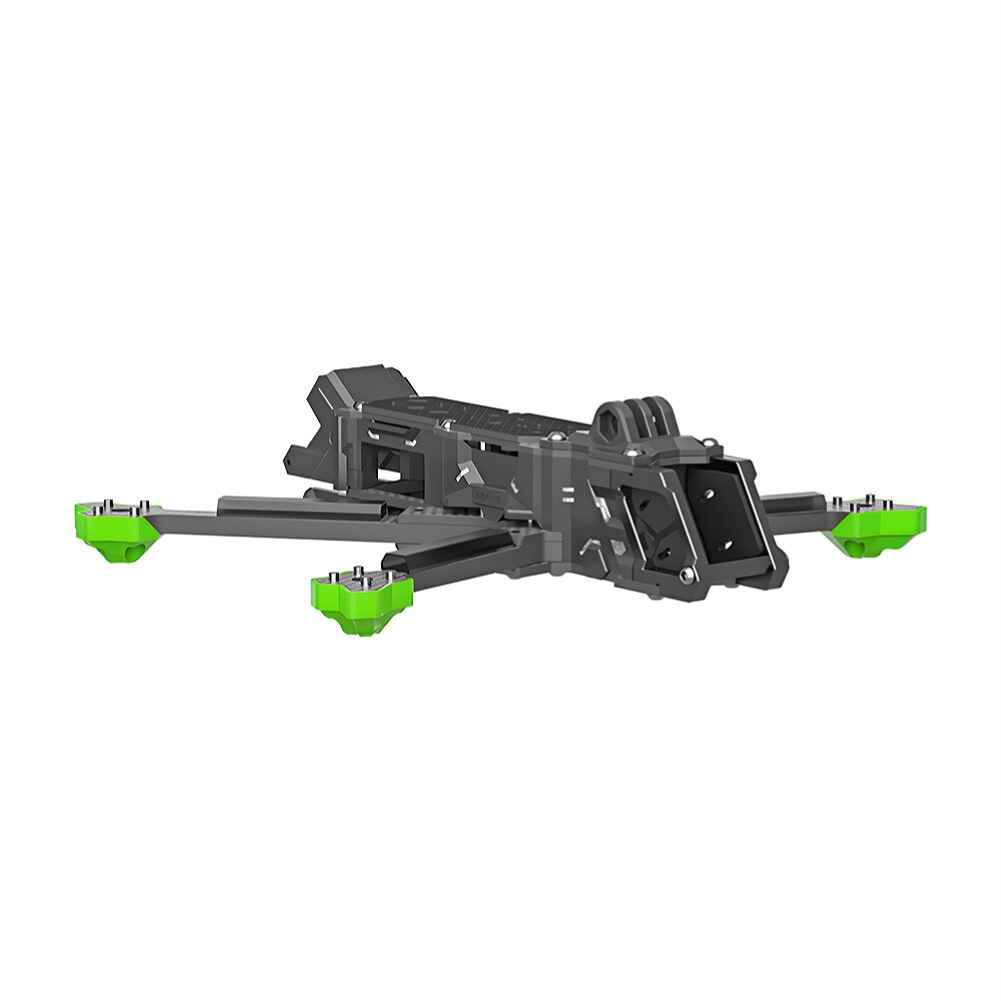

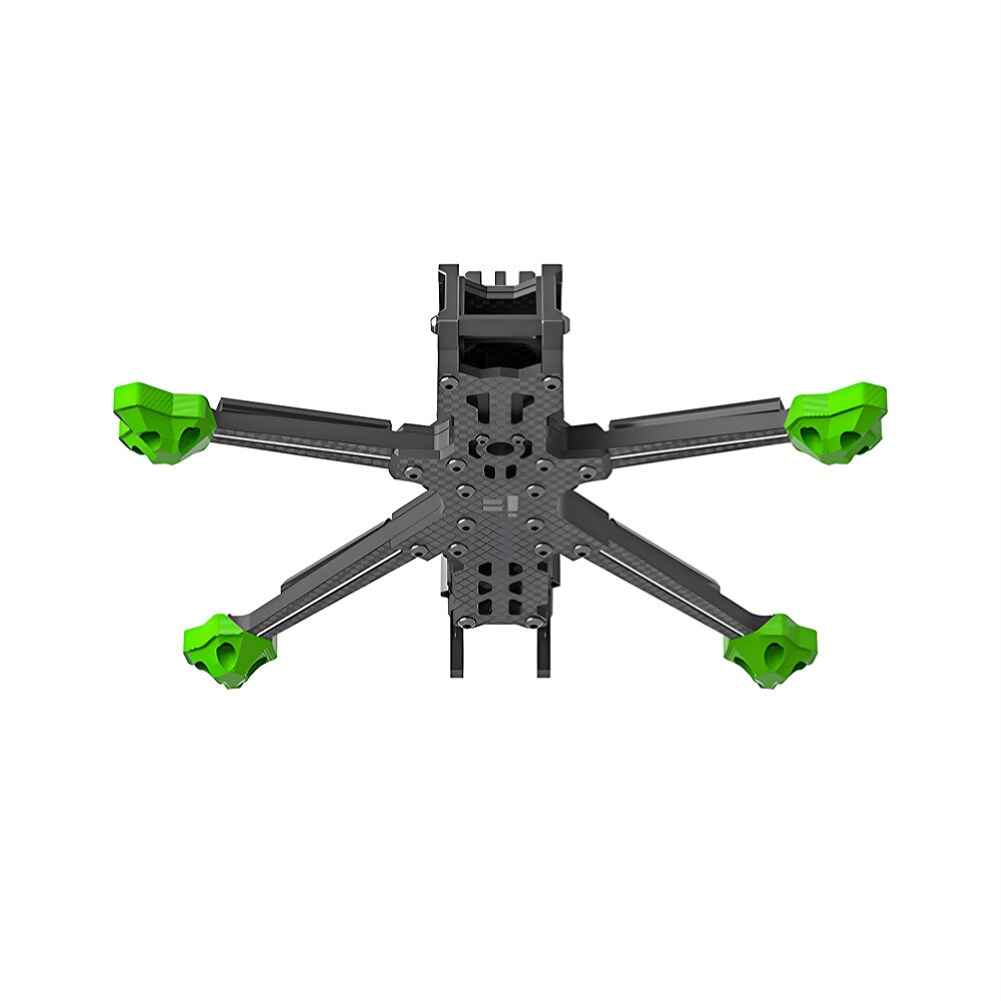

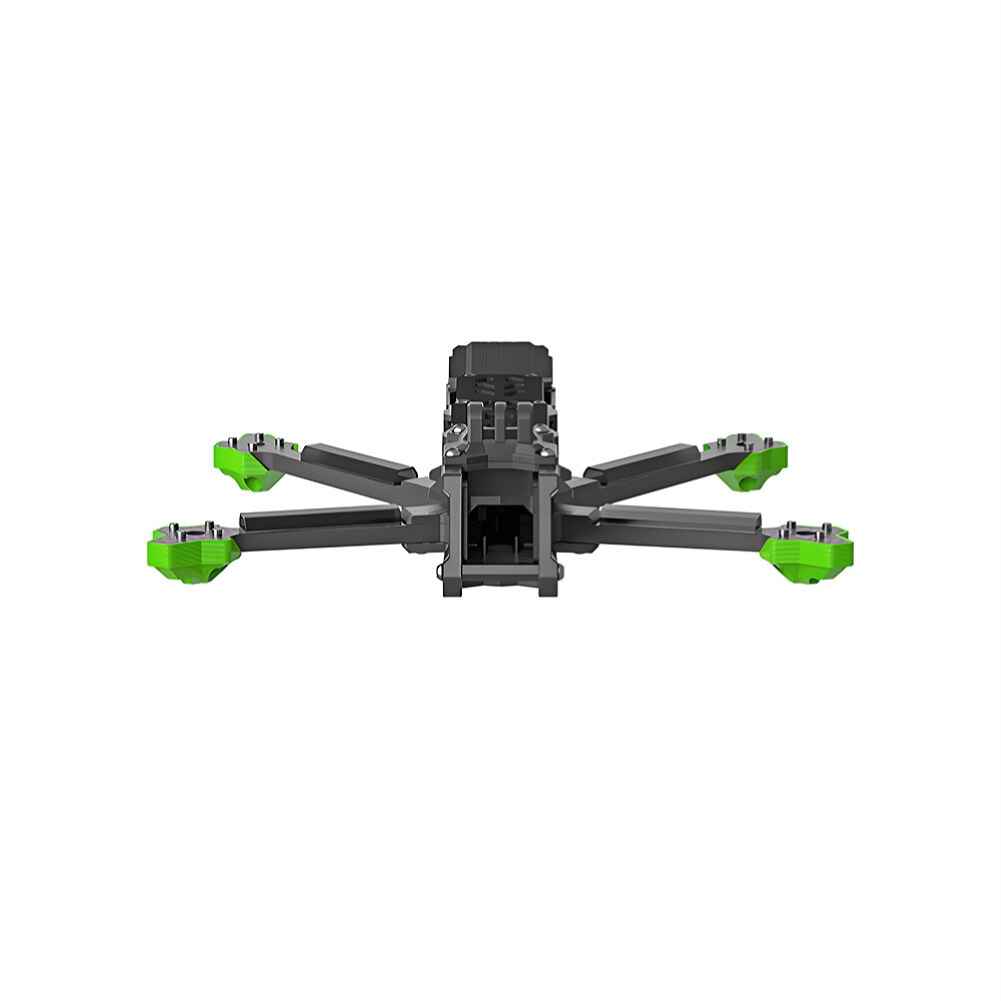

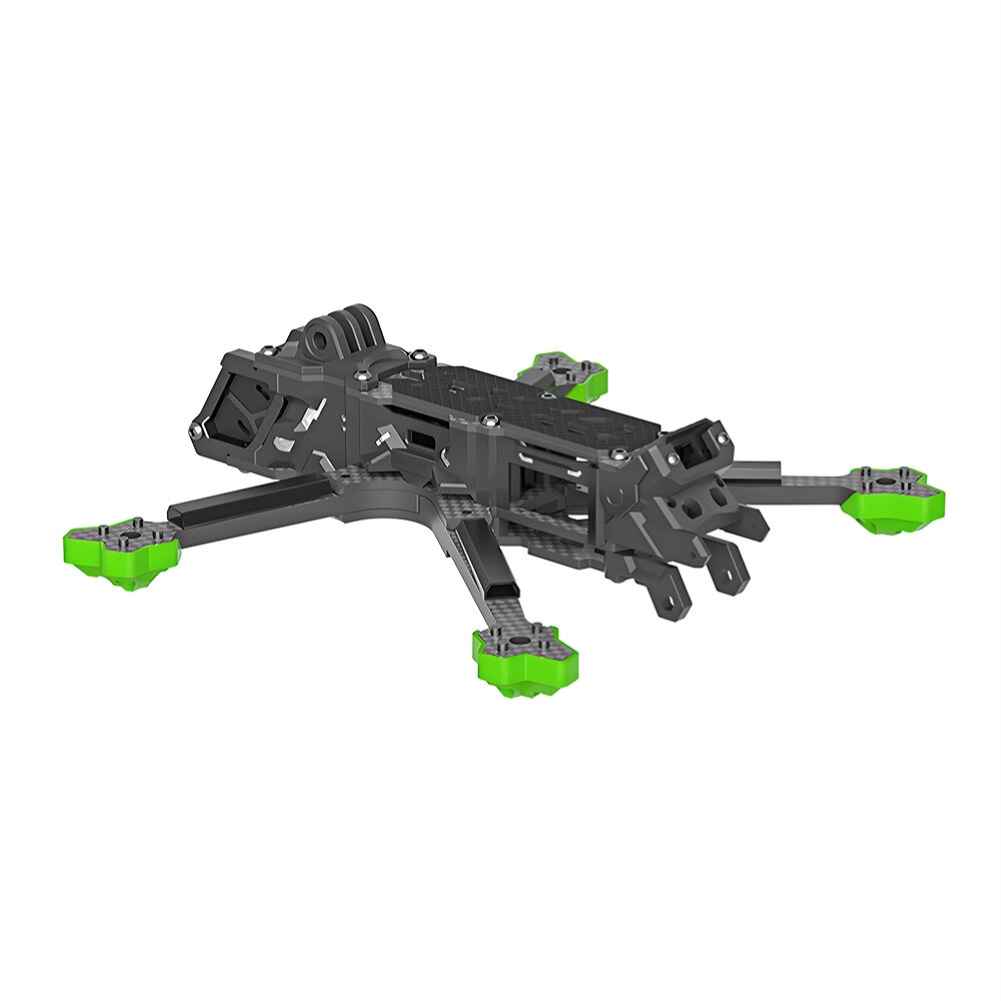

iFlight Nazgul Evoque F5D V2 223mm 6S 5 Inch Frame Kit Compatible with DJI O4 Pro Air Unit for RC Freestyle FPV Racing Drone
The iFlight Nazgul Evoque F5D V2 Frame Kit is expertly designed for RC freestyle FPV racing drones, offering optimal protection and performance. This 5-inch frame kit, compatible with the DJI O4 Pro Air Unit, features illuminated side panels and 360-degree TPU protective parts to safeguard your electronics. The frame is engineered to minimize contamination and improve airflow, ensuring superior cooling and reducing the risk of short circuits. With a wheelbase of 223mm and a robust construction, it delivers outstanding durability and versatility for an enhanced flying experience. The kit comes unassembled, requiring buyers to build, and includes various components for a complete setup.
Note:
– Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of 呼0.2mm. The size of the hole may have a standard manufacturing tolerance of 呼0.1mm.
– Comes unassembled. Need build by buyers.
Description:
Say goodbye to dirty electronics after every crash! Our innovative frame minimizes contamination on your flight controller and ESCs, helping to prevent failures and short circuits. Designed with strategic airflow for superior cooling and cleanliness, it delivers outstanding performance without compromising weight. Compatible with the DJI O4 Pro Air Unit, it features illuminated side panels and 360-degree TPU protective parts, providing enhanced protection and versatility for your flying experience.
Features:
– DJI O3 to O4 was upgraded for the DJI O4 Pro Air Unit:
– New Camera Mount for DJI O4 Pro Air Unit
– New Silicone side panels
– Different Screws
Specificaiton:
Brand: iFlight
Model: Evoque F5D V2Product Name: 5 Inch O4 Pro Freestyle Frame Kit
Frame wheelbase: 223mm (DeadCat)
Frame Dimension: L190*W136*H36 mm (DeadCat)
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Maximum Flight Stack Height: 22mm
Maximum VTX Height: 22mm
Motor Mounting: 16x16mm
Flight Stack Mounting: 20*20/?3mm
VTX Mounting: 25.5*25.5/?2mm
Weight: 249呼5g
Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
Recommanded parts:(Not Included):
FC&ESC: BLITZ Mini F722 E55 4-IN-1 2-6S 55A Stack
VTX&Camera: DJI O4 Pro Air Unit
Motor: XING2 2207 1750KV
Propeller: Nazgul F5 5.1 Inch 3-blade
Battery: 1480mAh 6S LiPo Battery
Package Included:
1 x Evoque F5D V2 O4 Frame Kit
2 x IPEX to RP-SMA Antenna Pigtails
1 x Dual Antenna TPU
1 x GPro TPU Base Mount
1 x Screw Bag
4 x TPU Arm Guard
2 x Anti-slip Battery Pad
2 x Battery Strap
