Description

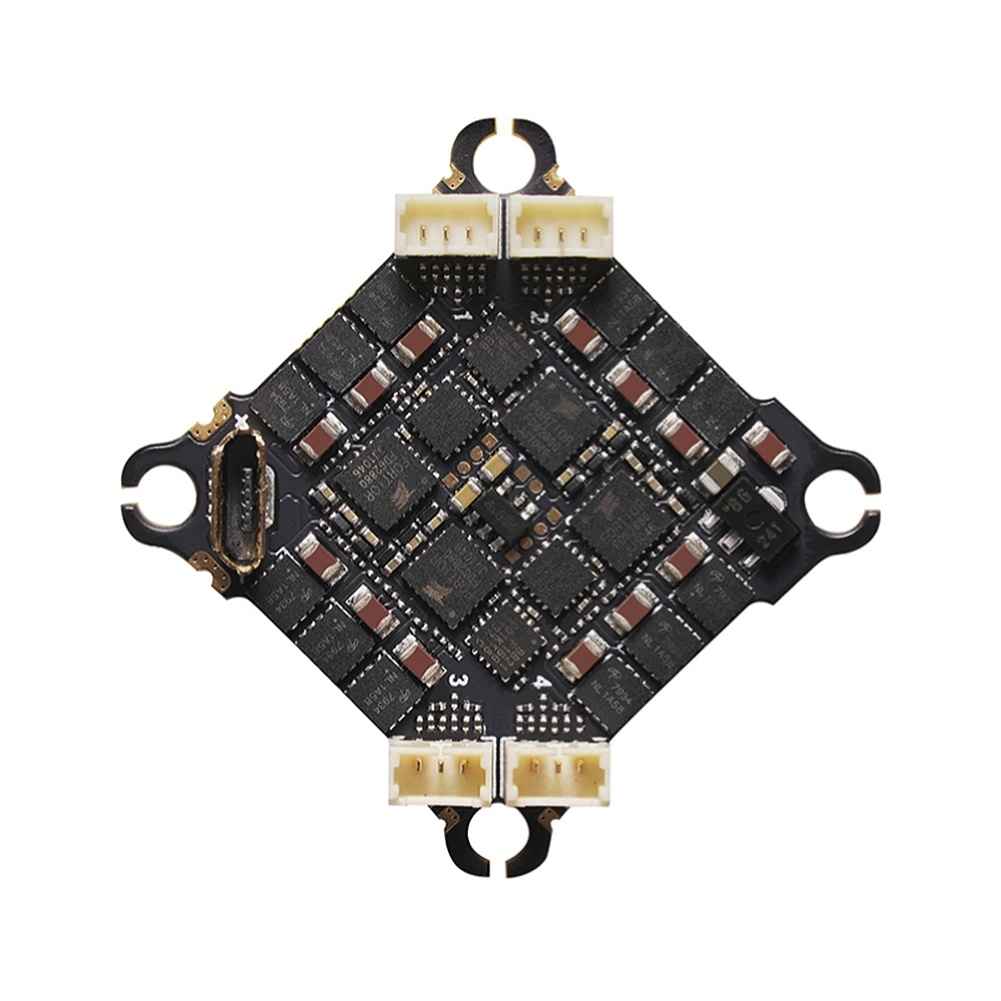

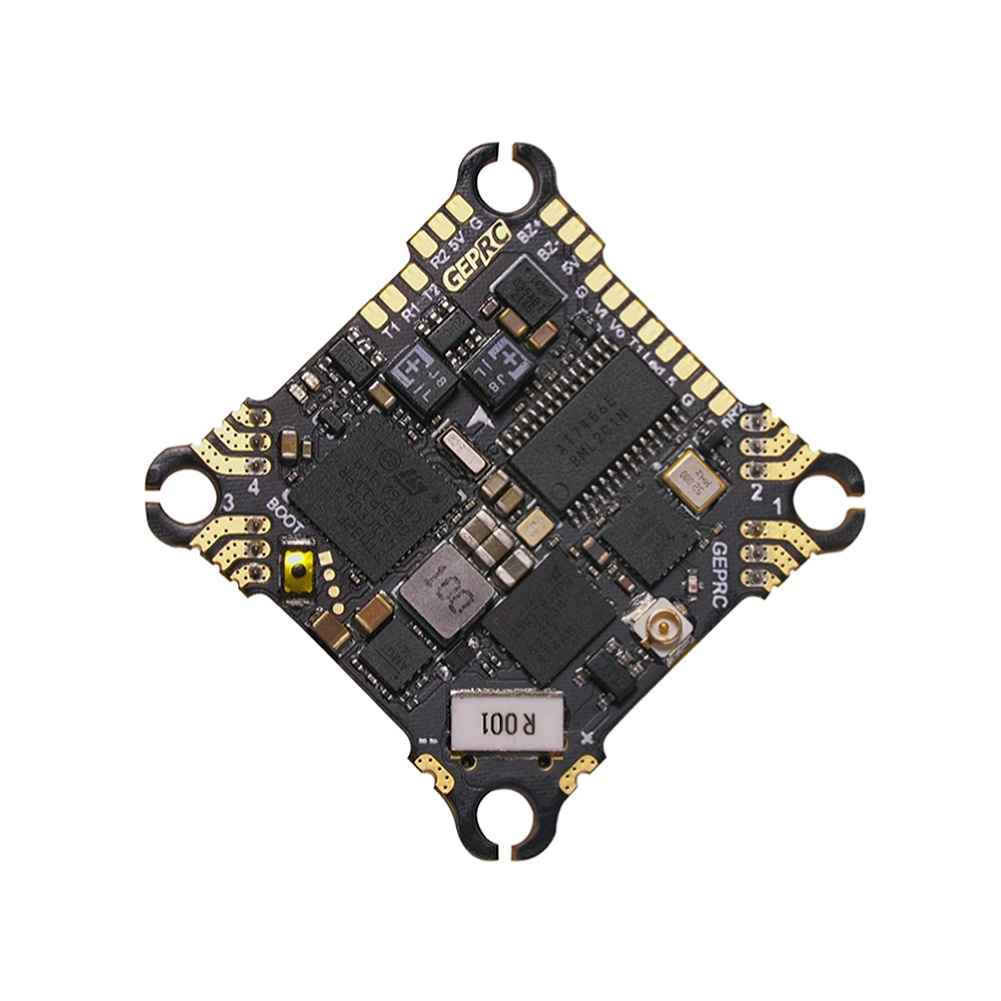

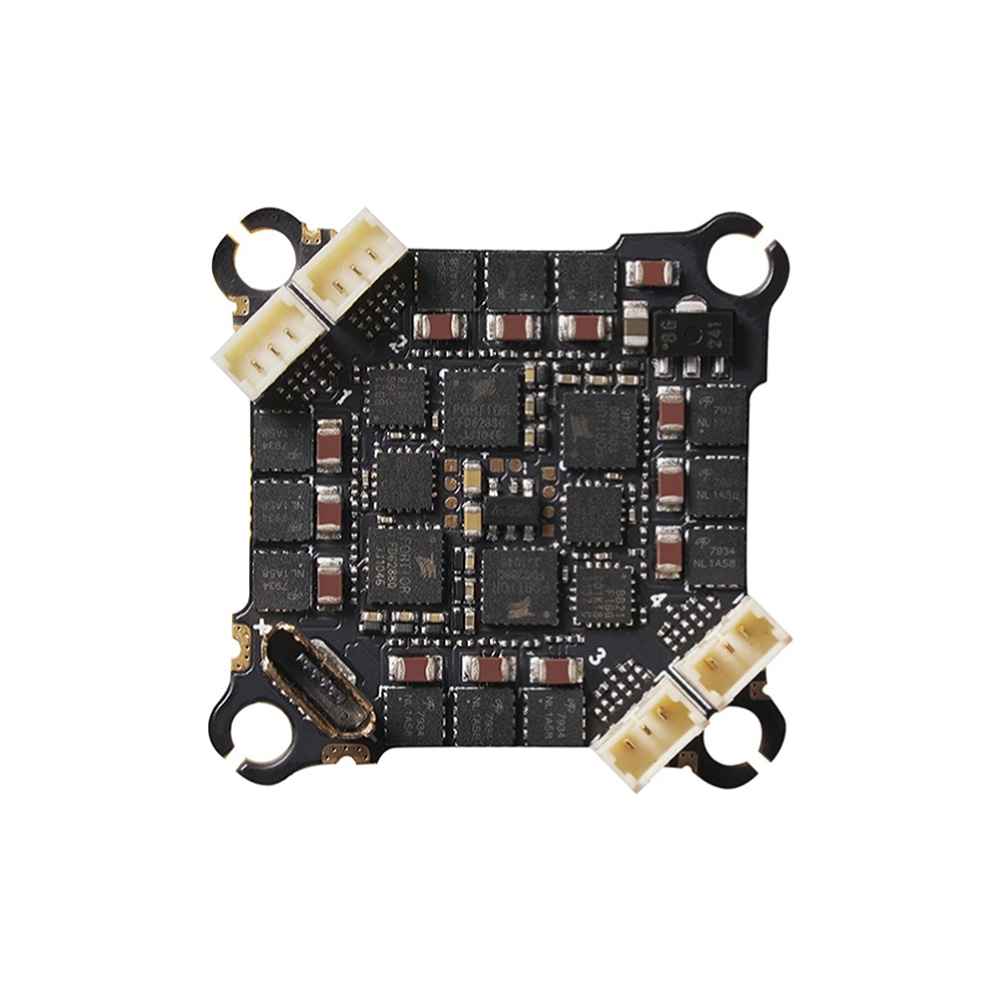

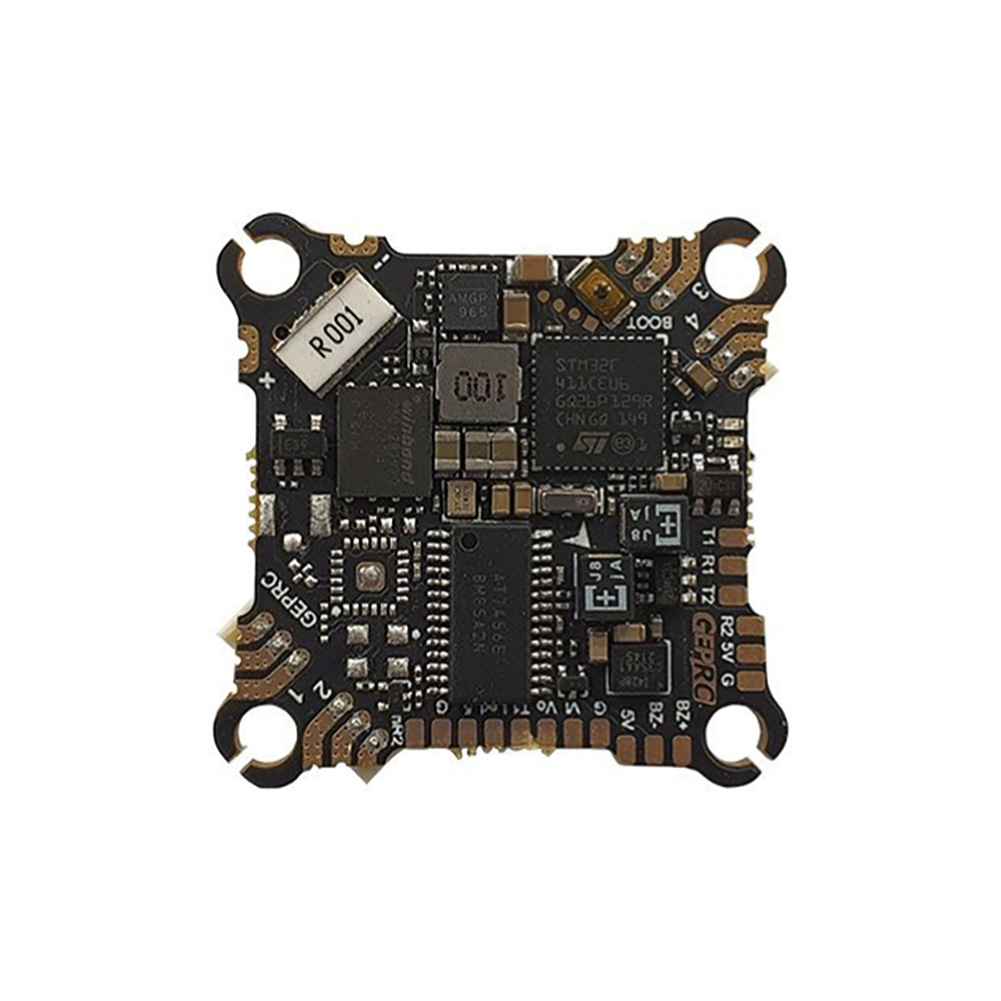

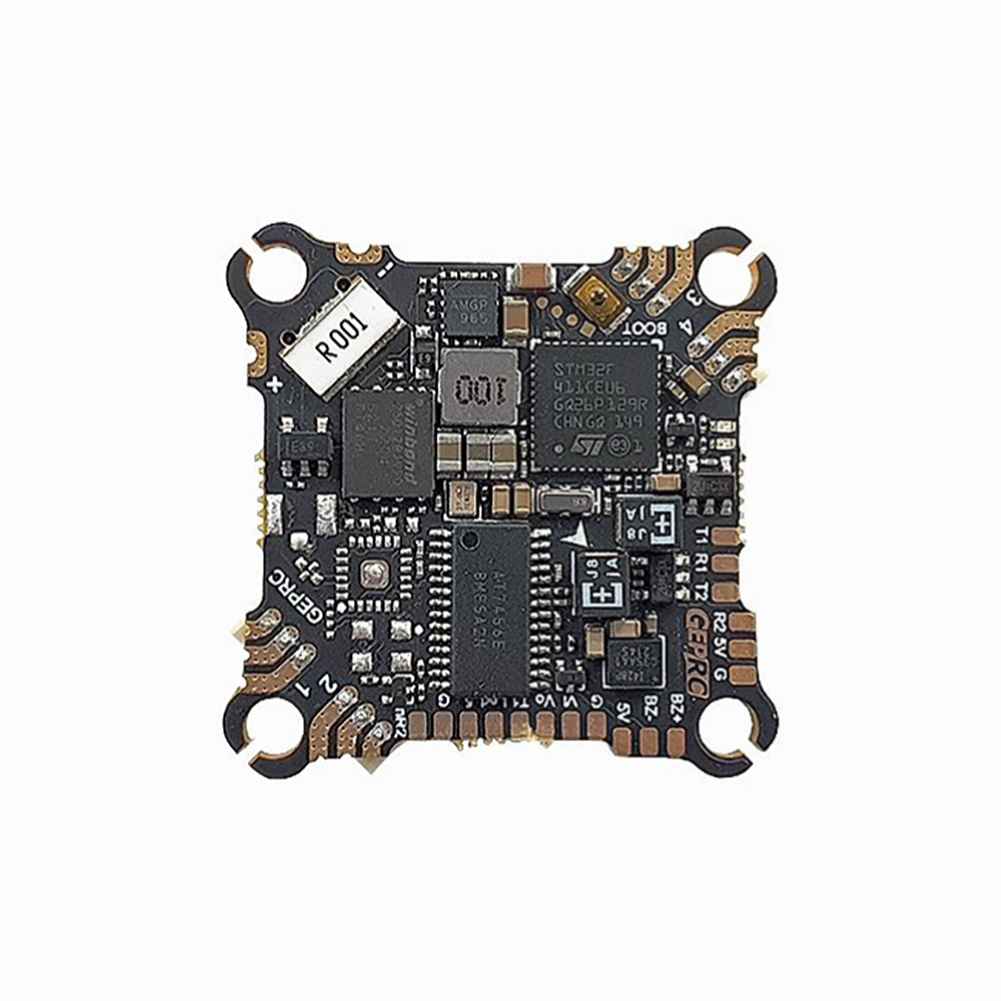

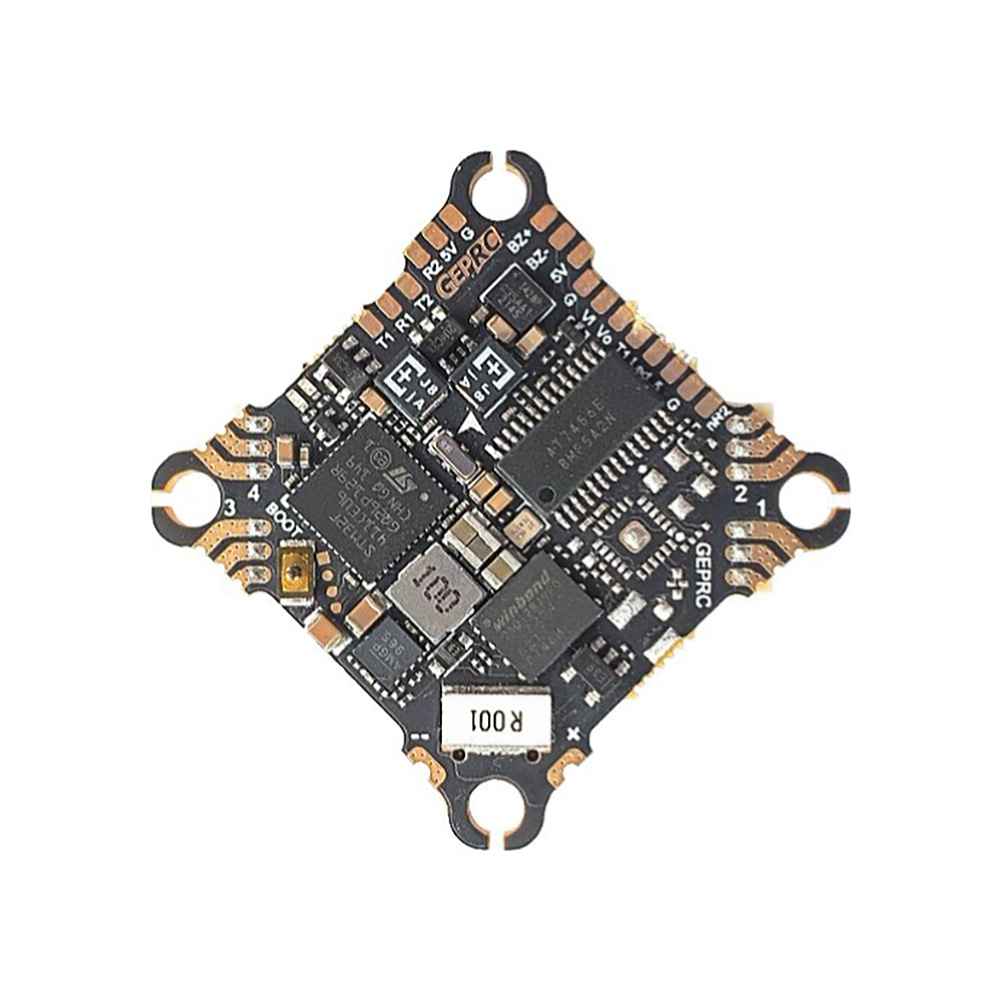

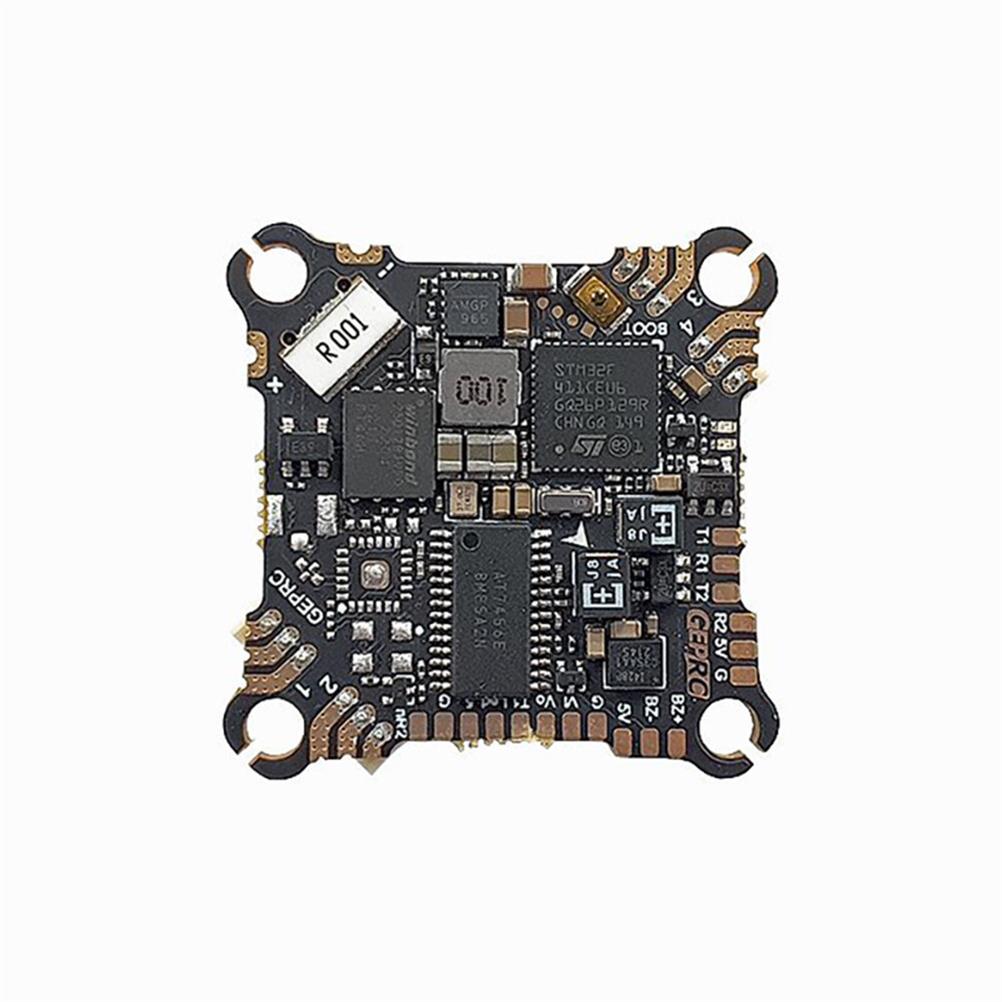

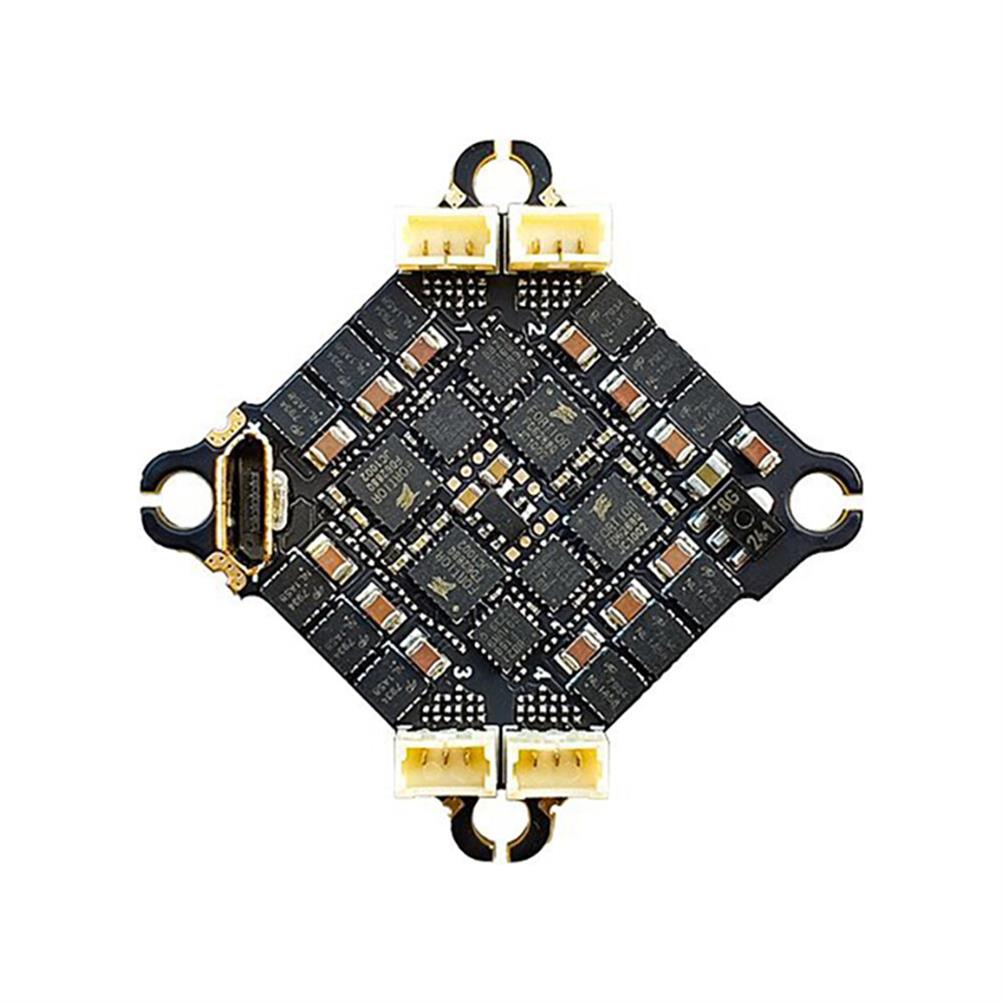

25.5×25.5mm GEPRC TAKER F411 8Bit 12A AIO F4 OSD Flight Controller Built-in 12A 2-4S 4in1 ESC for RC Drone FPV Racing
The GEPRC TAKER F411 8Bit 12A AIO Flight Controller is a high-performance component designed for RC drone FPV racing. Featuring an ultra-lightweight design at just 7 grams, it enhances the agility and performance of small FPV drones. The controller includes an ICM-42688-P gyro, ensuring precise and smooth control for both racing and freestyle maneuvers. It supports a continuous current of 12A and peak current of 13A, compatible with 2-4S batteries, providing the necessary power for dynamic flights. With easy installation thanks to 25.5mm x 25.5mm mounting holes, it also supports buzzer and LED functions for improved flight visibility and customization.
Specifications:
Brand: Geprc
Model: TAKER F411 8Bit 12A AIO
Item Name: F4 Flight Controller Built-in 12A 4in1 ESC
Optional Version: ELRS 2.4G ( Built-in ELRS 2.4G Receiver) / Without Receiver ( Don’t have receiver)
MCU: STM32F411
IMU: ICM42688P
Firmware target: GEPRC_F411_SX1280
OSD: BetaFlight OSD w/ AT7456E chip
UART Ports: R1 T1R2 T2
Reverse Port: NR2
Buzzer: YES
LED: YES
USB Port: micro USB
ESC MCU: BB21F16G
Black Box: 16Mb onboard flash memory
Continuous Current: 12A
Peak Current: 13A
Input: 2-4S
ESC Protocol: Dshot300,Oneshot,Multishot
Current Meter: 210
ESC Firmware: G-H-30 每 Bluejay, 0.16, 48kH

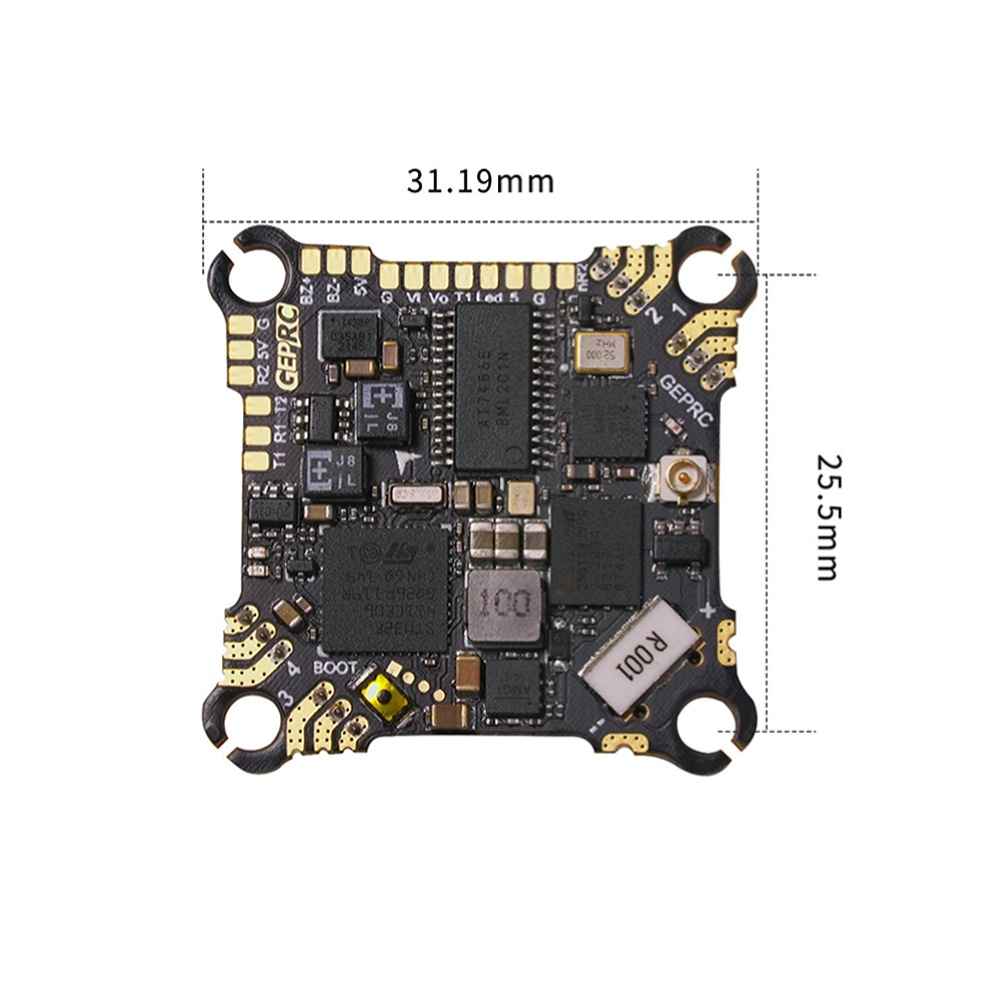

Size: 31.2℅31.2mm Board
Mounting holes: 25.5mm*25.5mm hole, M2 hole

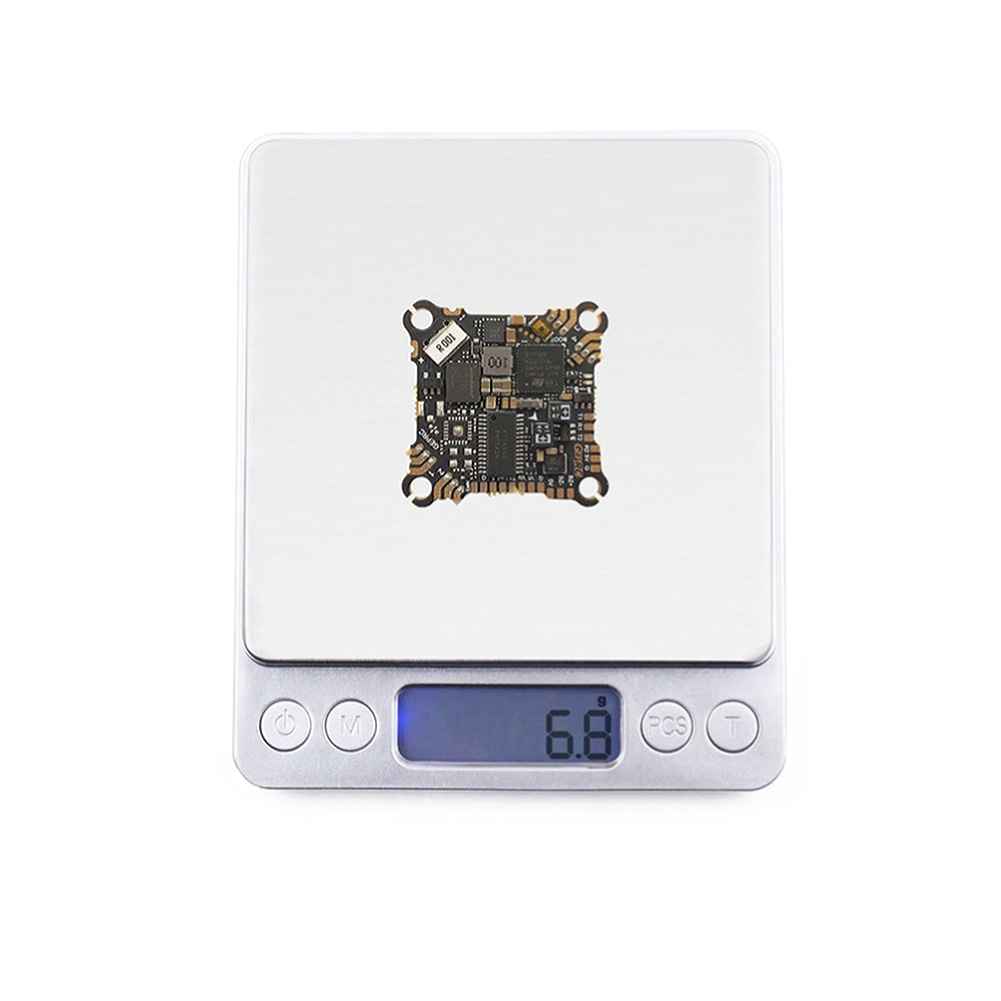

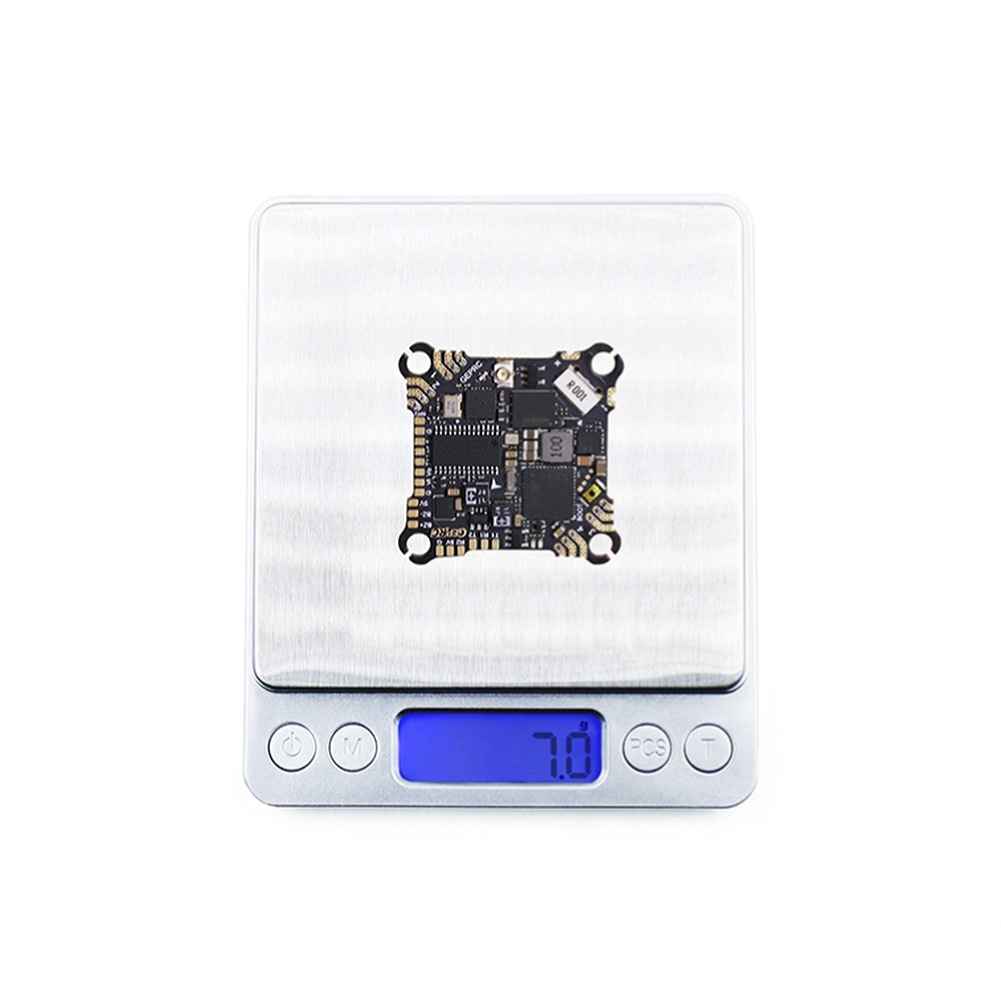

Weight: 7g
Features:
Ultra-Lightweight Design: The TAKER F411 8Bit 12A AIO is incredibly lightweight, with the integrated board weighing only 7 grams. This lightweight design enhances the overall feel of small FPV drones and improves their performance.
Precise and Smooth Flying: The AIO board features the ICM-42688-P gyro, which provides precise and smooth touch control. Whether you’re racing or performing freestyle maneuvers, this gyro ensures an exceptional flying experience.
Powerful ESC Support: The ESC supports up to 12A and is compatible with 2-4S batteries. It provides a continuous current of 12A and a peak current of 13A, delivering the power needed for dynamic flight maneuvers.
Versatile Functionality: The TAKER F411 8Bit 12A AIO supports buzzer and LED light functions, adding customization options and improving flight visibility and awareness.
Easy Installation: With 25.5mm x 25.5mm mounting holes, this AIO board is designed for easy installation in various small FPV drones. It offers convenience and compatibility for different build setups.

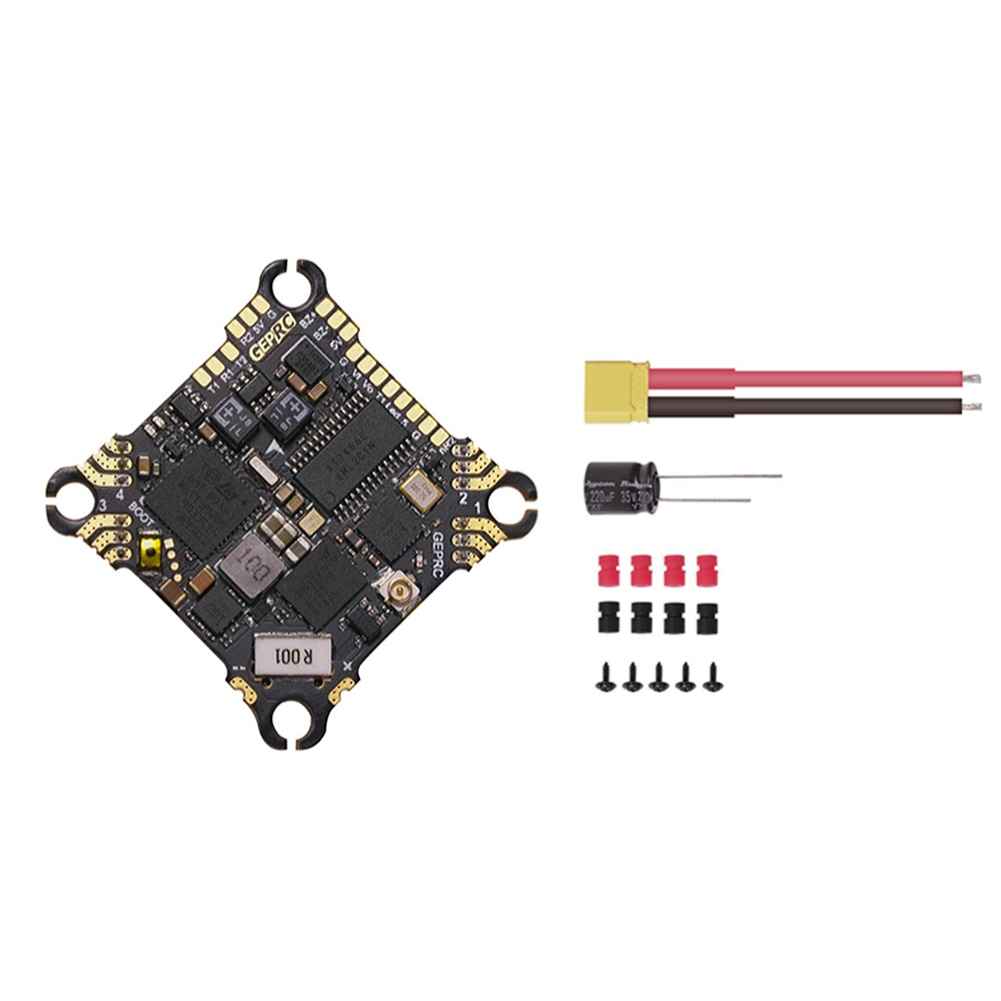

Product Includes:
1 x TAKER F41112A AIO Board (built-in ELRS receiver Version Or NO Receiver)
1 x XT30-5.5CM-20AWG power cable
8 x M2*6.5mm FC damping balls (4 each in red/black)
1 x 35V220UF capacitor
5 x Self-tapping screws (M1.4X5)
1 x Instruction manual
1 x Aluminum foil bag

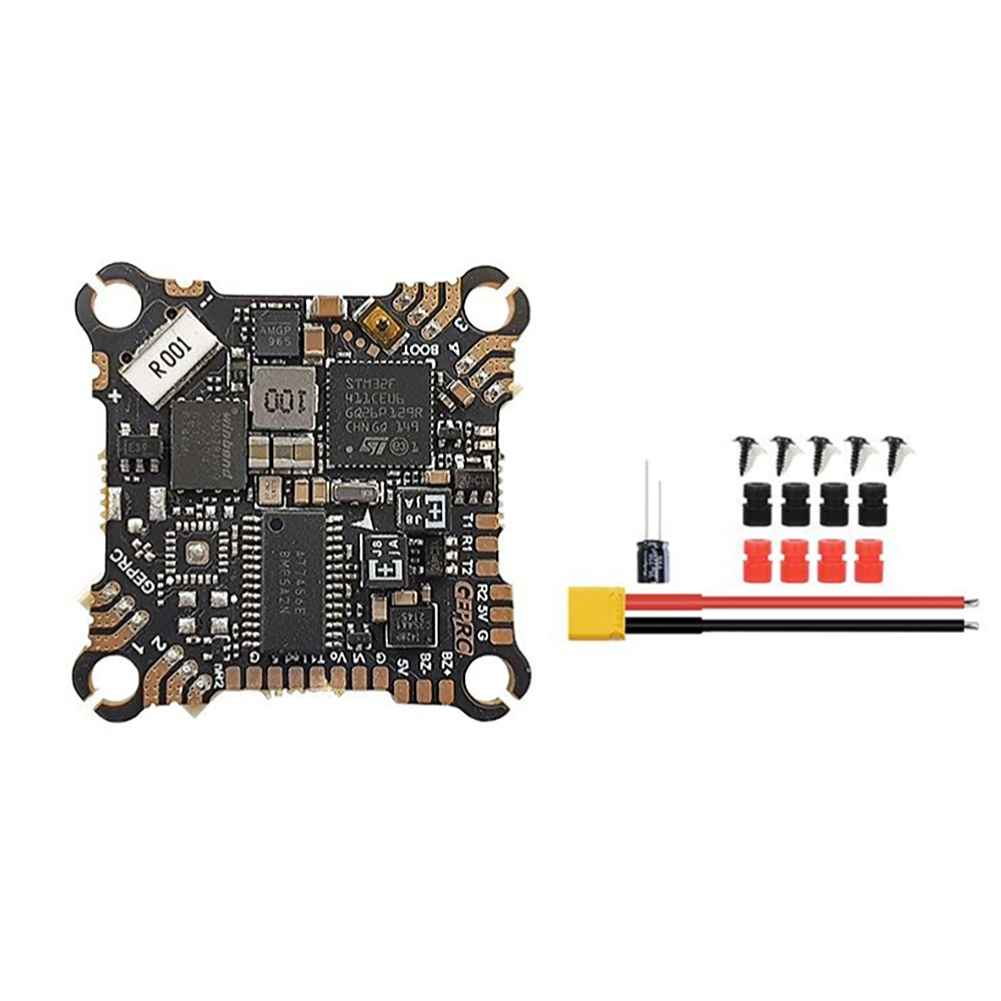

Package Included:
1 x TAKER F41112A AIO Board (built-in ELRS receiver Version Or NO Receiver)
1 x XT30-5.5CM-20AWG power cable
8 x M2 6.5mm FC damping balls (4 each in red/black)
1 x 35V220UF capacitor
5 x Self-tapping screws (M1.4X5)
1 x Instruction manual
1 x Aluminum foil bag
