Description

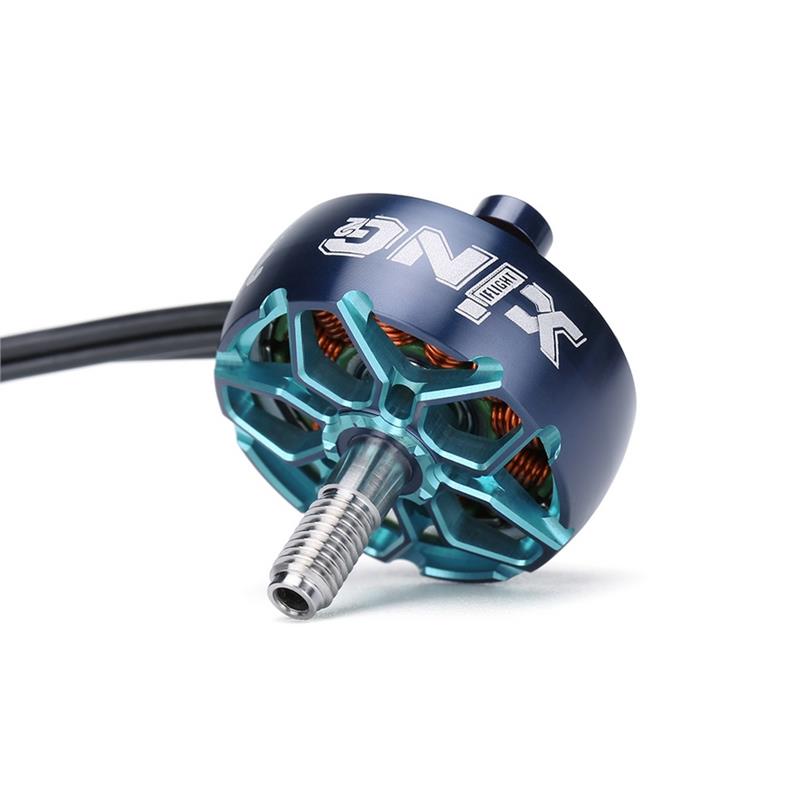

iFlight XING2 2306 1755KV 6S 2555KV 4S Brushless Motor for 5 Inch 5.1 Inch 6 Inch RC Drone FPV Racing
The iFlight XING2 2306 Brushless Motor is the next generation of high-performance motors for 5 to 6-inch RC drone FPV racing. Building on the success of the original XING series, this motor features innovative center slotted N52H curved arc magnets for reduced response time, offering a more efficient and powerful flight experience. With a robust 5mm titanium alloy shaft and crash-resistant 7075 aluminum bell, durability is ensured. The smooth operation is maintained by high-quality NSK bearings and an O-ring bearing gap protection system, minimizing vibrations and enhancing performance. Choose between 1755KV for 6S or 2555KV for 4S input voltage configurations to suit your racing needs.
Product Description:
Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft We’ve been copied and compared all these years, but now it’s time to set a new standard again! We’re finally ready to announce our predecessor the XING2!
The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it’s translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
Due to the high quality materials used and the durabl joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!
Early 2018 we started to put o-rings on the top of our bearings between motor bell and stator. This acts as an absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those vibrations induced by high rpms! It can also reduce the axial impact force just enough to keep your bearings smooth and quiet. All our experience, high quality 7075 bells, O-ring bearing protection and all the other features you’ve just seen on your original XING series are still inbuilt in a new shape and design!
Specification
Model: XING2 2306KV: 1755KV / 2555KV (select)Version: CW Screw ThreadInput Voltage: 4S 2555KV / 6S 1755KV LipoConfiguration: 12N14PStator Diameter: 23mmStator Length: 6mmWeight: 31.6g with short wireWire Length: 20AWG 160mmMounting Pattern: 16*16mm
Features:
– 5mm titanium alloy shaft, our strongest prop shaft ever!
– Crash resistant 7075 aluminum bell
– Smooth and long-lasting NSK 9x9x4 bearings
– Center slotted N52H curved arc magnets
– XING O-ring bearing gap protection
– Motor wires protector
– Dynamically balanced
Package Included:
1 x XING2 2306 Brushless Motor (KV is optional)
4 x m3 6 screws
1 x M5 Flanged Nylon Insert Lock Nut
OR
4 x XING2 2306 Brushless Motors (KV is optional)
8 x m3 6 screws
4 x M5 Flanged Nylon Insert Lock Nuts
