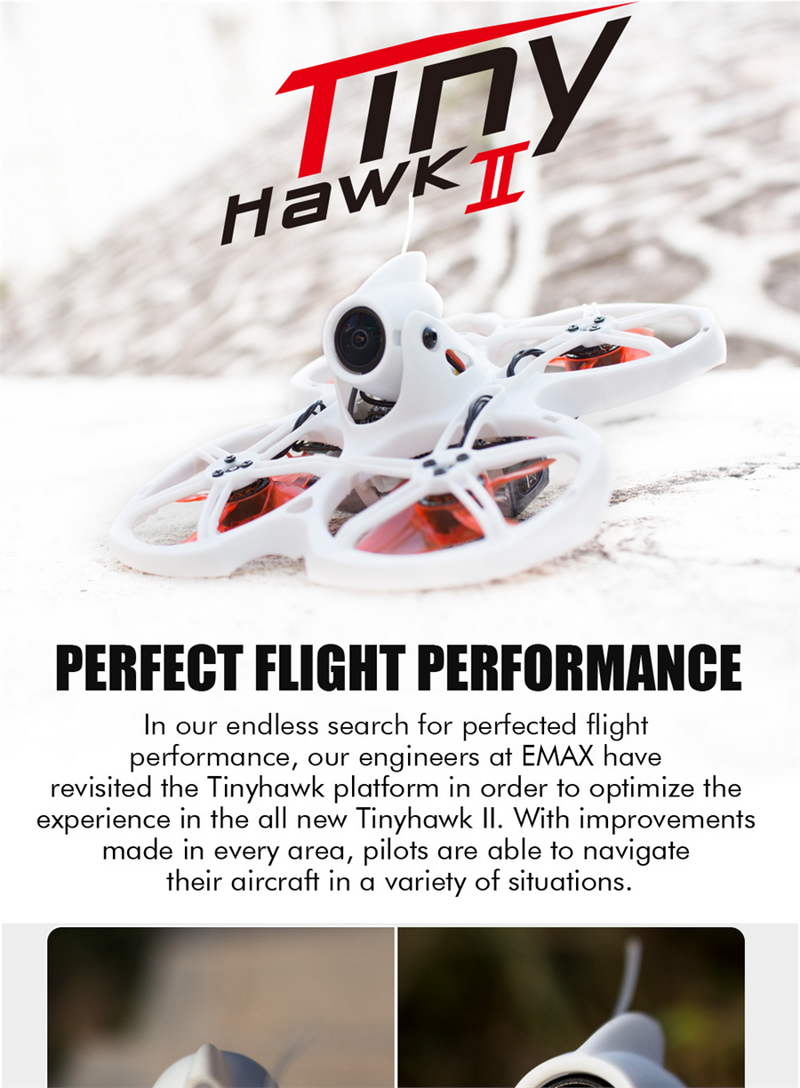

EMAX Tinyhawk II 75mm 1-2S Whoop FPV Racing Drone RTF FrSky D8 Runcam Nano2 Cam 25/100/200mw VTX 5A Blheli_S ESC
Tinyhawk II RTF Version comes already bound to your radio and on the right video channel matched with your goggle.
Please work it with user manual on Page 7 Start FPV Flight to operate it.
We strongly recommend that you fly in an open place, away from crowds and buildings.
User Manual & QA
EMAX Tinyhawk II 75mm 1-2S Whoop FPV Racing Drone RTF FrSky D8 Runcam Nano2 Cam 25/100/200mw VTX 5A Blheli_S ESC
BNF version without goggles and radio control, Click here.
Specification:
Brand name: EMAX
Item model: Tinyhawk II
| Frame | Wheelbase: 75mm Dry Weight: 31.2g All Up Weight: 43.5g with 1x 450mAh 1S battery Frame Material: Polypropylene |
| Motors | Stator Size: 0802 Kv: 16000kv Propeller Mount: Push-On Avan TH-style Propeller: Avan Turtlemode 4-Blade |
| All-In-One (AIO) Flight Controller | Flight Controller: F4 (MATEKF411RX Firmware) ESC: 4-in-1 5A BlHeli_S Receiver: EMAX SPI Receiver (Compatible with FrSky D8 mode) Battery Connector: JST-PH2.0 |
| Camera and VTX | VTX Power: 25/100/200mw Switchable Channels: 37CH incl. Raceband Camera: RunCam Nano 2 1/3′ 700TVL CMOS Smart Audio Connected |
| Goggles | EMAX Transporter Goggles Specifications: Maximum appearance size 140??153??90(mm) Weight (without battery) 398g Resolution 480??272 Battery 1 cell 18650 lipo battery |
| Transmitter | EMAX E6 Transmitter Specifications: Maximum appearance size 181??213??80(mm) Weight (without battery) 211g Number of channels 6 Channels Transmission frequency 2.4GHz ISM Band(2400MHz~2483.5MHz) Output Power 22dbm Modulation GFSK Battery 1 cell 18650 lipo battery |
Package Included:
1x Tinyhawk II FPV Racing Drone
1x EMAX Transporter 5.8G FPV Goggles
1x EMAX Transporter 18650 Goggle Battery Pack w/ USB Charging
1x EMAX E6 Transmitter
1x EMAX 450mAh 1S HV Battery
1x EMAX 300mAh 2S HV Battery
2x CCW + 2x CW Spare Props
1x 1S-2S USB LiPo Charger
1x Screwdriver + Hardware Kit
1x Micro USB Charging Cable
1x Faux Carbon Fiber Carrying Case
