Description

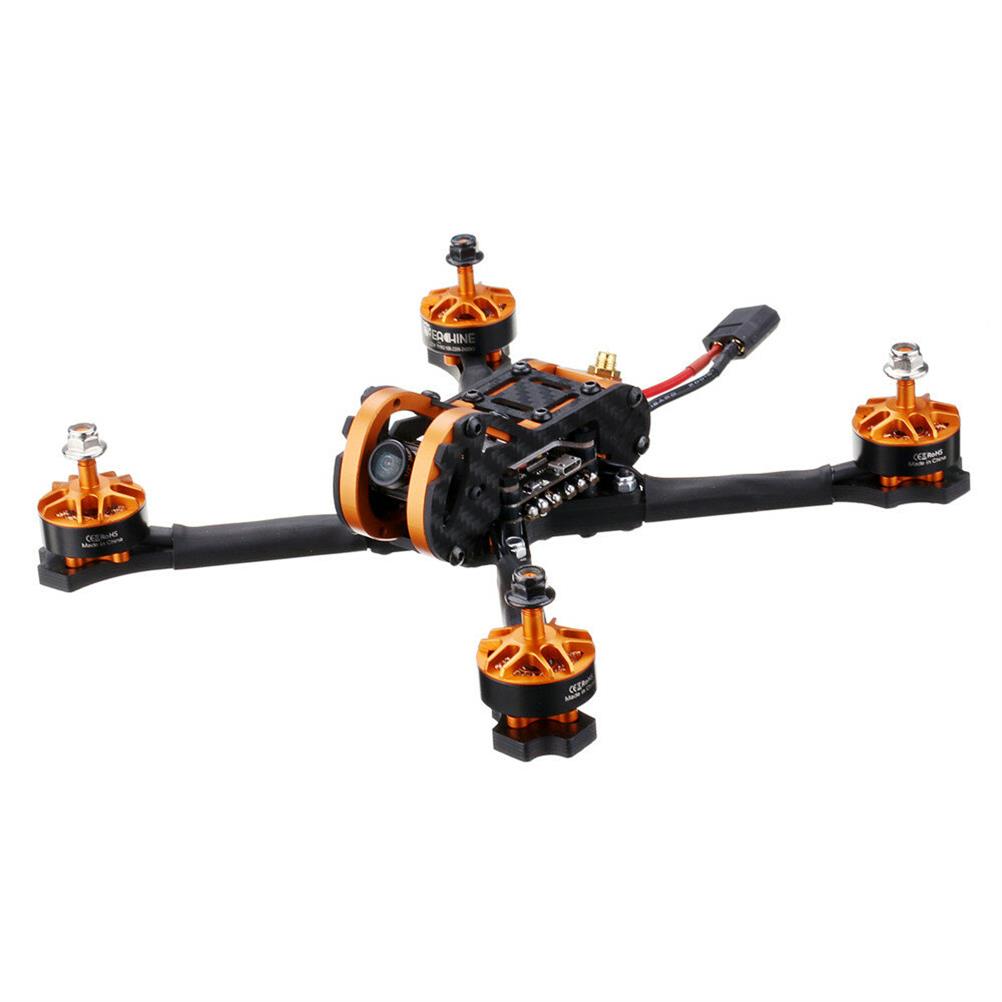

Eachine Tyro119 250mm F4 OSD 6 Inch 3-6S DIY FPV Racing Drone PNP w/ Runcam Nano 2 FPV Camera
Notice:
1. This is the DIY version that comes unassembled.
2. Comes without battery, charger, receiver or radio transmitter.
Specification:
Brand Name: Eachine
Model: Tyro119
Item Name: 250mm F4 OSD 6 Inch 3-6S DIY FPV Racing Drone
Version: PNP ( Without Receiver, Battery and Radio Transmitter)
| Item | Specification |
| 250mm Racing Frame Kit | Wheelbase: 250mm Frame arm thickness: 5mm Frame kit material: 3K carbon fiber |
| Eachine 2407 1850KV Motor | KV: 1850KV Lipo: 3-6S |
| New F4 Flight Controller ( More Details, Click here ) |
Same as Tyro99/ Tyro109 Flight Controller Main control chip: STM32F405 mpu6500 or BMI270. Barometer: NO Power supply: 5V Integrated OSD Onboard LC filter PID cycle rate & gyroscope refresh rate up to 32Khz Supports BetaFlight / inav racing firmware |
| Eachine 40A 4In1 BLHeli_S ESC | Continuous Current: 40A Burst current: 45A (10S) BEC output: 5V @ 2 A Input voltage: 2-6S Main control chip: 48mhz EFM8BB2 Firmware upgrade: Supports Dshot150-600/Multishot/Oneshot/PWM MOS: 5X6 Current Sensor: NO Size: 37.5×37.5mm Mounting Hole: 30.5×30.5mm Weight: 15g |
| Runcam Nano 2 FPV Camera | Image Sensor: 1/3′ CMOS Horizontal Resolution: 700TVL Power: DC 3-5.5V Signal System: NTSC 4:3 Current : 110mA@5V 120mA@3.3V Net Weight: 3.2g Dimensions: L14mm*W14mm*H16mm |
| J 6045 3-blade propeller | Model: 6045 Item Name: 6045 6 Inch 3-Blade Propeller Color: Transparent Black Quantity: 2 CW & 2 CCW |
| XF5804PRO VTX | Input voltage: 7-26V Onboard BEC output: 5V Number of launch channels: 40 Transmit power: 25/100/200/600mW Video format: PAL/NTSC Operating temperature: Control Protocol: TBS SmarAudio Antenna Connector: MMCX Wiring method: SH1.0-6P/pad Mounting hole: 30.5*30.5mm Size: 36*36mm |
| BN-220T GPS Module | Brand Name: Beitian Model: BN-220T |
| Recommend Lipo Battery | 5S 1300-1800mAh 50-85C Lipo Battery |
Package Included:
1x Tyro119 DIY Drone PNP
