HAKRC M8N GPS Module Compass with Cable for FPV Racing RC Drone, 25x25x8.3 mm, 72CH, Internal Electronic Compass

-30%

HAKRC M8N GPS Module Compass with Cable for FPV Racing RC Drone, 25x25x8.3 mm, 72CH, Internal Electronic Compass

Original price was: $22.21.Current price is: $15.53.

Compact size: 25x25x8.3 mm, lightweight at 13g
Supports GPS, GLONASS, Galileo, BDS systems
Internal electronic compass for accurate navigation
Wide operating temperature range: -40掳C to 85掳C
Multiple communication ports: UART, USB, I2C, SPI

SKU: RC1982689 Category: Multi Rotor Parts Tags: 72 channel GPS module, drone positioning system, FPV racing drone GPS, GPS GLONASS support, HAKRC GPS module, internal electronic compass, lightweight GPS module, RC drone navigation Brand: HAKRC

Description

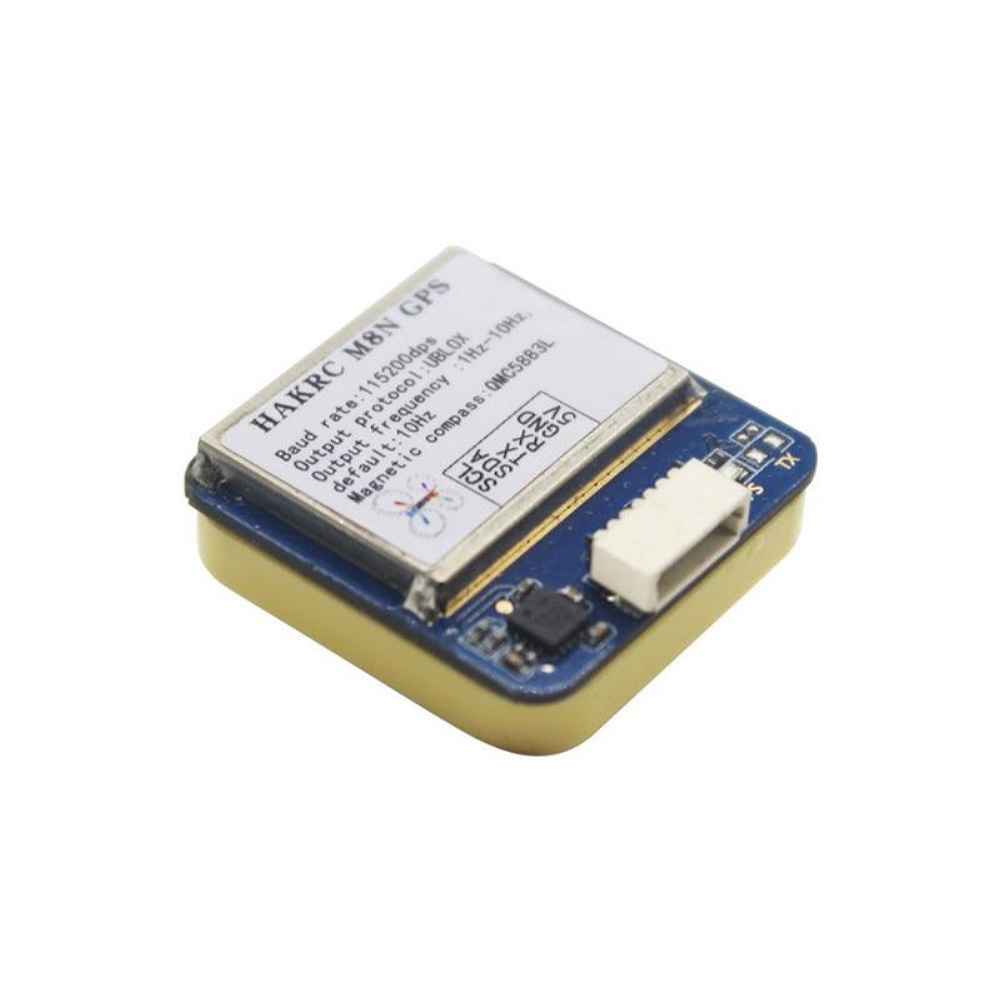

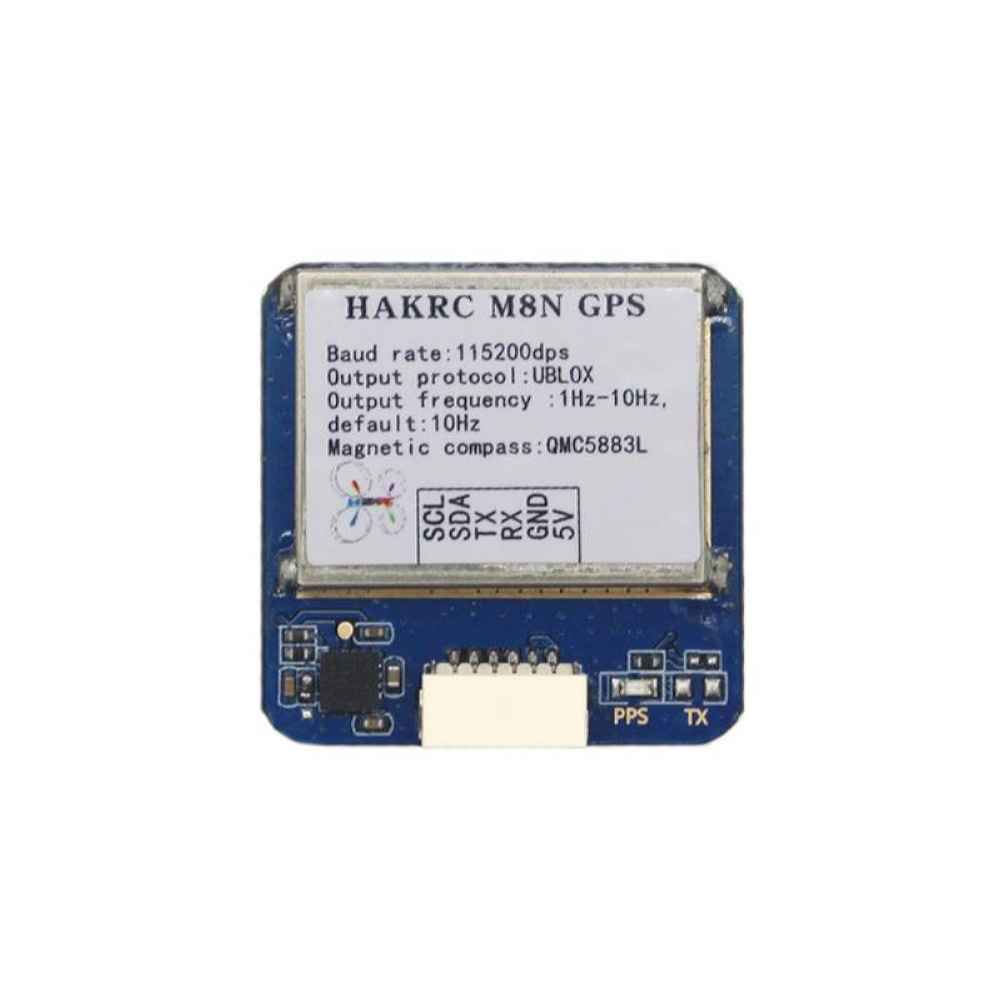

HAKRC M8N GPS Module Compass With Cable for FPV Racing RC Drone

The HAKRC M8N GPS Module Compass is designed for FPV racing RC drones, offering precise navigation and positioning. Measuring 25x25x8.3 mm and weighing just 13g, this module operates efficiently in temperatures ranging from -40鎺矯 to 85鎺矯. It supports multiple satellite systems, including GPS, GLONASS, Galileo, and BDS, with a sensitivity of -162dBm for tracking. The module features an internal electronic compass and supports a wide range of communication ports such as UART, USB, I2C, and SPI. With a receiving channel capacity of 72 and an update frequency between 1-10 Hz, it ensures reliable performance. The power consumption is efficient with a typical voltage of 5.0V and current of 50mA at 5.0V.

Description:
Brand: HAKRC
Item Name: M8N GPS Module

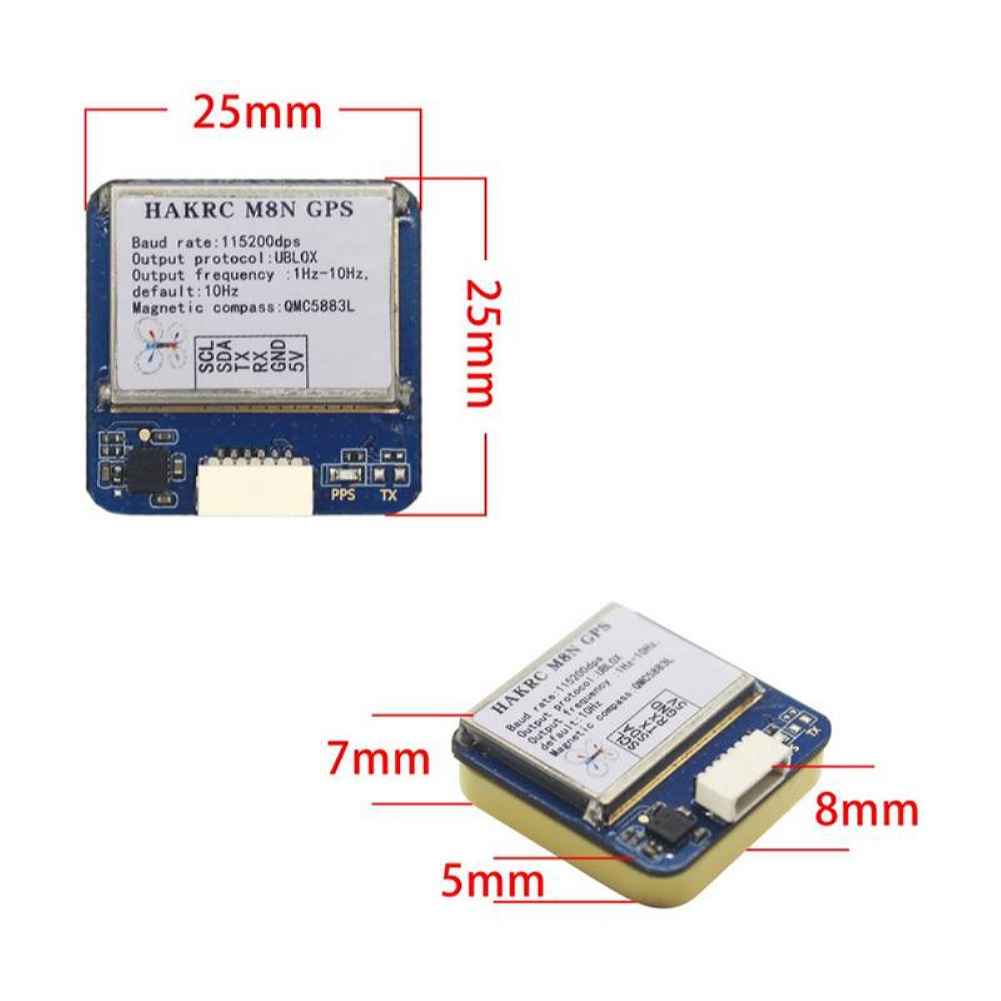

Size: 25x25x8.3 mm
Net Weight: 13g Operating temperature銊?40鈯ャ€?5鈯oltage: 3.3V~5V DC
Port銊︰ART/USB/I2C/SPI Frequency銊〨PS:L1C/A, GLONASS:L1C/A, Glileo銊〦1 BDS:B1l,B2l,B1C,B3 SBAS:L1, QZSS:L1C/A Support Rate銊?800,9600,19200,38400,57600,115200bps Receiving Channe:72CH Update frequency:1-10 Hz Compass銊﹊nternal electronic compass
Sensitivity:
Track: -162dBm
Re-arrest: -160dBm
Cold Start: -148dBm
Work Restrictions:High: 50000MSpeed: <500m/sGravitational Acceleration: 姹?4GPower Consumption:Voltage: DC 3.3V-5V, typical: 5.0VCurrent: Normal 50mA/5.0V

Package Included:

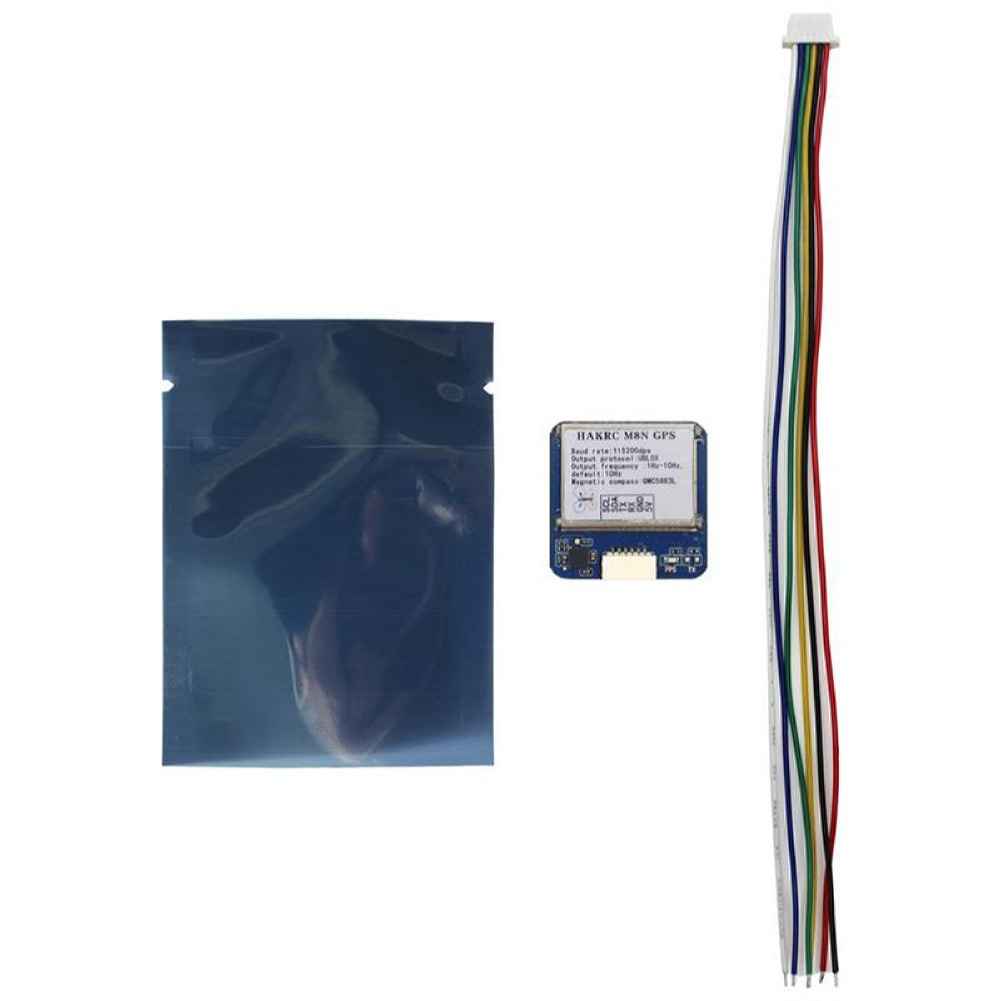

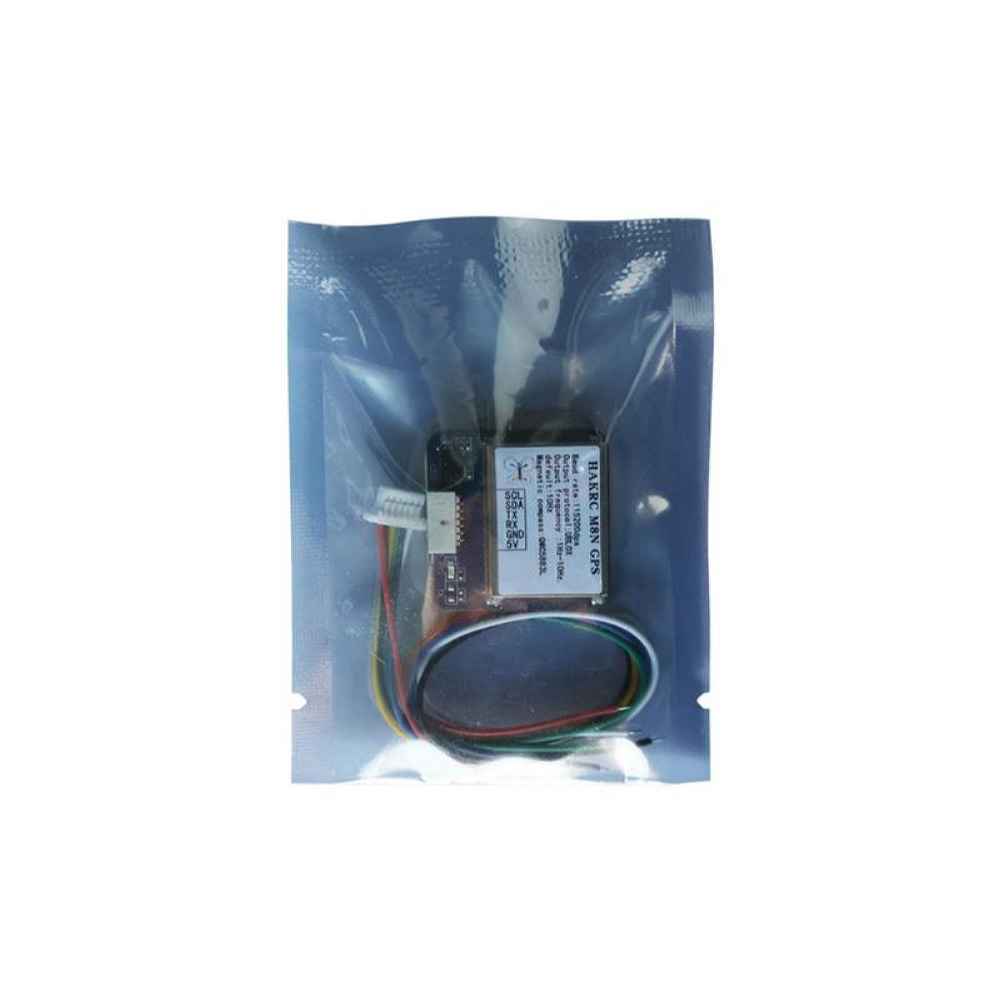

1 x HAKRC M8N GPS Module
