Description

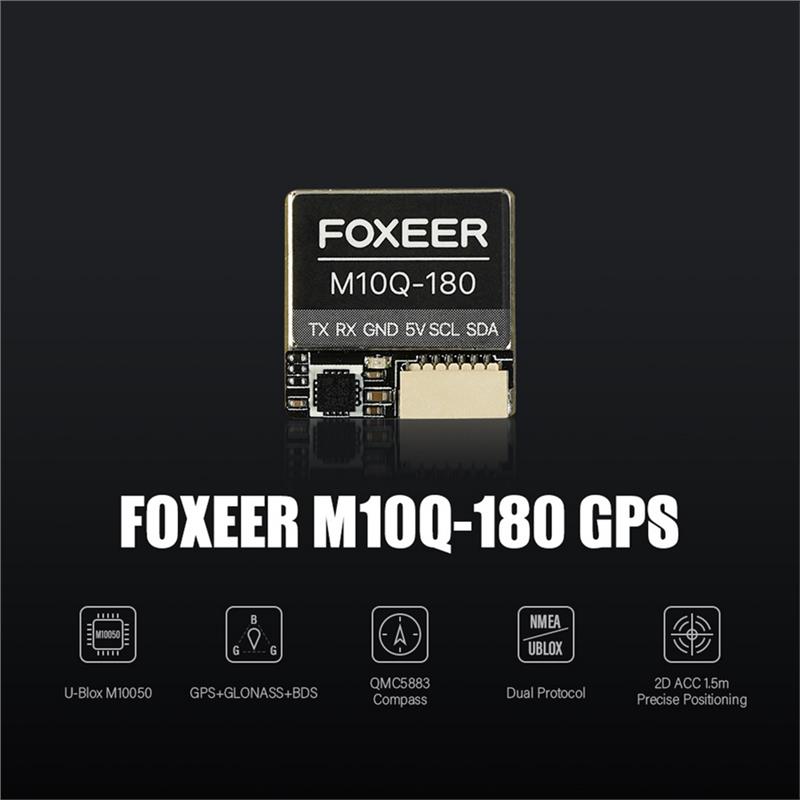

Foxeer M10Q 180 5883 Compass GPS M10 Chip Built-in Ceramic Atenna for RC Drone FPV Racing
The Foxeer M10Q 180 5883 GPS Compass is engineered with an advanced M10 chip, offering exceptional GPS precision for RC drone FPV racing. It supports multiple satellite systems, including GPS, GLONASS, BDS, GALILEO, and QZSS, ensuring reliable positioning. The built-in ceramic antenna and QMC5883 compass enhance signal reception and orientation accuracy. Operating at a baud rate of 115200bps, it delivers dual NMEA/UBLOX protocol outputs with a default frequency of 10Hz, adjustable from 1Hz to 10Hz. The device boasts a remarkable speed accuracy of 0.05m/s and horizontal positioning accuracy of 1.5m outdoors. It operates efficiently under dynamic conditions with a height capacity of 50,000m, speed up to 500m/s, and acceleration of 4G. The compact design measures 18x18x8mm and weighs just 7.5g, making it a perfect fit for drones.
Specification:
Chip:M10(10th Generation Chip)
Frequency:GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
Input Voltage:5V
Antenna:Ceramic Antenna
Channel:72
Battery:Bilid-in

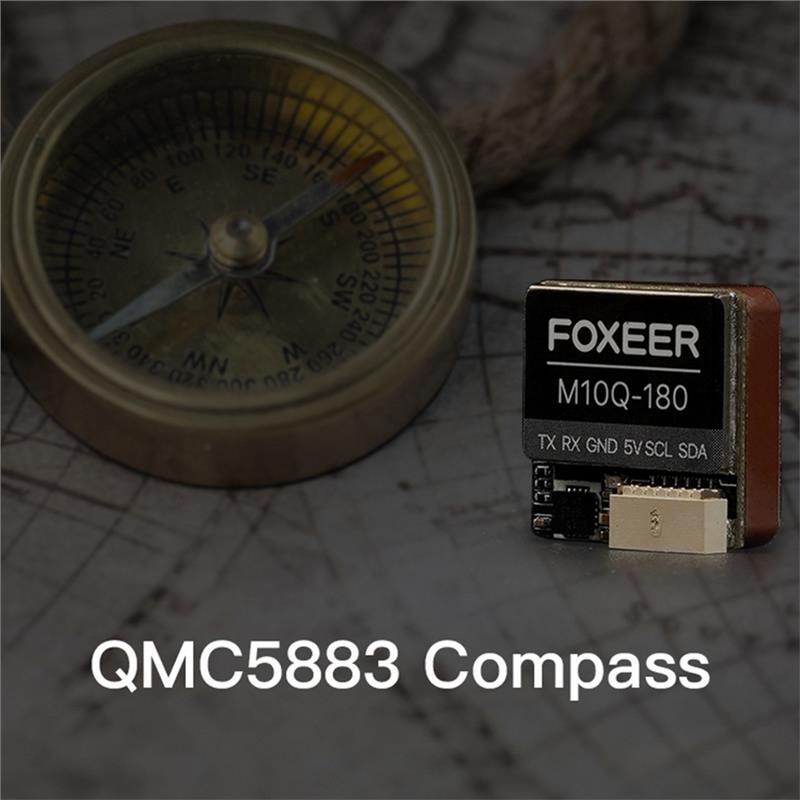

Compass:QMC5883
Baud Rate:115200bps
Protocol:Dual NMEA/UBLOX
Output Frequency:1Hz-10Hz,10Hz default
Speed Accuracy:0.05m/s
Horizontal Positioning Accuracy:2D ACC1.5m(outdoor)
Receiver Sensitivity:Trace -166dBm; Capture -160dBm
Dynamic Characteristics:Height 50000m; Speed 500m/s; Acceleration 4G
Operating Temperature:-40C-+85C
Storage temperature:-40C-+105C
Weight:7.5g

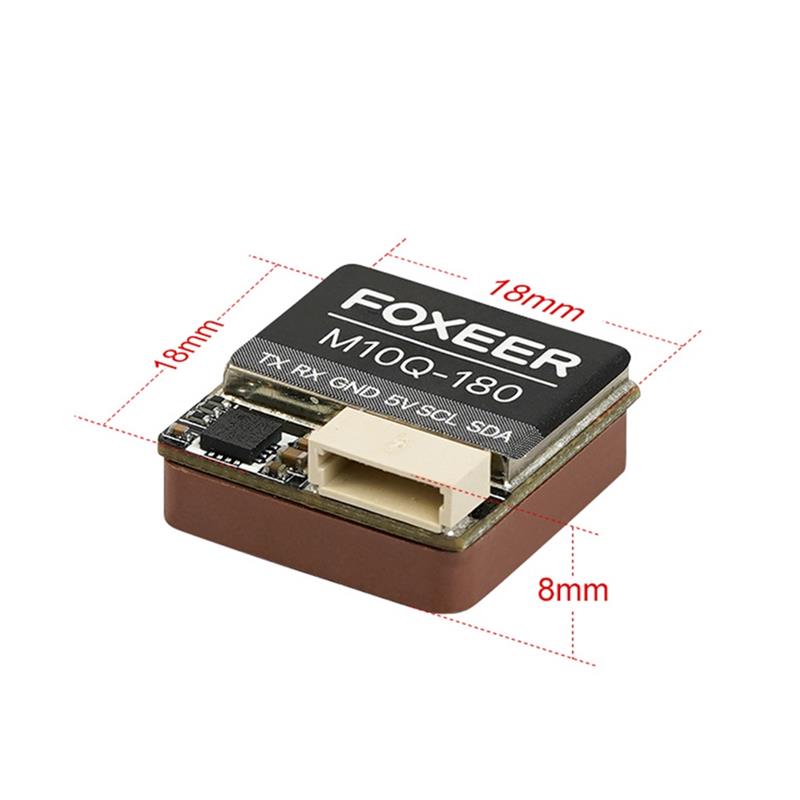

Size:18*18*8mm
Package Included:
1 x Foxeer M10Q 180 5883 Compass GPS
