HSKRC Butterfly 30 140mm Wheelbase 3 Inch 3K Carbon Fiber Duct Frame Kit for DIY RC Drone FPV Racing

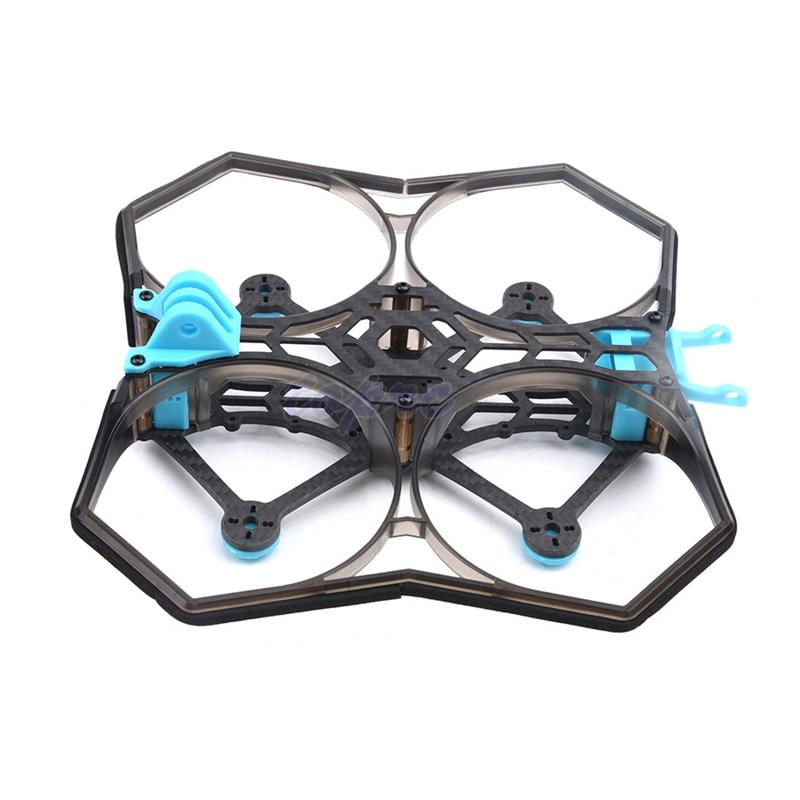

The HSKRC Butterfly 30 Frame Kit is designed for DIY FPV racing drones, featuring a 140mm wheelbase and 3-inch frame. Constructed from durable 3K carbon fiber, this kit ensures a lightweight and high-strength build. It includes a high-strength plastic protection ring for added safety. The frame supports various flight controller hole positions and camera spacing, allowing for versatile customization. With an internal space height of 26mm and a top plate thickness of 1.5mm, this kit is perfect for drone enthusiasts looking to build their own racing drone. Please note that this kit comes unassembled and requires assembly by the buyer.
Notice: Comes unassembled. Need build by buyers.
Specification:
Brand: HSKRC
Model: Butterfly 30
Item Name: 140mm Wheelbase 3 Inch Frame Kit
Frame wheelbase: 140mm
Empty weight + full set of prints: 115g
Internal space height: 26mm
Top plate thickness: 1.5mm
Bottom plate thickness: 3mm
Flight controller hole position: 16*16/20*20/25.5*25.5mm/30.5*30.5mm
Support Camera Spacing: 14x14mm
Features:
– Lightweight and easy flight
– High-strength plastic protection ring
– Easy build
Recommend Parts: ( NOT Included)
FC & ESC: 25.5×25.5mm GHF411AIO BMI F4 FC w/ 5V 10V BEC AIO 40A BL_S 4In1 ESC
Brushless Motor: HSKRC 1505Plus 3750KV 3-4S / 2650KV 4-6S Brushless Motor 1.5mm Shaft
Propeller: 2 Pairs Gemfan Hurricane 3020 3 Inch 1.5mm Shaft 3-Blade Propeller
VTX: HGLRC Zeus nano VTX 25/100/200/350mW 5.8Ghz 40CH Tramp Protocol With Microphone
FPV Camera: Caddx Ant Lite 1/3” CMOS 1.8mm 1200TVL 4:3 P/N Global WDR FOV 165锝?FPV Camera
Lipo Battery: ZOP Power 14.8V 1300mAh 100C 4S Lipo Battery XT60 Plug
Gaoneng GNB 22.8V 1100mAh 60C 6S LiPo Battery XT60 Plug
Package List:
1x Butterfly 30 Frame Kit
Package Included:
1 x Butterfly 30 Frame Kit
