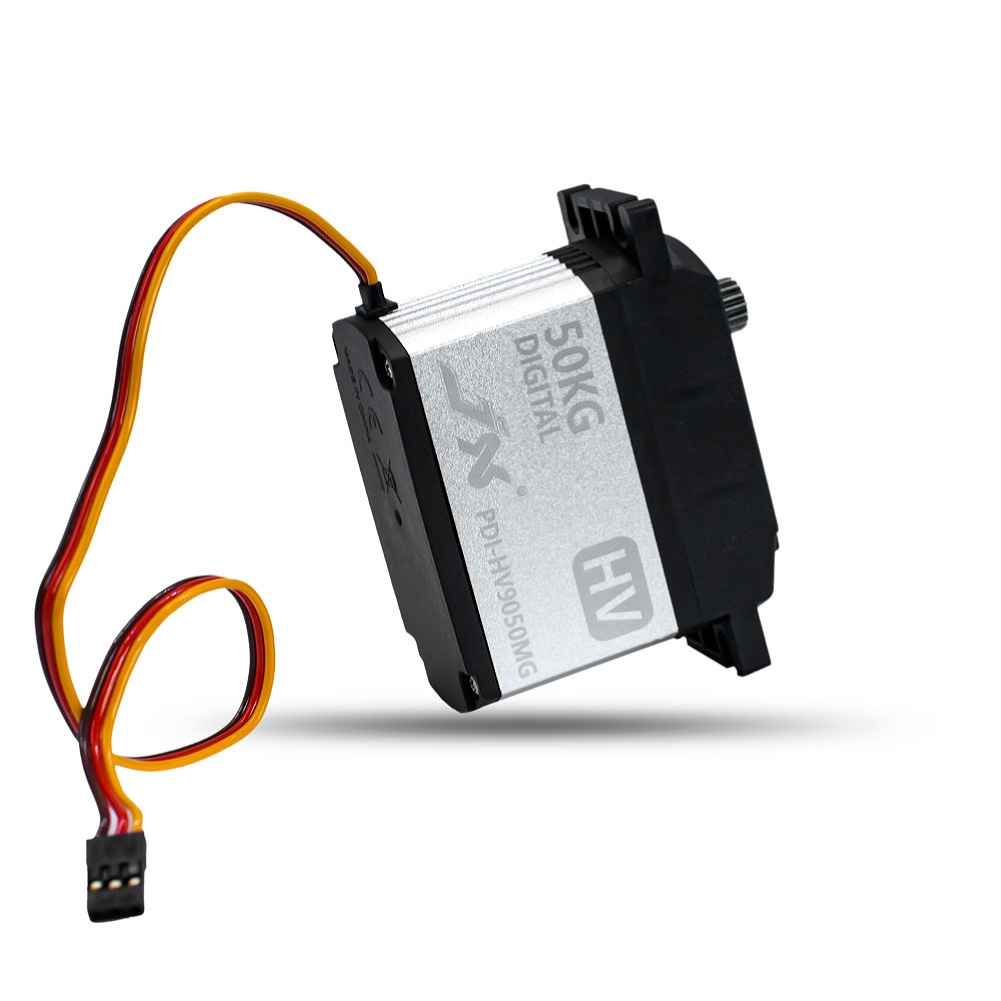

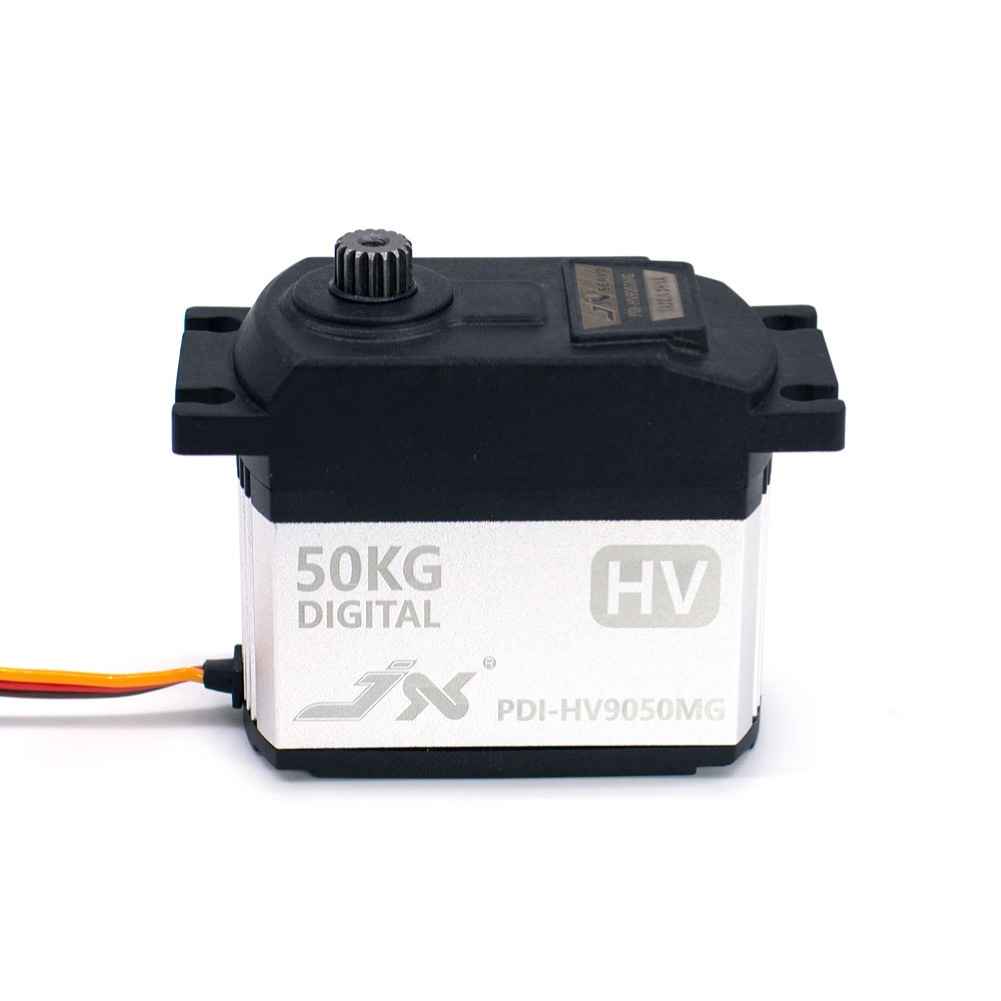

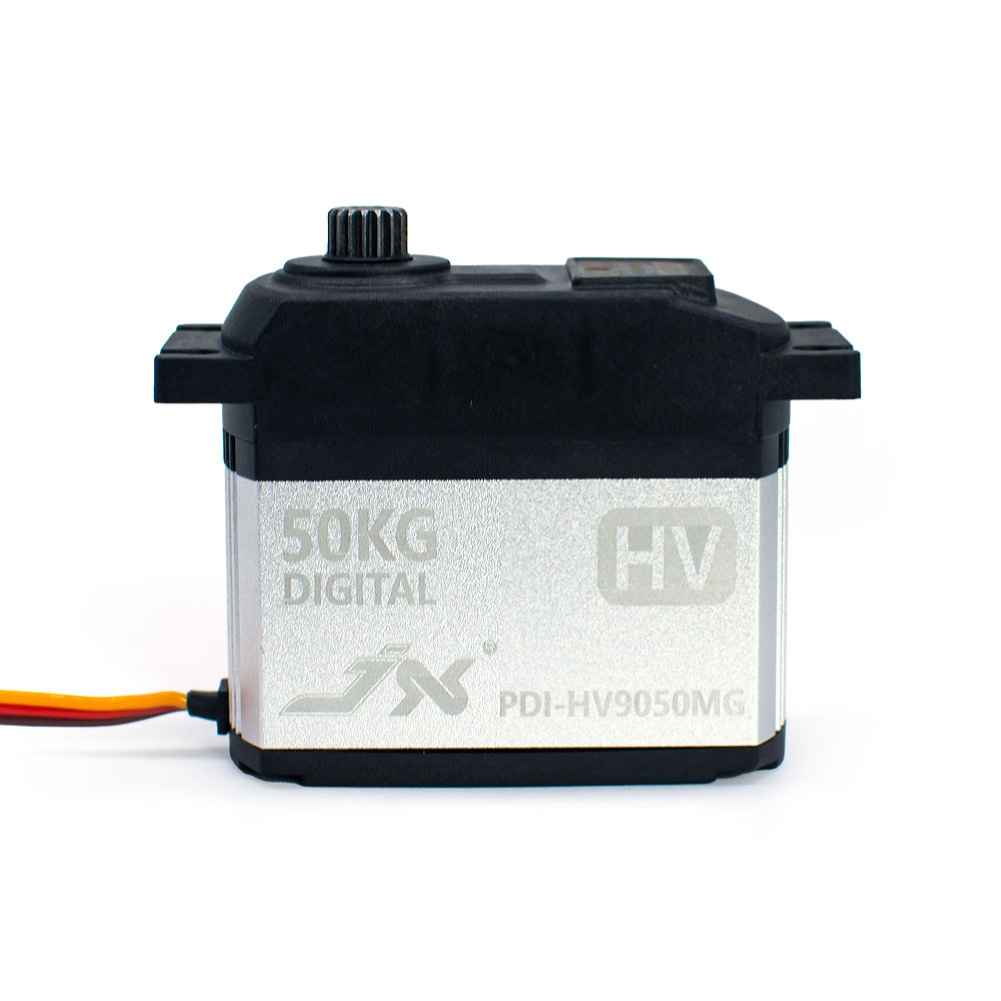

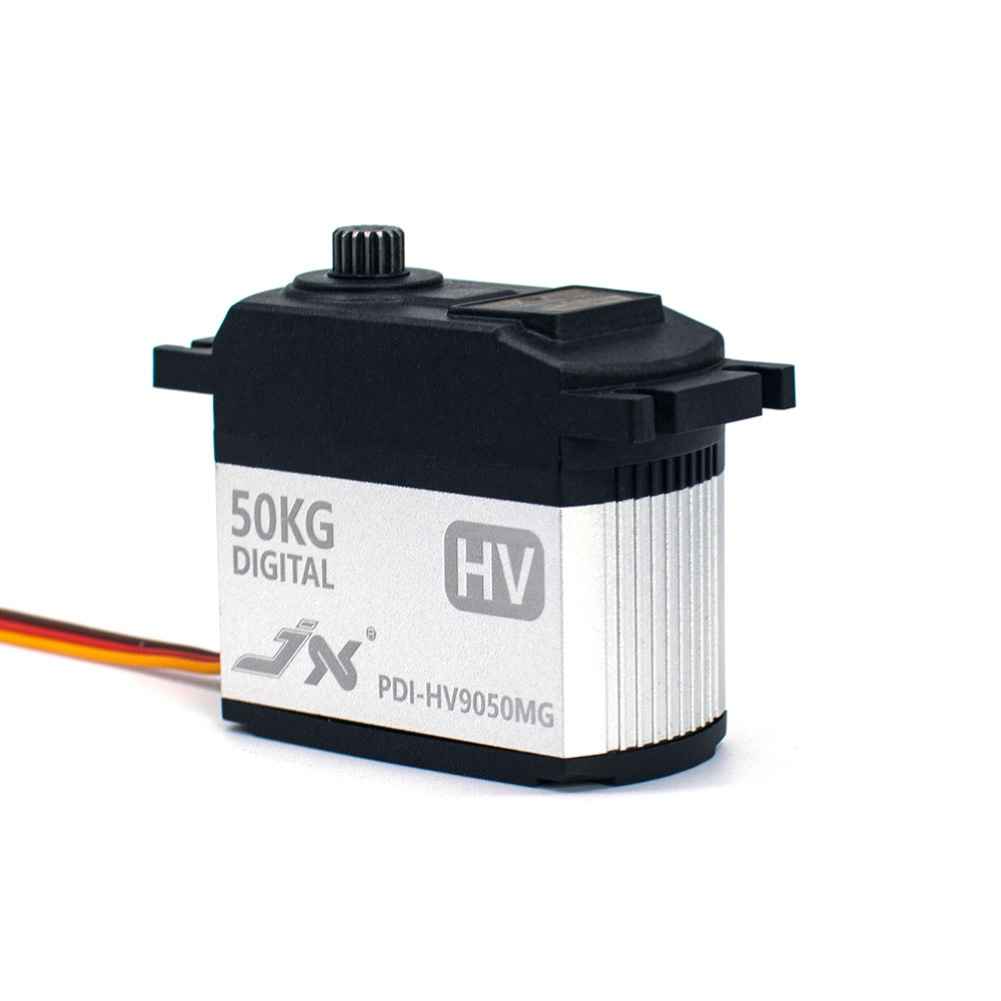

JX PDI-HV9050MG 50KG 160 degree Angle High Precision Metal Gear Digital Standard Servo Motor Robot UAV Hobby Education
The JX PDI-HV9050MG Digital Servo Motor is designed for high precision and performance, making it ideal for robotics, UAVs, and educational projects. This servo motor features a robust cored motor and operates with a maximum angle of 160 degrees. It is equipped with Taiwan-made aluminum gears, ensuring durability and precision. With a stall torque of up to 52kg.cm at 8.4V and operating speeds of 0.16sec/60°, this servo provides reliable and efficient performance. The CNC aluminum middle shell enhances its strength, while the dual ball bearings ensure smooth operation. Compact and lightweight, this servo is perfect for various hobby and educational applications.
Specification:
Max Angle:160～
Pulse width:1000-2000米s=90～
Pulse width:500-2500米s=160～
Dead band: 6米s
Working frequence: 1520米s / 330hz
Motor: Cored Motor
Operating Speed (6.0V): 0.18sec/60～
Operating Speed (8.4V): 0.16sec/60～
Stall Torque (6.0V): 39kg.cm
Stall Torque (8.4V): 52kg.cm
Dimensions: 63.1X32.2X55.9mm
Weight: 163 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Gear Teeth:17T
Features:
160 Angle 50kg digital servo
High performance digital standard servo

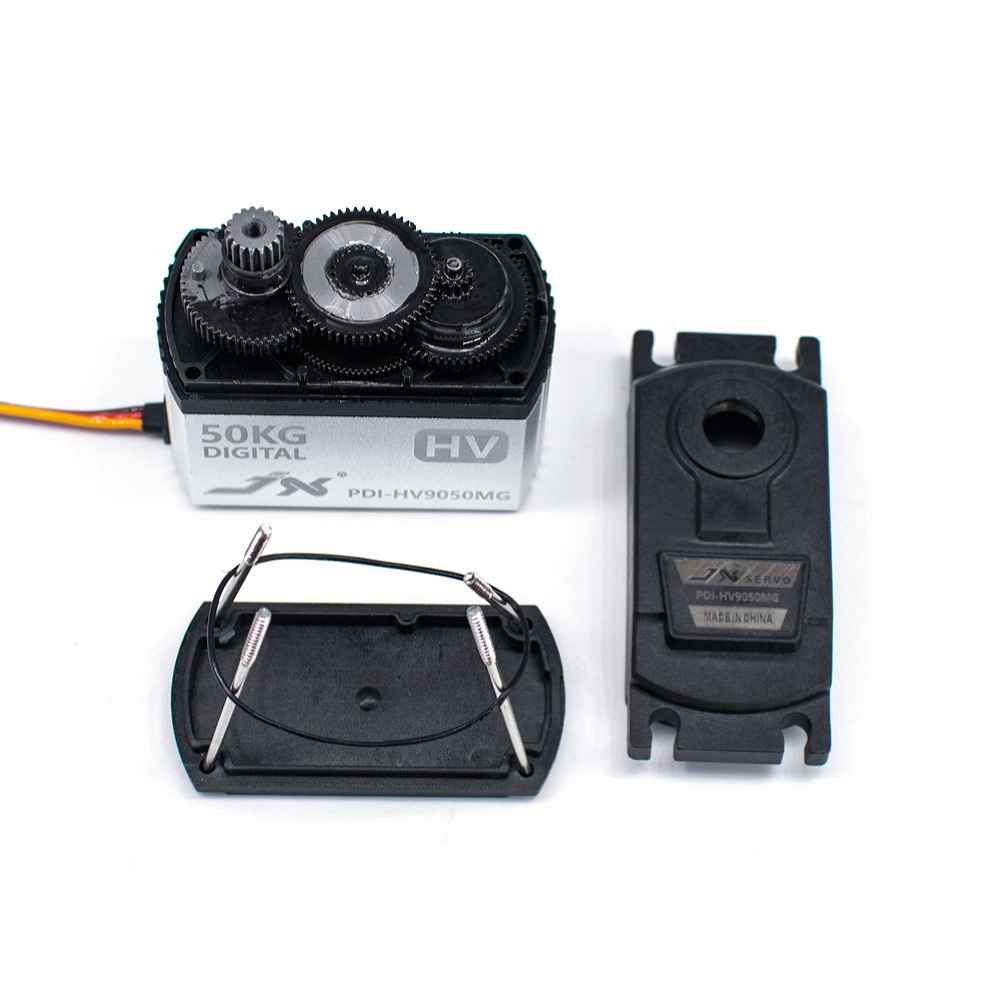

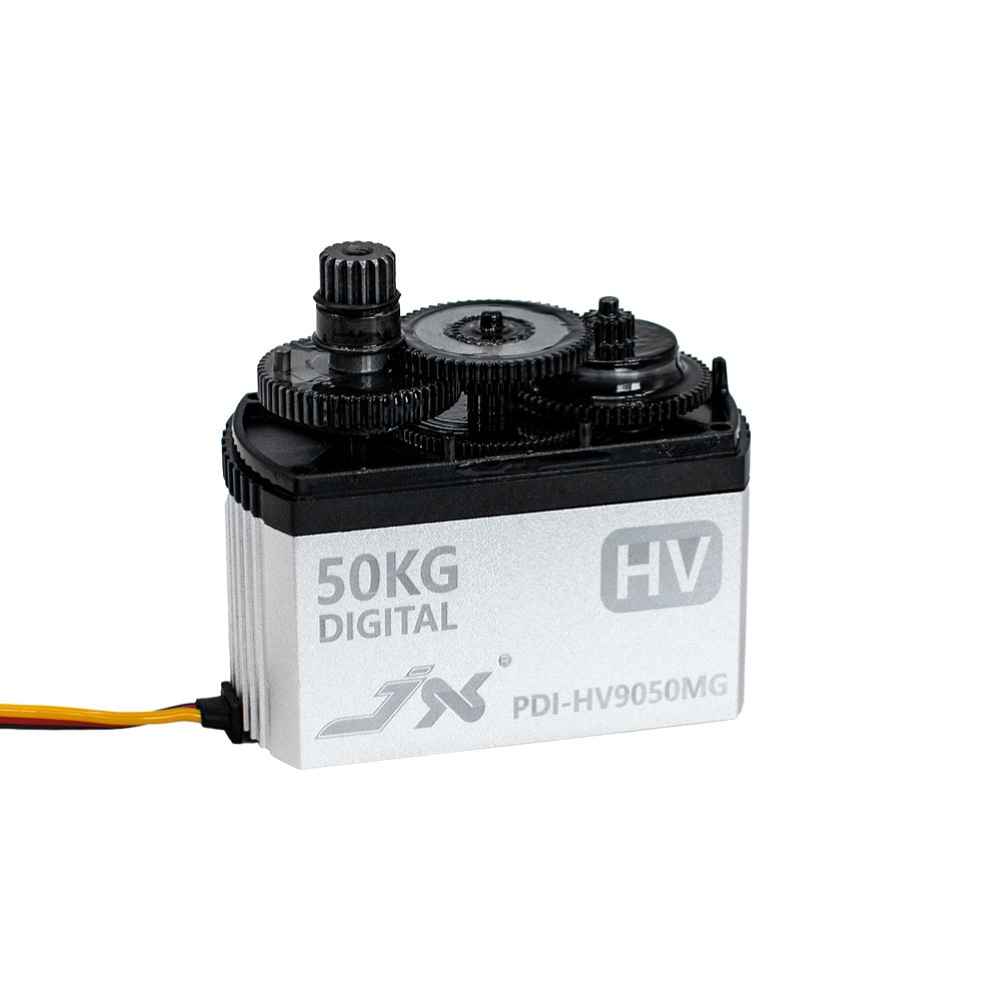

High-precision Taiwan-made aluminium gears with hard anodizing
CNC aluminium middle Shel

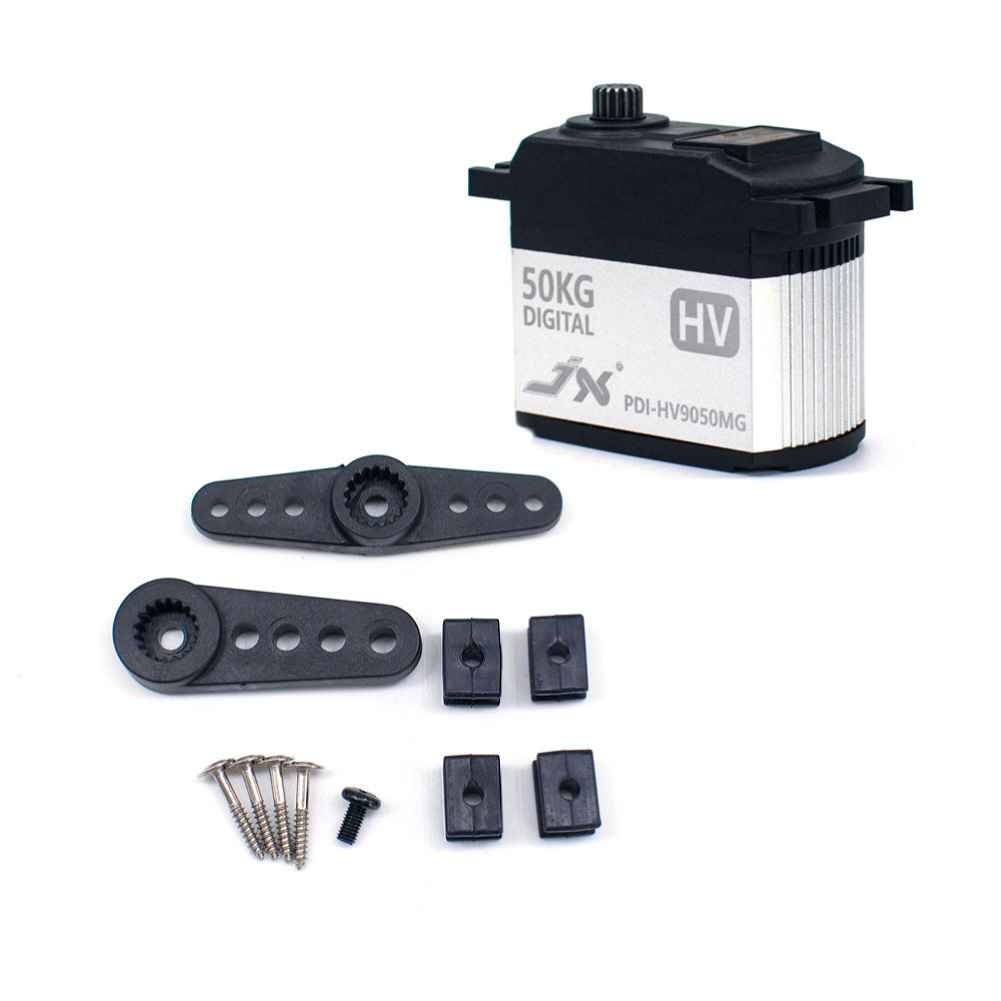

Package Included:
1 x JX PDI-HV9050MG Digital Servo
