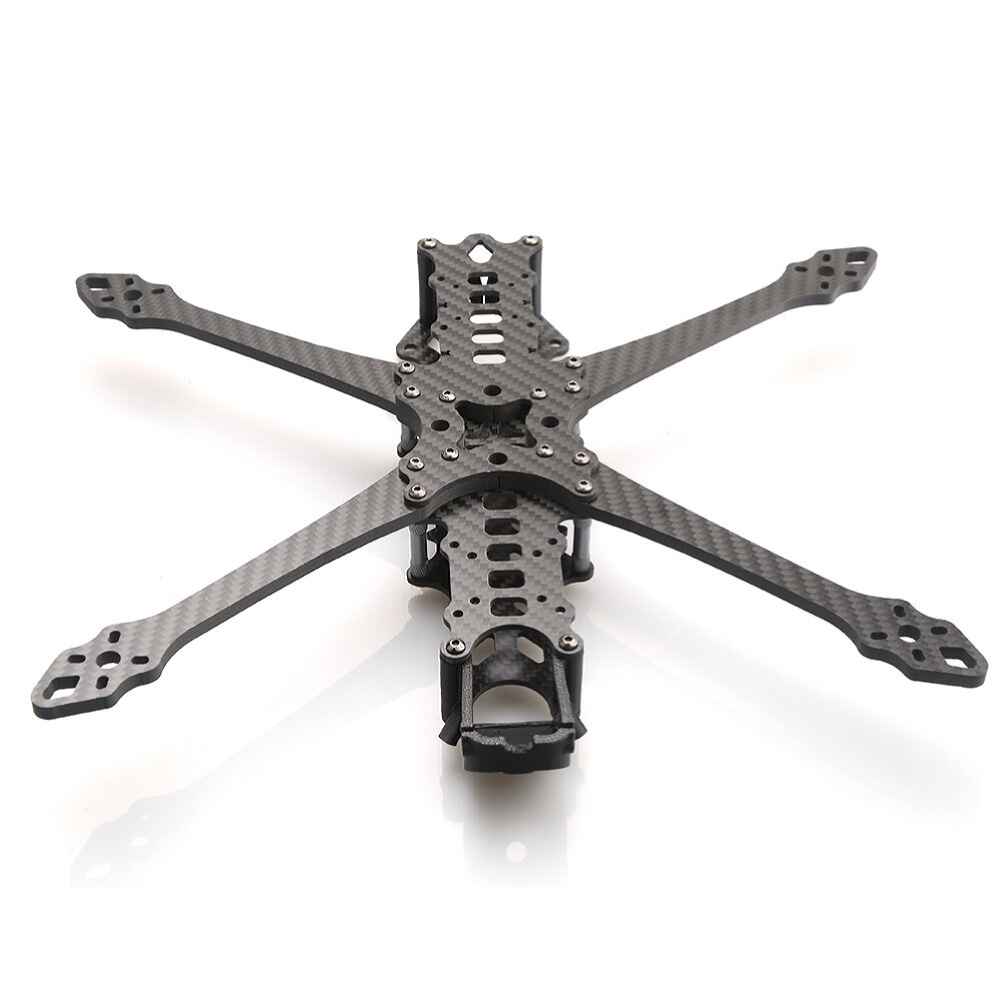

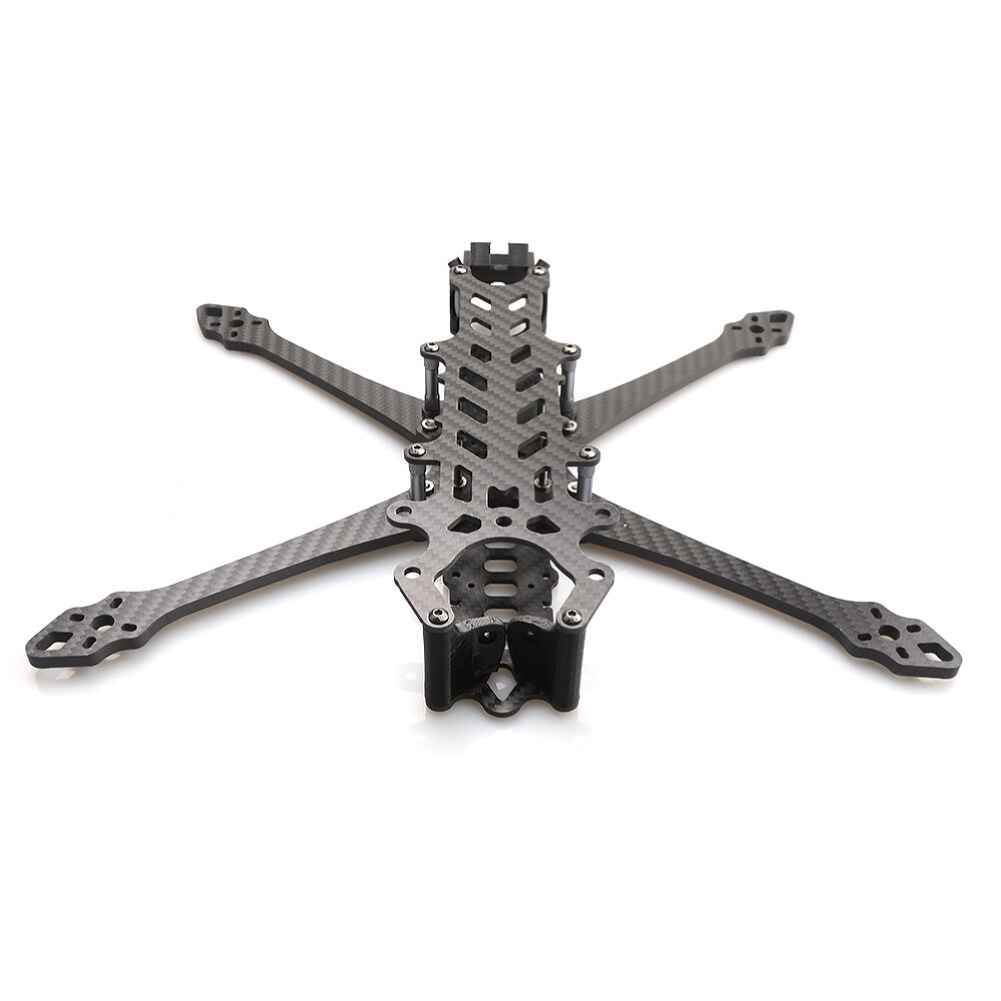

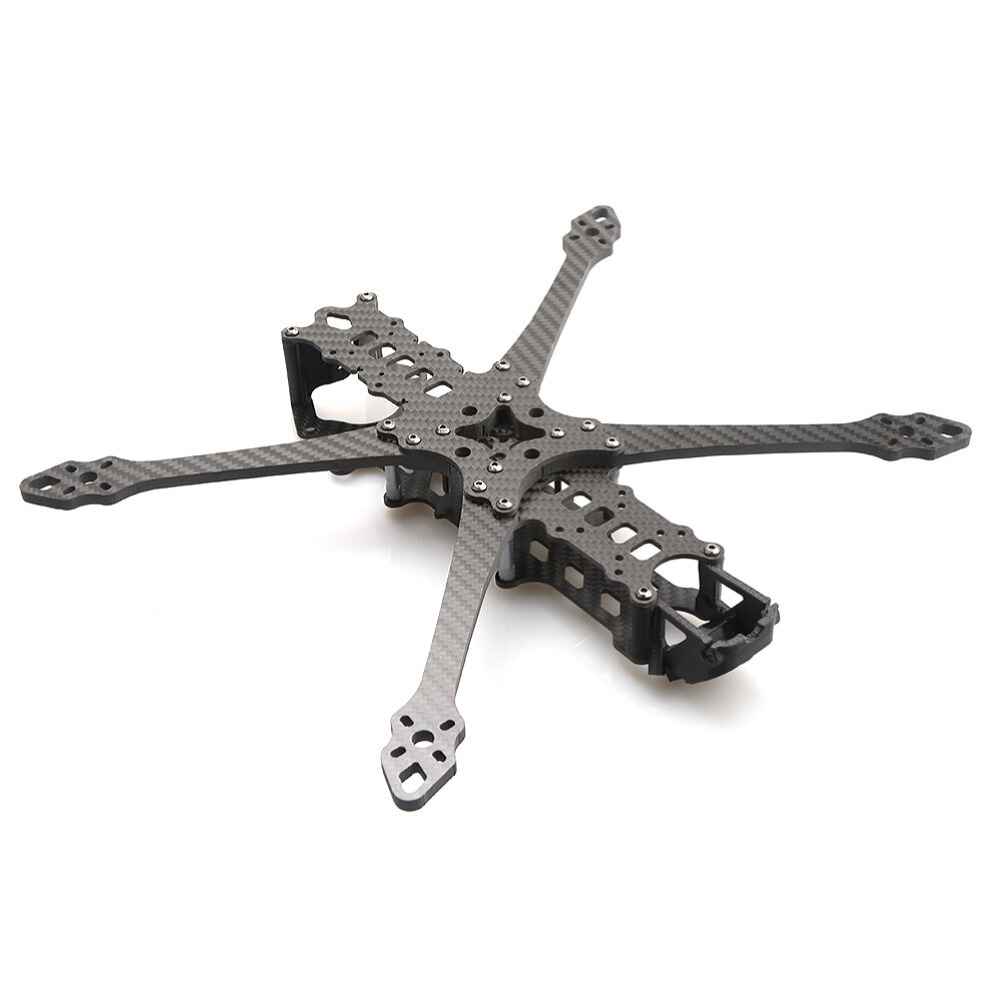

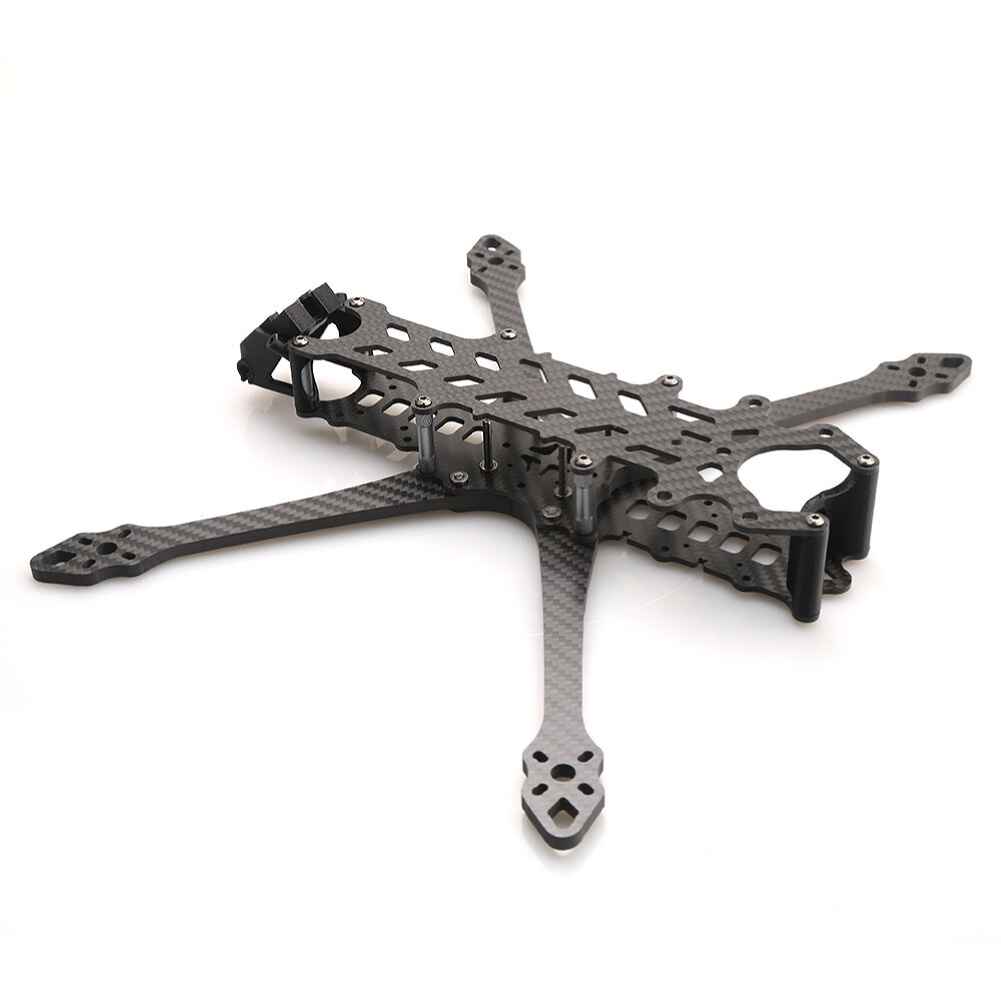

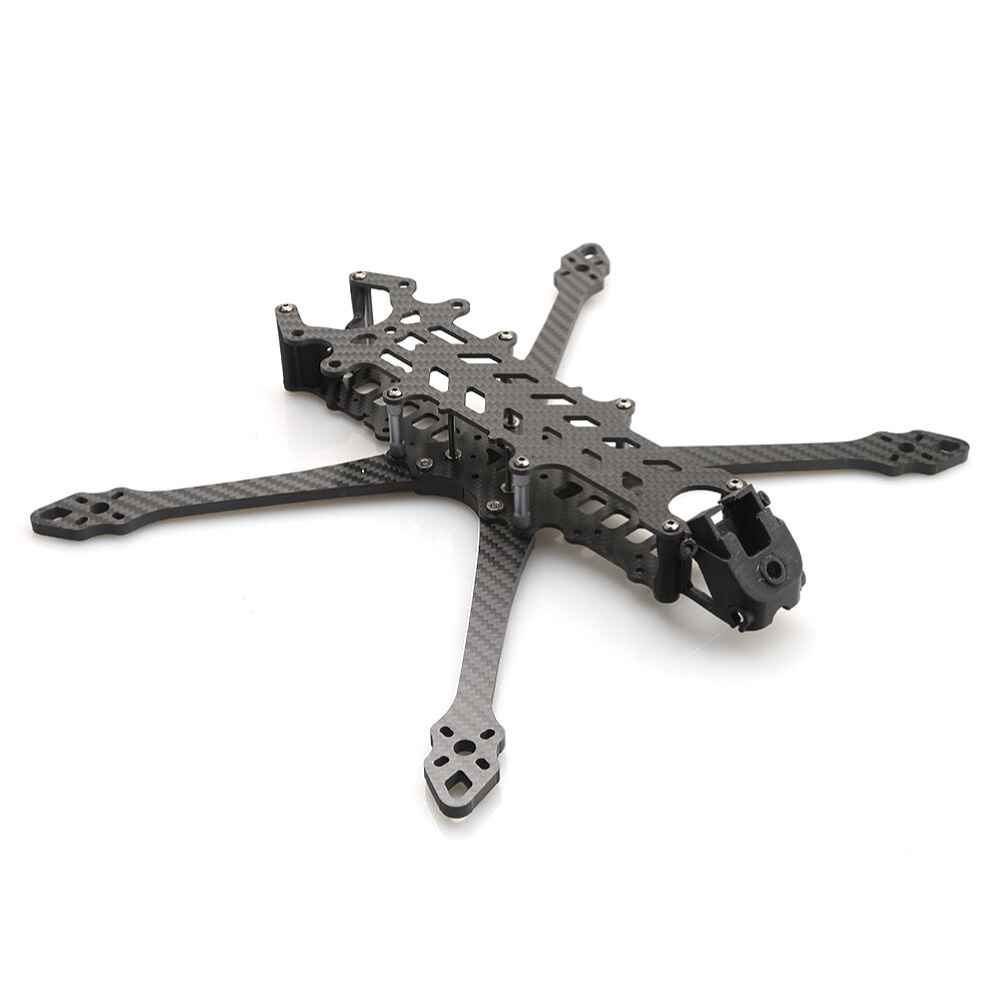

Poisonous Bees 7 Inch 305mm Wheelbase 5mm Arm Carbon Fiber Frame Kit for DIY Long Range RC FPV Racing Drone
The Poisonous Bees 7 Inch 305mm Wheelbase Frame Kit is designed for DIY enthusiasts and experienced drone pilots seeking a robust and lightweight option. This unassembled kit features a durable carbon fiber H-type frame, ensuring enhanced flight performance. With a 305mm wheelbase and 7-inch propeller compatibility, it provides stability and smooth maneuverability. The frame includes a 5mm thick shoulder arm, making it suitable for long-range FPV racing drones. It supports various flight controllers and motors, offering customization for an immersive flying experience. The frame’s design also allows for easy installation of FPV cameras and VTX systems, making it ideal for thrilling and immersive flights.
Notice: Comes unassembled. Need build by buyers.
Specification:
Model: Poisonous Bees
Item Name: 305mm Wheelbase 7 Inch Frame Kit
Rack type: H-type DF
Wheelbase: 305mm
Propeller: 7-inch
size: 355x135mm
Weight: 143g (in static bag packaging)
Bottom plate thickness: 2.0mm
Middle plate thickness: 2.0mm
Top plate thickness: 2.0mm
Shoulder arm thickness: 5.0mm
Camera installation spacing: 19mm
Installation hole spacing for vtx: 20x20mm / 30x30mm
Flight controller installation hole spacing: compatible with20x20mm / 30x30mm
Features:
1. Lightweight and durabl carbon fiber frame for enhanced flight performance.
2. FPV compatible design for immersive and thrilling flying experiences.
3. Equipped with printed parts for added customization and visual appeal.
4. 7-inch wheelbase offers stability and smooth maneuverability during flights.
5. Suitable for both experienced drone pilots and toy enthusiasts.
Recommended configuration: (not included)
Flight control: F3/F4/F7/F405/F722
Motor: 2204/2205/2306/2307/2806.5/2807/2810/2812, etc
Battery: 3-6S 2200MAH-6000MAH
Propeller: 7 inch
The following Parts are Compatible: ( Not Included)
FC & ESC Stack: 20x20mm iFlight BLITZ Mini F7 Flight Controller / BLITZ Mini E55 BL_32 4in1 ESC
Brushless Motor: EMAX Pro Series 2810 950KV 1150KV 3-6S Brushless Motor
Propeller: 6 Pairs Gemfan 7050 7.0×5.0 7 Inch 3-Blade Prop Propeller 5mm Hole
VTX: HGLRC Zeus VTX PRO 5.8G 40CH PIT/25/400/800/1600mW
FPV Camera: Caddx Ratel 2 1/1.8 Inch Starlight 1200TVL
Lipo Battery: ZOP Power 22.2V 3300mAh 100C 6S Lipo Battery XT60 Plug
Packaging lncluded:
1x 7 inch Frame Kit ( Unassembled)
Package Included:
1 x 7 Inch Frame Kit (Unassembled)
