Description

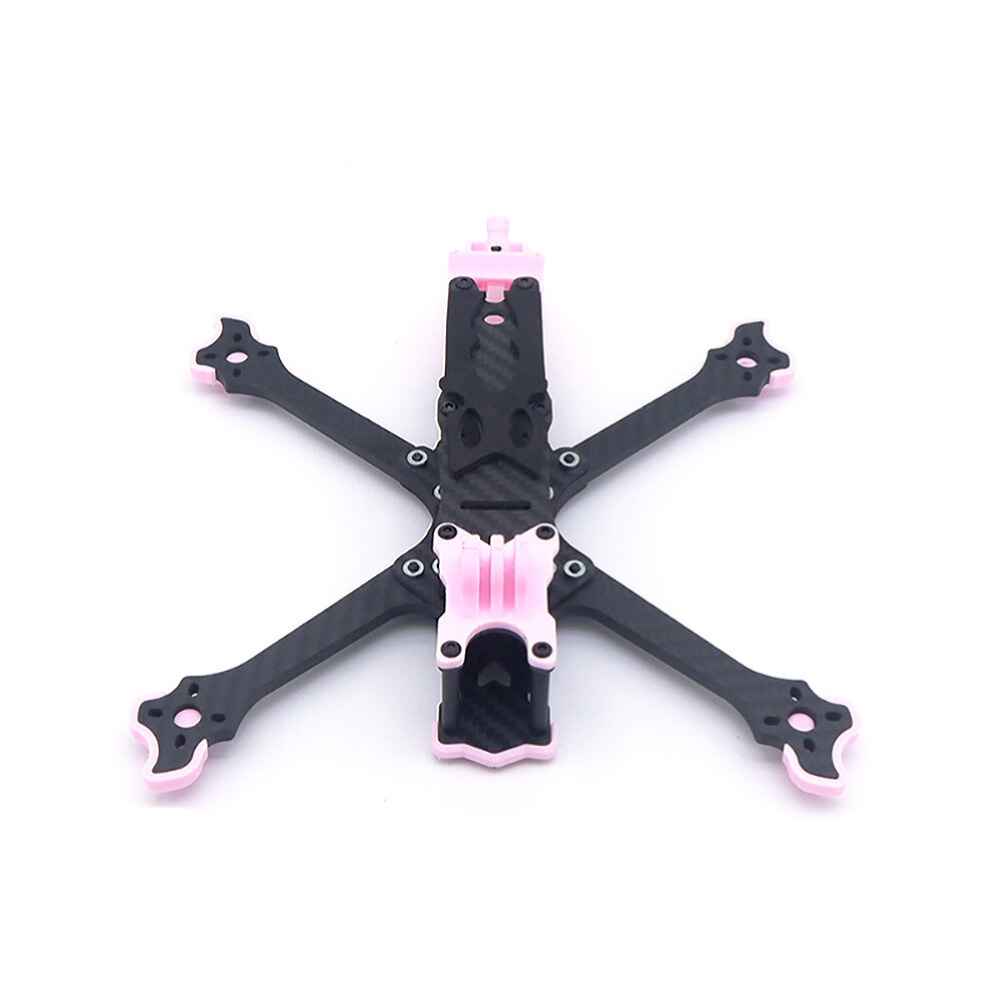

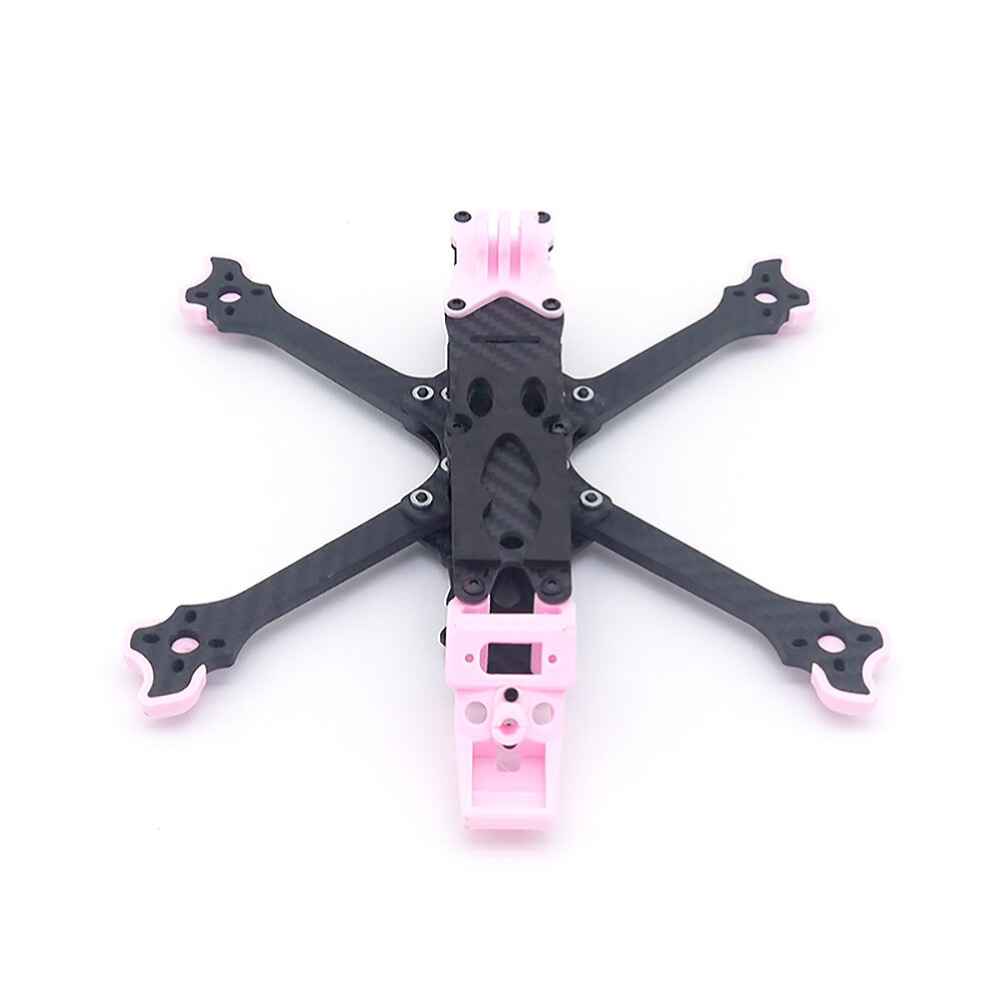

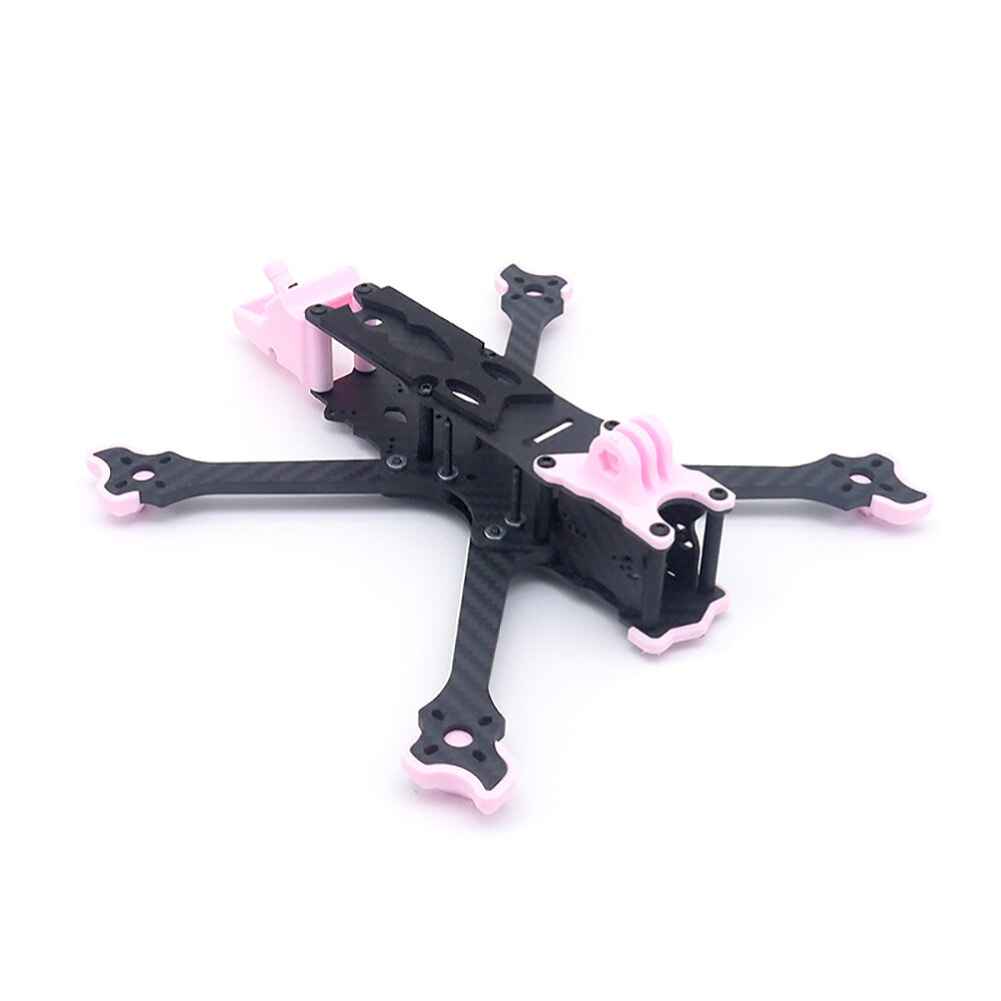

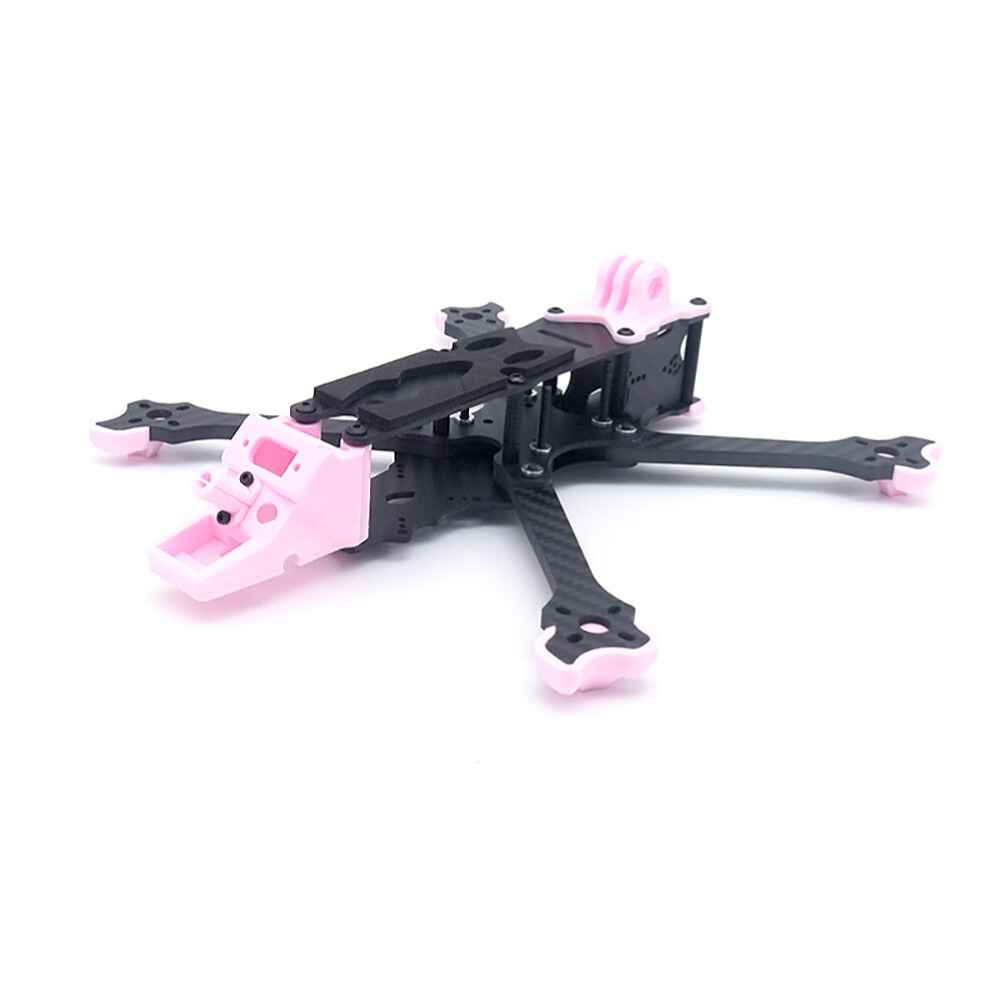

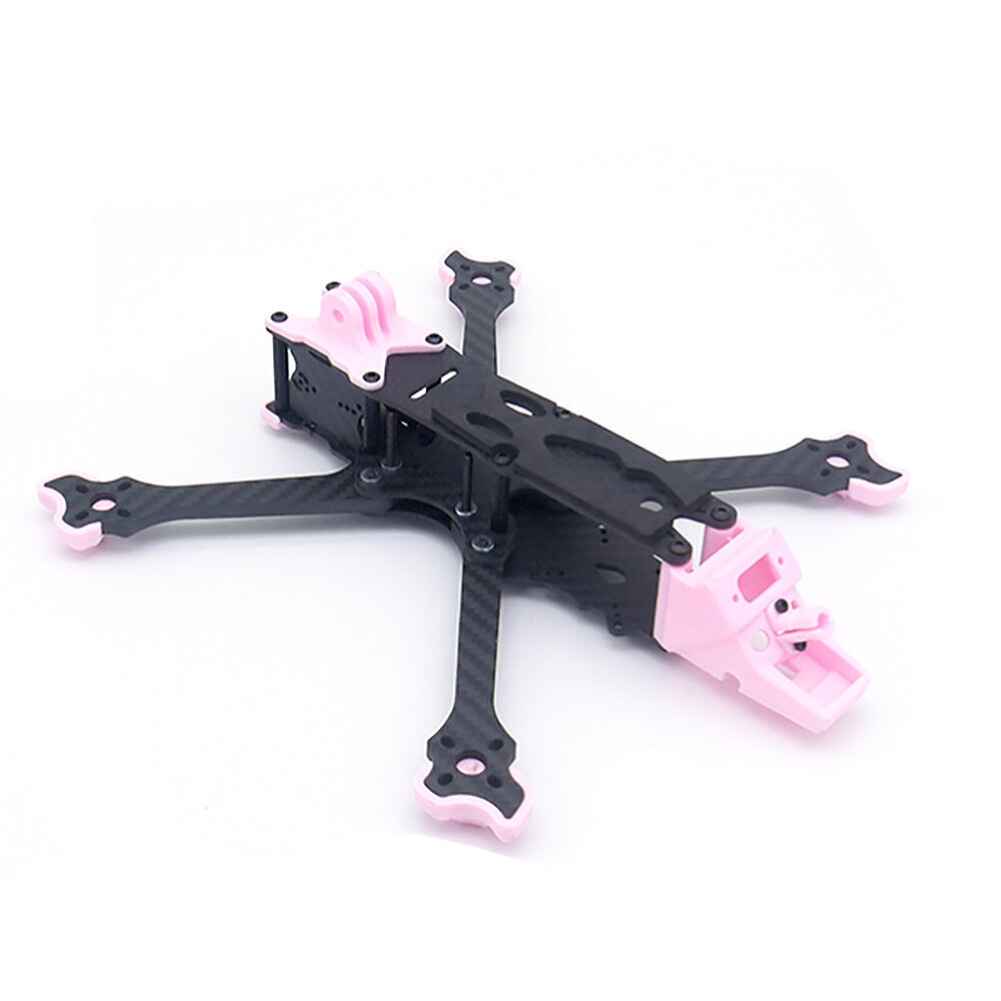

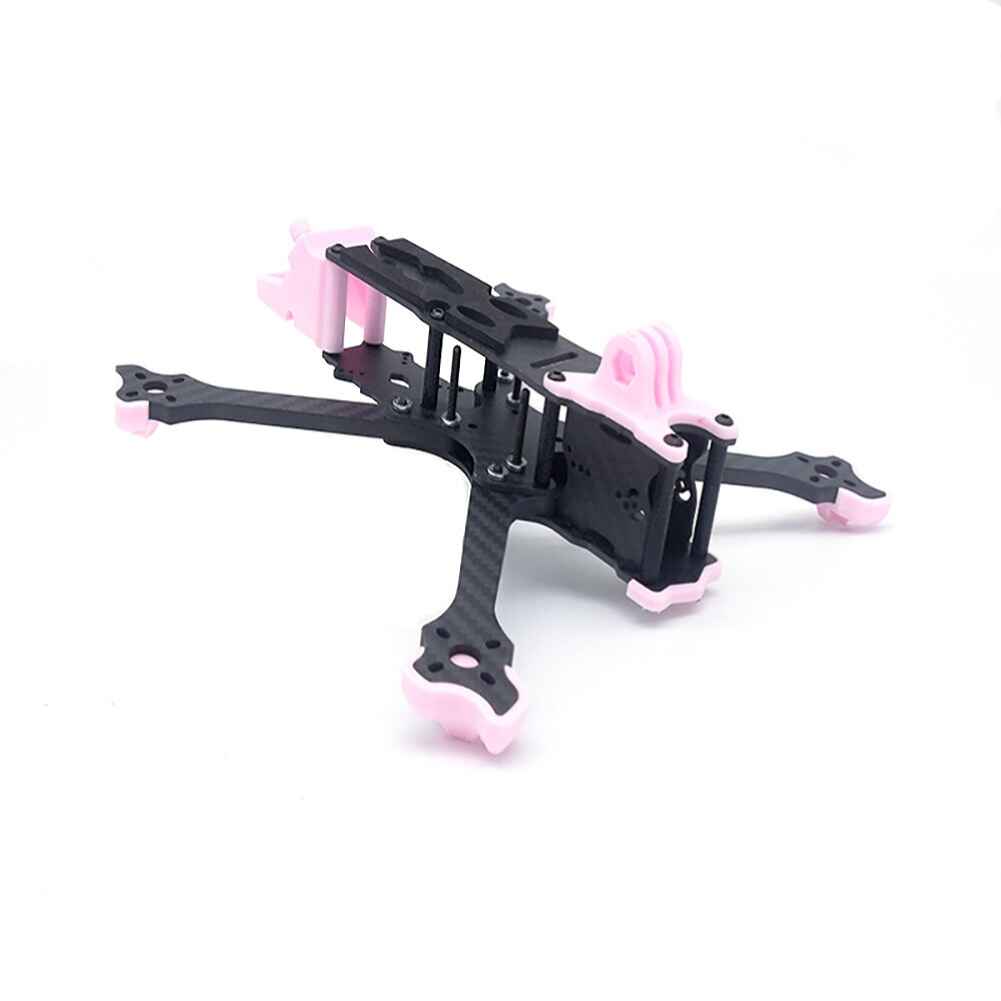

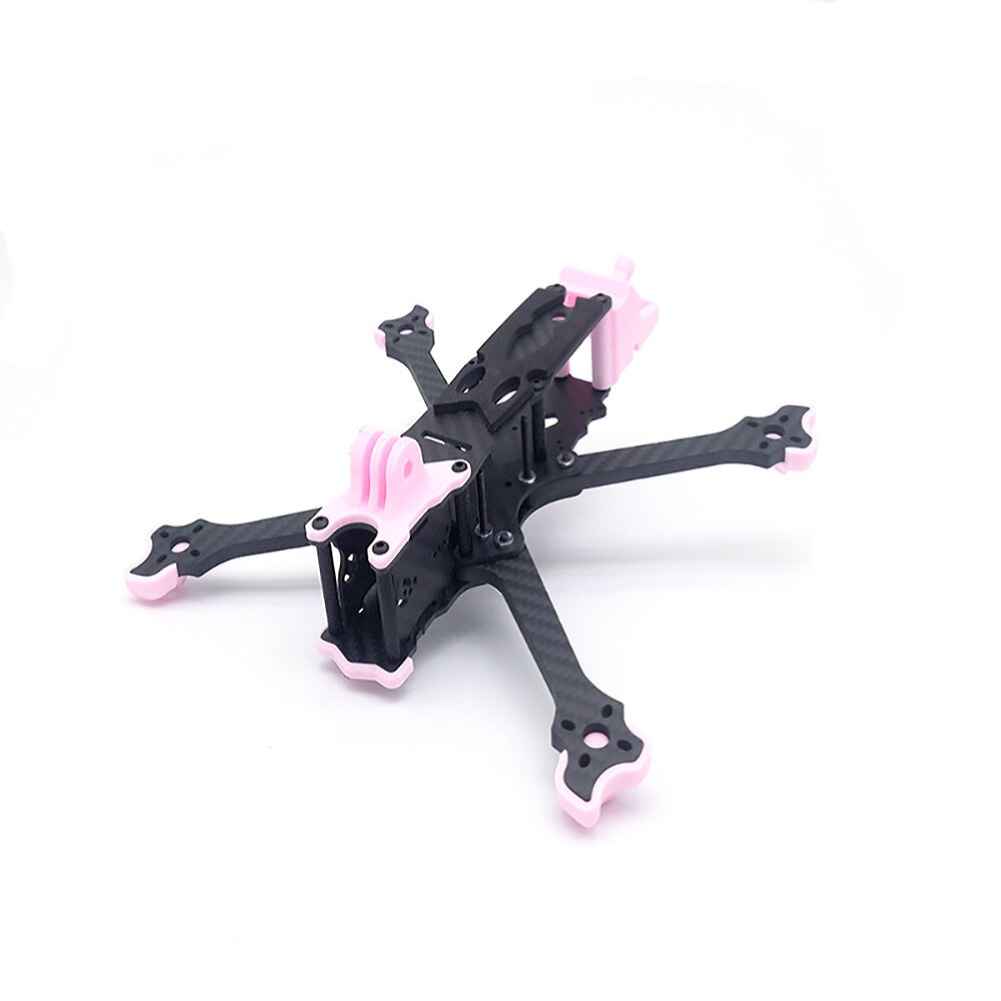

Teosaw Cockroach V6 225mm Wheelbase 5 Inch X-Type Frame Kit Support Analog / DJI O3/ Vista for DIY Freestyle RC FPV Racing Drone
The Teosaw Cockroach V6 is a robust and lightweight 225mm wheelbase frame kit designed for FPV racing drones. Crafted from durable carbon fiber, it offers enhanced flight performance and stability with its 5-inch wheelbase. The frame is FPV compatible, supporting immersive flying experiences. It includes 3D printed TPU parts for customization, such as a universal base for action cameras and protective motor bases. The frame is compatible with various DJI and analog image transmission systems, making it suitable for both seasoned pilots and hobbyists. With its precise design, it supports multiple camera and motor mounting configurations, ensuring versatility in setup.
Specification:
Brand: Teosaw
Model: Cockroach V6
Wheelbase: 225mm
Bottom Plate Thickness: 2.0mm,
Upper Plate Thickness: 2.0mm,
Arm Plate Thickness: 5.0mm,
other accessories Thickness: 2.0mm
Print material: 3D printing tpu material
Print color: pink TPU

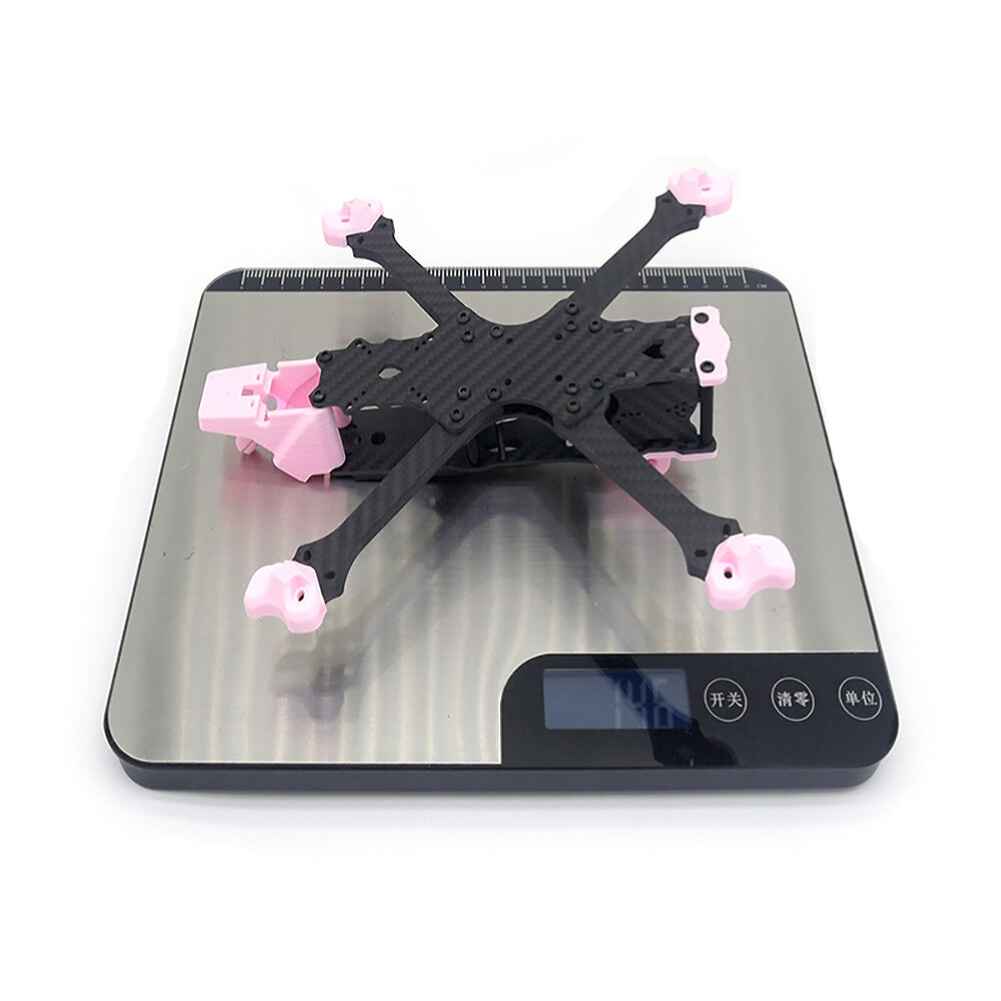

Weight: about 146G (including printed parts)

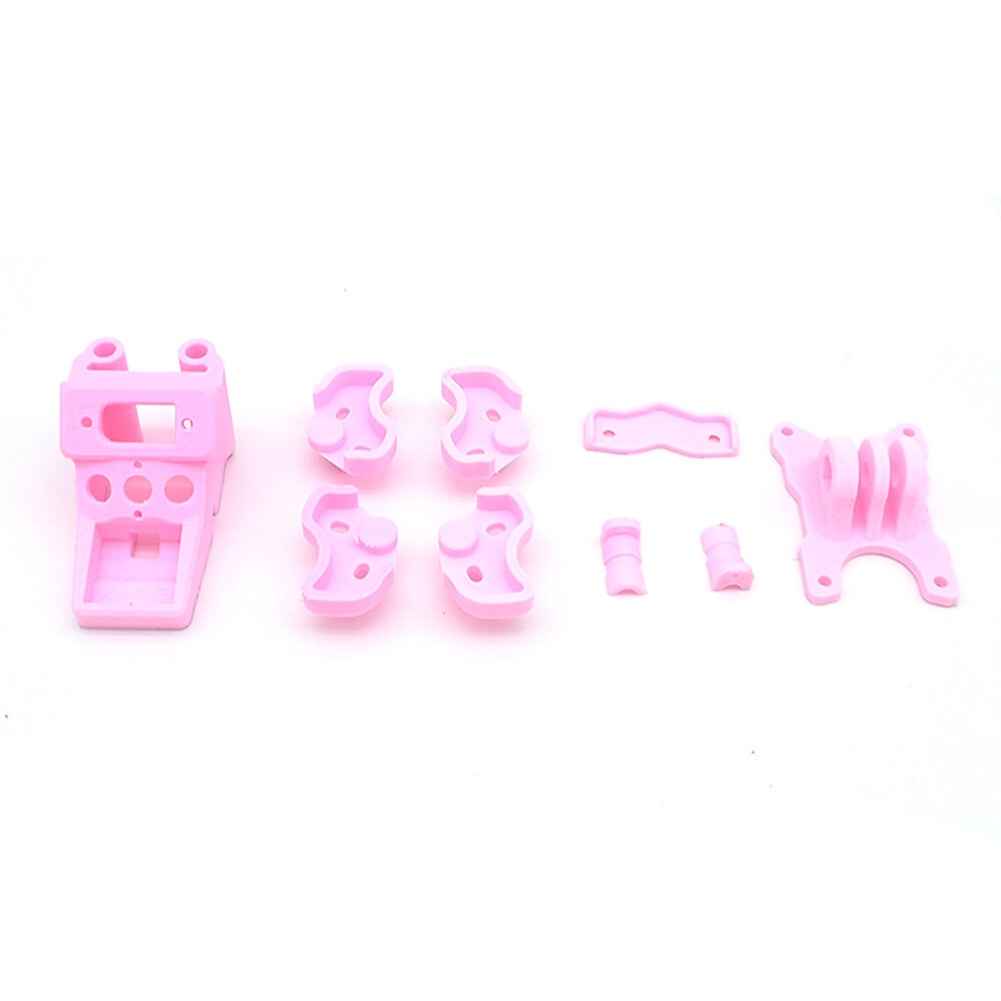

3D printed parts: universal base for action cameras*1, motor protective base*4, front lip protective base*1, universal three-hole antenna base*1 (adaptive to XT60 power head, BZ181 GPS, ELRS915/2.4, SMA double holes, DJI O3 antenna, VISTA antenna, etc.)
Features:
1. Lightweight and durabl carbon fiber frame for enhanced flight performance.
2. FPV compatible design for immersive and thrilling flying experiences.
3. Equipped with printed parts for added customization and visual appeal.
4. 5-inch wheelbase offers stability and smooth maneuverability during flights.
5. Suitable for both experienced drone pilots and toy enthusiasts.
Recommend Parts: ( NOT Included)
Propeller: 5-inch Propeller (limited to 5.1-inch paddle)
Flight Controller Hole Distance: 20x20mm (M3), 30.5×30.5mm (M3)
Tail VTX hole spacing: 20*20mm (M2), 25.5*25.5mm (M2), 30.5*30.5mm (M3)
Camera installation width: supports 19mm/20mm camera installation width
Motor mounting hole position: supports 16*16mm (m3) and 19*19mm (m3) hole spacing motors
Compatible with DJI air unit, dji o3 air unit, VISTA air unit, analog image transmission, etc.
Compatible with GPS: BZ181
The following Parts are compatible: ( NOT Included)
Package Included:
1 x Teosaw Cockroach V6 225mm X-type Frame Kit
