Description

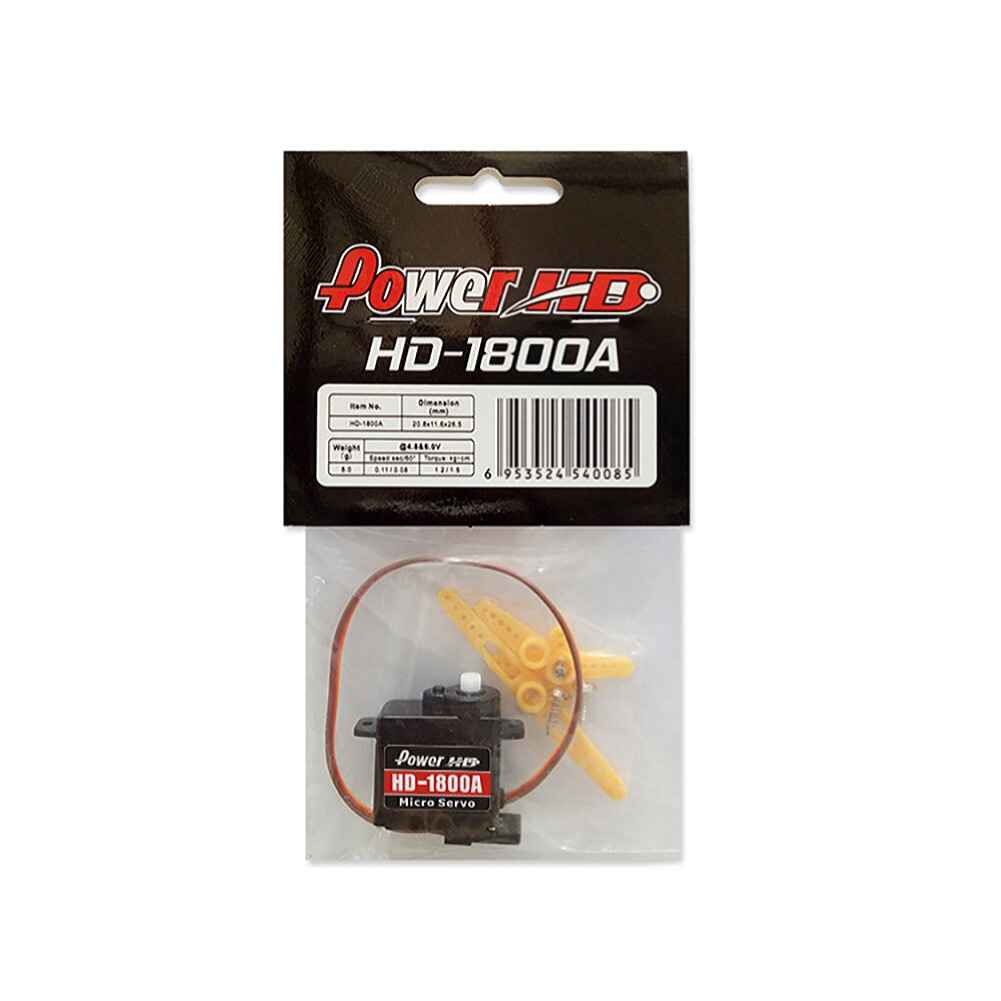

Power HD-1800A 1.3KG 8g Tiny Servo for Futaba/jr EPO
The Power HD-1800A Tiny Servo is a lightweight and efficient component designed for Futaba and JR EPO models. It delivers a torque of 1.0 kg-cm at 4.8V and 1.3 kg-cm at 6.0V, with speeds of 0.11 sec and 0.08 sec respectively. Operating within a voltage range of 4.8 to 6.0 DC volts, this servo weighs just 8.0 grams and features a coreless motor with plastic gears. It functions optimally in temperatures ranging from -20°C to 60°C and operates at a frequency of 1520μs / 50hz. Measuring 20.8 x 11.6 x 26.5 mm, this servo is ideal for precise and reliable performance in RC applications.
Specifications:
HD-1800A
Torque(4.8V): 1.0 kg-cm (13.8 oz/in)
Torque(6.0V): 1.3 kg-cm (18.0 oz/in)
Speed: 0.11 sec (4.8V) 岫 0.08 sec (6.0V)
Operating Voltageㄩ4.8 ~ 6.0 DC Volts
Weight: 8.0 g (0.28 oz)
Bearing Typeㄩno
Motor TypeㄩCoreless Motor
Gear TypeㄩPlastic
Operating Temperatureㄩ-20⊥~60⊥
Working frequenceㄩ1520米s / 50hz
Sizeㄩ20.8 x 11.6 x 26.5 mm ( 0.82 x 0.46 x 1.04 in)
Package Included:
1 x Power HD-1800A Tiny Servo
Toys & Games > Hobbies > Remote & App Controlled Vehicles & Parts > Remote & App Controlled Vehicle Parts > Servos
