Description

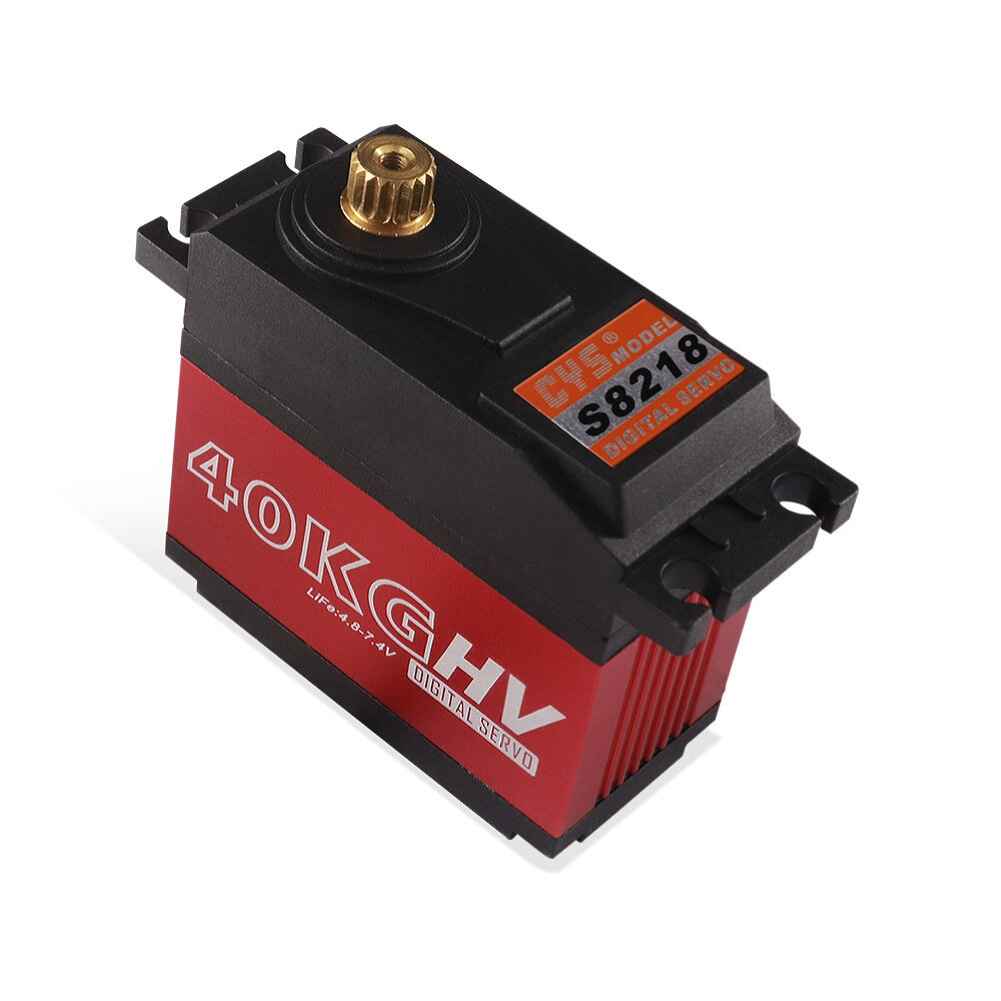

CYS S8218 40KG Metal Gear Digital Servo Waterproof High Torque Steering Gear for 1:5 RC Car
The CYS S8218 Digital Servo offers a robust solution for RC enthusiasts, featuring a high torque of 40KG and a durable metal gear construction. With its waterproof design, this servo is ideal for various weather conditions, ensuring reliable performance in RC cars, boats, and robots. It operates smoothly with a pulse width control system and offers precise control through digital technology. The servo’s operating voltage range is 6.0 to 7.4 volts, with a fast operating speed and significant stall torque. Its dual ball bearing drive and 3-pole ferrite motor add to its efficiency and longevity.
Specification:
Item No.: CYS-S8218
Type: Digital
Weight: 164g
Size: 59.5*29*55.2mm
Control System: (+)Pulse Width Control 1500usec Neutral
Required Pulse
Operating Voltage: 6.0~7.4Volts
Operating Temperature Range: (-)10 to +50 degree C
Operating Speed (6.0V): 0.20sec/60～ at no load
Operating Speed (7.4V): 0.18sec/60～ at no load
Stall Torque (6.0V): 36kg.cm
Stall Torque (7.4V): 38kg.cm
Operating Angle: 45deg.one side pulse traveling 500 usec
360 Modifiable: No
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V): 20mA/idle and 700mA no load operating
Current Drain (7.4V): 20mA/idle and 900mA no load operating
Stall Current: 7.5A/8.6A
Dead Band Width: 4usec
Motor Type: 3 Pole Ferrite Drive
Bearing Type: Dual Ball Bearing
Horn gear spline: 17T
Gear Type: Metal
Connector Wire Length: 300mm
Wire info:
Brown/Black = Negative
Red = Positive
Orange/White = Signal
Features:
1. High torque: With a torque of 40KG, this servo provides powerful and reliable performance.
2. Digital technology: The use of digital technology ensures precise control and accurate movements.
3. Metal gear: The metal copper gear ensures durability and longevity, making it suitable for long-term use.
4. Waterproof design: With a waterproof feature, this servo can be used in various weather conditions without any worries.
5. Versatile application: This servo can be used in a wide range of applications, including RC cars, boats, and robots.

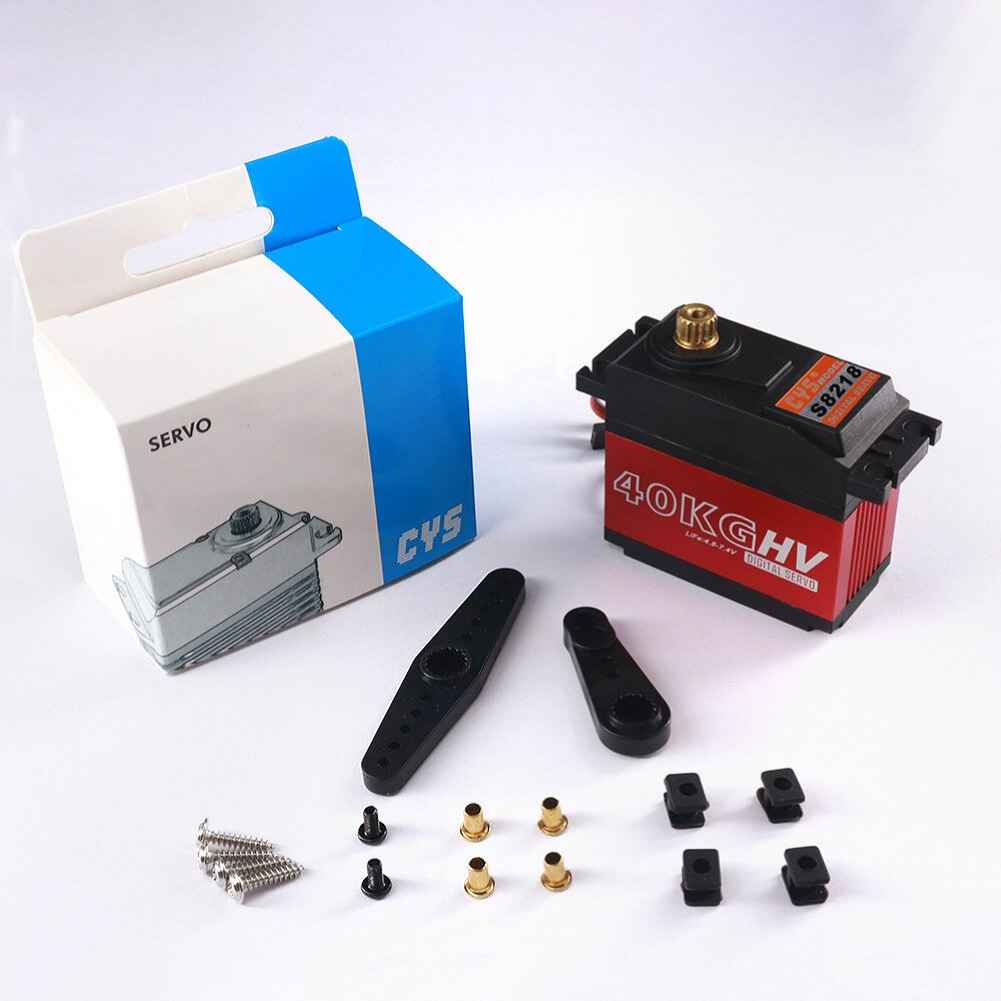

Package Included:
1 x CYS Servo
1 x Accessory Kit
