Description

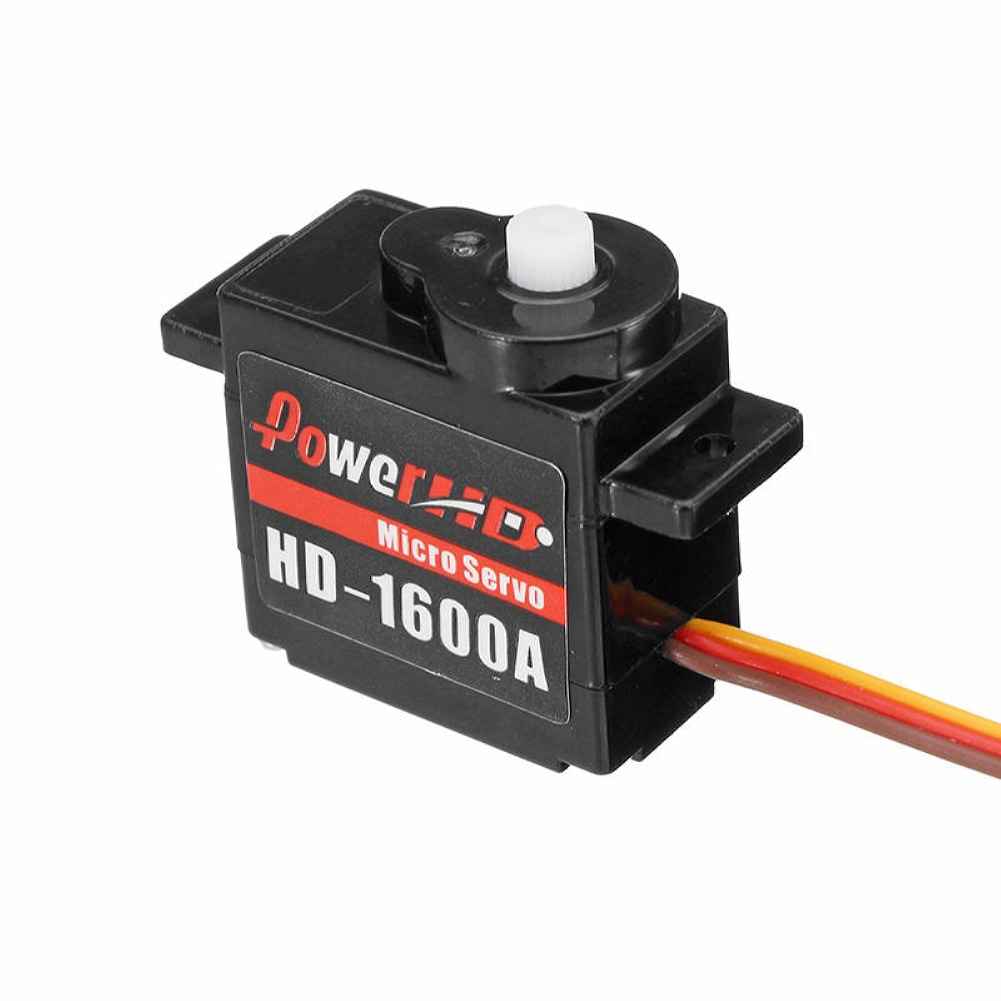

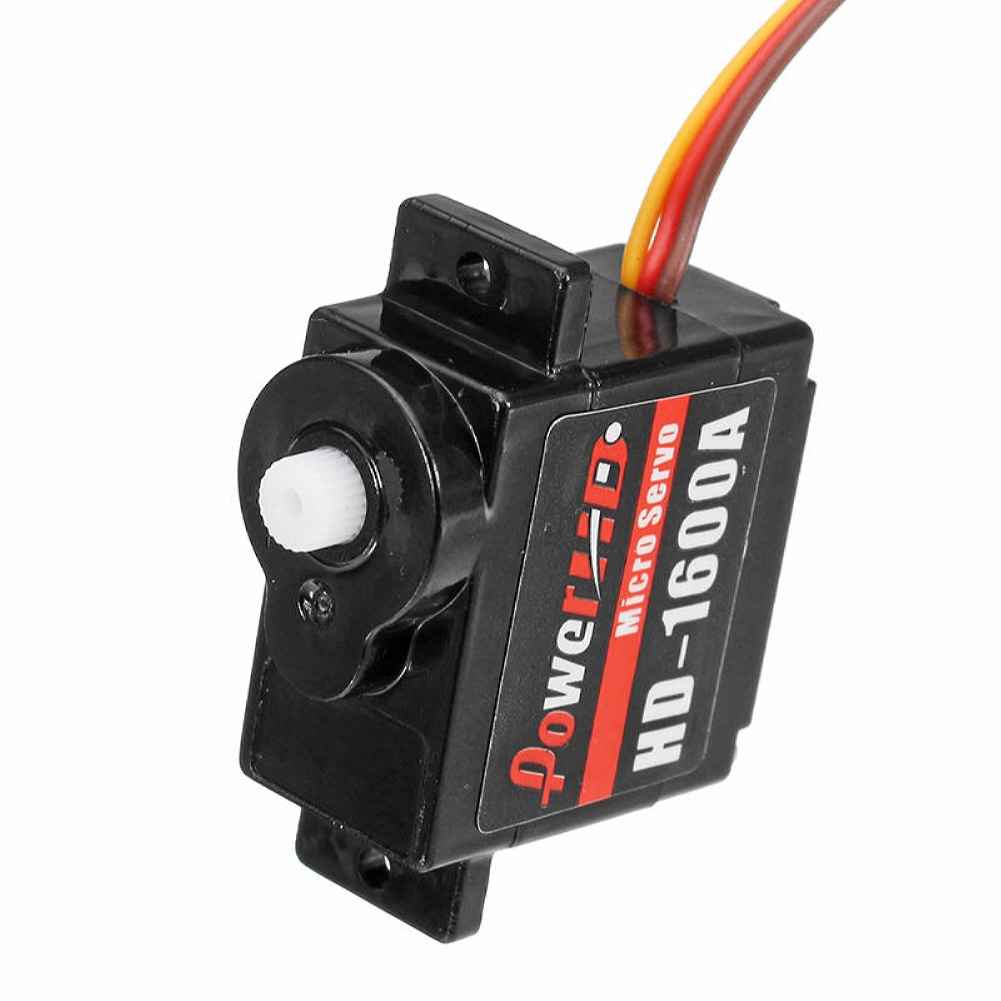

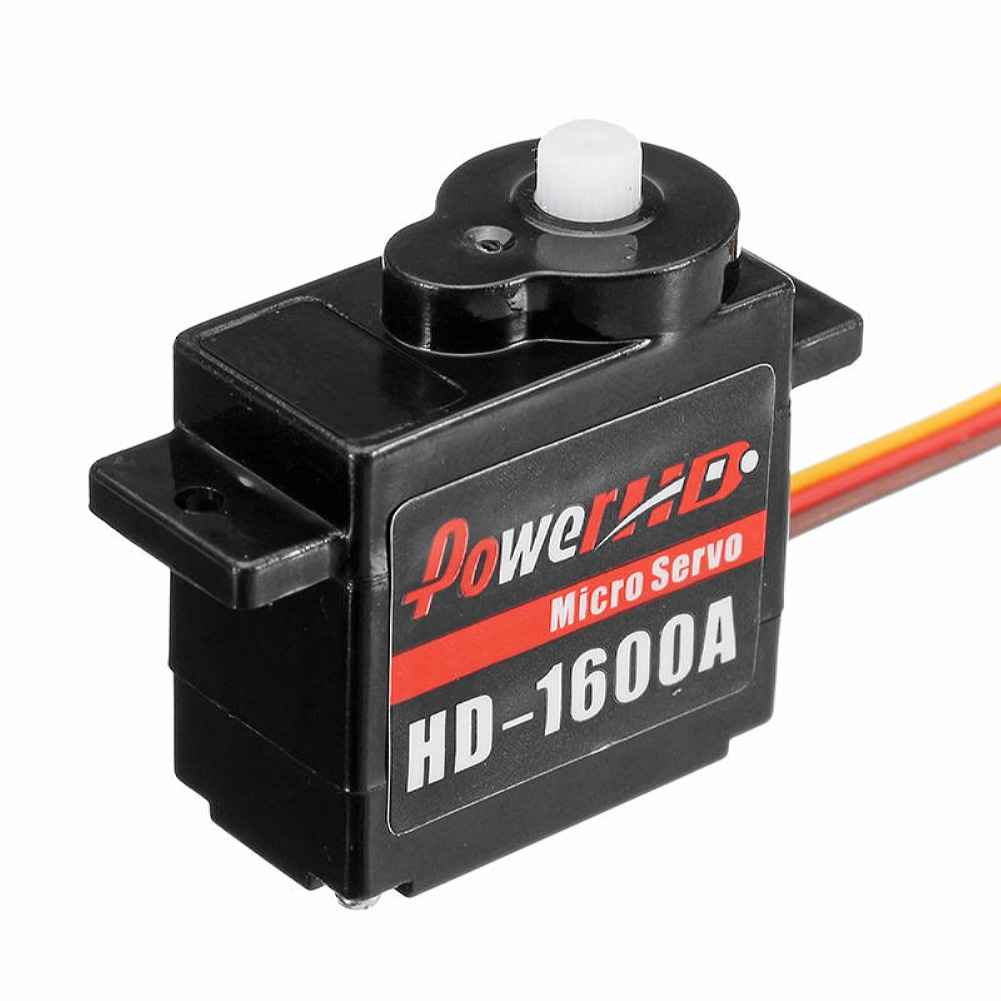

Power HD 1600A 1.3KG 6g Micro Servo Compatible with Futaba JR Airplane RC Model
The Power HD 1600A Micro Servo is a lightweight and efficient solution for RC airplane models. With a torque of 1.2 kg-cm at 4.8V and 1.3 kg-cm at 6.0V, it delivers reliable performance. The servo operates swiftly with speeds of 0.12 seconds at 4.8V and 0.10 seconds at 6.0V. It functions within a voltage range of 4.8 to 6.0 DC volts and weighs only 6.0 grams, making it ideal for precise control in lightweight applications. The servo features a coreless motor and plastic gears, ensuring smooth operation within a temperature range of -20°C to 60°C. Its compact size of 21.3 x 11.6 x 22.8 mm allows for easy installation in tight spaces.
Specifications:
Model: HD-1600A
Torque(4.8V): 1.2 kg-cm (16.6 oz/in)
Torque(6.0V): 1.3 kg-cm (18.0 oz/in)
Speed: 0.12 sec (4.8V) 岫 0.10 sec (6.0V)
Operating Voltage: 4.8 ~ 6.0 DC Volts
Weight: 6.0 g (0.19 oz)
Bearing Type: no
Motor Type: Coreless Motor
Gear Type: Plastic
Operating Temperature: -20⊥~60⊥
Working frequence: 1520μs / 50hz
Size: 21.3 x 11.6 x 22.8 mm ( 0.84 x 0.46 x 0.90 in)

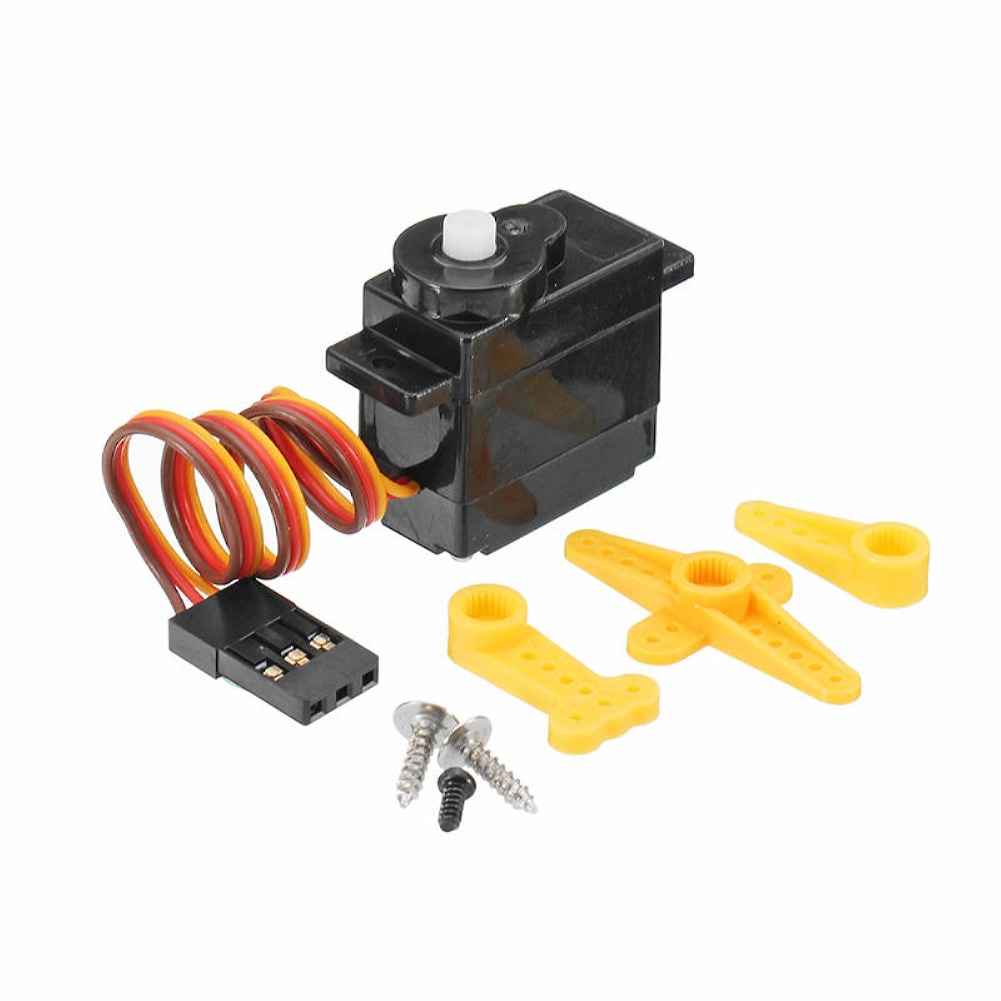

Package Included:
1 x Power HD-1600A Servo
