Description

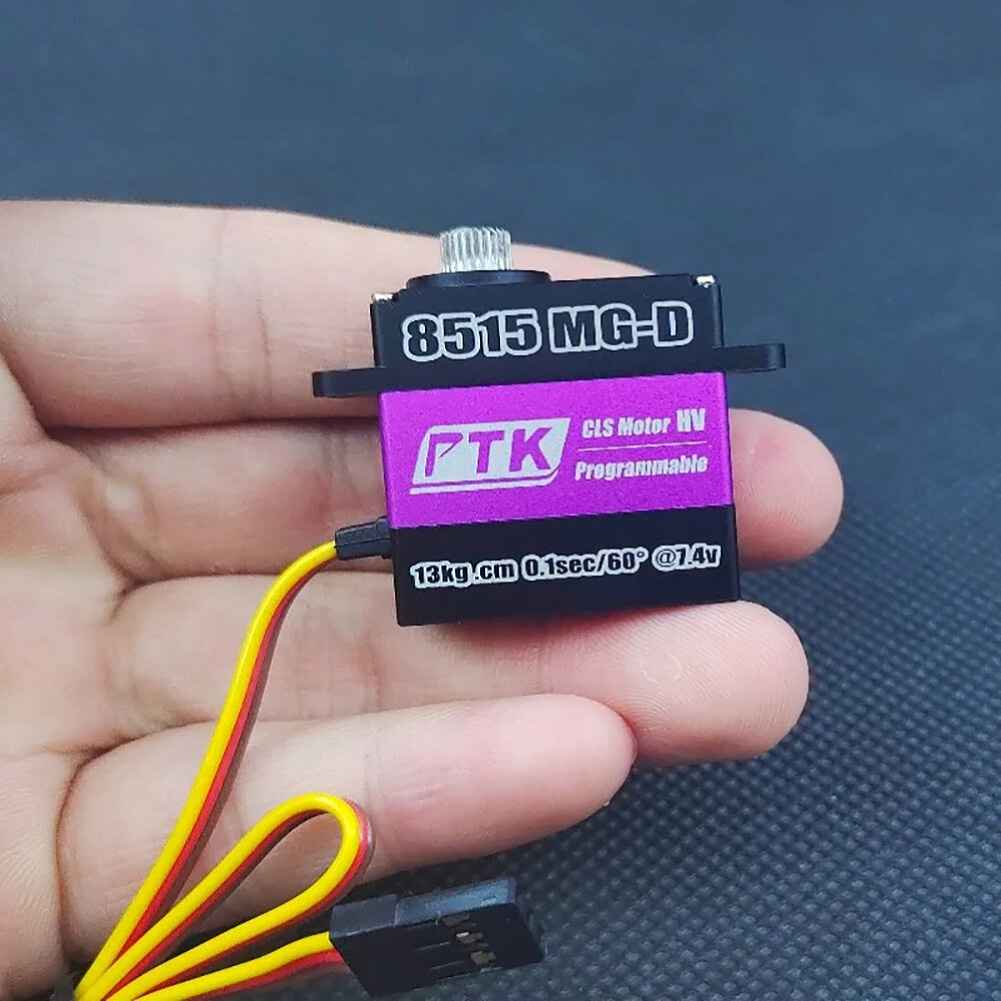

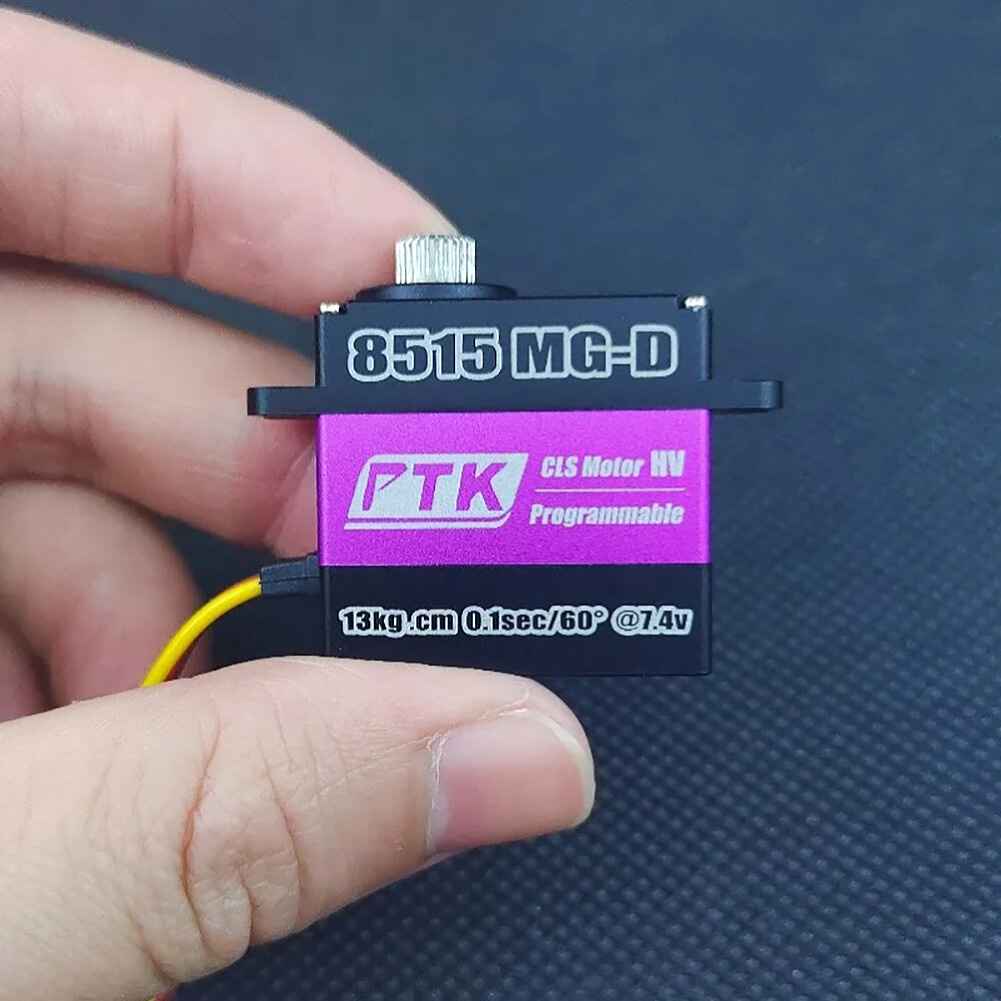

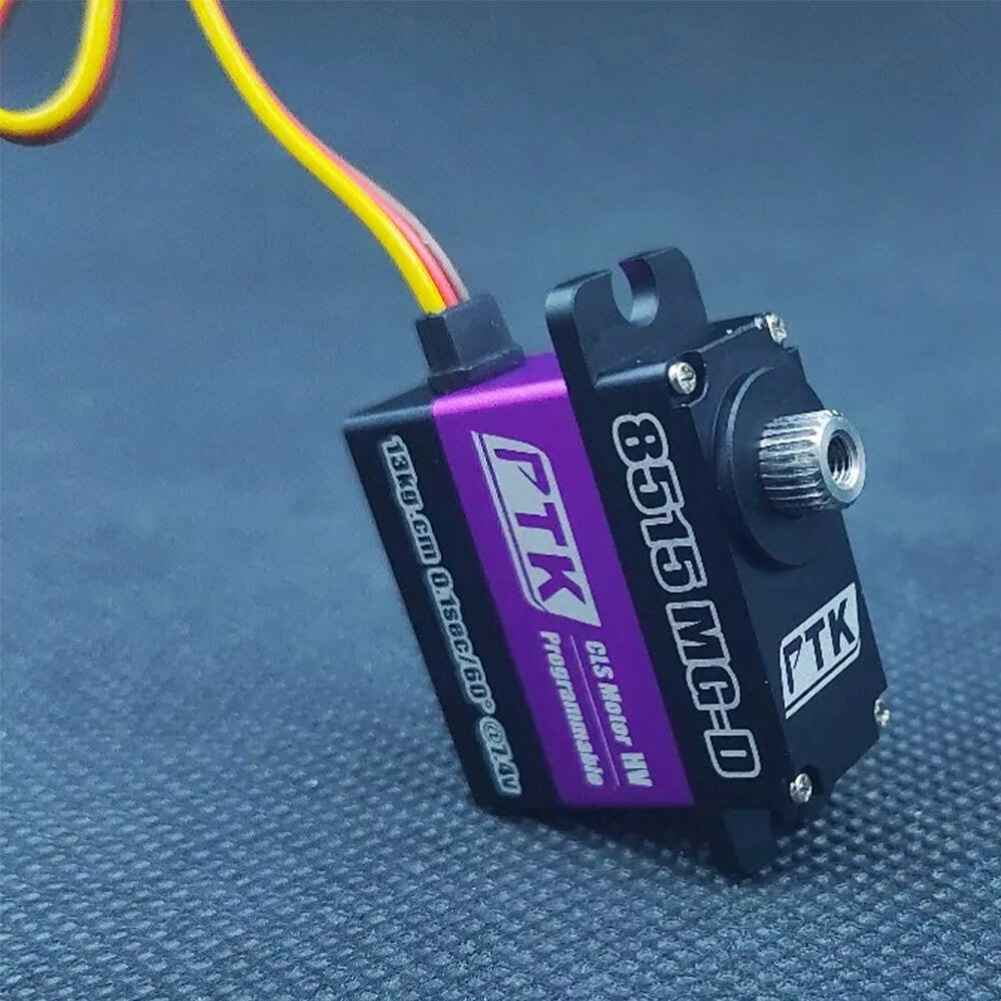

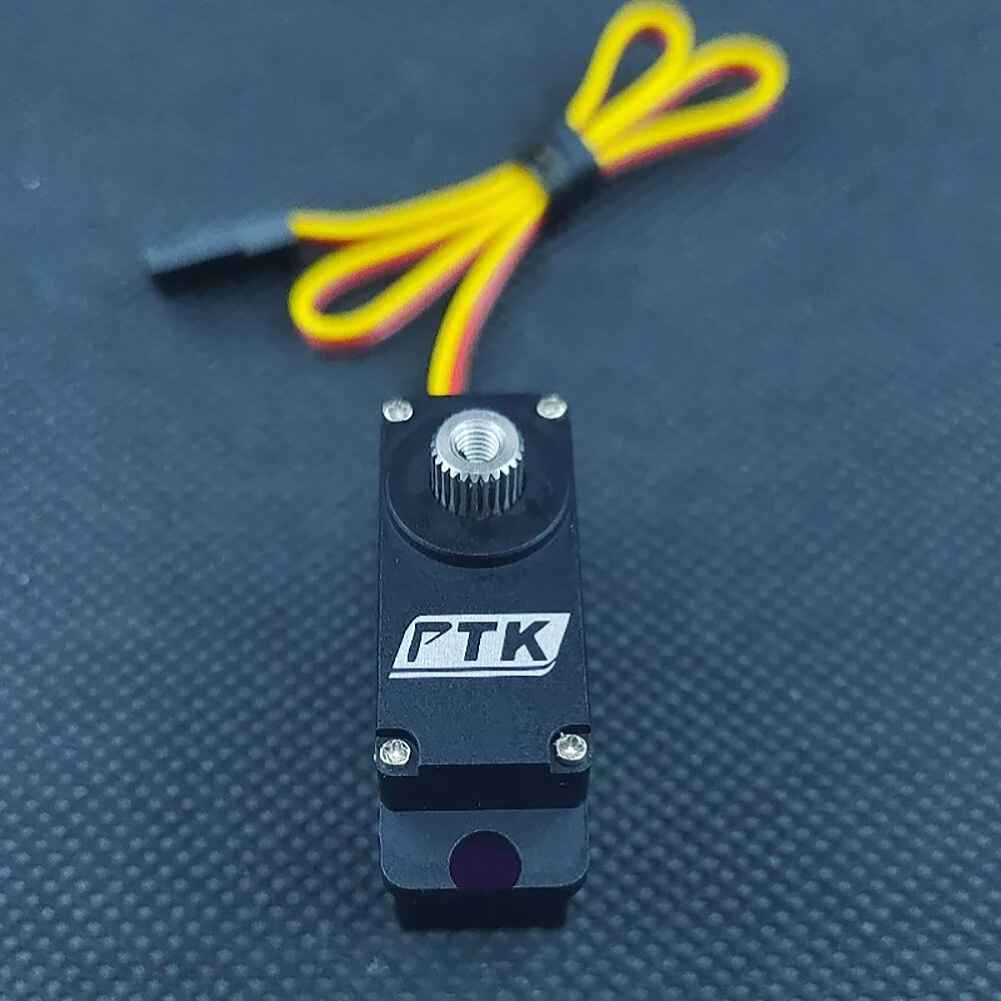

PTK 8515 MG-D 17g Mini Full Metal Digital Servo High Voltage 15KG Fixed Wing RC Car Servo
The PTK 8515 MG-D Mini Full Metal Digital Servo is engineered for high performance in RC cars and fixed wing models. It features a coreless motor and stainless steel gears, ensuring durability and low gear play. This servo operates efficiently within a voltage range of 5.0V to 8.4V, withstanding temperatures from -20°C to +60°C. It boasts a high torque of up to 15KG and offers precise control thanks to its digital design. With a compact size of 28 x 12.6 x 23mm and weighing just 25g, this servo is ideal for competition-grade applications, delivering reliable and consistent performance.
Specifications:
Motor : CORELESS
Gears : Stainless Steel Gear
Gears Play : very low
Working Frequency : 1520us/333Hz
Test Voltage Range : 5.0V up to 8.4V
Test Temperature : -20⊥ up to +60⊥
Ball Bearing : 2
Weight : 25 g
Dimensions : 28 x 12.6 x 23mm
Speed/Torque@ 5.0V : 10kg/cm – 0,150s/60～
Speed/Torque@7.4V :13.5kg/cm – 0,104s/60～
Speed/Torque@ 8.4V : 15kg/cm – 0,087s/60～
Input Voltage : 5.0V – 8.4V
Harness length : 250mm JR
Dead band : 2米s
Electric precision : 1.2米s
Features:
-Reliable Performance: Designed to deliver consistent and reliable performance during flights.
-Competition-Grade: Mades for competition-level flying, providing advanced features and capabilities.
-Full Metal Construction: Provides durability and strength for long-lasting performance.
-Digital Servo: Offers precise and accurate control for efficient operation.
-High Torque: With a maximum torque of 15KG, it provides strong and reliable power.
Package Included:

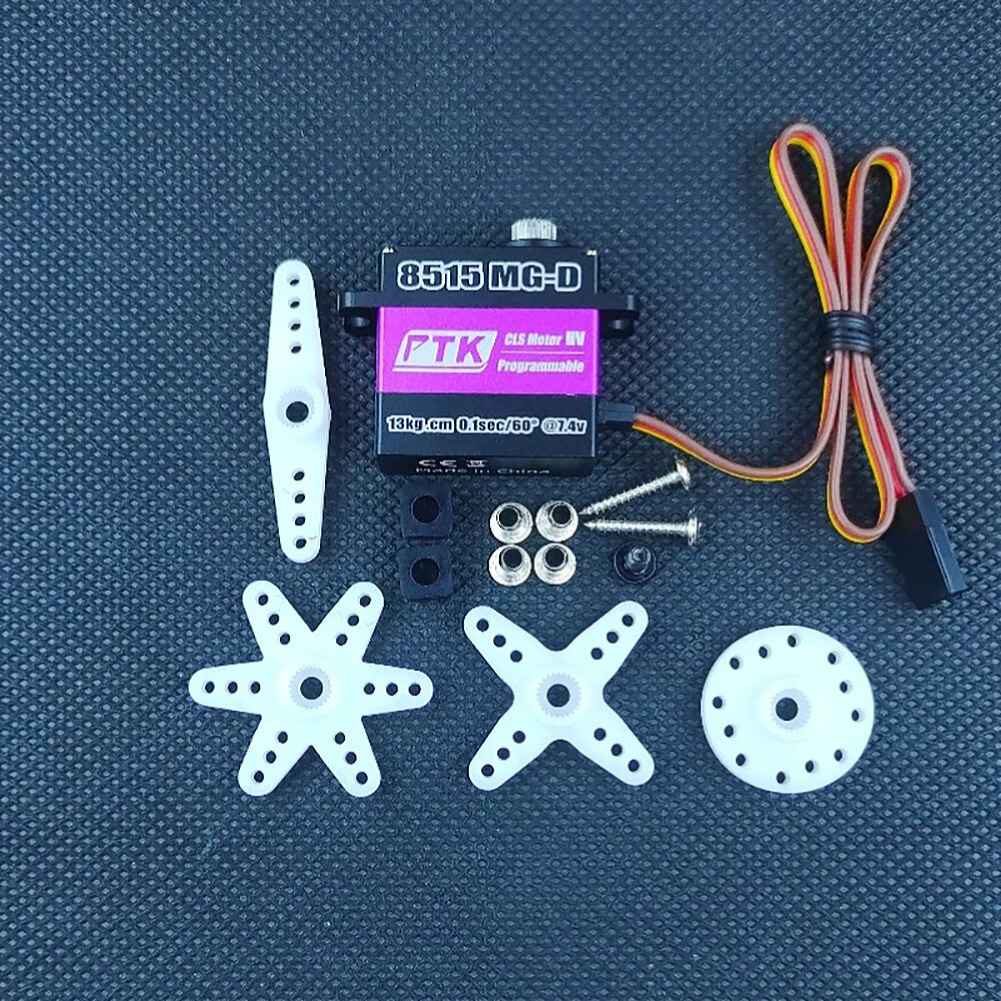

1 x PTK 8515 MG-D Mini Full Metal Digital Servo
