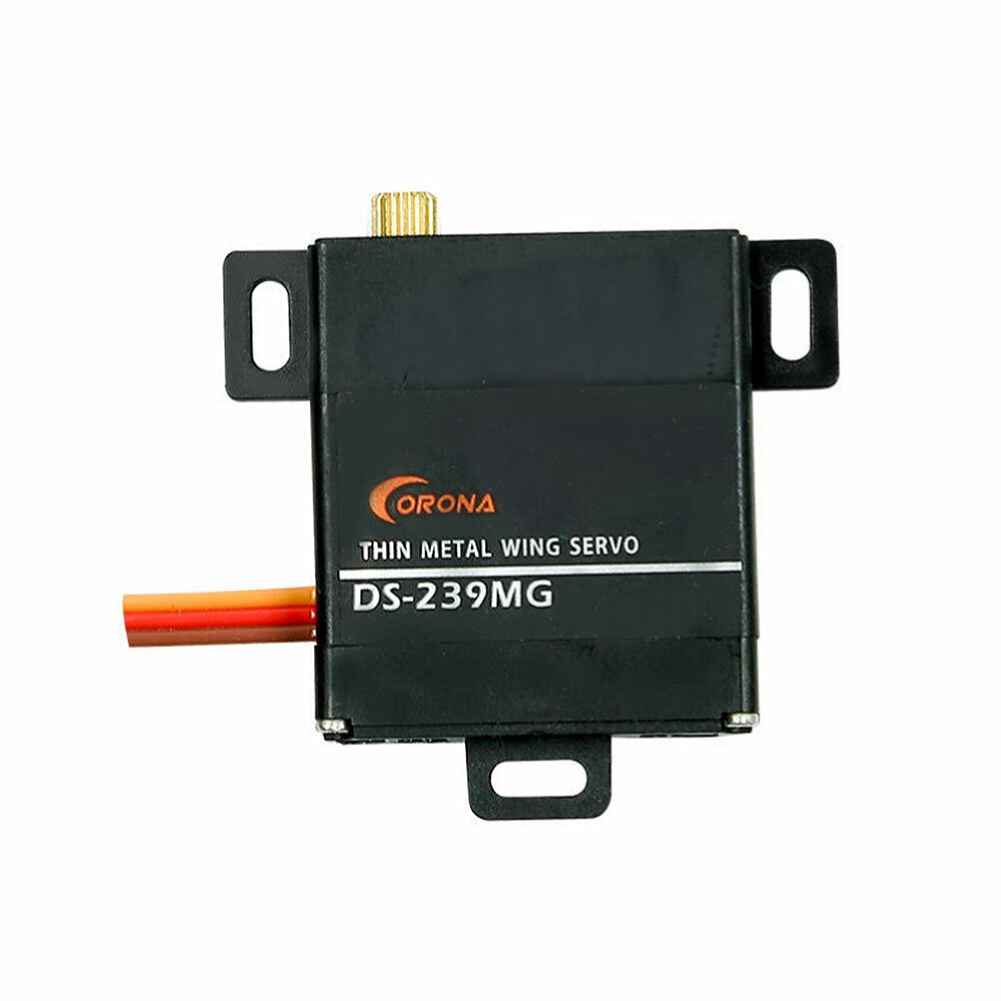

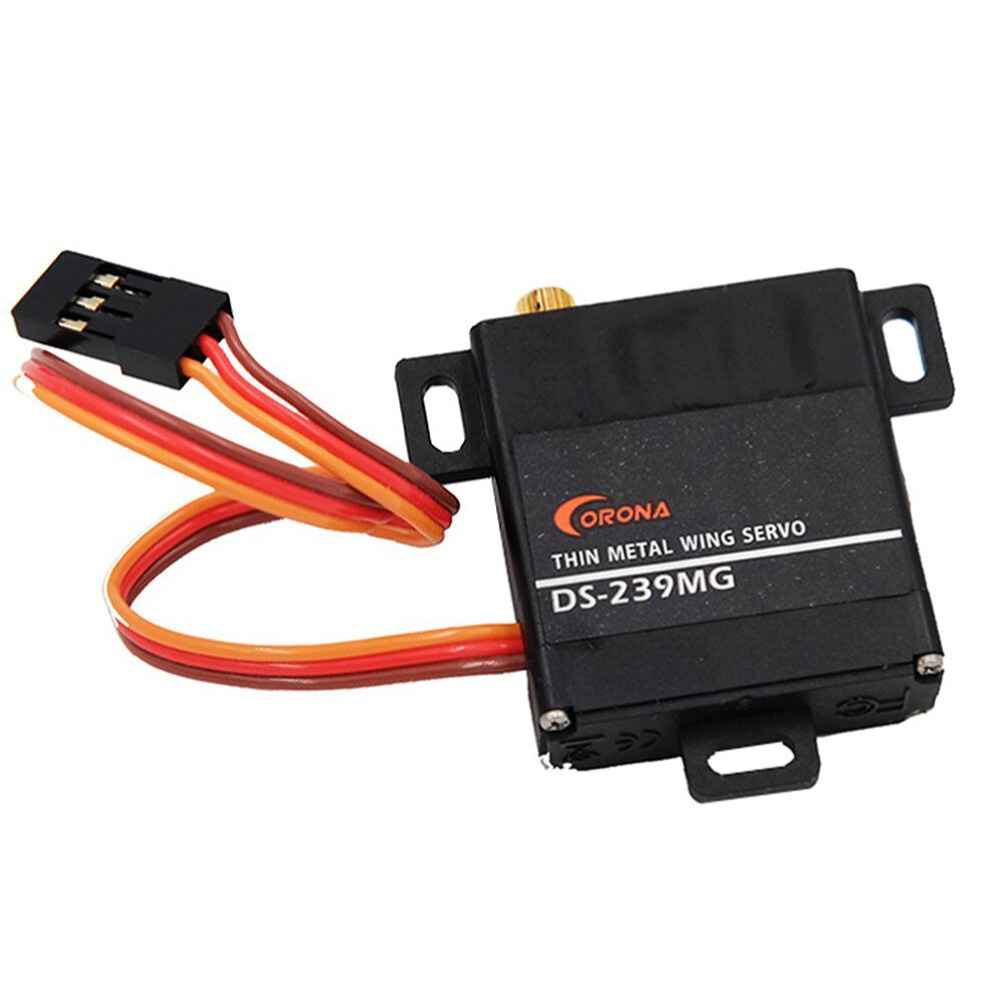

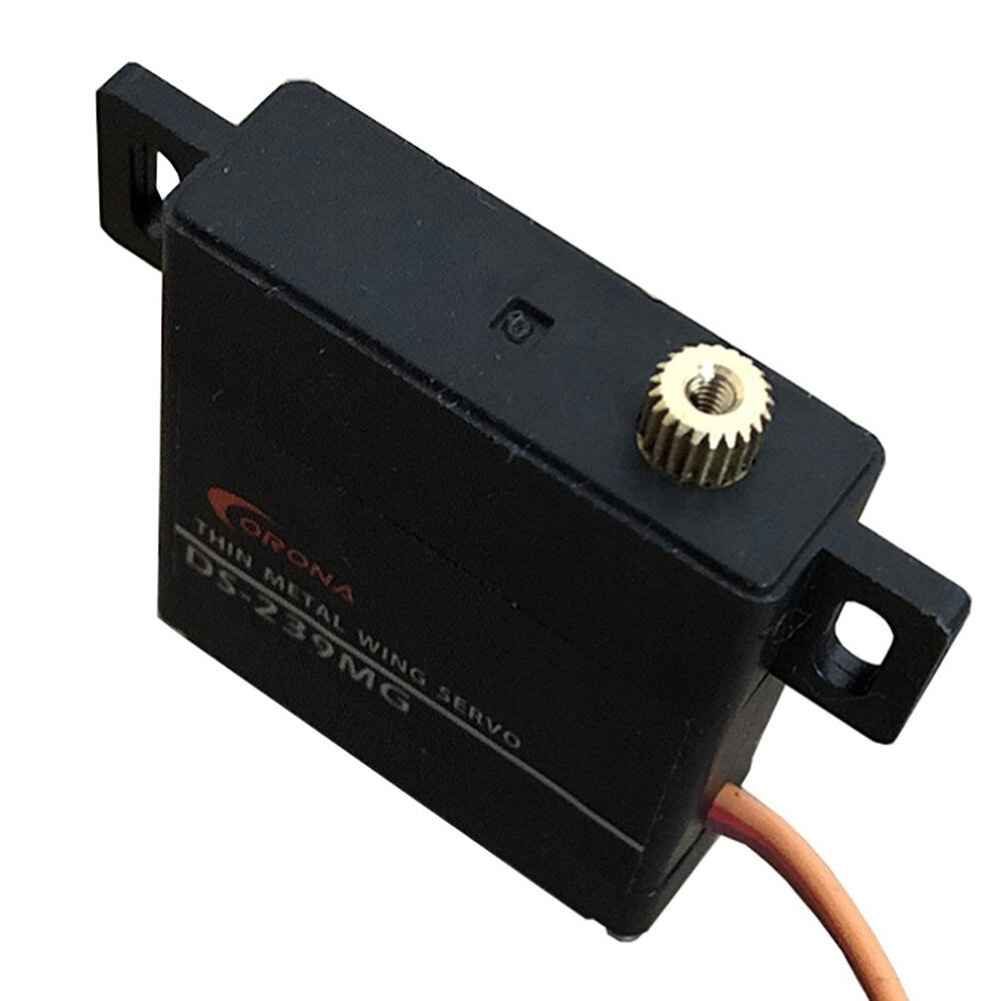

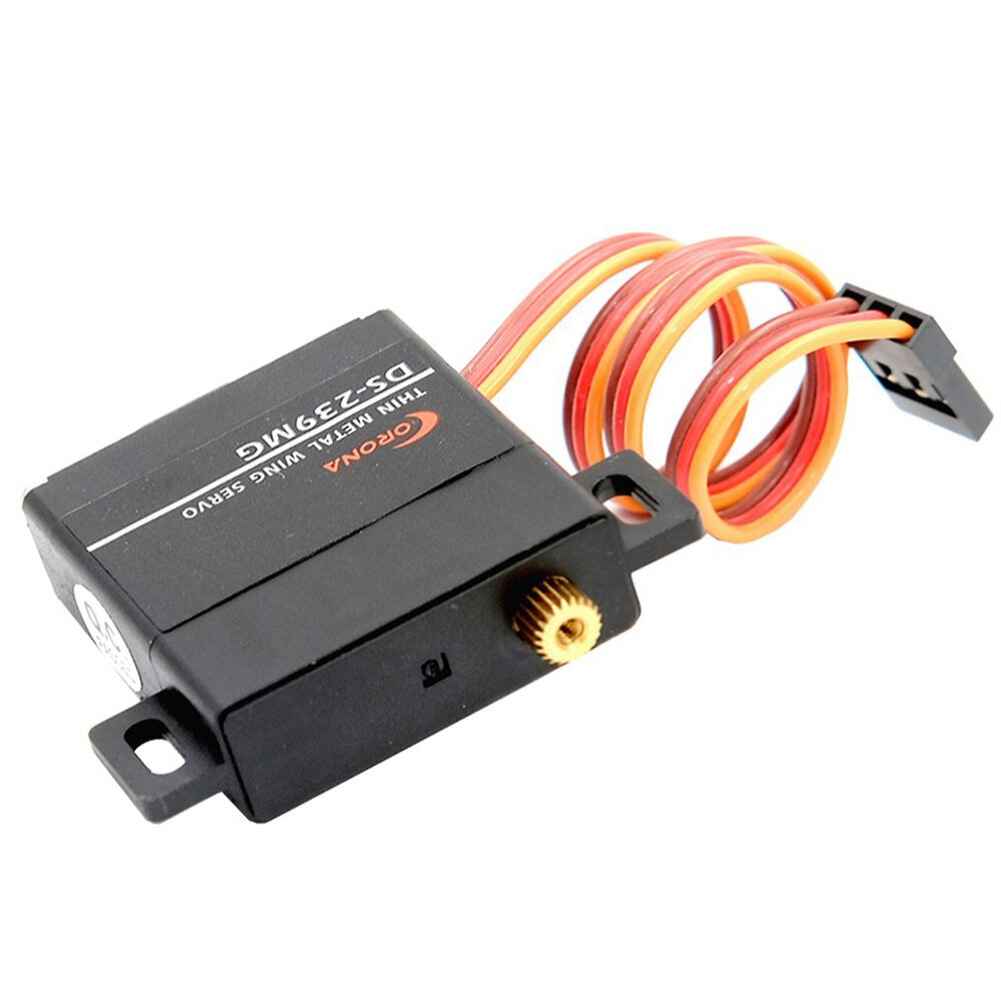

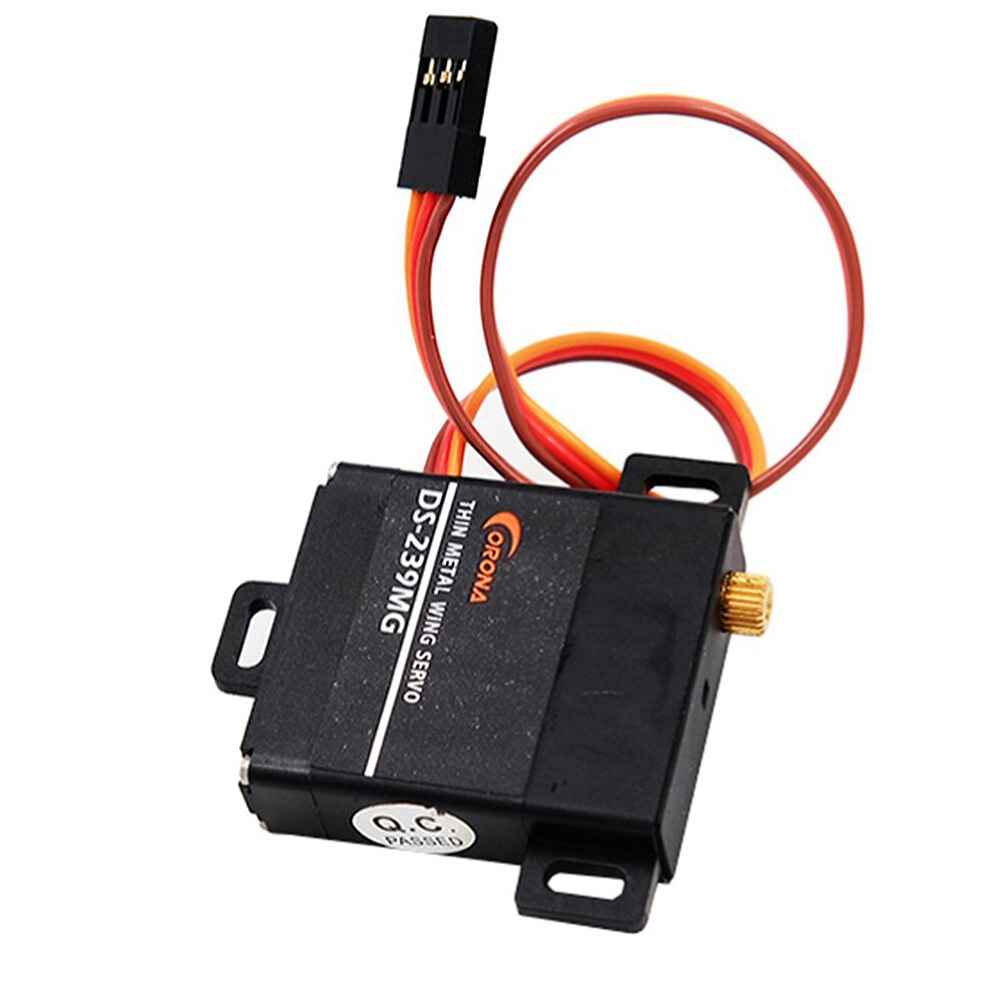

Corona DS239MG Digital Thin Metal Wing Servo Metal 4.6kg / 0.15sec / 22g Remote Comtrol Glider Digital Servo
The Corona DS239MG Digital Thin Metal Wing Servo is engineered for remote control gliders, offering optimal performance with a stall torque of 4.6kg.cm and an operating speed of 0.15sec/60°. Constructed with high-quality materials, this servo is built to last, featuring a metal gear for enhanced durability and a sleek design for easy installation without the need for additional tools. Weighing only 22g, it ensures minimal impact on glider performance. The servo operates efficiently within a voltage range of 4.8V to 6.0V and is designed to withstand temperatures from -20°C to +60°C. Its precision and stability make it an ideal choice for remote control enthusiasts.
Specifications:
Brand: Corona
Item: DS239MG

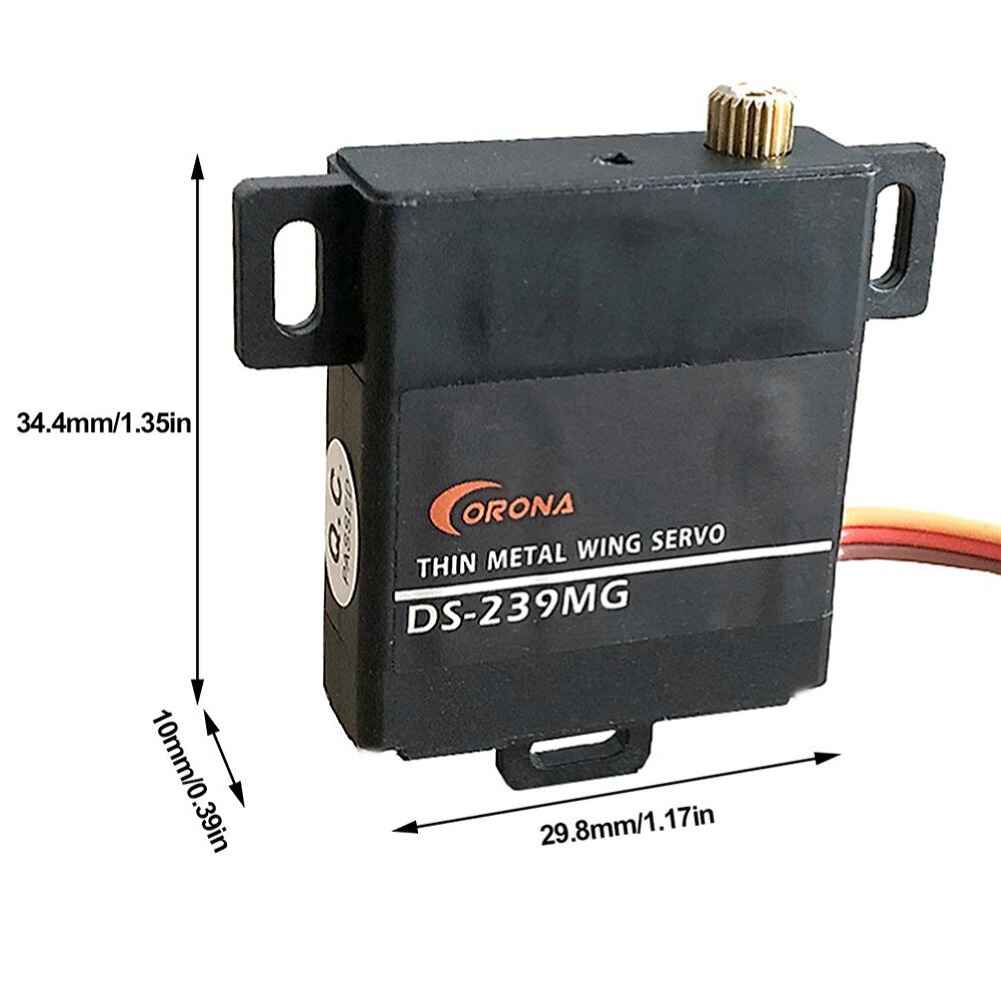

Size: 30x10x34.5mm(1.18’x0.4’x1.35′)
Weight: 22g(0.770Z)
Voltage: 4.8V/6.0V
Current: 300mA/400mA
Operating speed: 0.15sec.60)0.14sec.60～
Stall Torque: 4.kg.cm/4.6kg,.cm
Dead Band: ≒3uSec
Operating Travel: 40one side pulse 400us
Potentiometer: 3 slider/indirect Drive
Ball bearing: MR85X2
Gear: Metal
Connector wire length: 215mm
Operating Temperature Range: -20 ⊥ to +60⊥
Features:
Constructed from high-quality materials ensuring longevity and durability.
Designed for easy installation, eliminating the need for additional tools or complicated processes.
Sleek design ensures a cohesive appearance, maintaining aesthetic integrity post-installation.
Offers stable performance due to its robust make-up, optimizing functionality for remote control gliders.
Enhanced precision with a tight dead band, ensuring responsive control for better glider handling.
Package Included:
1 x Corona DS239MG Digital Thin Metal Wing Servo
