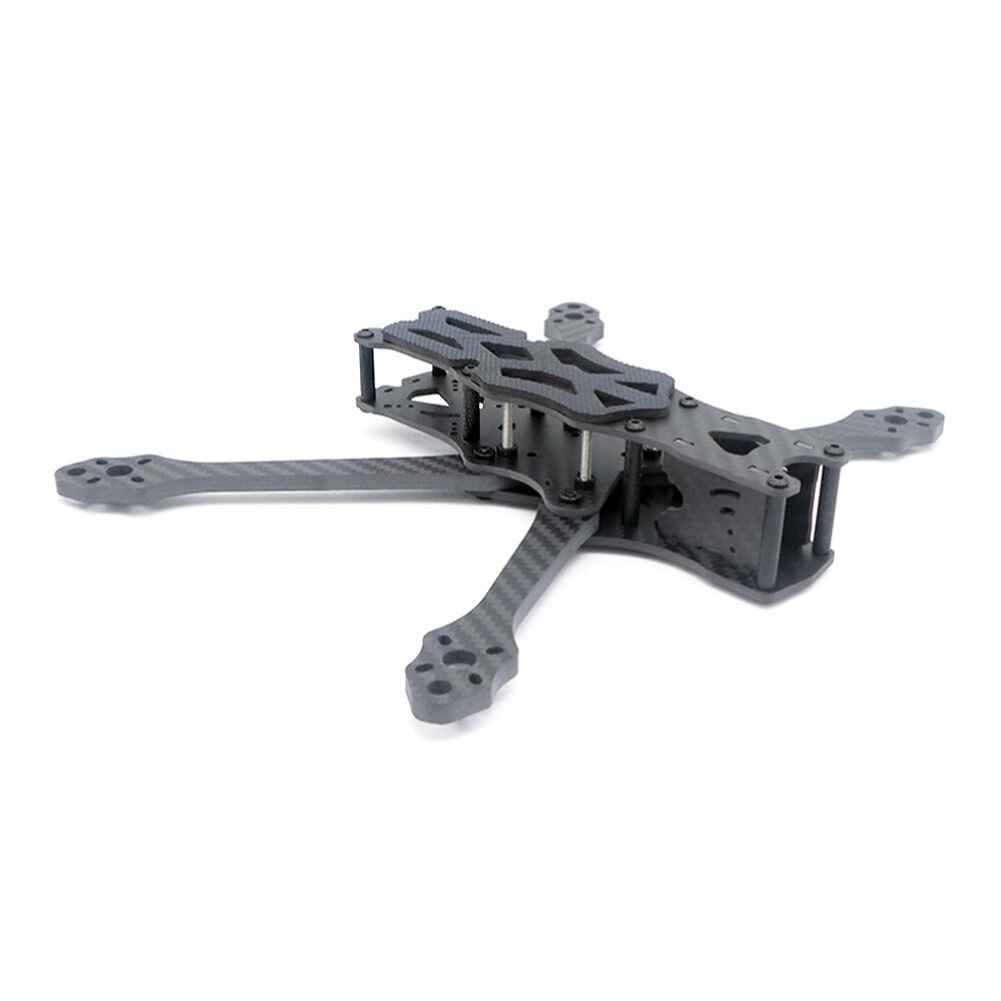

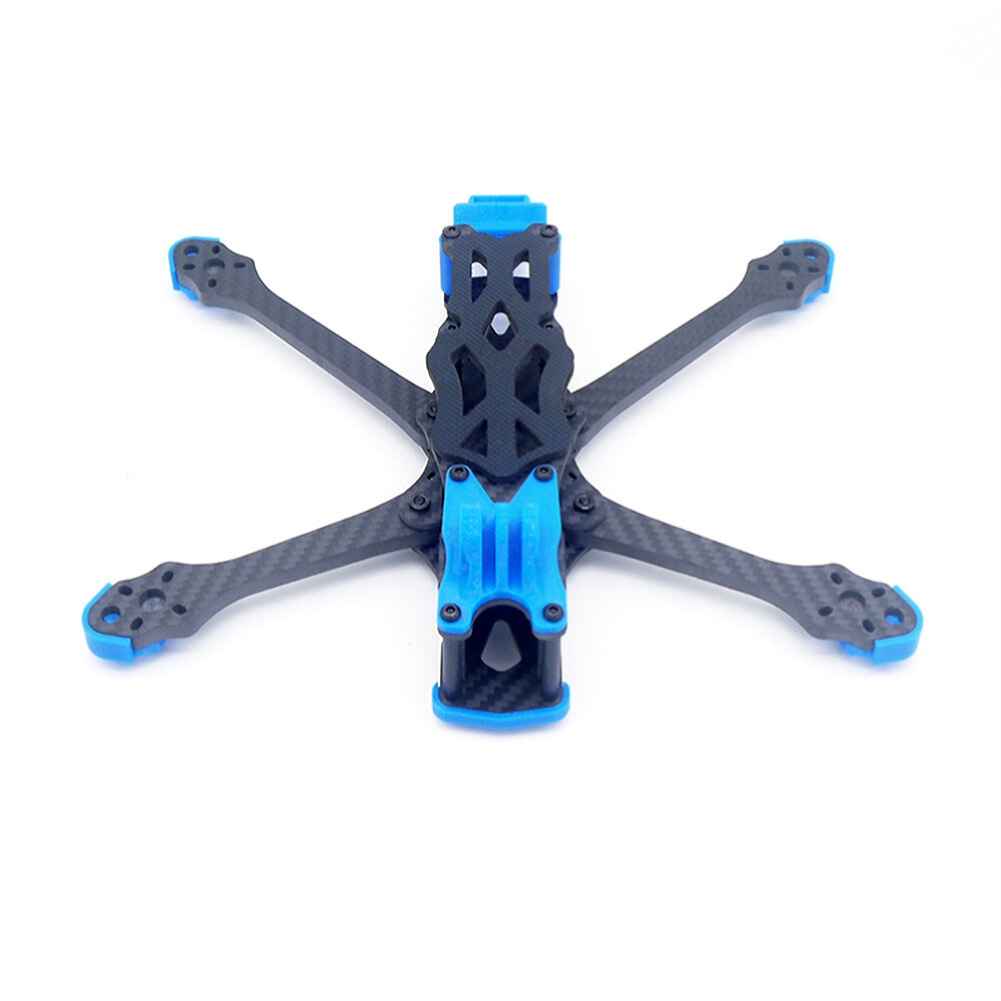

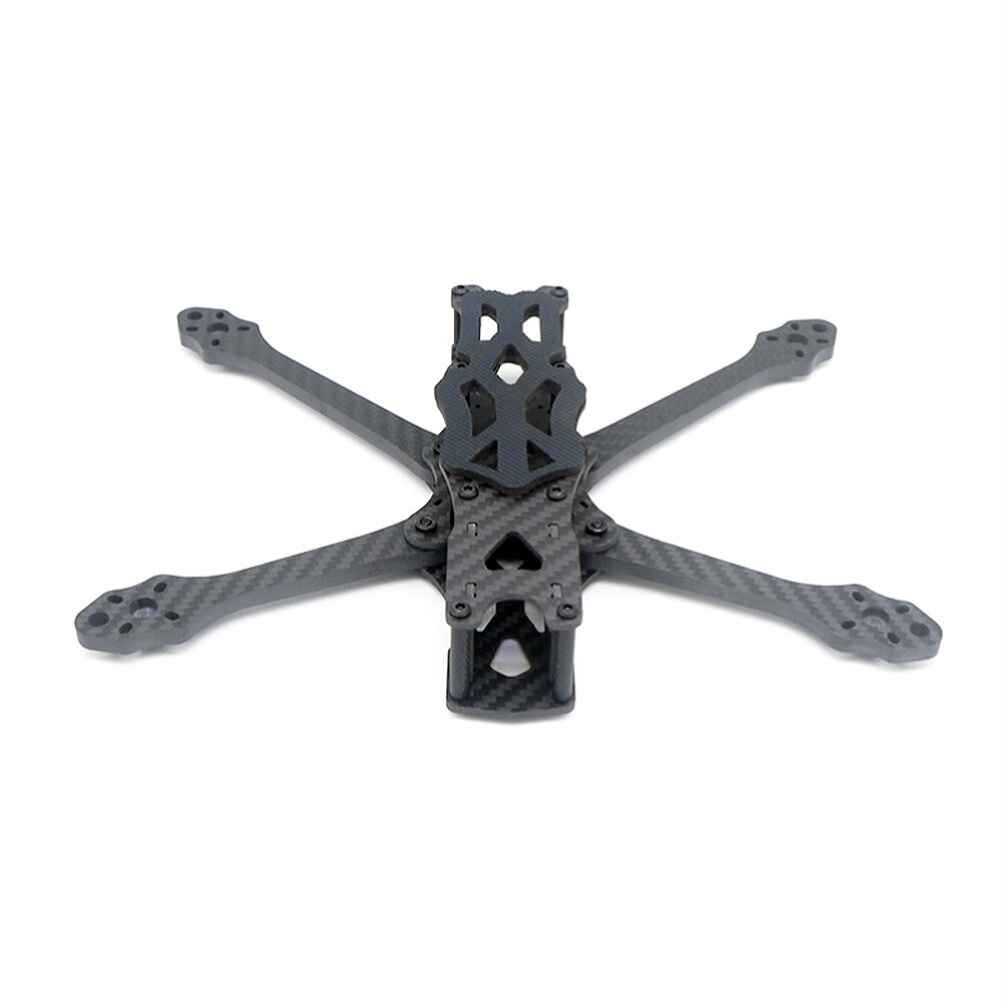

TEOSAW APEX D5/D7 Max Frame Kit, 245mm/340mm Wheelbase, 5/7 Inch, Compatible with DJI O4 Pro FPV Racing Drones

Description

TEOSAW APEX D5 D7 Max 245mm 340mm Wheelbase 5 Inch 7 Inch Frame Kit Compatible with DJI O4 Pro FPV Racing Drones

The TEOSAW APEX D5/D7 Max Frame Kit is designed for FPV racing drones, offering compatibility with DJI O4 Pro. Available in 5-inch and 7-inch options, this frame kit features a wheelbase of 245mm or 340mm. Constructed with a durable 3K (T700 Grade) carbon fiber, it supports propeller sizes of 5-5.1 inches and 7 inches. The frame structure includes a 5.5mm arm plate, 2.5mm bottom and middle plates, and a 2.0mm top plate. It accommodates various mounting options, including flight controllers and VTX with multiple hole configurations. Please note that assembly is required, and manufacturing tolerances apply to thickness and hole sizes.

Note:
– Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of 呼0.2mm. The size of the hole may have a standard manufacturing tolerance of 呼0.1mm.
– Comes unassembled. Need build by buyers.
Specification:
Brand: TEOSAW
Model: APEX D5 / D7
Item Name: 5 Inch / 7 Inch Frame Kit

Model

APEX DC5 (Supports O4 Pro)

APEX DC5MAX (Supports O4 Pro)

APEX DC7 (Supports O4 Pro)

APEX DC7MAX (Supports O4 Pro)

Wheelbase:

245mm

340mm

Dimensions:

Approx. 187mm (Length) x 230mm (Width) x 35mm (Height)Not Including 3D Printed Parts

Approx. 222mm (Length) x 309mm (Width) x 35mm (Height)Not Including 3D Printed Parts

Weight:

Approx. 138g

Approx. 166g

Approx. 170g

Approx. 198g

Structure:

DC Structure

Thickness:

Arm Plate 5.5mm, Bottom Plate 2.5mm, Middle Plate 2.5mm, Top Plate 2.0mm

Supported Propeller Size:

5-5.1 inch

7 inch

Flight Controller Mounting Holes:

20沁20mm (M3), 30.5沁30.5mm (M3)

VTX Mounting Holes:

20沁20mm (M2), 25.5沁25.5mm (M2), 30.5沁30.5mm (M2)

Camera Mounting Width:

20mm/19mm

Internal Space Height:

Approx. 20-28mm

Motor Mounting Holes:

16沁16mm (M3), 19沁19mm (M3)

Supported VTX:

DJI O4 Pro Air Unit

Board Material:

3K (T700 Grade)

GPS Mounting:

None

BZ181

None

BZ181

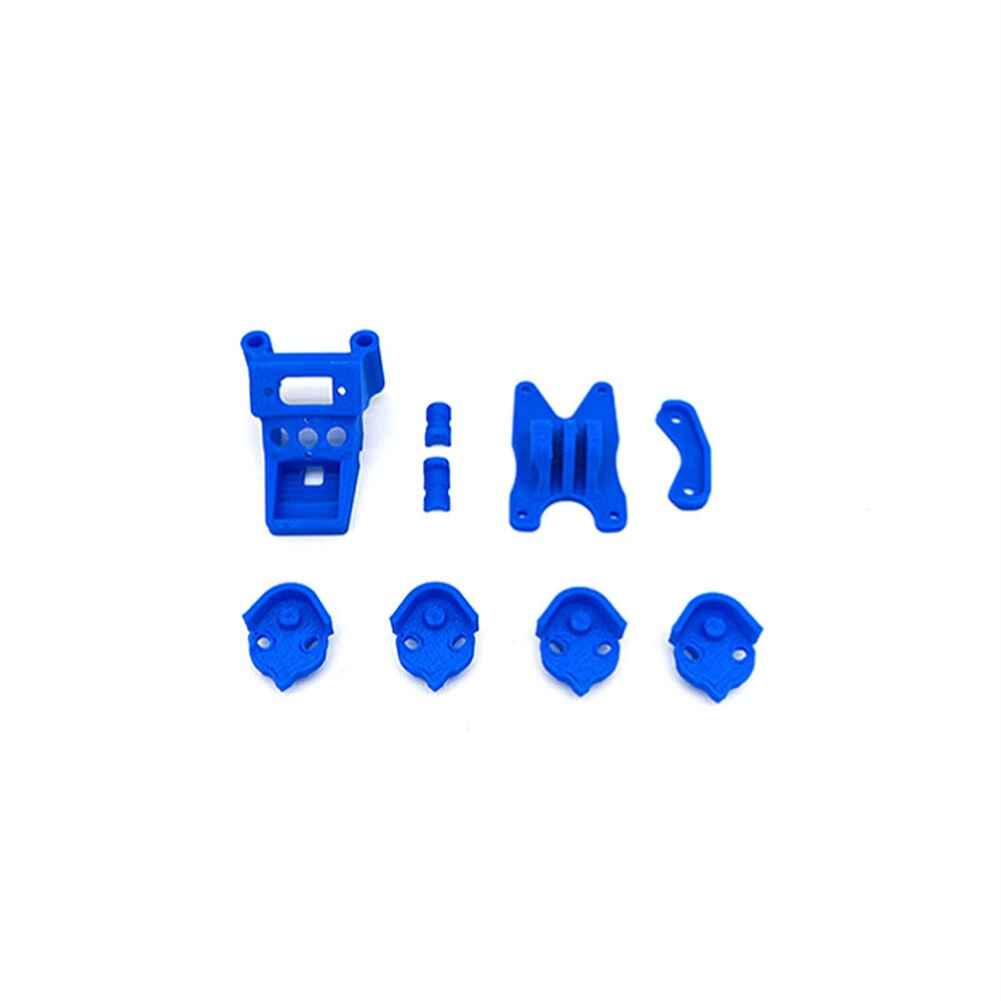

3D Printing Parts List:

None

1 universal base for sports cameras (such as Gpro),
4 arm protection bases,
1 front lip protection base,
1 universal antenna base (compatible with XT60 power head, BZ181GPS, ELRS915/2.4, SMA dual-hole, O4 dual antenna, DJI O3 antenna, VISTA antenna, SMA single-hole antenna, etc.)

None

1 universal base for sports cameras (such as Gpro),
4 arm protection bases,
1 front lip protection base,
1 universal antenna base (compatible with XT60 power head, BZ181GPS, ELRS915/2.4, SMA dual-hole, 04 dual antenna, DJI O3 antenna, VISTA antenna, SMA single-hole antenna, etc.)

Note:

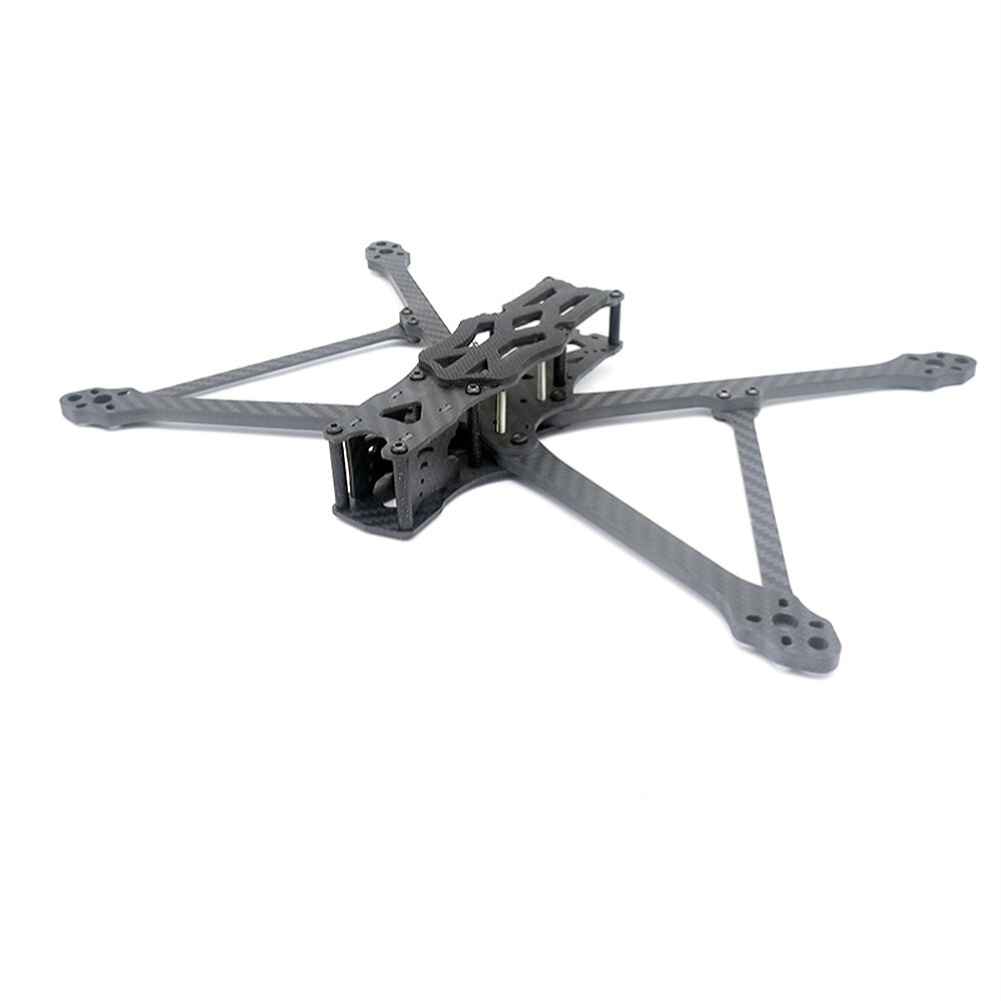

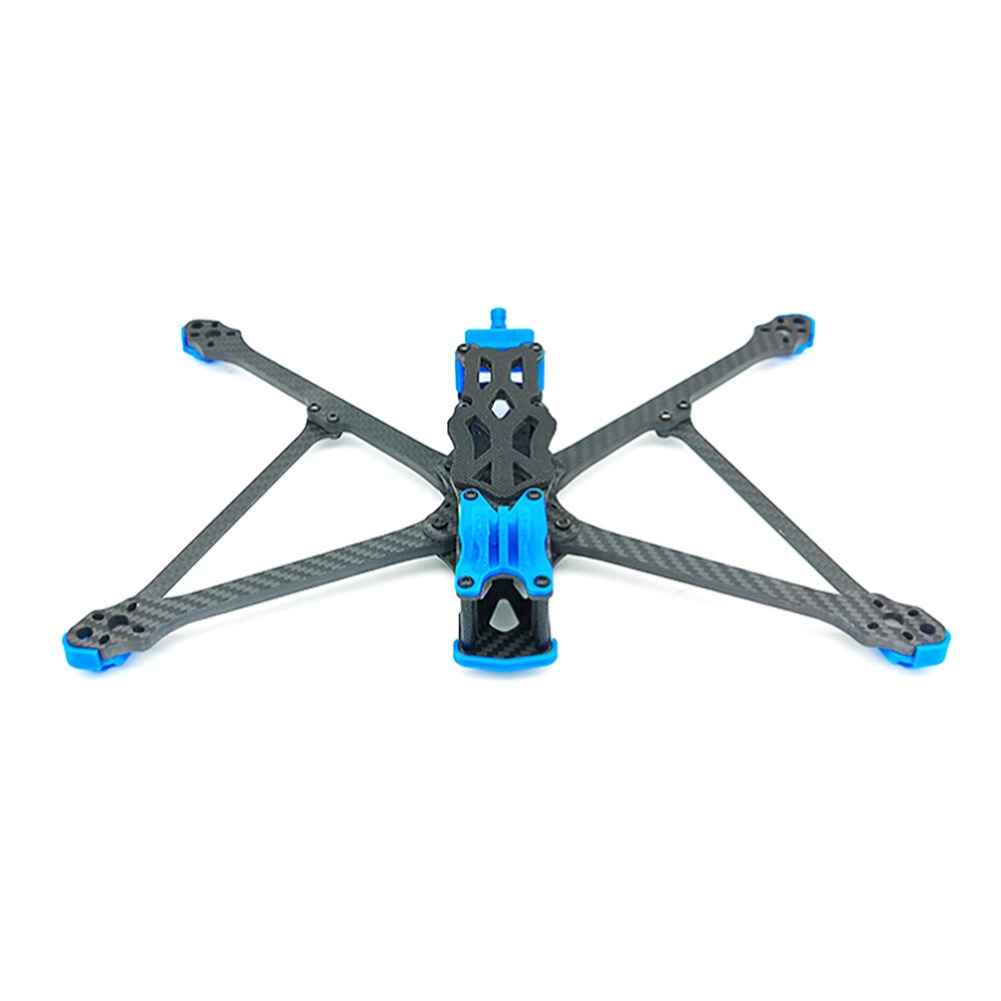

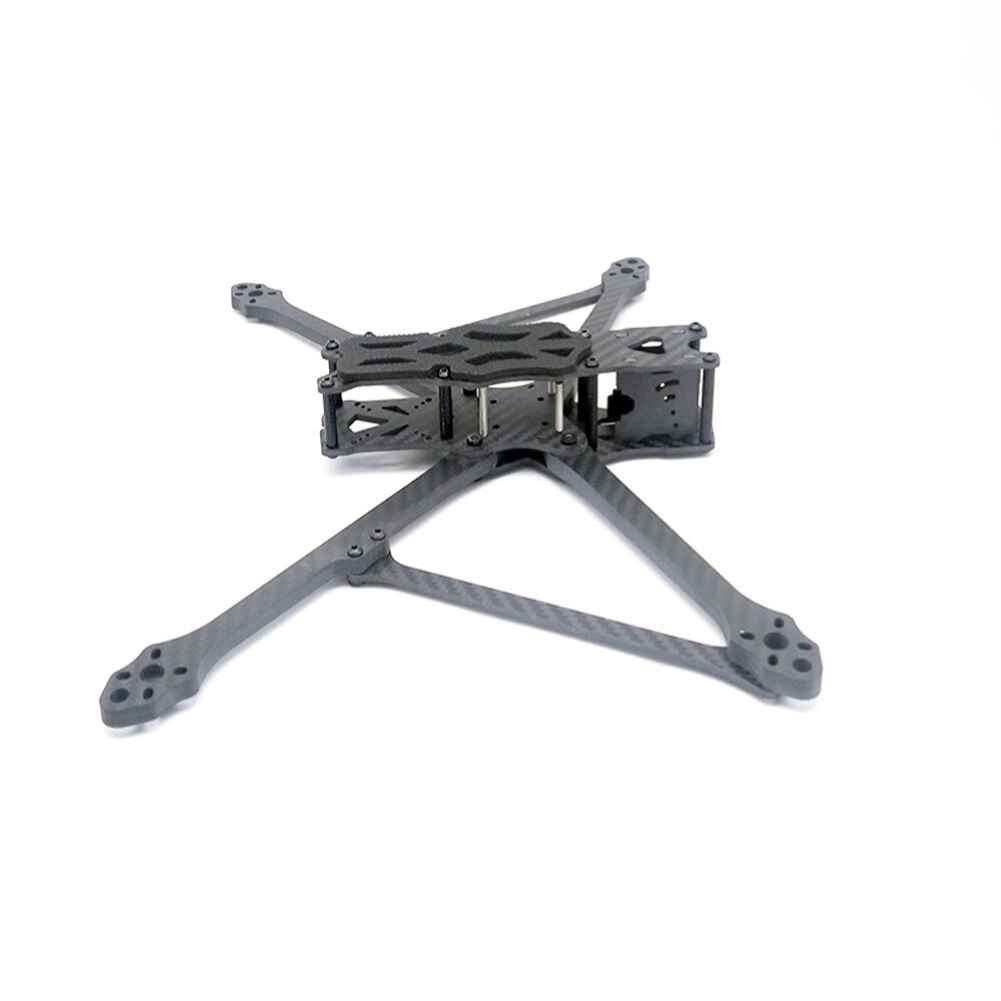

APEX DC7 and APEX DC7 MAX (Supports O4 Pro) are equipped with reinforcement bars.

Recommend Parts: ( NOT Included)
FC & ESC: 20x20mm SpeedyBee F405 Mini F4 / 30.5×30.5mm SpeedyBee F405 V4VTX & Camera: DJI O4 PRO Air Unit Brushless Motor: MAMBA TOKA 2306.5 1650KV 1770KV 4-6S 2770KV 3-4S / Emax ECO II 2807 6S 1300KV 5S 1500KV 4S 1700KVPropeller: 6 Pairs Gemfan 5128 5.1×2.8 5.1 Inch 3-Blade PC Propeller / Gemfan F7036 7inch 3-Blade / 2-Blade Foldable Propeller

Package Included:
1 x TEOSAW APEX Frame Kit
