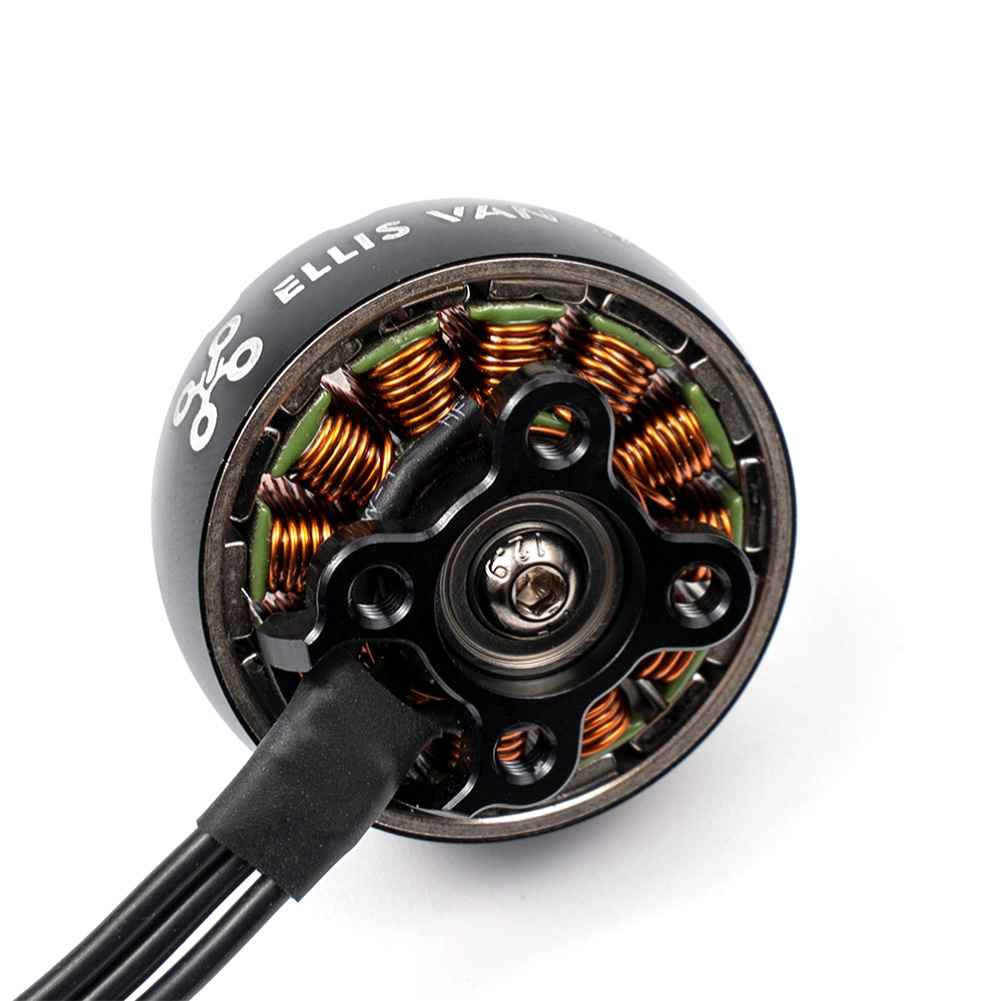

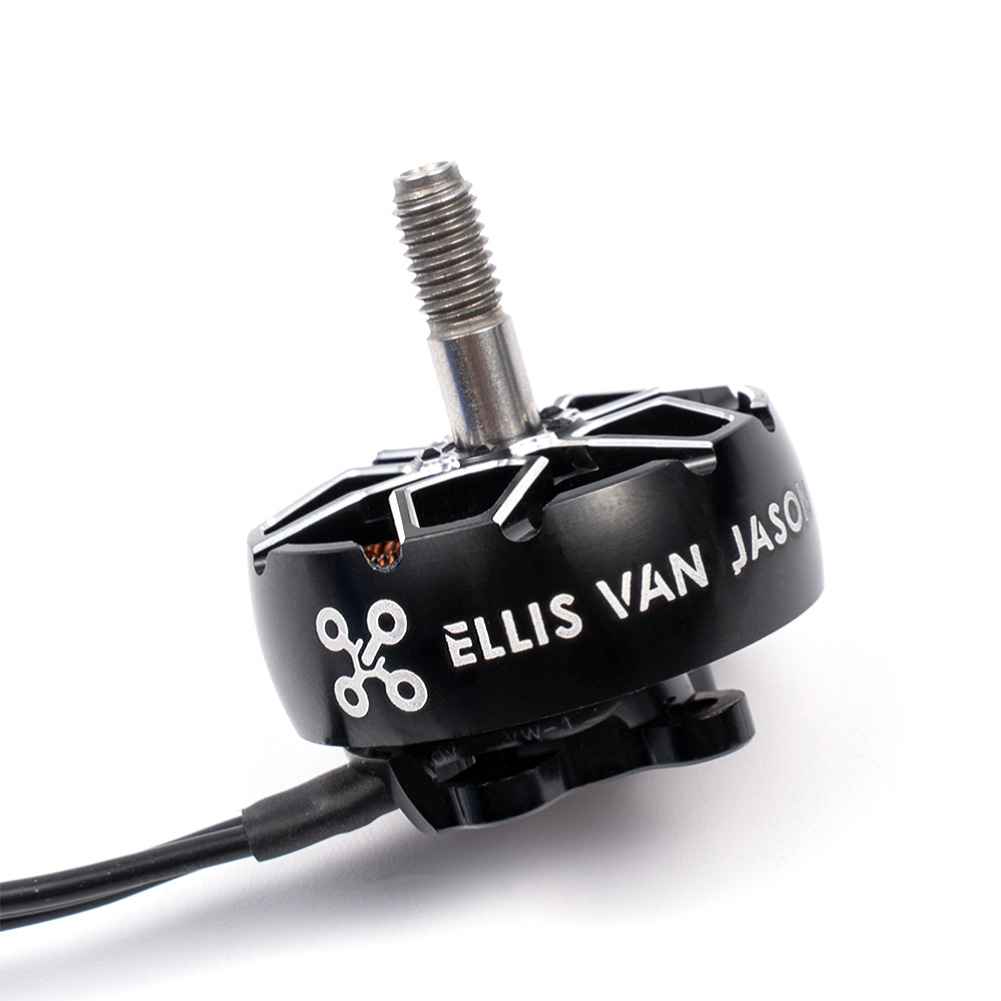

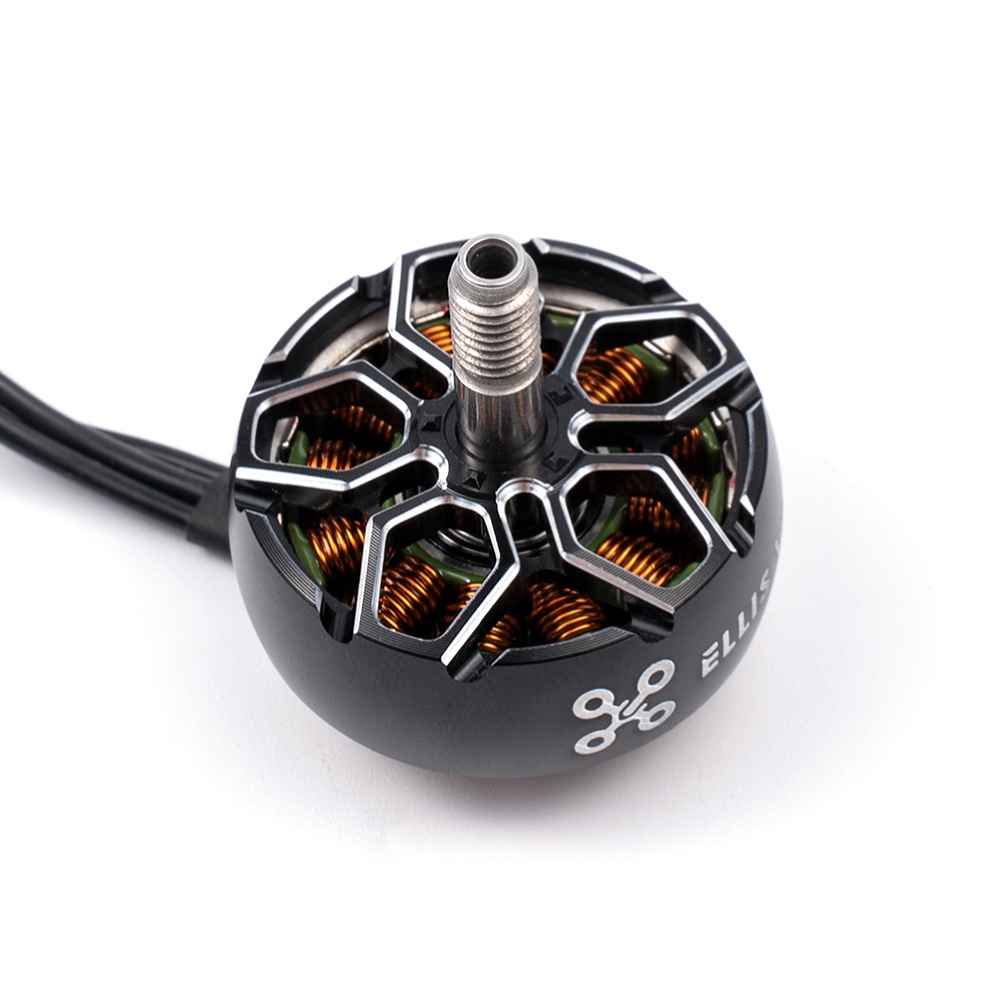

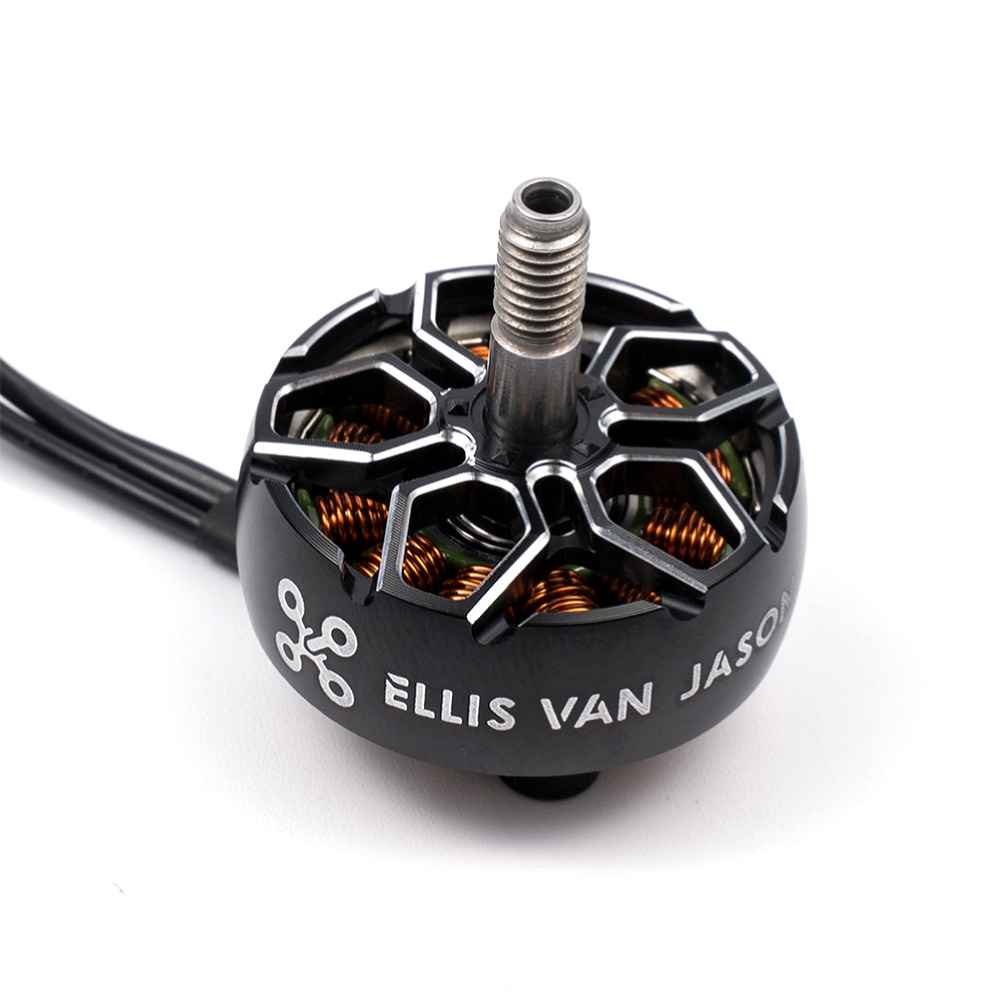

iFlight BOB57 2506 1500KV 6S Brushless Motor for BOB57 Cinematic Long Range Freestyle 6 Inch FPV Racing Drone
The iFlight BOB57 2506 1500KV 6S Brushless Motor is engineered for the BOB57 Cinematic Long Range and Freestyle 6-inch FPV Racing Drone. This motor features N52H curved arc magnets that significantly reduce response time, enhancing the drone’s performance by minimizing translation delays during braking and acceleration. The motor’s design includes a 5mm titanium alloy shaft and NSK bearings for durability and smooth operation. With a focus on efficiency, the reduced magnet air gap and stator lamination increase magnetic flux, resulting in higher power output. The robust 7075 aluminum bell and dynamically balanced construction ensure crash resistance and longevity.
Description:
This motor is specially designed for BOB57 Cinematic LR & Freestyle 6inch BNF
The smooth, reliable and powerful motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it’s translation delay of it braking and accelerating. This motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!
Features:
5mm titanium alloy shaft, our strongest prop shaft ever!
Smooth and long-lasting NSK 10x4x4 bearings
Center slotted N52H curved arc magnets
XING O-ring bearing gap protection
Crash resistant 7075 aluminum bell
Motor wires protector
Dynamically balanced
Specifications:
Product Name: BOB57 2506 6S 1500KV
KV: 1500KV
Weight(included wire): 38.2g
Dimension: 嫉31.7*19.6mm
Interphase Resistance: 74.88m棒
Input Volts: 25.2V
Peak Current: 33.26A
Max Watt: 817.5W
Mounting Holes: 16*16 嫉3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: 嫉10*嫉4*4
Winding: Single Strand copper winding
Package Included:
1 x BOB57 2506 1500KV 6S FPV Motor 1 x M5 Flanged Nylon Insert Lock Nut 4 x M3 8mm screws
