iFlight Mach R5 Sport Ultra V1.1 Analog 5 Inch Frame Kit, 190mm Wheelbase, Lightweight for FPV Racing Drone

Sale!

iFlight Mach R5 Sport Ultra V1.1 Analog 5 Inch Frame Kit, 190mm Wheelbase, Lightweight for FPV Racing Drone

Original price was: 99.98$.Current price is: 84.48$.

Lightweight T700 carbon plate for enhanced performance
190mm wheelbase optimized for professional FPV racing
Unassembled kit for custom builds
Compatible with iFlight BLITZ Mini F7 V1.1 FC
Supports 5-inch propellers for high-speed racing

SKU: RC2029505 Category: Multi Rotor Parts Tags: 190mm wheelbase frame, 5 inch drone frame, FPV drone frame kit, FPV racing drone frame, iFlight Mach R5 Sport Ultra, lightweight racing frame, professional racing drone, T700 carbon frame Brand: iFlight

Description

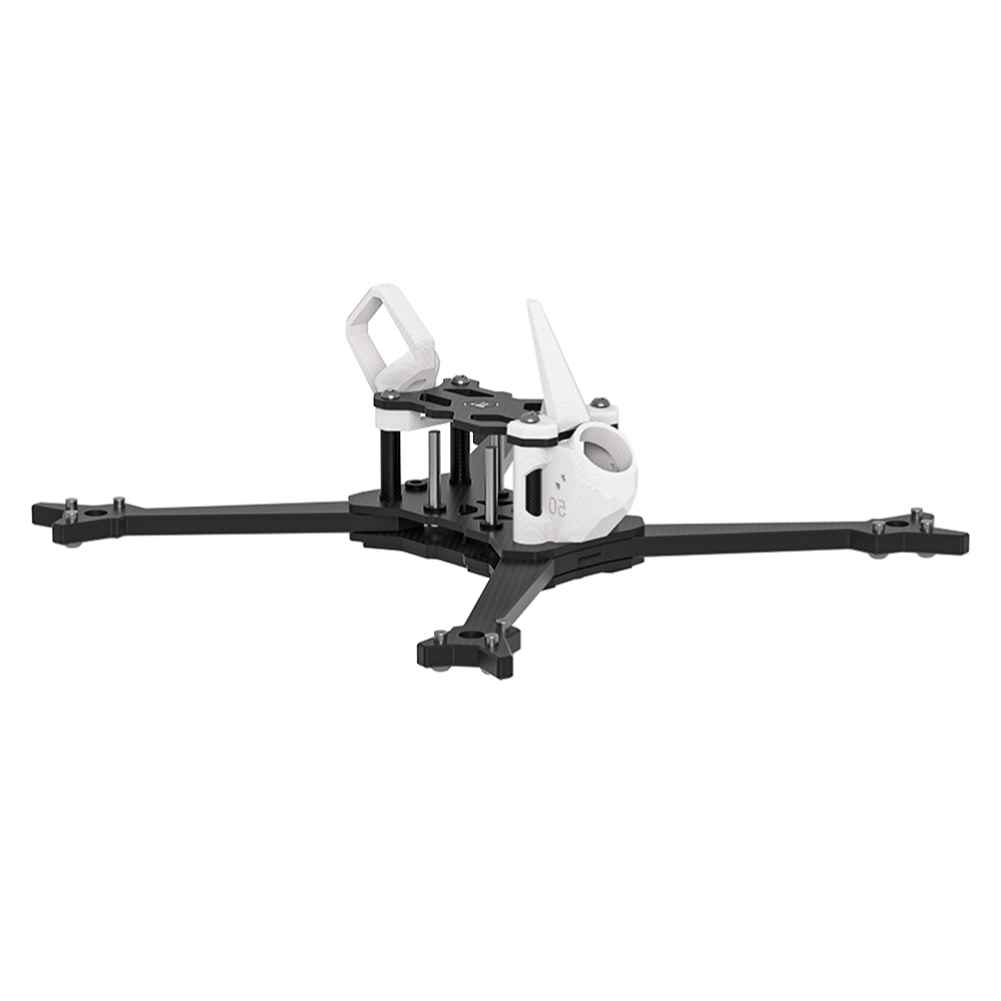

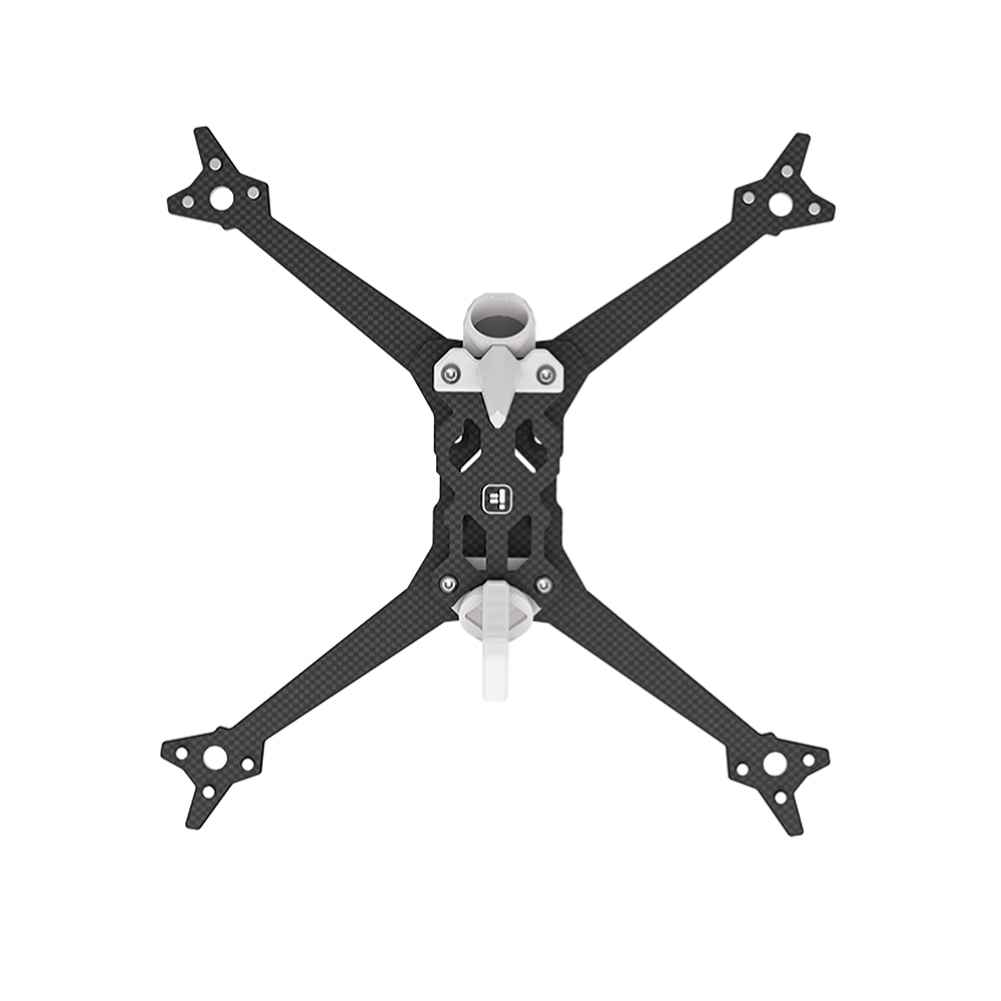

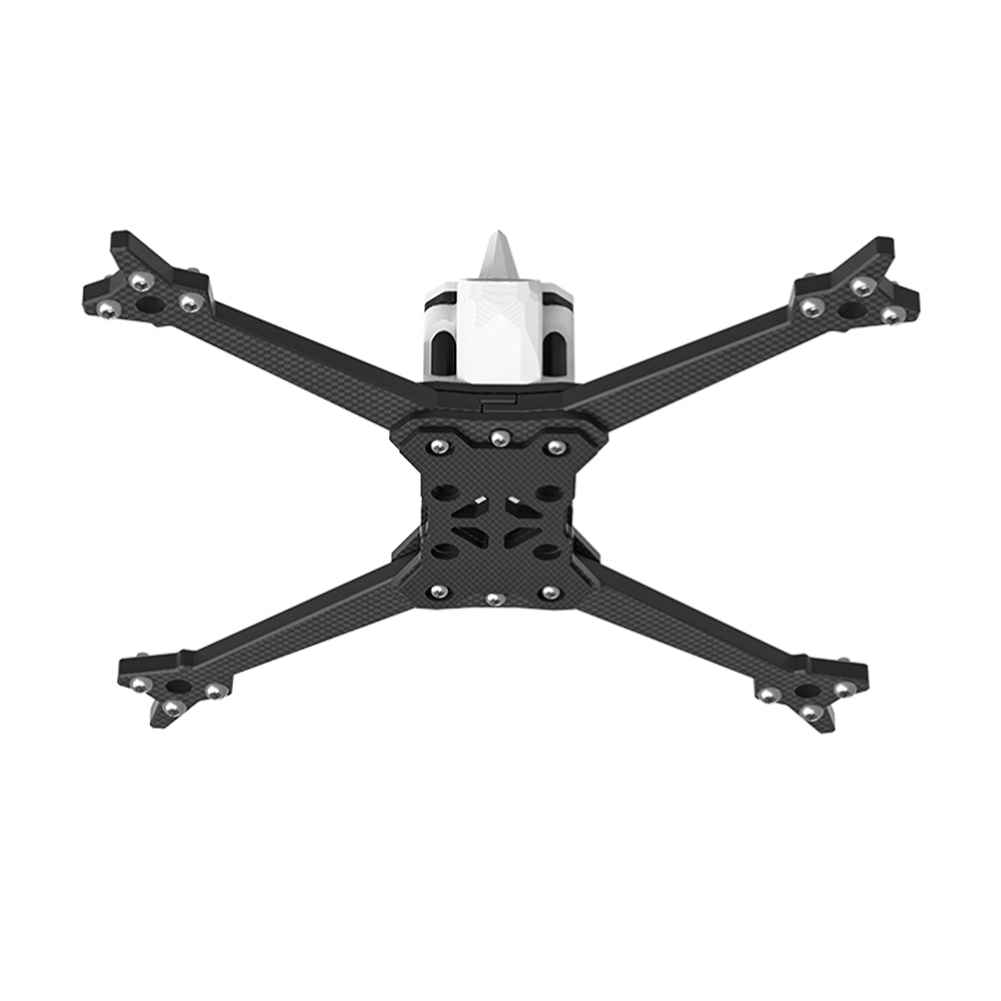

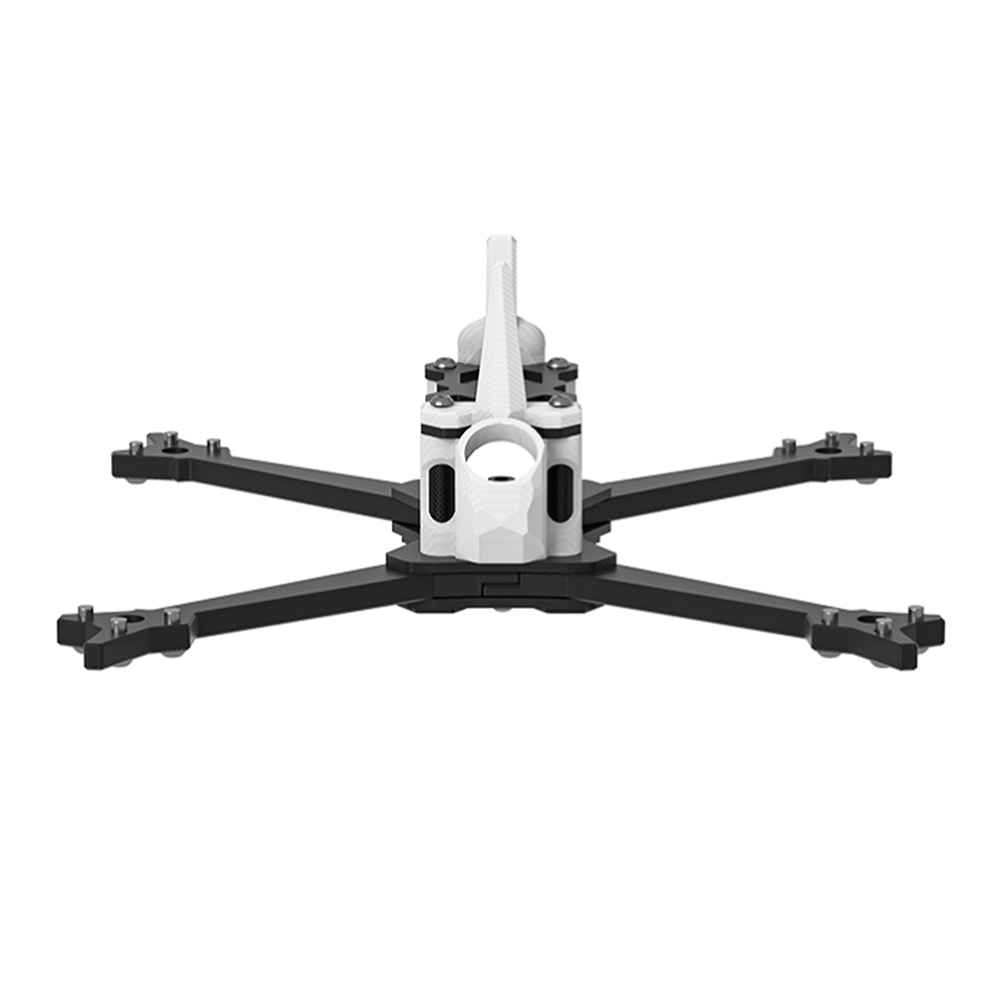

iFlight Mach R5 Sport Ultra V1.1 Analog 190mm 5 Inch Frame Kit for FPV Racing Drone

The iFlight Mach R5 Sport Ultra V1.1 Analog Frame Kit is designed for the serious FPV racing enthusiast. This upgraded version, effective from April 24, 2025, features a T700 carbon plate material, enhancing durability while maintaining a lightweight structure. With a compact 190mm wheelbase, this frame is optimized for professional racing, offering superior maneuverability and speed. The frame comes unassembled, allowing racers to customize their build. Key specifications include a 92g weight, X-type frame, and various installation hole spacings for easy assembly. The frame is compatible with recommended parts like the iFlight BLITZ Mini F7 V1.1 FC 55A Stack and iFlight XING2 2207 1855KV motor, making it a versatile choice for FPV racing.

Notice:
1. From April 24, 2025, the product will be upgraded to V1.1 (carbon plate material upgraded to T700).
2. Comes unassembled. Need build by buyers.
Description:
Compared with Mach R5 Sport, R5 Sport Ultra frame is lighter and has a wheelbase of only 190mm, which is more suitable for professional racing players.
Specification:
Brand: iFlight
Moedl: Mach R5
Product Name: Sport Ultra V1.1 Analog 5 Inch Frame KIt
Frame: X-type
Motor Diagonal Distance: 190mm (wheelbase)
Frame Size (L*W*H): 169*161*34mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Arm thickness: 5mm
Middle Plate Thickness: 2mm
Internal Space Height: 23mm
Motor Spring Hole Diameter: 6mm
Camera Side Plate Spacing: 14*14mm
Flying Tower Installation Height: 23mm
Image Transmission Installation Height: 23mm
Flight Control Installation Hole Spacing: 20*20/?3mm
Image Transmission Installation Hole Spacing: 20*20/?3mm
Motor Installation Hole Spacing: 16*16/?3mm/3-hole shape
Weight: 92g
Recommended parts(not included):
FC&ESC: 20x20mm iFlight BLITZ Mini F7 V1.1 FC 55A Stack
Burshless Motor: iFlight XING2 2207 1855KV motor
Propeller: 2 Pairs HQ Freestyle Prop 5X4.3X3V2S 5043 3-Blade Propeller
Lipo Battery: TATTU R-LINE 3.0 6S 22.2V 1400mAh 120C 6S1P LiPo Battery XT60
VTX: Analog BLITZ Mini Force 600mW VTX
