Happymodel 2024 Mobula6 1S 65mm Ultra Light Micro FPV Whoop Drone with ExpressLRS Receiver and OpenVTX

Description

Happymodel 2024 Mobula6 1S 65mm Ultra Light Micro FPV Whoop BNF 2.4G ExpressLRS Receiver 5.8G Openvtx

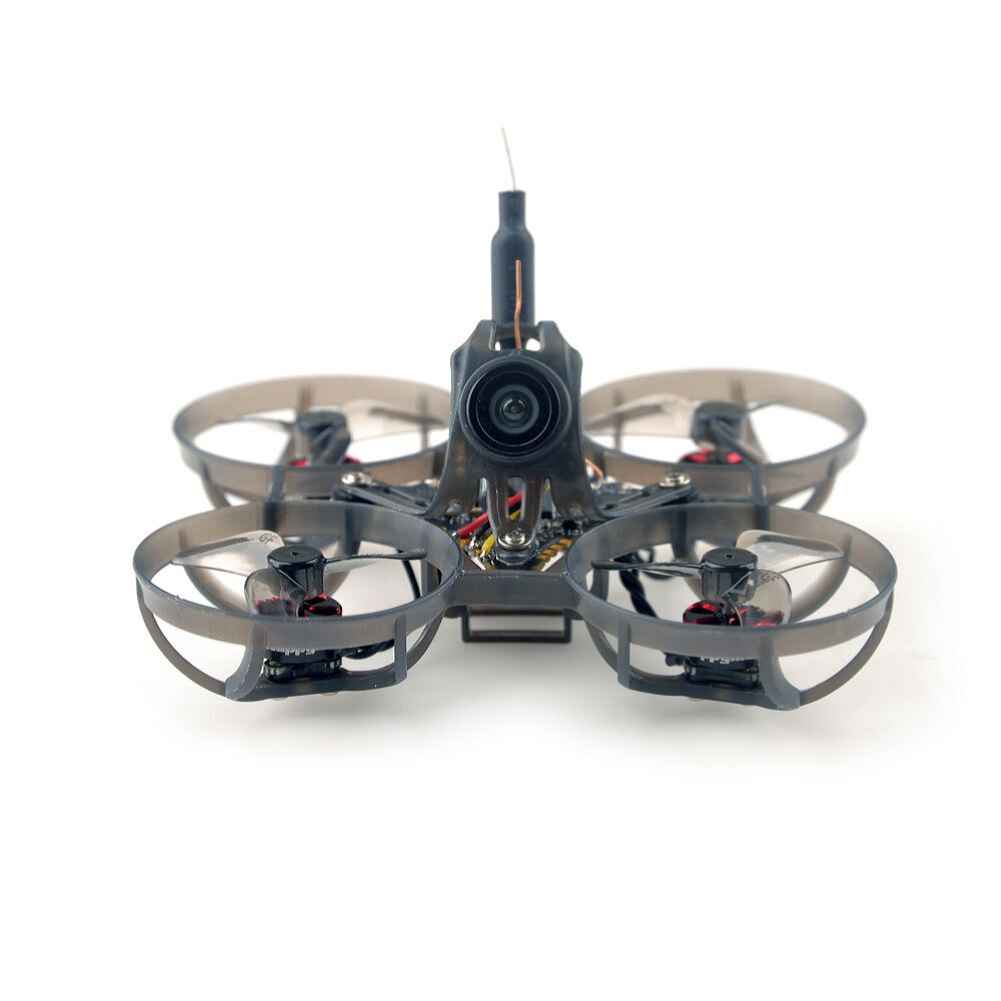

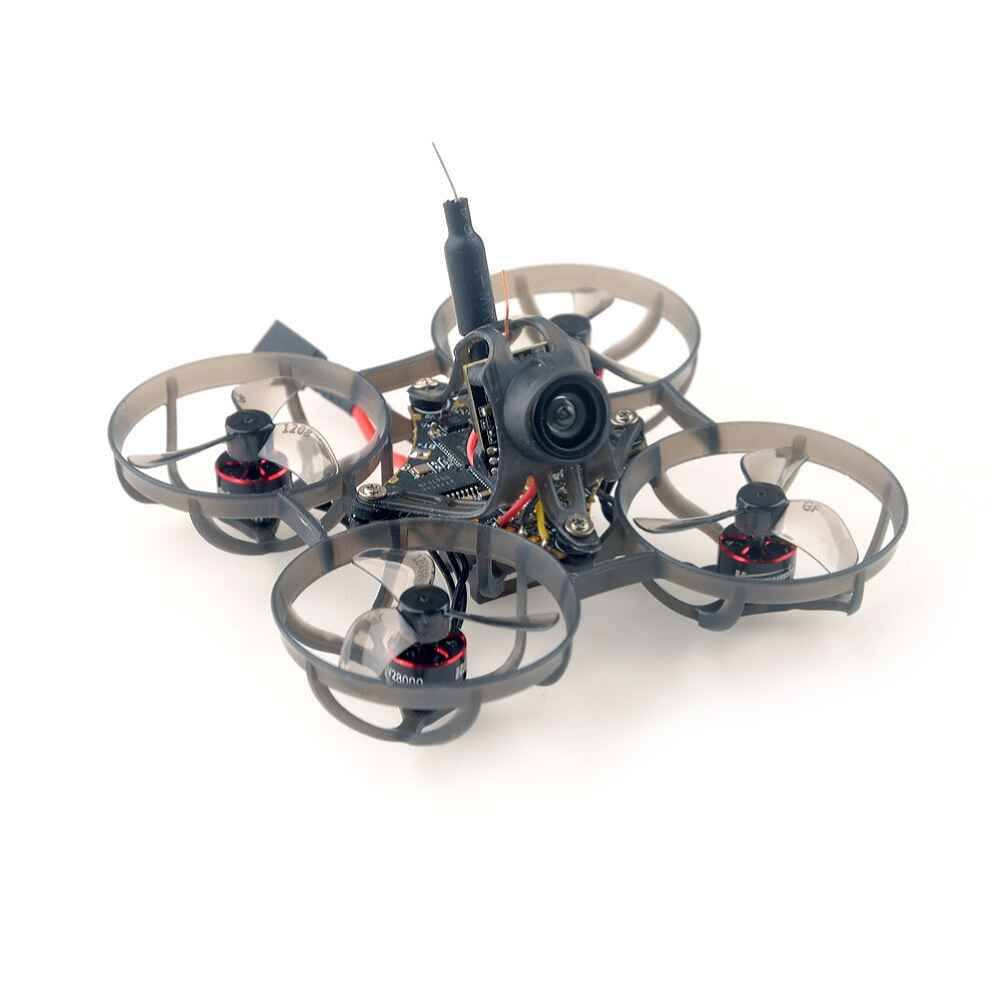

The Happymodel 2024 Mobula6 is an ultra-light 1S 65mm micro FPV whoop drone, weighing only 17.7g. It features a SuperX ELRS AIO 5-IN-1 flight controller with a Serial ELRS Receiver and 5.8G OpenVTX. Equipped with lightweight SE0702 brushless motors and a Runcam Nano7 camera, this drone delivers smooth and powerful flight performance. The Mobula6 is compatible with 1S Lipo/LIHV batteries and is perfect for indoor flying with a flight time of approximately 2 to 2.5 minutes using a 300mAh battery. Note: The camera and flight controller have undergone updates since June 2025.

Notice: 1. FX17-B Camera and Nano7 Camera will be shipped randomly. January 20, 2025
2. The Camera of Mobula6 2024 changed to Runcam Nano7 Camera since June 3, 2025.
3. Mobula6 2024 AIO will be replaced by SuperX ELRS V2.0 AIO starting June 3, 2025. The only difference is v2.0 AIO FC comes with motor plug but V1.0 AIO FC is no motor plug.
Features:
– AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx
– Super light 1S 65mm Brushless whoop only 17.7g
– Equipment with the lightest brushless motors-SE0702 only 1.46gram
– FX17-B 1/3 CMOS 800TVL Camera awesome footage
– Smooth and powerful
– Compatible for 1S Lipo/LIHV
Specifications:
Brand: Happymodel
Model: 2024 Mobula6 1SItem Name: Mobula6 2024 1S 65mm ultra light micro FPV WhoopWheelbase: 65mmSize: 81mm*81mm*37mmWeight: 17.7gFlight time: Usually 2~2.5minutes with 1s 300mah battery indoor flying.
Spare parts specifications:

Motor

Mode: SE0702 KV28000Configu-ration:9N12PStator Diamter:7mmStator Length:2mmShaft Diameter:?1mmMotor Dimension(Dia.*Len):?9.5mm*14mmWeight(g):1.46gNo.of Cells(Lipo):1S only

Propellers

Materials: PCInch: 31mmPitch: 0.8 inWeight: 0.21gMount hole diameter: 1mm

Flight controller

SuperX ELRS AIO 5-IN-1 Flight controllerMCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4Sensor:BMI270 or ICM42688P(SPI connection)Mount hole size: 25.5mm*25.5mmPower supply: 1S battery input (DC 2.9V-4.35V)Built-in 5A(each) Blheli_S 4in1 ESCBuilt-in Betaflight OSD(SPI Control)Built-in 5.8G OpenVTX 0mw~400mw (MSP control)Built-in UART ExpressLRS v3.0.0Built-in voltage meter sensor , voltage meter scale 110Built-in current meter sensor , current meter scale 1175

Onboard 4in1 ESC

Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)Support BLHeliSuite programmableFactory firmware: Bluejay v0.19.2Default protocol: DSHOT300Recommend ESC Startup power value to min1100/max1200

Onboard Serial ExpressLRS receiver

Packet Rate option: 50Hz/150Hz/250Hz/500HzExpressLRS Firmware version: V3.0RF Frequency: 2.4GHzAntenna : Enameled copper wire antennaTelemetry output Power: <12dBmReceiver protocol: Serial_based CRSFCompatible with ExpressLRS V3.x.x TX ModuleCould flash single ELRS receiver firmware by WifiExpressLRS firmware target: ExpressLRS firmware target:HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher)Available from Expresslrs version 3.4.0 RC2

Onboard 5.8G VTX

Firmware version: OPENVTXMSP VTXPIT Mode supportChannels:40chTransmitting Power: 0/RCE/25mw/100mw/400mwPower supply: DC 5VCurrent (5v): <650ma (400mw)Antenna connector: U.FL

Camera

Model:Nano7Image Sensor: 1/3﹍ CMOSHorizontal Resolution: 800TVLD:150‵ H:120‵ V:98‵Signal System: NTSCNet Weight: 1.9g with cableDimensions: L14mm*W14mm*H13mm

Factory firmware and default dump file (Compatible with both V1.0 and V2.0 version flight controller) :
Mobula6 2024 factory firmware 4.4.0
Dump file for Mobula6 2024 with Betaflight 4.4.0
Mobula6 2024 Factory firmware 4.4.2
Dump file for Mobula6 2024 with Betaflight 4.4.2
Note: The AIO flight controller comes with two type of Gyro sensor , one is BMI270 and another one is ICM42688P. So after you re-flashed firmware ,First Gyro direction for BMI270 should set to be CW0‵ , and for ICM42688P should set to be CW90‵
The easiest way to differentiate between BMI270 and ICM42688P: BMI270 Gyro sensor with 3.2kHz gyro update frequence, ICM42688P Gyro sensor with 8kHz gyro update frequence

Package Included:
1 x Mobula6 2024 1S 65mm whoop Drone Frame + Canopy
1 x SuperX ELRS AIO 5-IN-1 Flight controller V2.0
4 x SE0702 KV28000 brushless motor
1 x Gemfan 1208-3 31mm tri-blade propellers (4cw+4ccw)
1 x Nano7 1/3 CMOS 800TVL camera NTSC 4:3
1 x Onboard 5.8G 25mw~400mw VTX
1 x Spare canopy
1 x Propeller disassemble tool
1 x Screw driver
