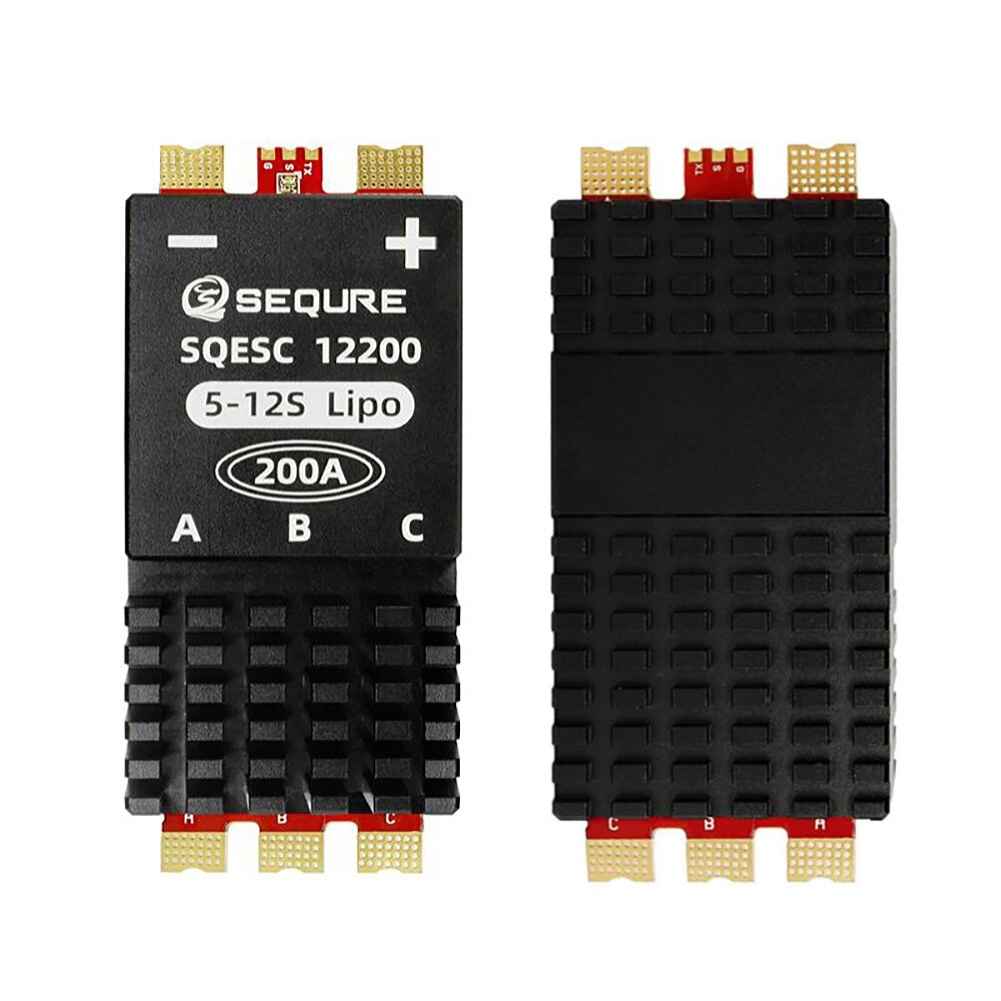

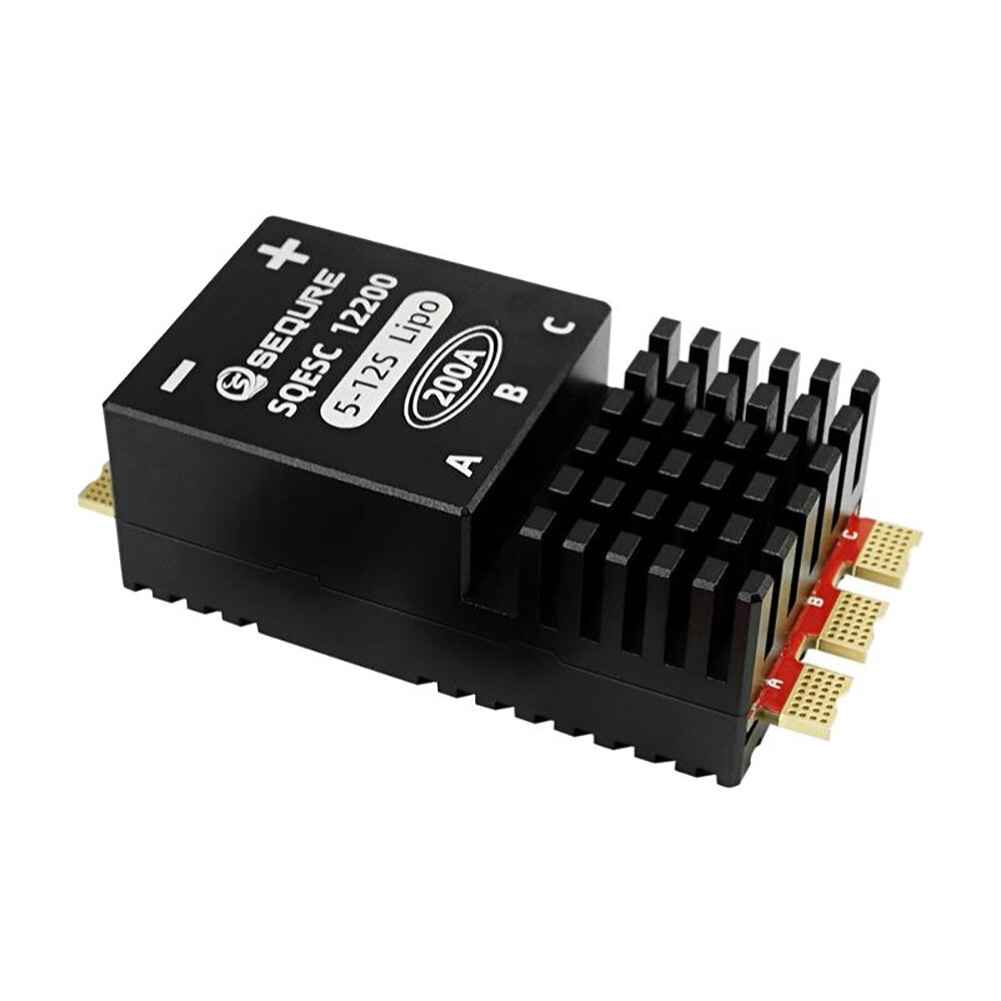

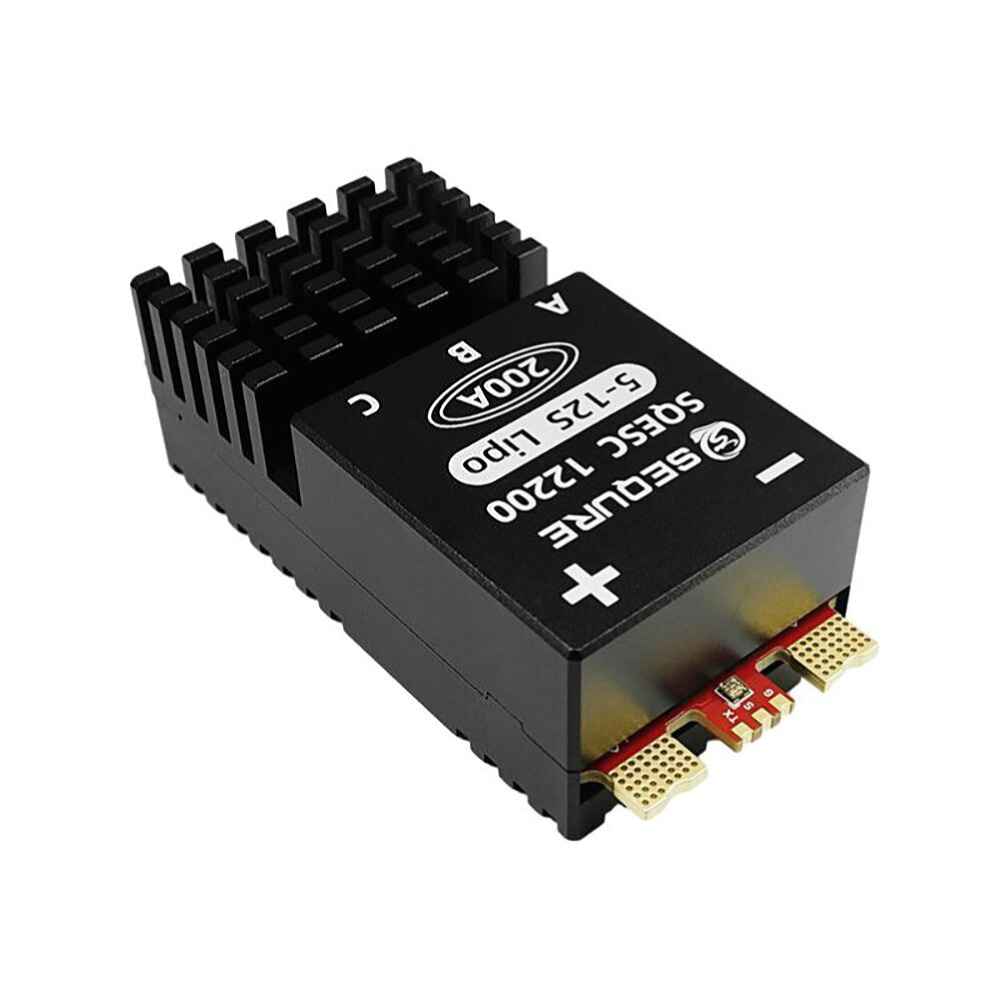

SEQURE SQESC 12200 Brushless ESC, 5-12S, 200A, BLHeli_32/AM32 Firmware, PWM 128KHz, for Multi-Rotor Aircraft, RC Cars, Boats

Description

SEQURE SQESC 12200 Brushless Electric Speed Controller ESC 5-12S Power Supply 200A BLHeli_32 / AM32 Firmware Support 128KHz PWM Frequency Suitable For Multi-Rotor Aircrafts Airplane Models Plant Protection Machine Boat Models RC Car Models

The SEQURE SQESC 12200 Brushless Electric Speed Controller is designed for high-performance applications in multi-rotor aircraft, RC cars, and boats. It features a 32-bit STM32G071 processor with a 64MHz working frequency, supporting up to 128KHz motor PWM frequency. The ESC includes high-power MOSFETs and a CNC metal radiator for effective heat dissipation under high current loads. It offers multiple motion modes, including unidirectional, bidirectional, and braked motors, along with various protections such as low voltage, temperature, and locked rotor protection. The ESC supports all Dshot signals and protocols like PWM, Oneshot, and Multishot, and includes a visual programming tool for parameter adjustments, such as motor timing and throttle calibration. RGB LED color settings are customizable for enhanced visibility.

Product Description:
(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.

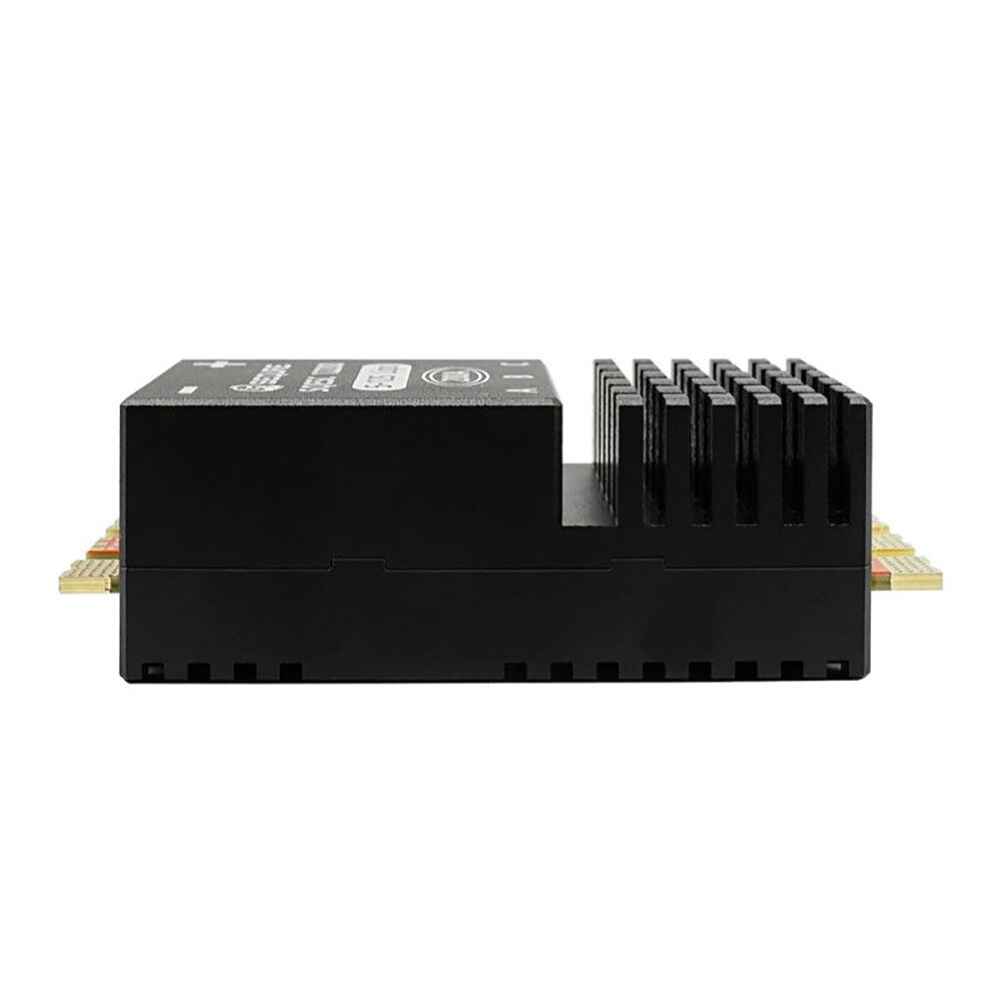

(2) Adopts high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.
(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(7) Onboard RGB LED color light settings, multiple LED colors can be customized.
(8) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.
SQESC 12200 Parameters:

SQESC 12200

Processor

STM32G071

Input voltage

mso-char-indent-count:0.0000;’>DC 18V-50.4V侈5-12S Lipo佩

Continuous current (good heat dissipation)

mso-char-indent-count:0.0000;’>200A

Maximum current (good heat dissipation)

mso-char-indent-count:0.0000;’>250A

Support firmware

BLHeli_32佾AM32

mso-char-indent-count:0.0000;text-align:center;’>BEC

mso-char-indent-count:0.0000;’>NO

Signal protocol

Dshot (All),PWM,Oneshot,Multishot,etc.

Programming parameter adjustment

Support

Throttle calibration

Support

Timing angle setting

Support

Current detection

Support

Telemetry signal

Support

Motor steering settings

Support

RGB LED color lights

Support

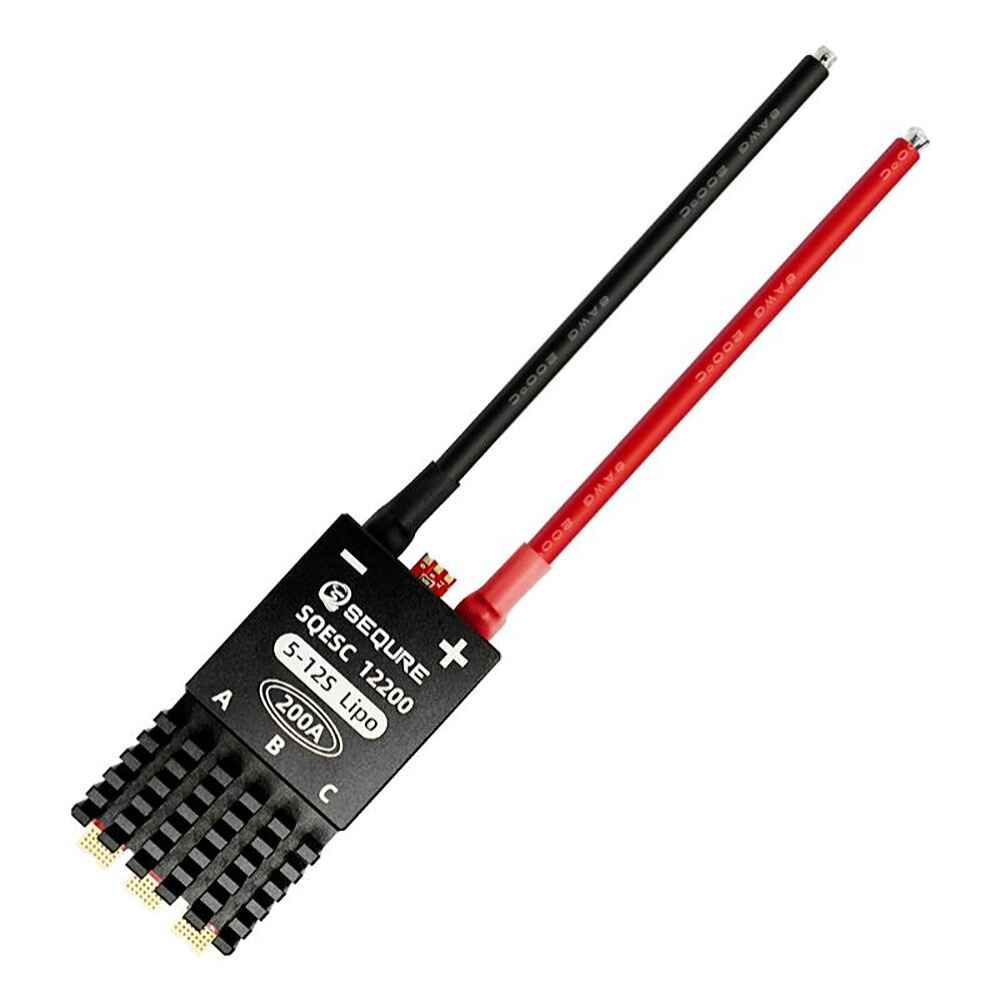

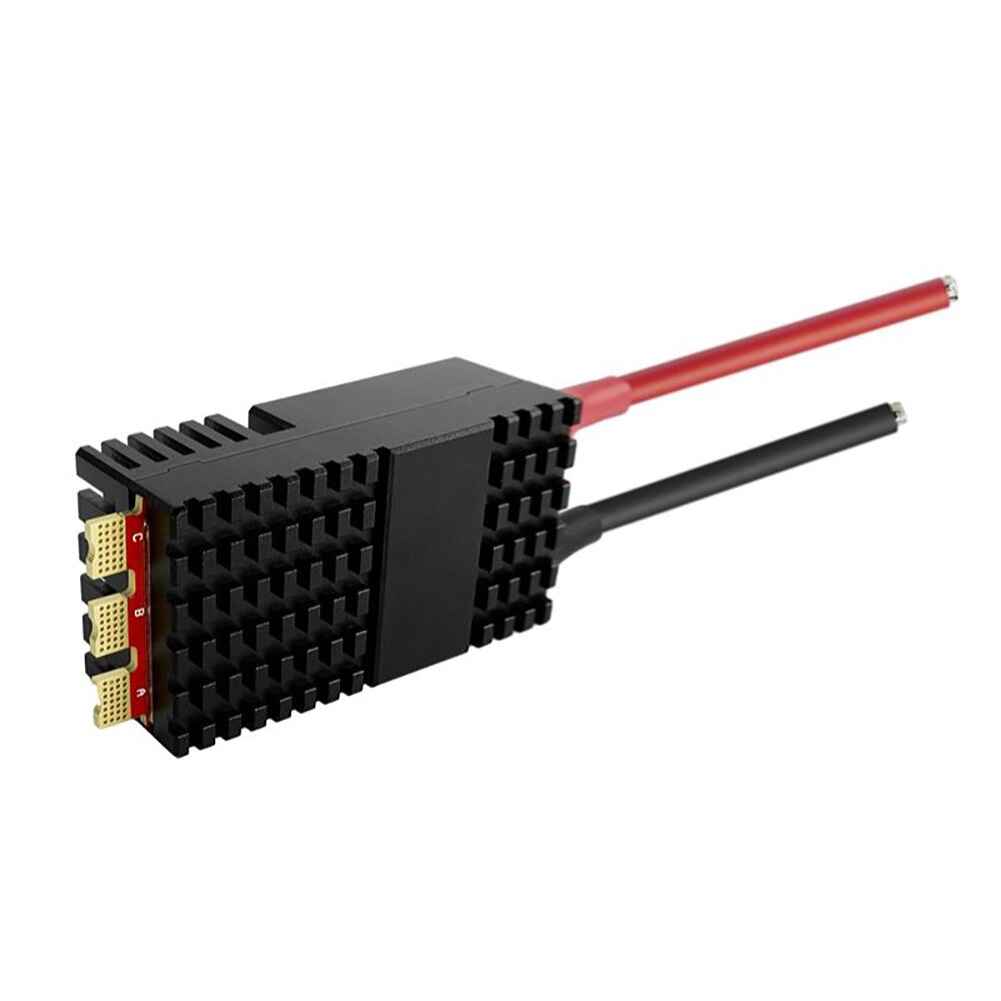

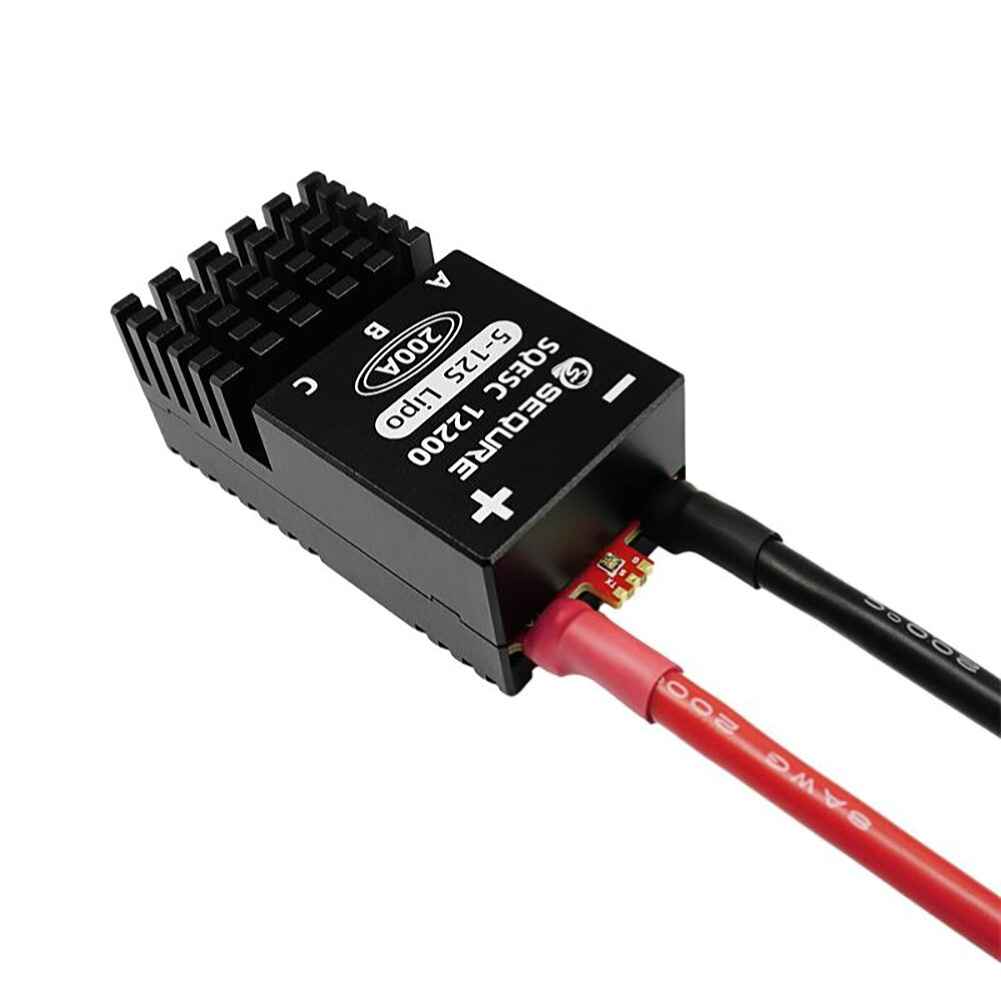

Power cable(if any)

8AWG

Application scenarios

Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, and rock crawlers.

12200侈BLHeli_32佩/12200侈AM32佩

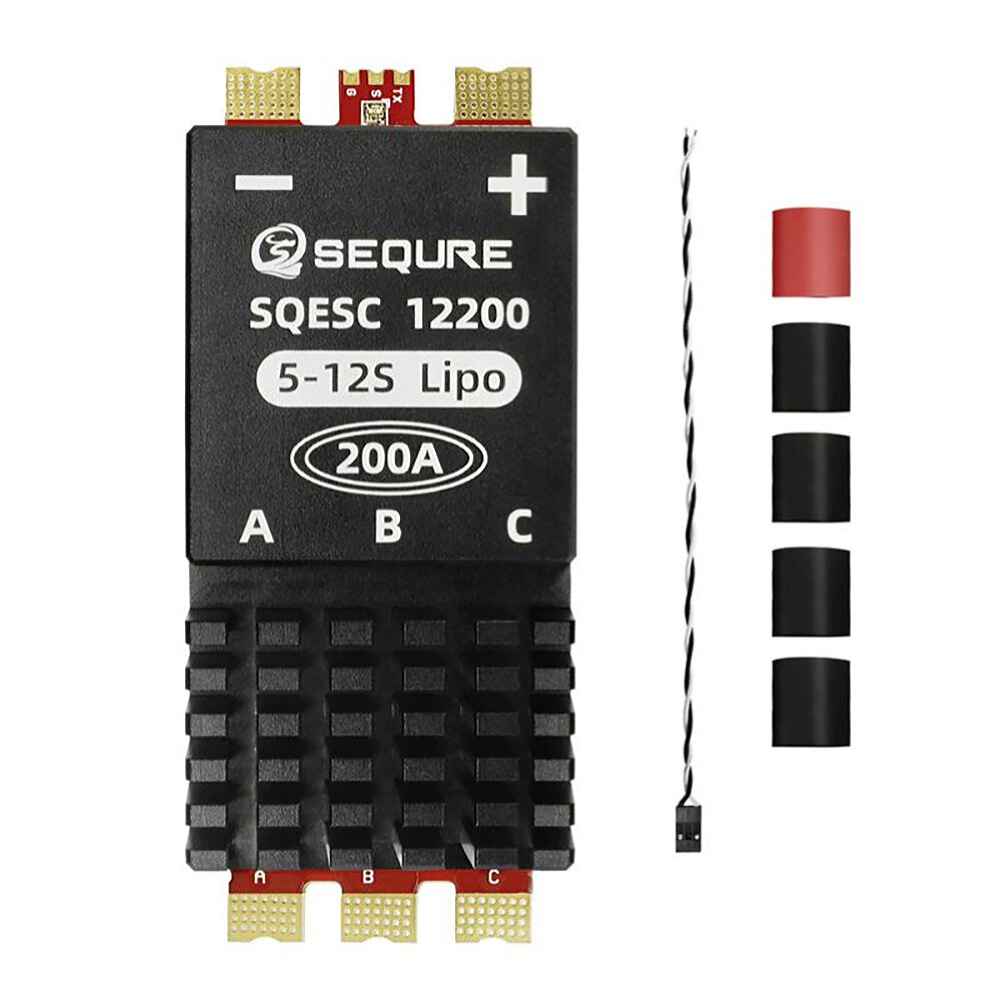

Package Included:
1 x SEQURE SQESC 12200 Set
