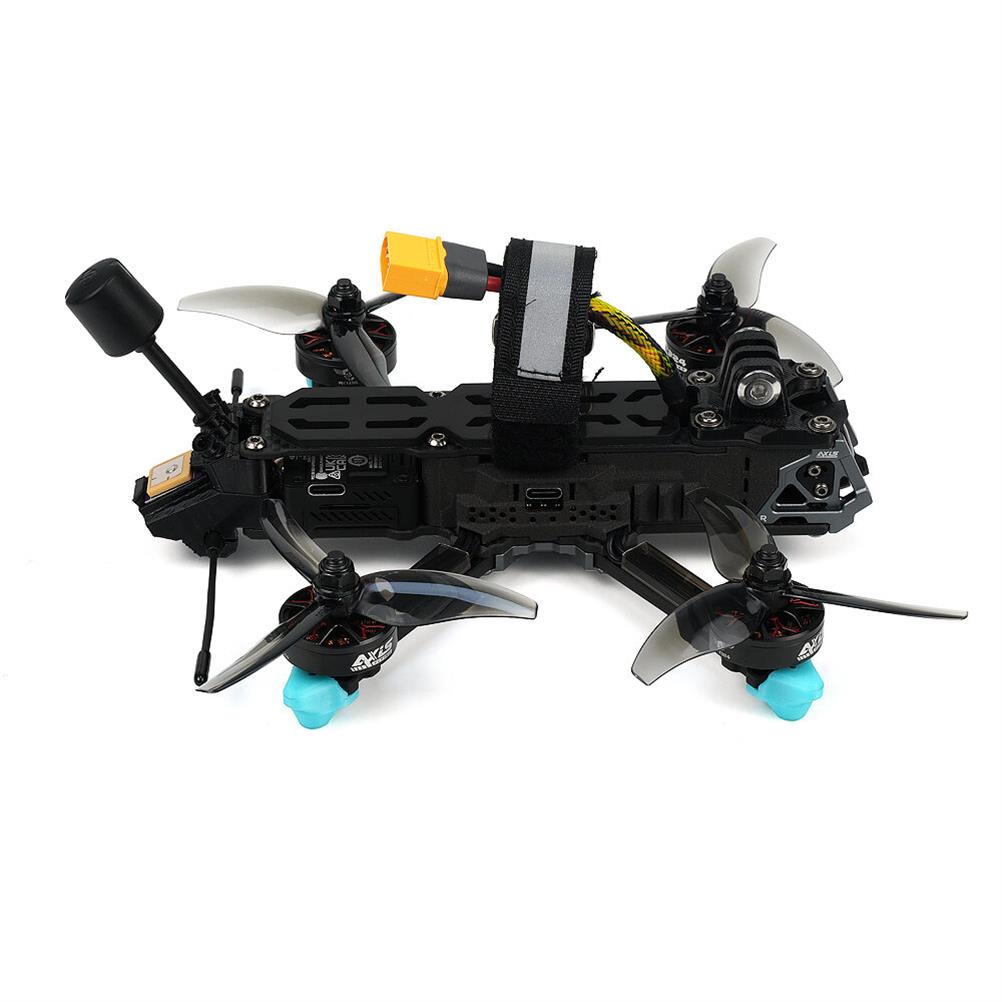

Axisflying Manta 3.6 HD 162mm Wheelbase F7 35A ESC 6S 3.6 Inch Cinematic Freestyle FPV Racing Drone BNF with DJI O3 Air Unit Digital System
Specifications:
Brand: Axisflying
Model: Manta 3.6 HD
Optional Version: ELRS 2.4G / TBS CRSF / Without Receiver
| Frame | Model: Mant A3.6 Lite Arm thickness: 4mm Top plate thickness: 2mm Srtucture: Squashed X Lens space:14-20mm Wheelbase: 162mm Stack mounting: 20mm(M2) &30.5mm(M3) Bottom plate thickness:3mm Carbon material: T700 Bottom to top distance:20mm Weight: 108??5 |
| Flight Controller | Model: |
Recommended configuration:
Motor: Axisflying C224 2750KV
Battery: 1100mAh 6S
Stack: Axisflying +F7
Props: 3.6inch
Feature:
– MANTA 3.6 frame is specially designed for 3.6-inch Freestyle and Cinematic, launched in Squashed X.
– Squashed X design for a flexible flight experience, props are not visible from the FPV camera, more suitable for freestyle with high maneuverability.
– The frame adopts the innovative CNC aluminum structure design with the high-strength carbon plate makes the overall structure very strong, stable and safe.
– Manta3.6 will be equipped with a dedicated Flystack – an Argus mini FC and ESC independently developed and produced by Axisflying, using BZ121 compass and MPU6000 gyroscope.
– The propellers of Manta3.6 are also customized, available in green and gray.
– It is also compatible with VTX and cameras such as DJI O3, Analog, Link, Walksnail, etc. Free to change and match.
– High performance is the core advantage of Manta3.6. It only takes 0.3 seconds to accelerate from 0-100kph under no-load condition, and the flight time is more than 8 minutes. In the state of mounting Gobro10, the top speed can still reach 180kph.
– Nylon-sintered side plates are installed on both sides of the FPV to protect the core electronic devices while ensuring that heat dissipation is not affected.
– The power cable can protrude from the front and rear of the FPV, which is convenient for the pilots to adjust the center of gravity of the drone by themselves.
– Supportting dual antennas.

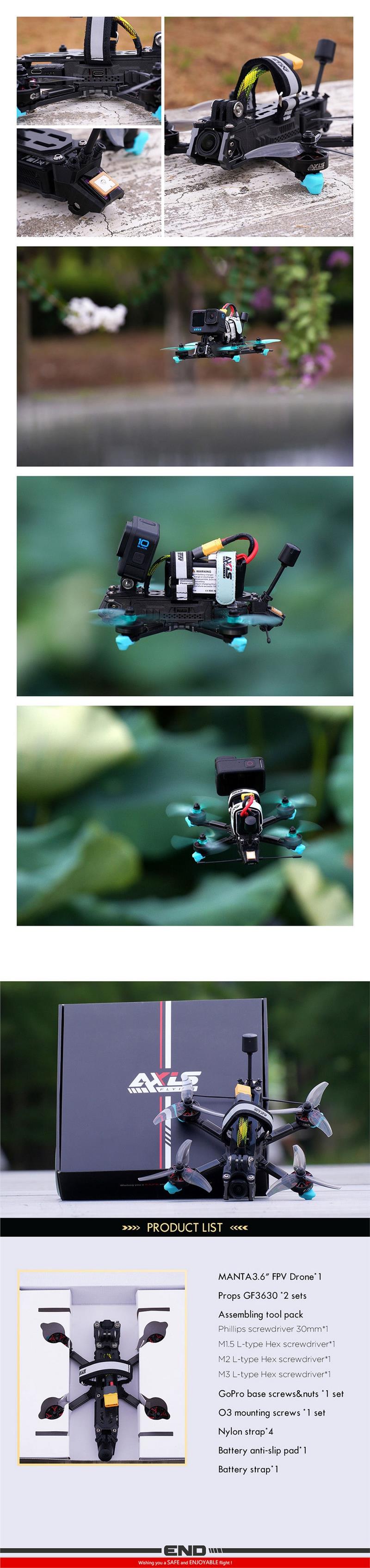

Package Indluded:
1x MANTA3.6′ FPV Drone
2 sets x Props GF3630
1x Phillips screwdriver 30mm
1x M1.5 L-type Hex screwdriver
1x M2 L-type Hex screwdriver
1x M3 L-type Hex screwdriver
1 set x screws&nuts for Gopro Mount
1 set x screws for DJI O3 Mounting
4 x Nylon strap
1x Battery anti-slip pad
1x Battery strap
Additional information
| Weight | 0.3055 kg |
|---|---|
| Receiver: No selection | ELRS 24GHz, TBS Crossfire Nano RX, Without Receiver |
