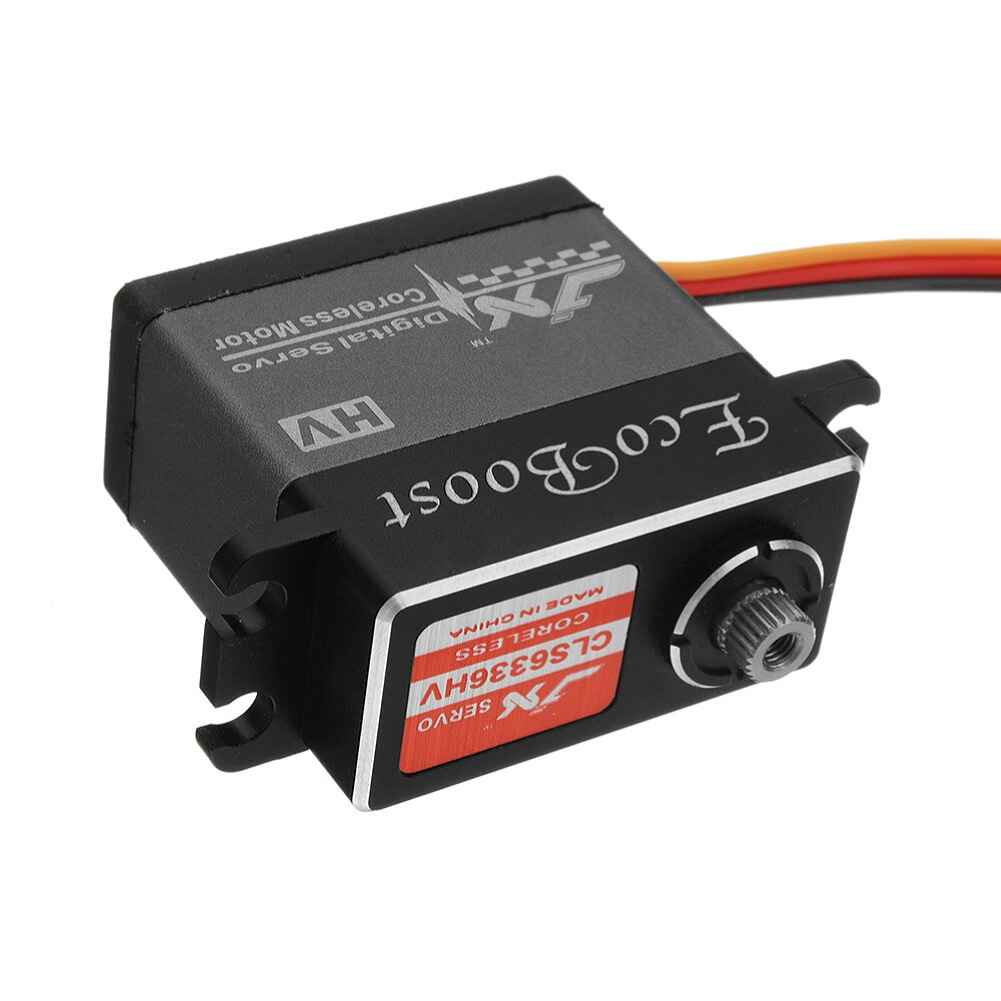

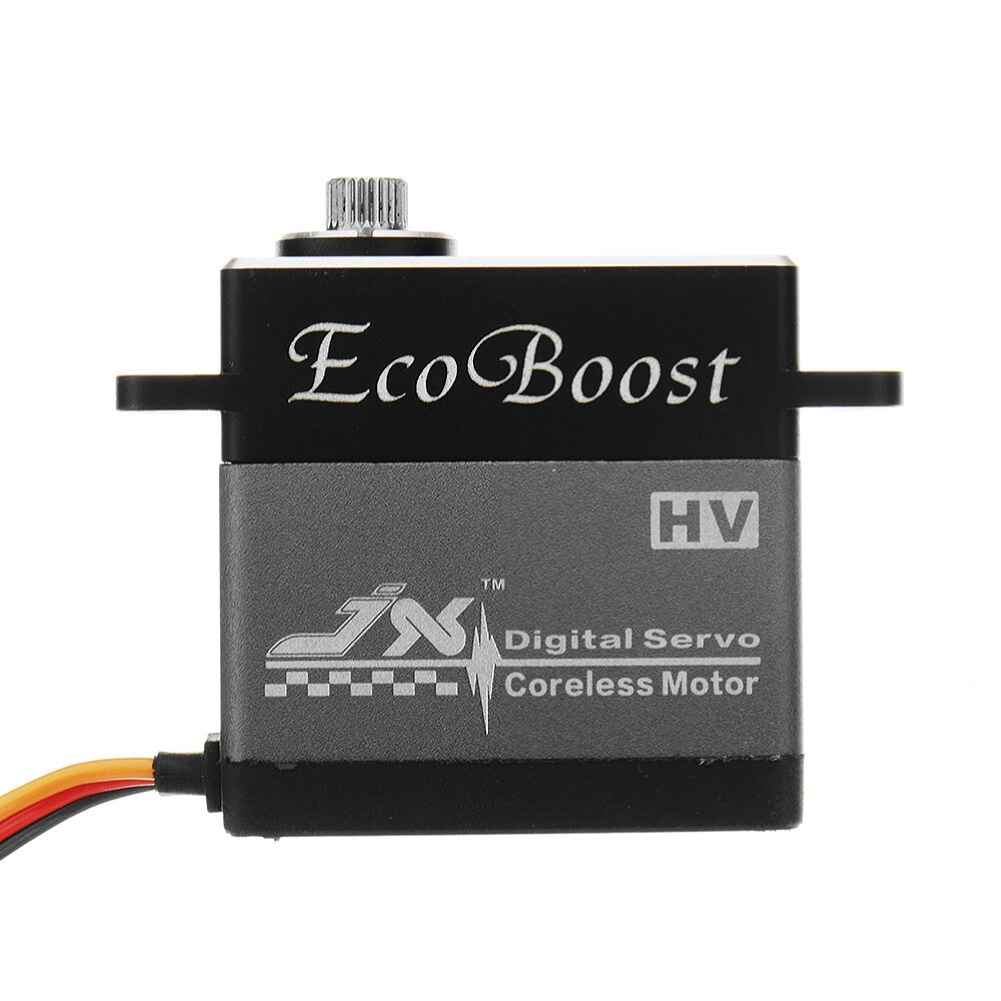

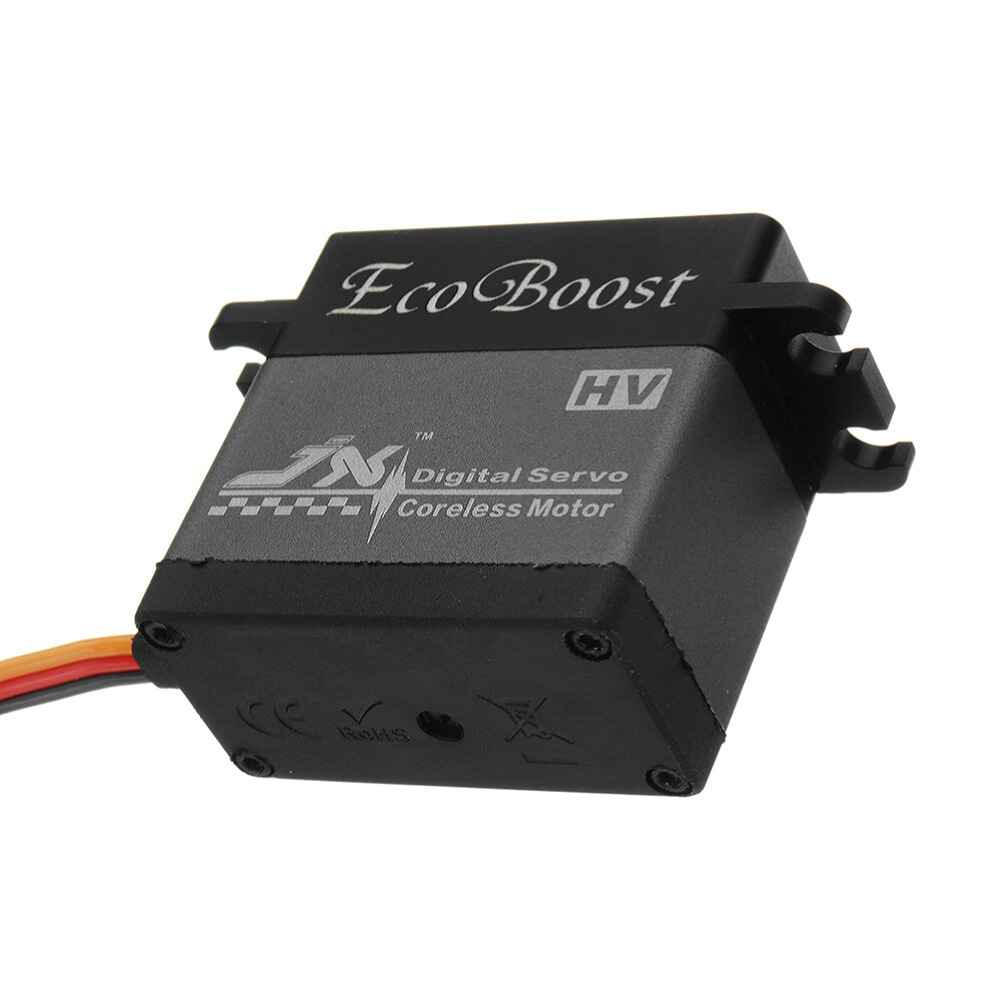

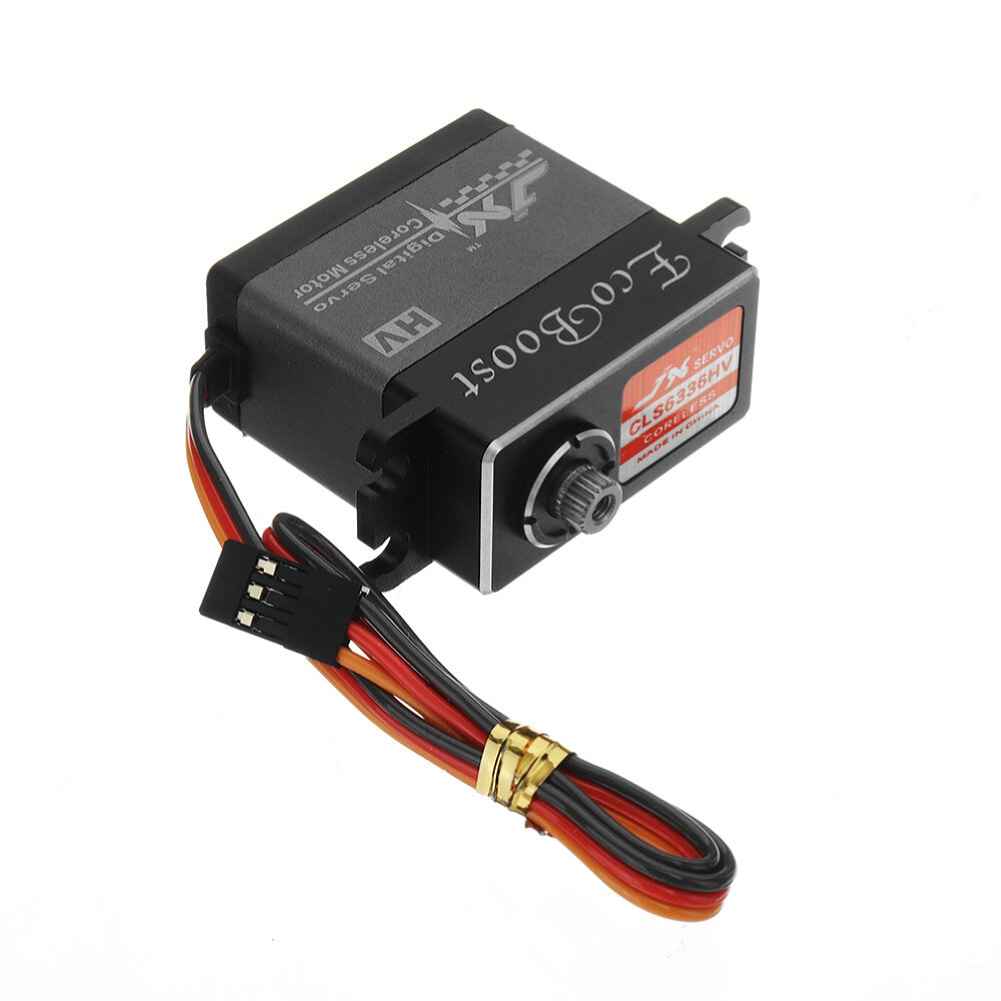

JX Ecoboost CLS6336HV 36KG Large Torque 180 CNC DigitalCoreless Servo for RC Models
The JX Ecoboost CLS6336HV is a powerful digital coreless servo designed for RC models, offering a large torque of 36KG. It features a coreless motor with an operating speed of 0.14sec/60° at 6.0V and 0.11sec/60° at 7.4V. The servo provides a stall torque of 27.8kg.cm at 6.0V and 35.6kg.cm at 7.4V, ensuring reliable performance in demanding conditions. Measuring 40.5×20.5x40mm and weighing only 63g, it is compact yet robust. The servo comes with a JR connector wire of 265mm length and includes 2BB bearings for smooth operation. Ideal for enhancing the performance of your RC models.
Specification:
Dead band: 1μs 1520μs / 330hz
Motor: coreless motor
Operating Speed (6.0V): 0.14sec/60°
Operating Speed (7.4V): 0.11sec/60°
Stall Torque (6.0V): 27.8kg.cm (386.06oz/in)
Stall Torque (7.4V): 35.6kg.cm (494.37oz/in)
Dimensions: 40.5X20.5X40mm /1.59 X0.80X1.57in
Weight: 63g (2.22oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB

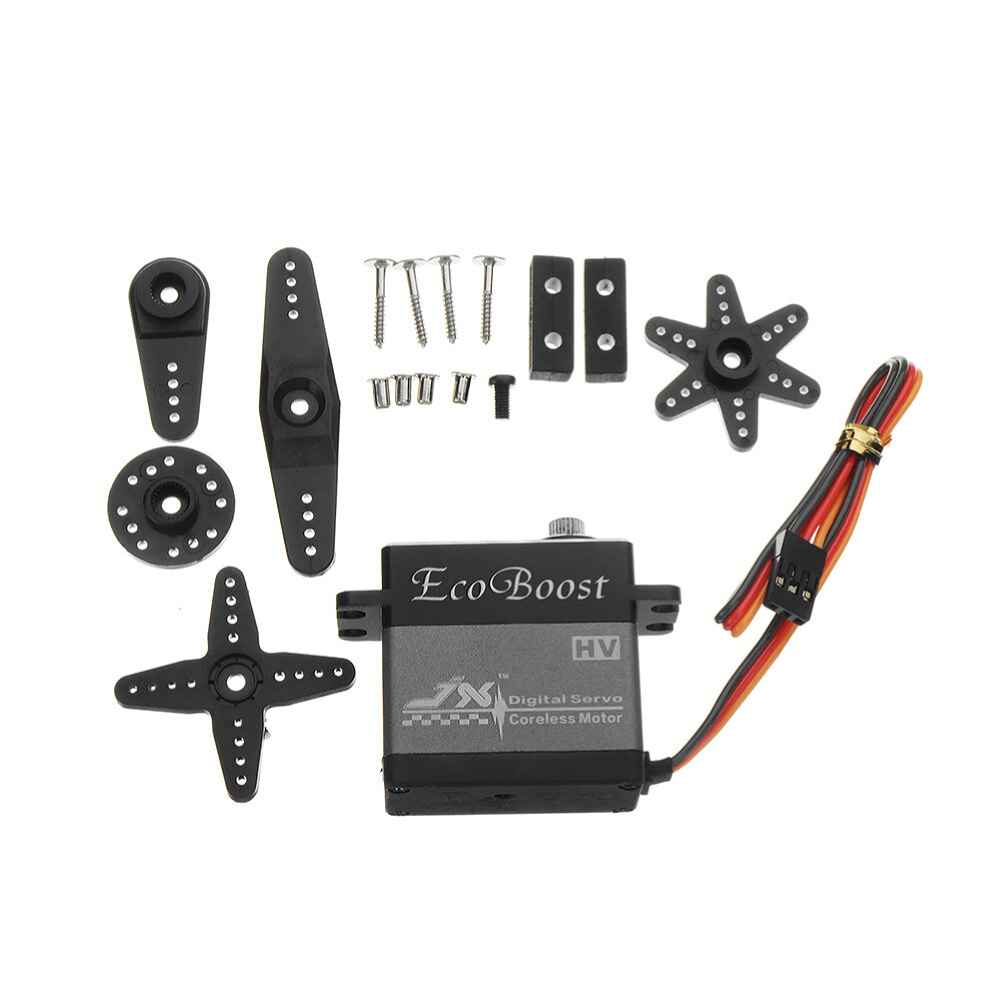

Packaging Included:
1 X JX Ecoboost CLS6336HV Digital Servo
Package Included:
1 x JX Ecoboost CLS6336HV Digital Servo
