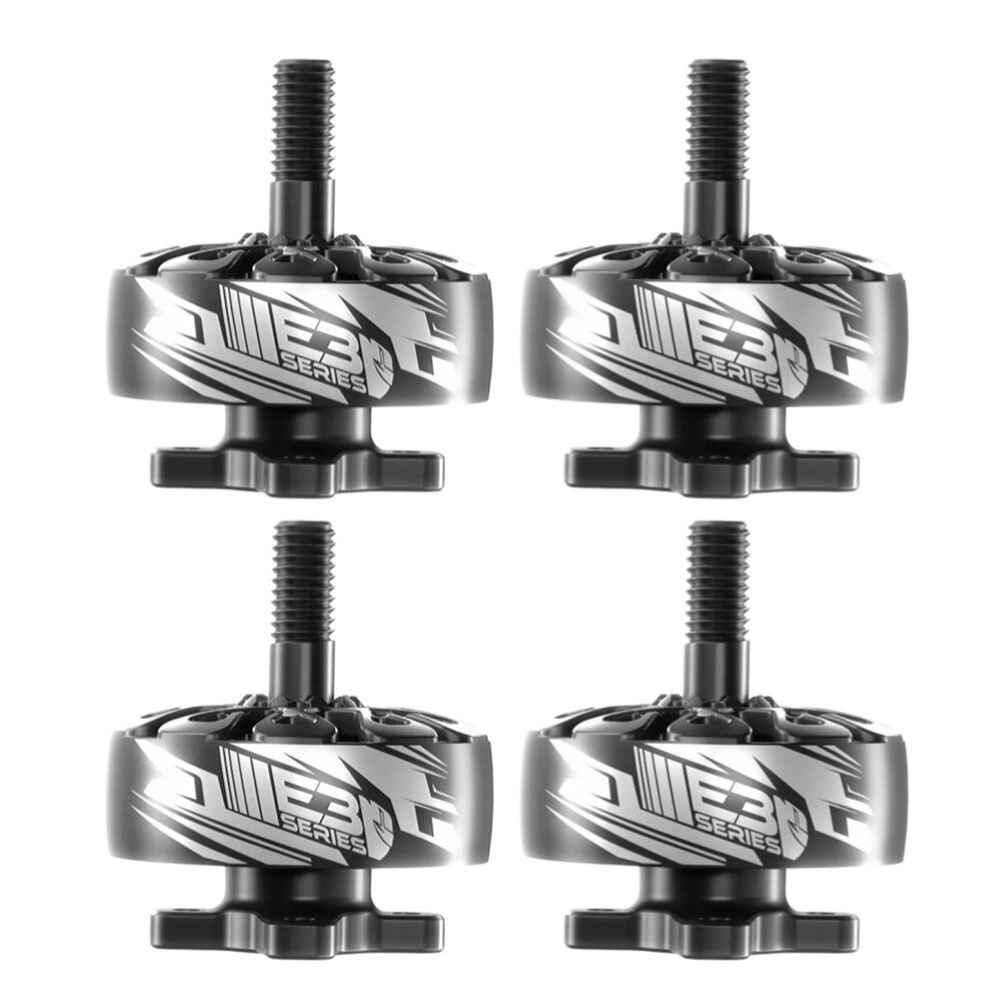

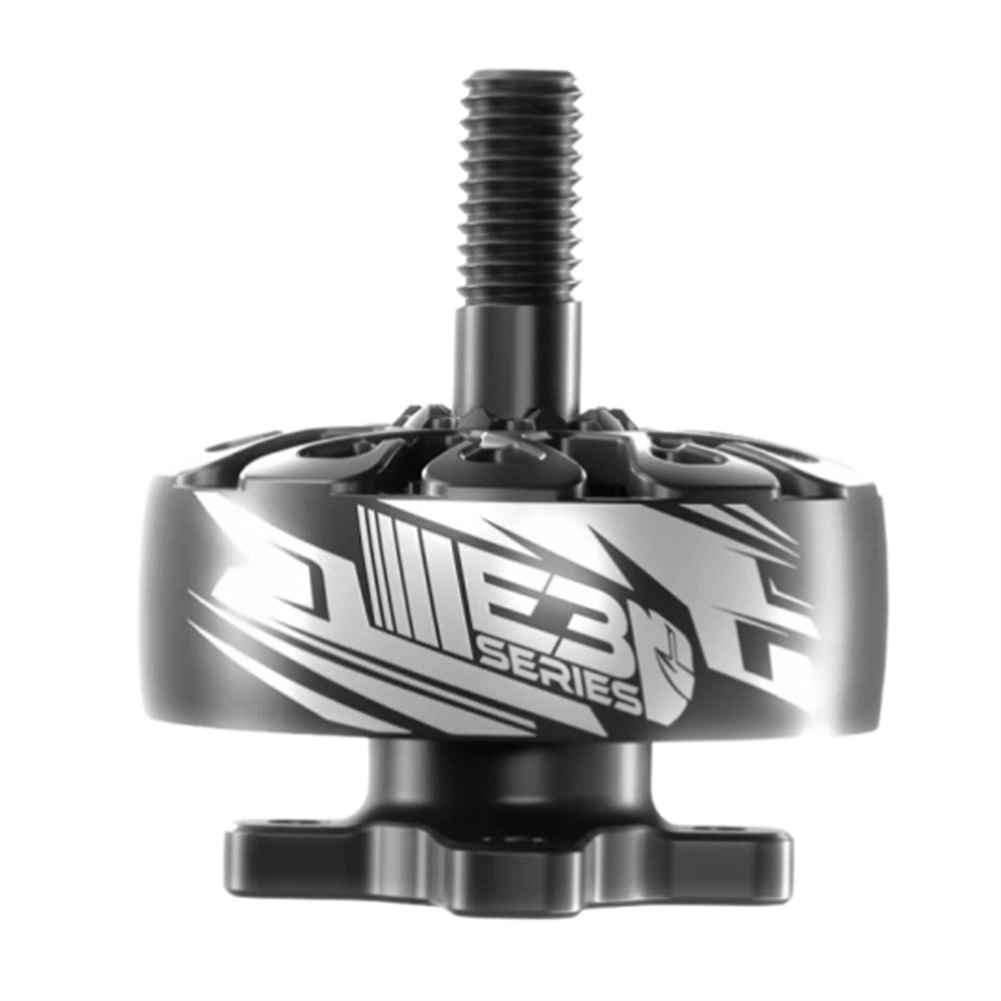

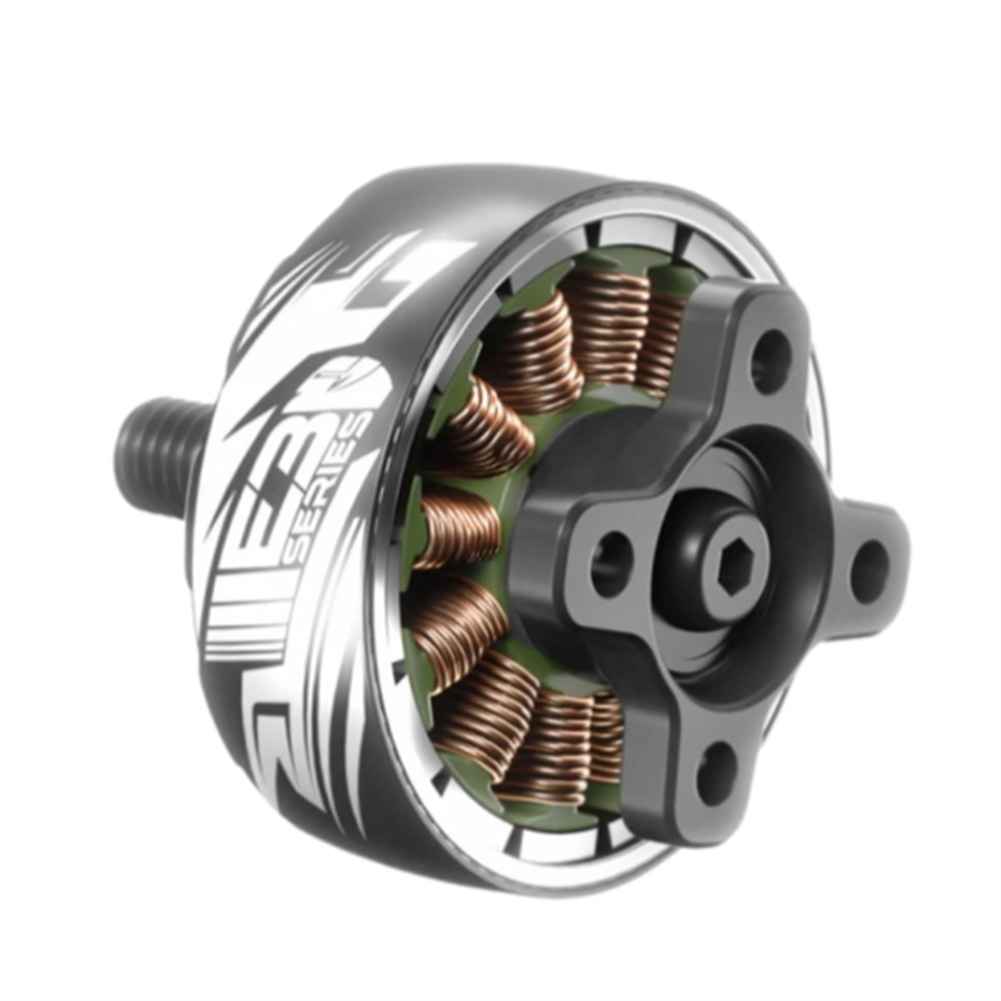

EMAX ECOIII 2807 Brushless Motor 1300KV/1500KV/1700KV, 5mm Shaft, 3-6S Compatible, for FPV Racing Drones

Price range: 35.86$ through 147.10$

  • Available in 1300KV, 1500KV, and 1700KV options
  • Compatible with 3-6S battery cells
  • 5mm bearing shaft, suitable for 6″-7″ propellers
  • Peak current up to 63A, max power 1590W
  • Lightweight design at 49.6g without wires

Description

1PC / 4PCS EMAX ECOIII 2807 1300KV 1500KV 3-6S / 1700KV 3-4S Brushless Motor 5mm Shaft for FPV Racing Drones

The EMAX ECOIII 2807 Brushless Motor is designed for high-performance FPV racing drones. Available in 1300KV, 1500KV, and 1700KV variants, this motor is compatible with 3-6S battery cells. It features a 5mm bearing shaft and supports 6″-7″ propellers. With a robust 12N14P framework, it delivers a peak current of up to 63A and a maximum power output of 1590W for 6S configurations. Weighing only 49.6g without silicone wires, this motor ensures a lightweight yet powerful performance. The motor dimensions are 34.8mm x 34.9mm, and it includes a variety of screws and an aluminum M5 nylock nut for secure installation.

Specification:
Brand: EMAX
Model: ECOIII 2807
KV: 1300KV / 1500KV / 1700KV (Optional)

Model

Specification

ECOIII 2807 1300KV

KV: 1300KV
Idle Current(10V): 1.4A
Motor Dimensions: 嫉34.8*34.9mm
Internal Resistance: 60m棒
Framework: 12N14P
No.of cells: 3-6S
Bearing Shaft: 5mm
Propeller: 6′-7′
Lead: 18#AWG 200mm
Peak Current(6S): 55A
Max.Power(6S): 1390W
Weight: 49.6g(W/O Silicone Wire)

ECOIII 2807 1500KV

KV: 1500KV
Idle Current(10V): 1.8A
Motor Dimensions: 嫉34.8*34.9mm
Internal Resistance: 50m棒
Framework:1 2N14P
No.of cells: 3- 6S
Bearing Shaft: 5mm
Propeller: 6′-7′
Lead: 18#AWG 200mm
Peak Current(6S): 63A
Max.Power(6S): 1590W
Weight: 49.6g(W/O Silicone Wire)

ECOIII 2807 1700KV

KV: 1700KV
Idle Current(10V) : 2.1A
Motor Dimensions: 嫉34.8*34.9mm
Internal Resistance: 40m棒
Framework: 12N14P
No.of cells: 3-4S
Bearing Shaft: 5mm
Propeller: 6′-7′
Lead: 18#AWG 200mm
Peak Current(4S): 54A
Max.Power(4S): 907W
Weight: 49.6g(W/O Silicone Wire)

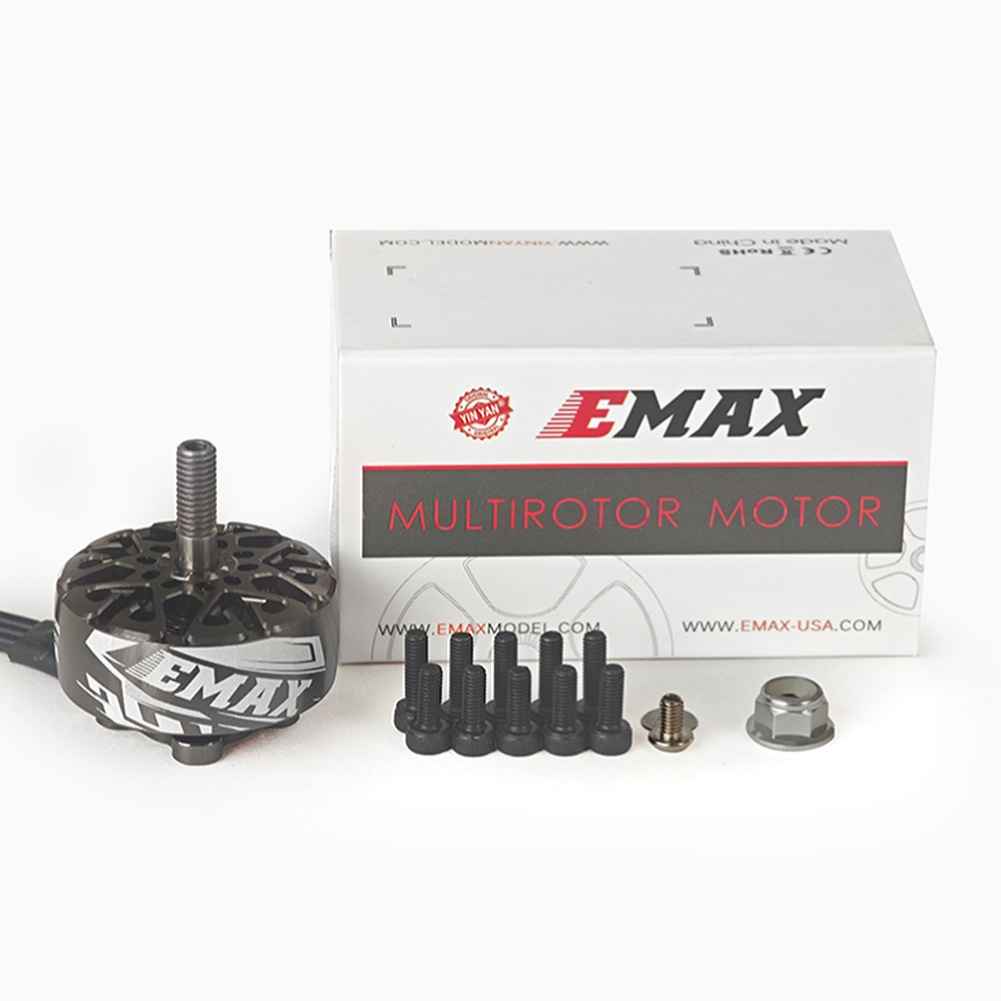

Package Included:
1 x ECOIII 2807 Brushless Motor
5 x M3 8 Screw
5 x M3 10 Screw
1 x Aluminum M5 nylock nut
1 x Washer and Screw for shaft

Recommended Category:
Toys & Games > Hobbies > Remote & App Controlled Vehicle Parts > Multi Rotor Parts

Additional information

Weight0.075 kg
Quantity

1 PC, 4 PCS

KV

1300KV, 1500KV, 1700KV

Motor

2807
