DS3235 35kg High Torque Metal Gear Waterproof Digital Servo for RC Car and Robot Arm

Description

DS3235 35kg 180/270/360 Degrees High Torque High Speed Metal Gear Waterproof Digital Servo For Racing Rc Car / Robot Arm

The DS3235 35kg digital servo is designed for high-performance applications, offering a control angle of 180～, 270～, or 360～. It is equipped with a high torque capability of up to 35 kg-cm at 7.4V and operates at a speed of 0.11 sec/60～ at the same voltage. The servo features a durable copper and steel gear system and a hollow cup motor, ensuring reliable performance. It is compatible with JR/Futaba systems and supports up to 2S-8.4V power supply. The servo is 95% waterproof, surpassing IP67 standards, and is suitable for various uses, including RC cars, robotic arms, and drones.

Specification:
Torque(5V): 29kg-cm
Torque(6V): 32kg-cm
Torque(7.4V): 35 kg-cm
Speed: 0.13 sec/60‵(6V) 廑0.12 sec/60‵(6V) 廑 0.11 sec /60‵(7.4V)
Operating Voltage:5.0 ~ 7.4 DC Volts
Weight: 65g
Bearing Type: Ball Bearing x 2
Motor Type: Hollow cup
Gear Type: Copper & Steel
Operating Temperature: -20﹠~60﹠
Size: 40 x 20 x 37.2mm
Dead band width: 2譙sec
Control System: PWM
Pulse width range: 500-2500譙sec
Features:
DS3235 35KG digital servo adopts control angle design of 180‵/270‵/360‵, suitable for aircraft models, 1:10 car models, climbing cars, short trucks, rally, racing, flat running, off-road, 10-foot-long, gasoline engines, Robots, aerial photography, gimbals, drones, robotic arms, etc., compatible with JR/futaba.
When using a model car gun control, the 180‵ model should be about 65‵, and the 270‵ model should be about 95‵. For large angles, you need to adjust the length of the push rod to prevent stalling and sweeping the teeth! For example, car model climbing car, etc.! The extreme angles of 180‵ and 270‵ can generally be achieved with professional robotic arm robot control panels.
Output tooth: 25T
Supports up to 2S-8.4V power supply!
95% waterproof version: tested to be better than IP67 waterproof, which can meet the needs of boating, car washing, and short-term diving, because the structural composition of the steering gear (including almost all on the market) cannot be 100% waterproof! After rigorous testing, it is generally not easy to break! We will continue to improve and improve reliability!

Package Included:

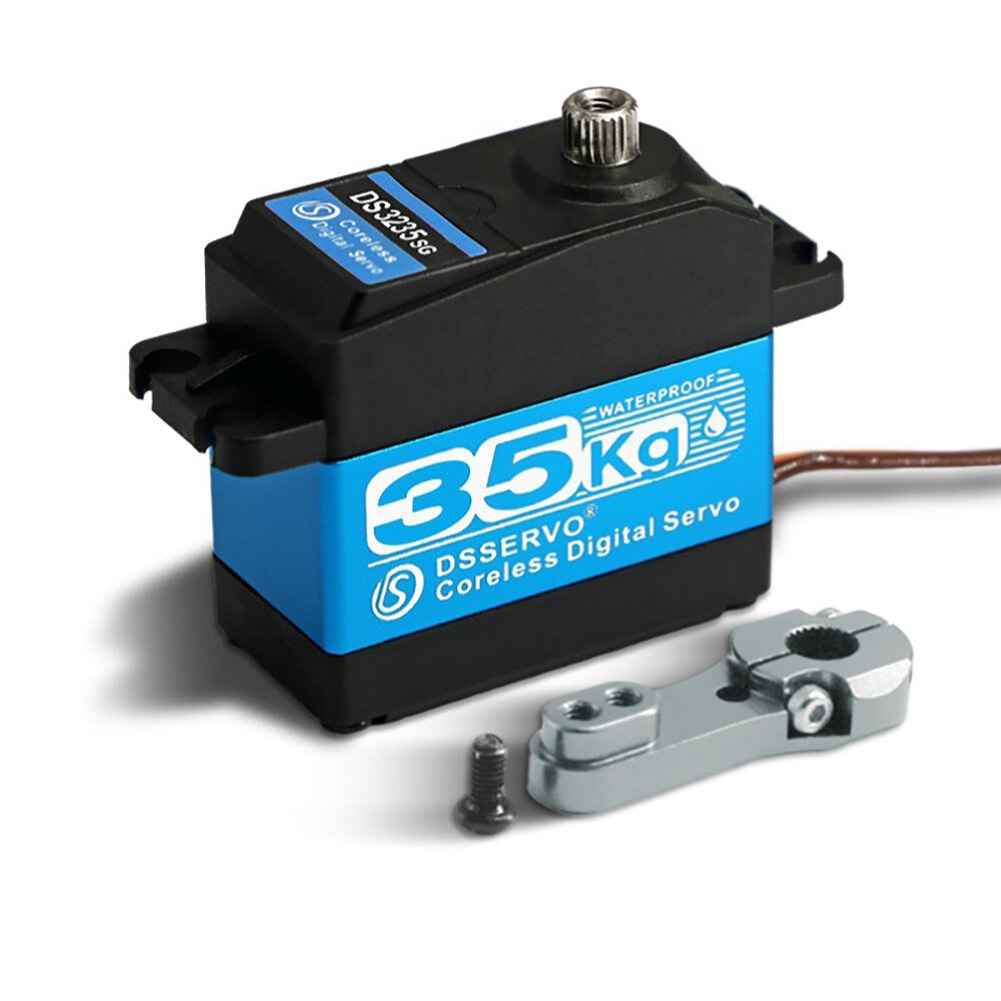

1 x 35KG Hollow Cup Digital Servo DS3235SG
1 x 25T Adjustable Metal Servo Arm
One Set of Accessories (As Shown on The Picture)
