Emax ES3054HV High Voltage Metal Gear Digital Servo for RC Airplanes, Helicopters, and Cars

Description

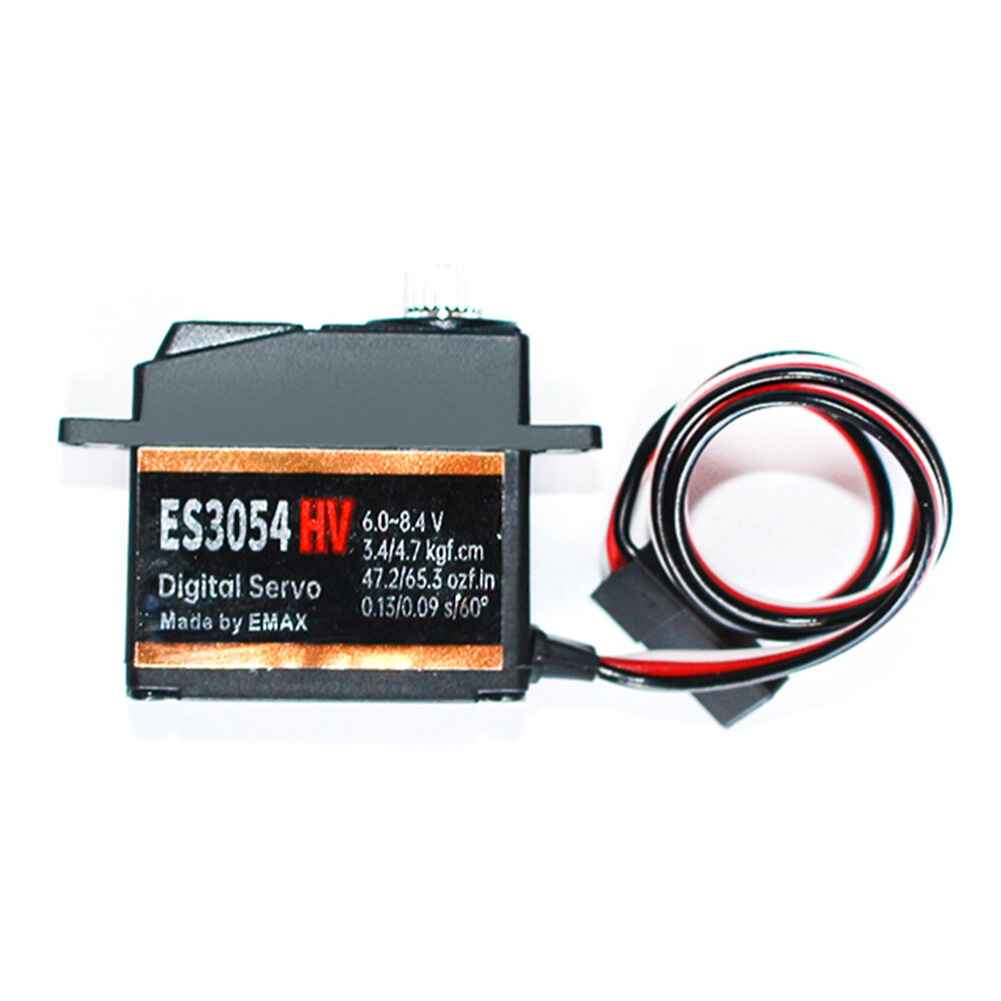

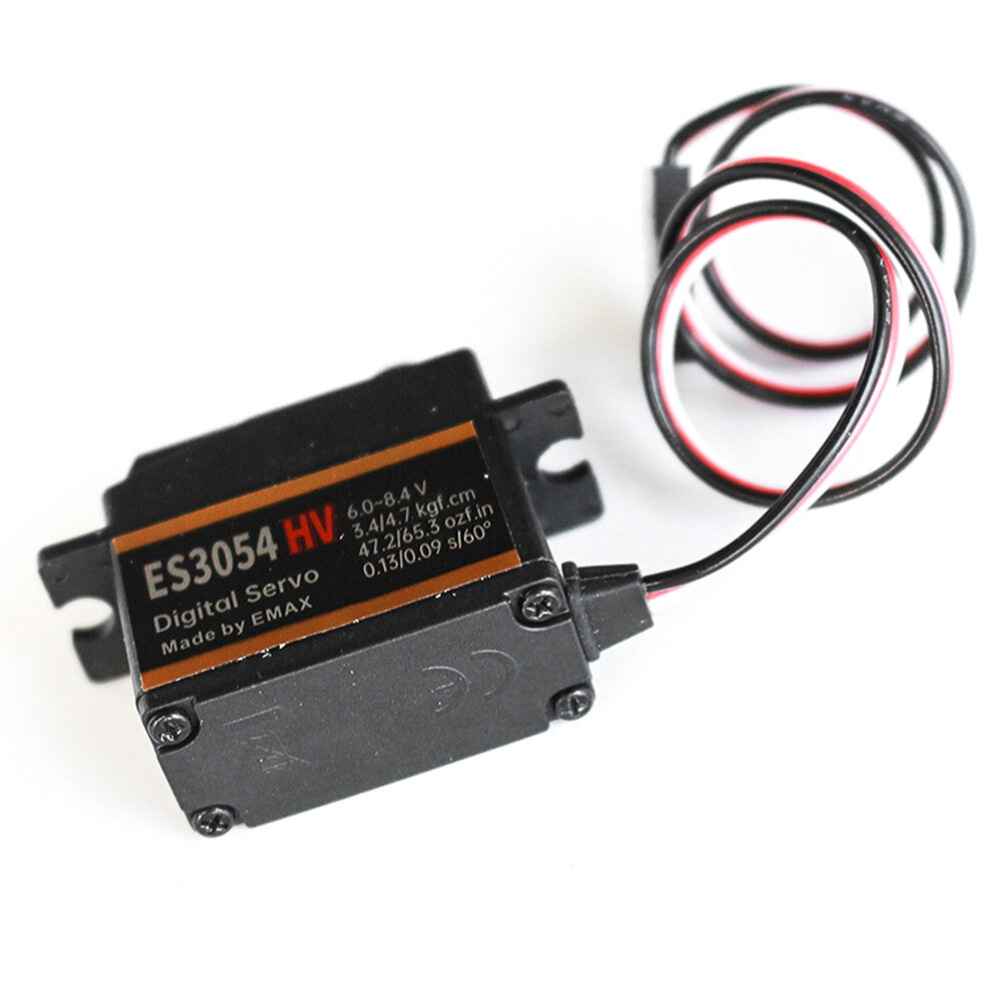

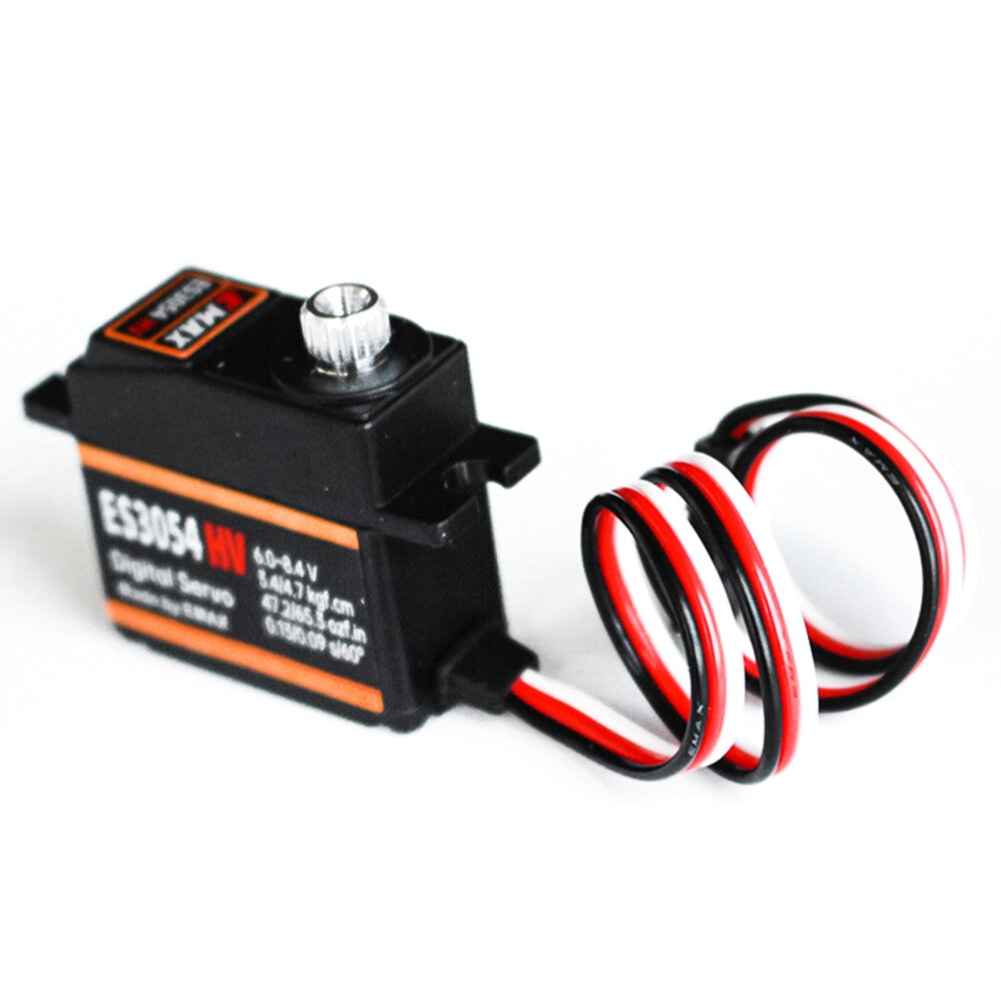

Emax ES3054HV All-Purpose High Voltage Metal Gear Digital Servo For RC Airplane

The Emax ES3054HV is a high-performance digital servo designed for RC enthusiasts. It operates efficiently across a wide voltage range, ensuring consistent performance with speeds of 0.13 sec/60 at 6.0V and 0.09 sec/60 at 8.4V. With a stall torque of up to 4.7kg.cm, it delivers powerful and precise control, enhancing your RC model’s responsiveness. This servo features a compact design for easy installation and is built with durable metal gears for long-lasting reliability. Suitable for various RC models, including airplanes, helicopters, and cars, the Emax ES3054HV is a versatile choice for hobbyists seeking precision and durability.

Electrical Specification (Function of the Performance):
Operating Speed (at no load):
6.0V | 0.13 sec/60‵
8.4V | 0.09 sec/60‵
Running Current (at no load):
6.0V | 350mA Max
8.4V | 400mA Max
Stall Torque:
6.0V | 3.4kg.cm Max
8.4V | 4.7kg.cm Max
Maximum Current:
6.0V | 1.0A Max
8.4V | 1.3A Max
Idle Current:
6.0V | 9.5mA
8.4V | 9.5mA
Mechanical Specification:
Overall Dimensions: See Drawing Below
Weight: 20.5+0.5 g
Connector Wire Gauge: JR
Connector Wire Length: 240呼8mm (W/O Connector)
Output Gear Spline: 23T
Bearing: 2BB
Gear Type: Metal
Extreme Angle: 360‵
Control Specification:
Control System: PWM
Operating Travel: 90‵ 呼8‵( when 1000-2000 譙 sec )
Neutral Position: 1500 u sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 譙 sec
Pulse Width Range: 500-2500 譙 sec
Maximum Travel: 180‵ 呼10( 500-2500譙 sec )
Features:
1. High Voltage: Operates efficiently with a wide range of voltage inputs, providing consistent performance.
2. Fast and Precise: Delivers quick and precise responses, enhancing the control of your RC toy.
3. Compact Size: The servo’s compact design allows for easy installation and integration into various models.
4. Durables Construction: Built with high-quality materials, ensuring long-lasting durability and reliability.
5. Versatile Application: Suitable for a wide range of RC models, including airplanes, helicopters, and cars.

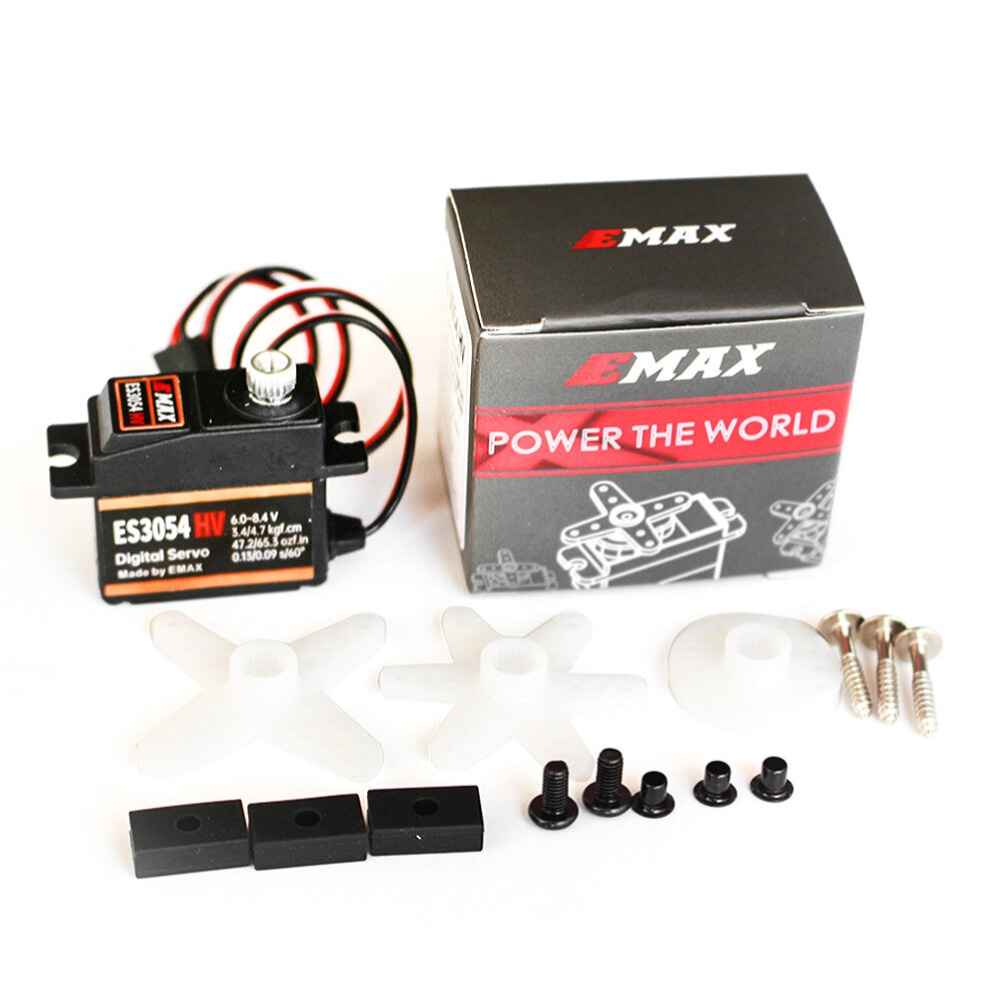

Package Included:
1 x EMAX ES3054 HV High-Voltage Servo
