Description

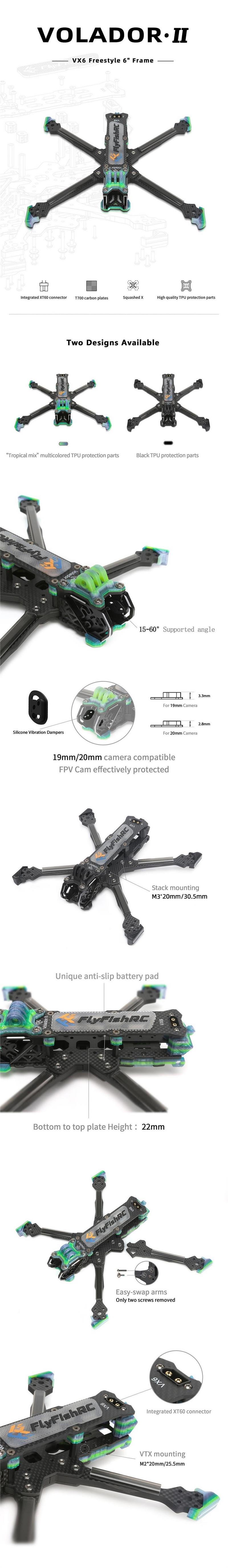

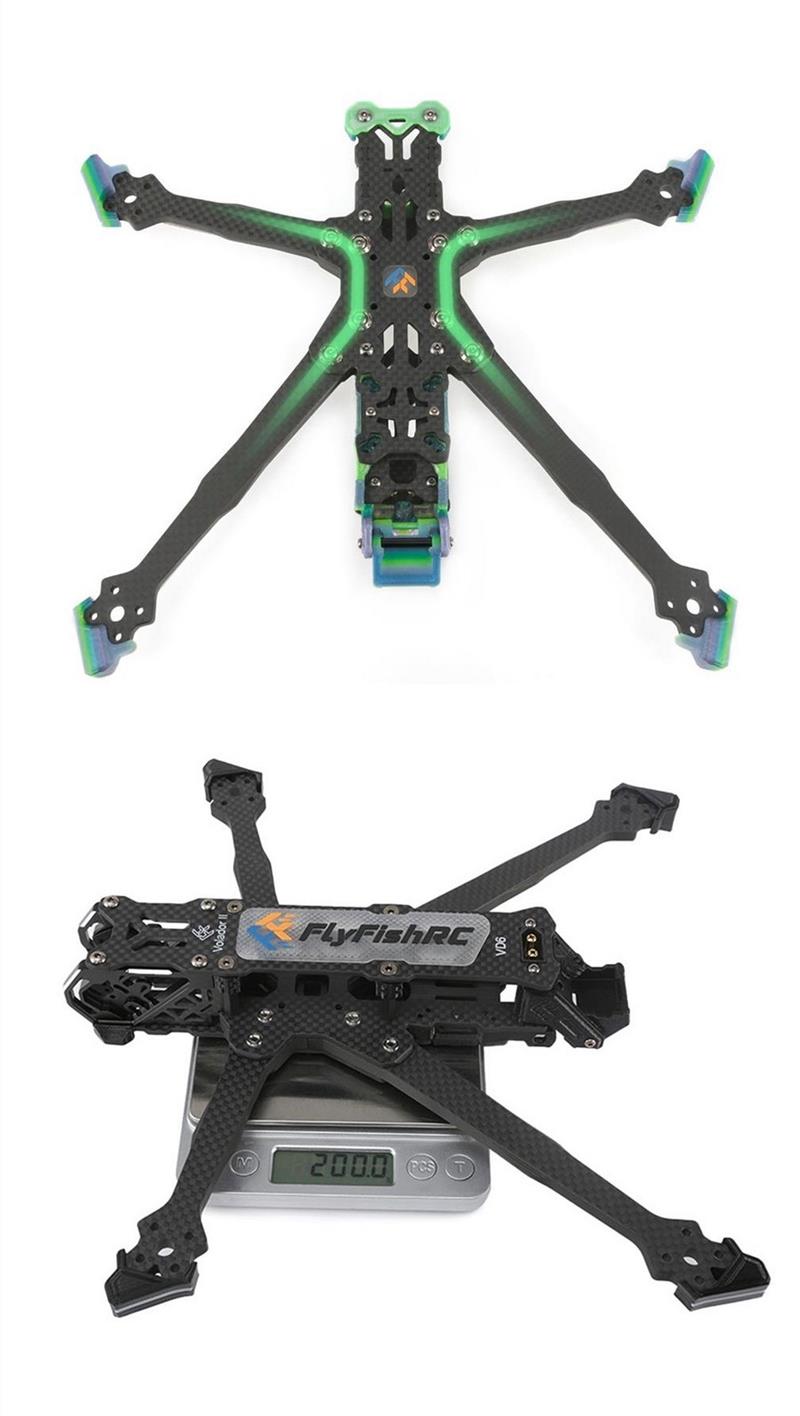

FlyFishRC Volador II VX6 / VD6 V2 T700 Carbon Fiber 6 Inch Deadcat Freestyle Frame Kit Support DJI O3 Air Unit for RC Drone FPV Racing
The FlyFishRC Volador II VX6 / VD6 V2 is a high-performance 6-inch freestyle frame kit designed for FPV racing drones. Made from premium T700 carbon fiber, it features a tight structure to minimize resonance and CNC aluminum camera plates for enhanced protection. The frame includes silicone shock-absorbers to eliminate jello effects with the DJI O3 Air Unit. It comes with an integrated XT60 connector for added safety and reliability, and high-quality TPU parts for durability. The innovative anti-slip battery pads and motor wire protection tubes ensure seamless performance. Compatible with both 19mm and 20mm cameras, this frame kit supports analog and HD builds, making it versatile for various setups.
Notice: Comes unassembled, need buyers build.
The frame kit support DJI O4 version clink here: VX6 O4 / VD6 O4
V2 Features:
High-end T700 carbon fiber
Tight structure design minimizes resonance
The new CNC aluminum camera plates effectively protect the camera
The silicone shock-absorbers for the DJI O3 AU eliminate jello
Integrated XT60 connector for safety and reliability
High-quality TPU parts
Innovative anti-slip battery pads
New motor wire protection tubes
Compatible with both 19/20mm cameras
Equipped with all accessories needed for analog and HD builds
12.9-grade strength hardware with Loctite threadlocker pre-applied
High electronics compatibility
Specifications:
Brand: FlyFishRC
Model: Volador II VX6 / VD6 V2
Color: Black/Yellow (Optional)
Version: VX6 ( X Type) / VD6 ( Deadcat Type)
Arm Thickness: 6mm
Top plate thickness: 2.5mm
Middle plate thickness: 2.5mm
Bottom plate thickness: 2.5mm
Keystone thickness:5mm
Side plate thickness:2mm
CNC Side plate thickness:5mm
Material: T700 carbon plate
FPV cam spacing: 19mm/20mm
Recommend Propeller: 6-6.1 Inch
Stack mounting holes: 20mm*20mm/30.5mm*30.5mm(M3)
VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
Recommend Parts ( NOT Included):
FC & ESC: 20x20mm iFlight BLITZ Mini F7 FC & BLITZ Mini E55 4in1 ESC
Brushless Motor: iFlight XING-E Pro 2207 1800KV 3-6S /2450KV 2750KV 2-4S Motor
FlyFishRC Flash 2306 1750KV 6S / 2550KV 4S Unibell Brushless Motor
Propeller: HQProp 6x3x3 6030 6 Inch Tri-blade Propeller
VTX & Camera: DJI O3 Air Unit
Lipo Battery: ZOP Power 22.2V 1500mAh 100C 6S LiPo Battery XT60 Plug
Package Included:
1 x Frame Kit
