Description

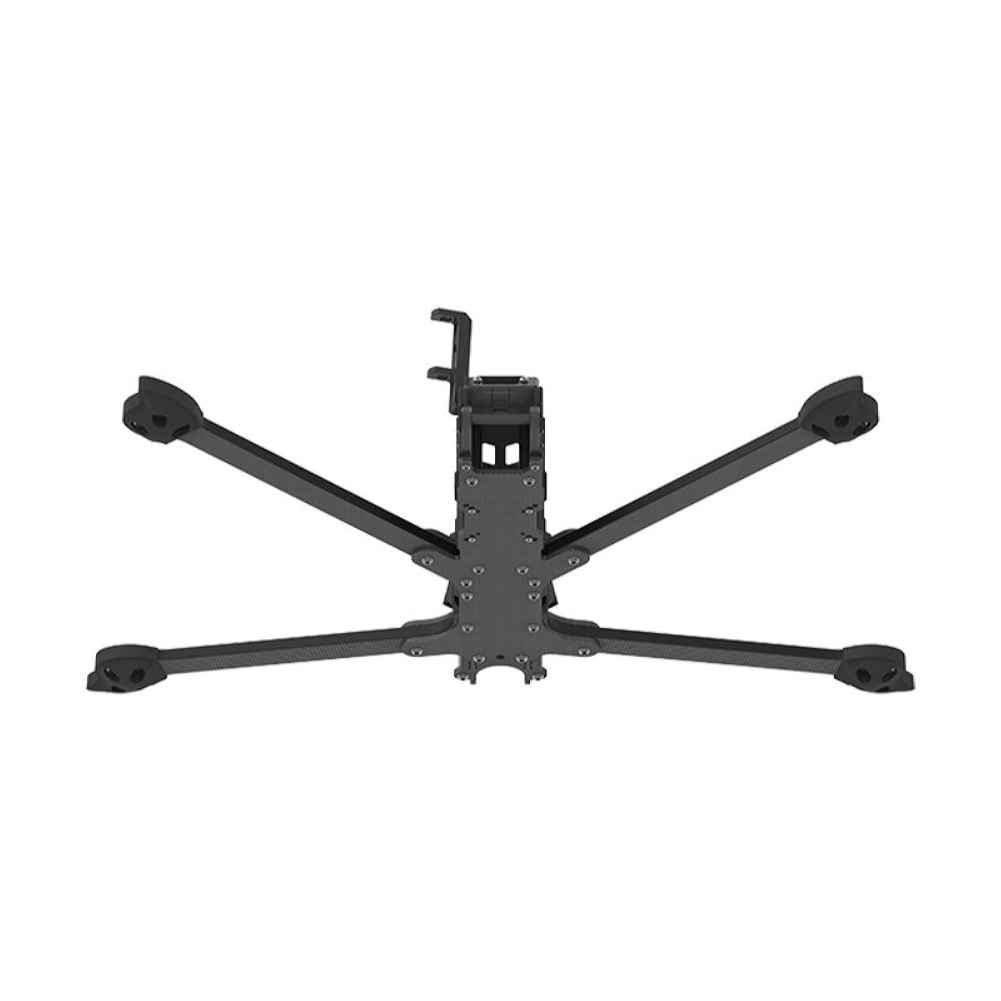

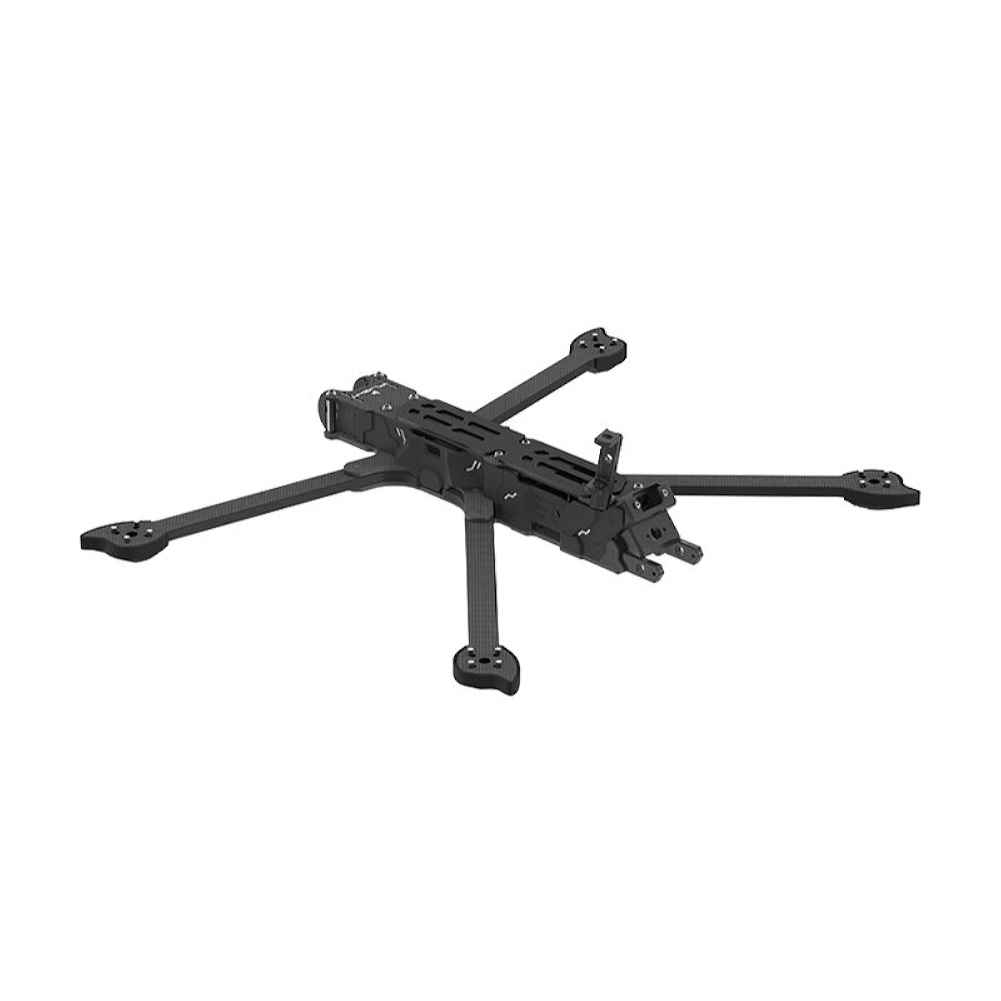

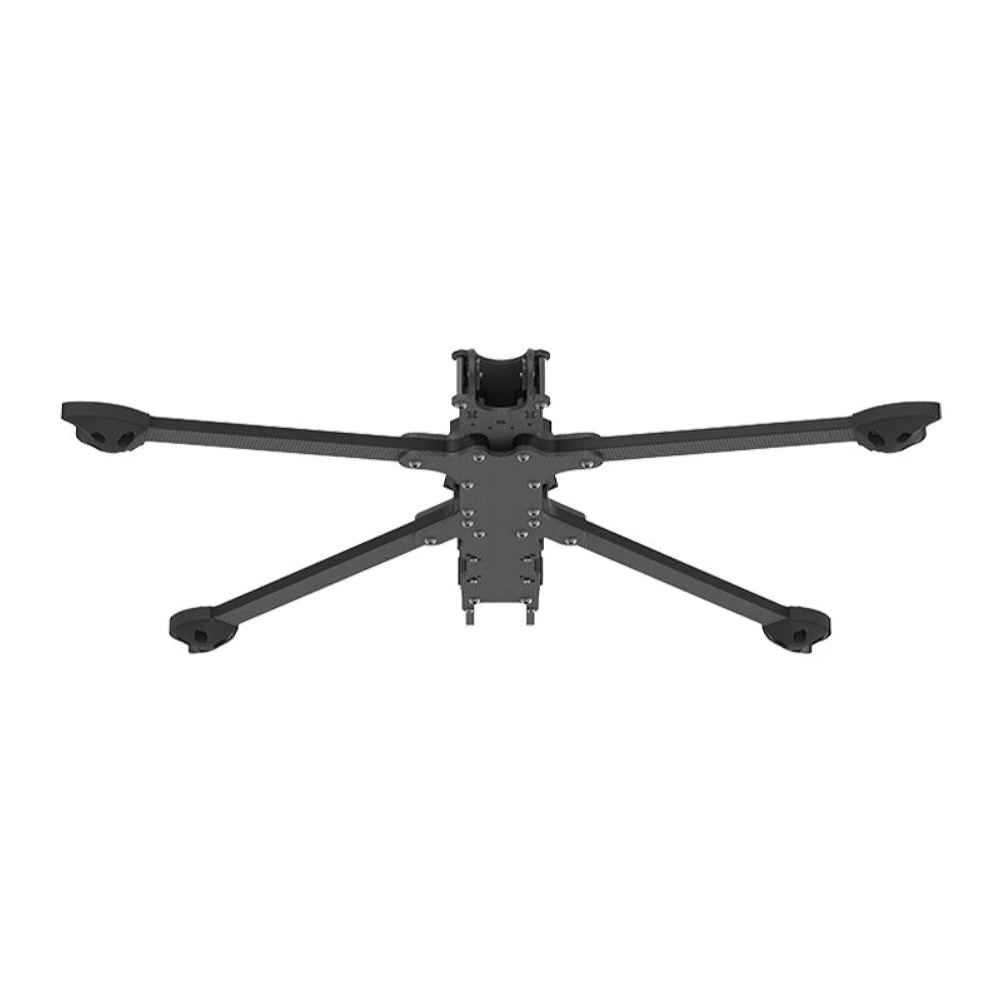

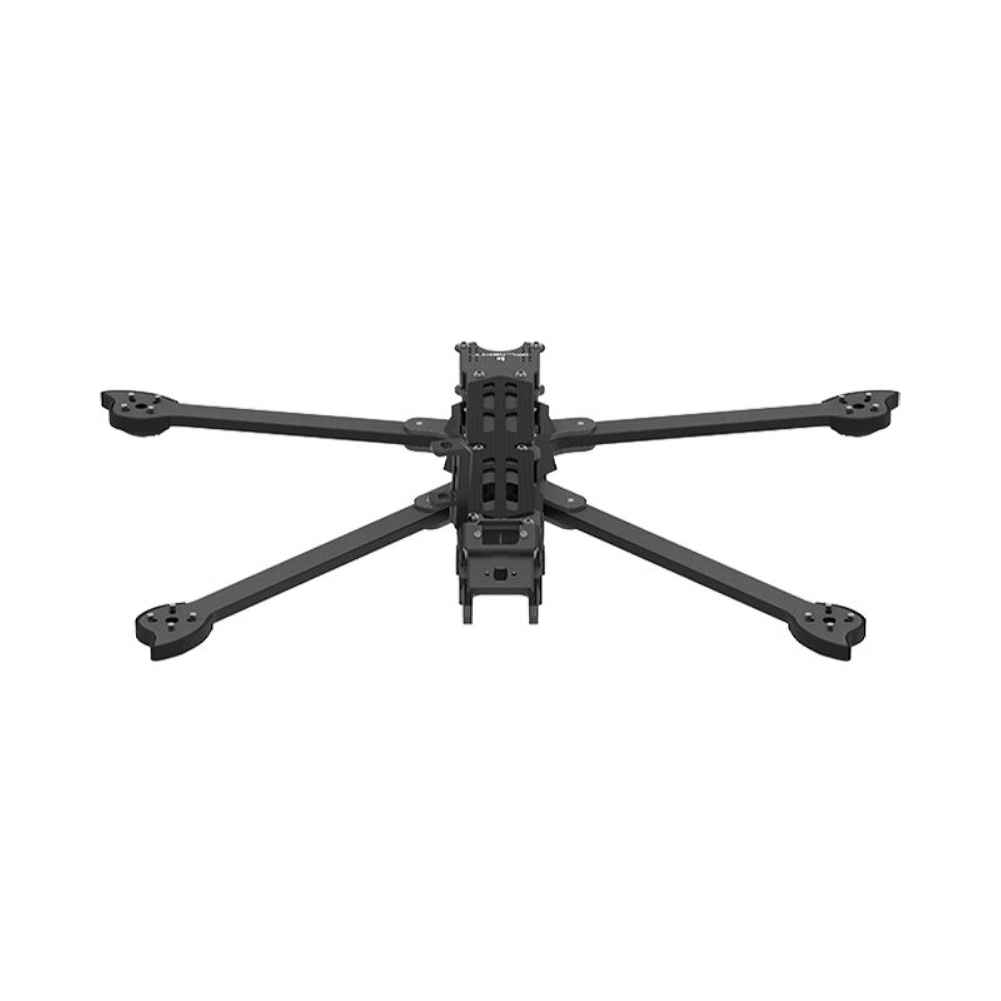

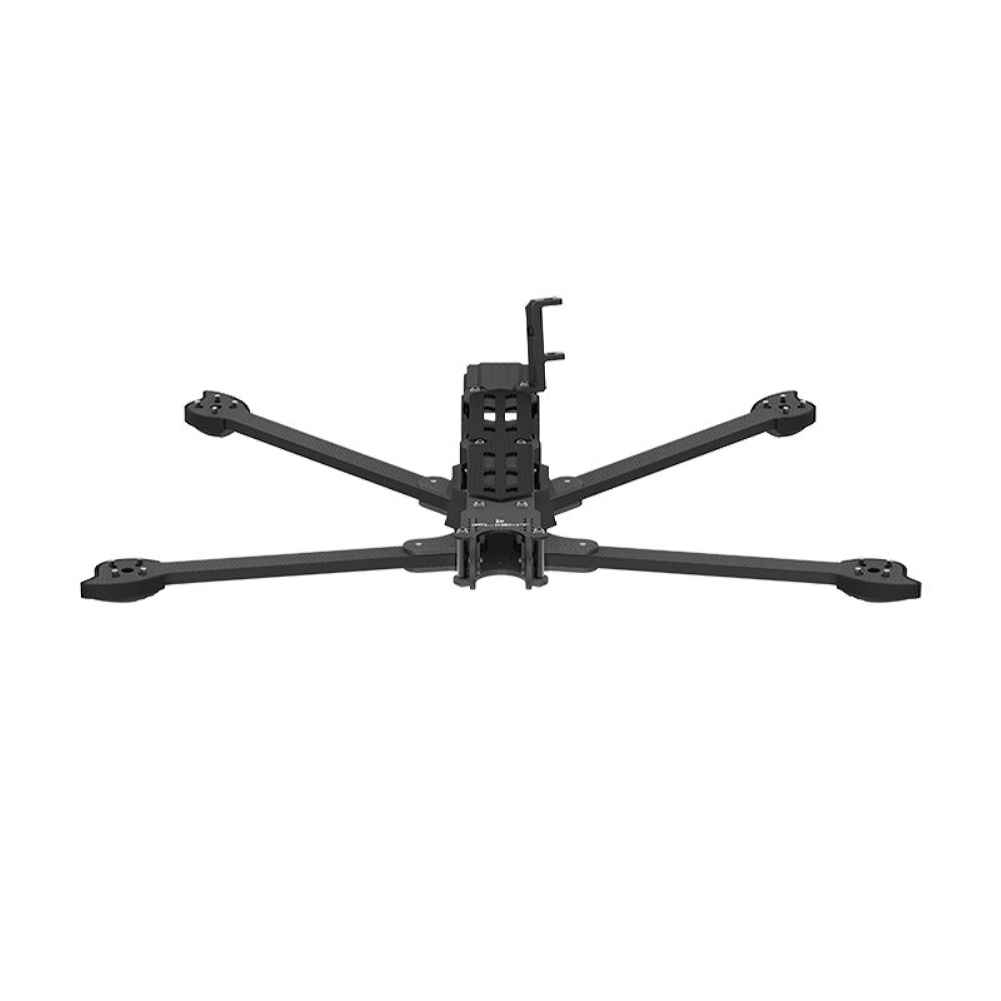

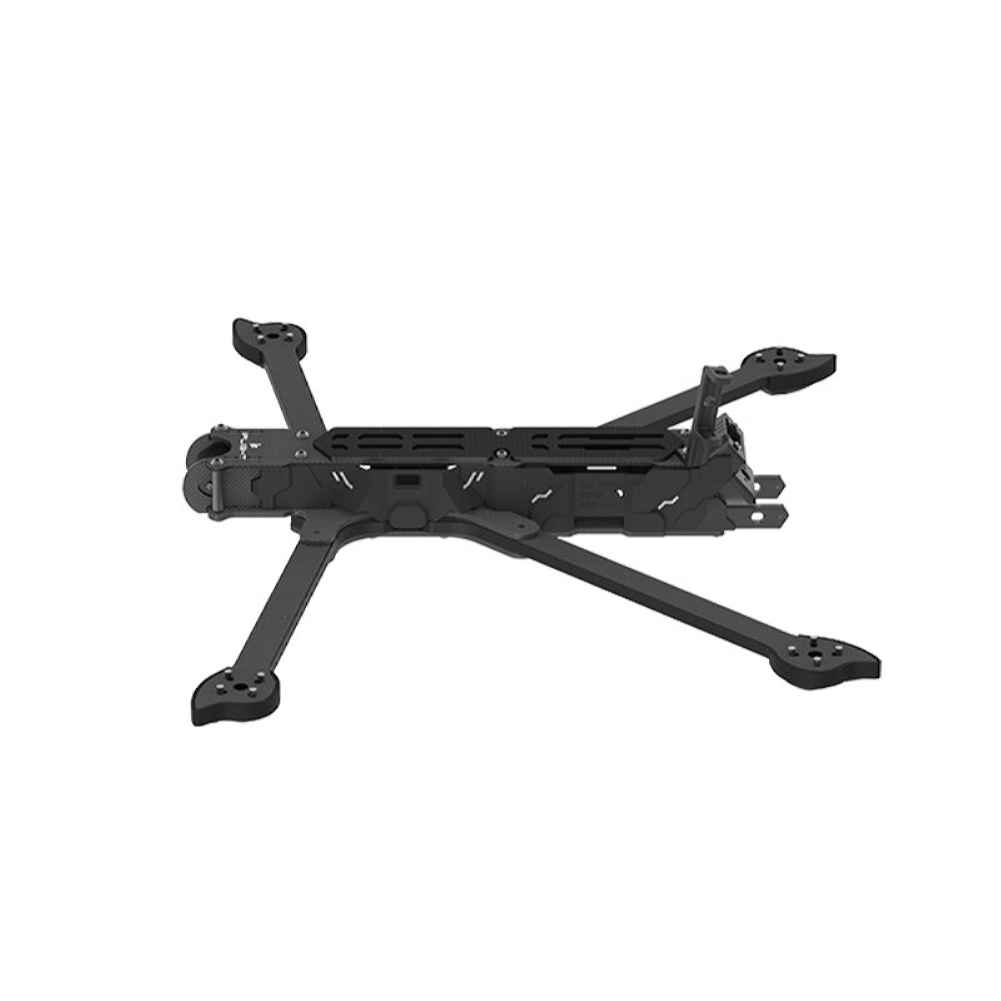

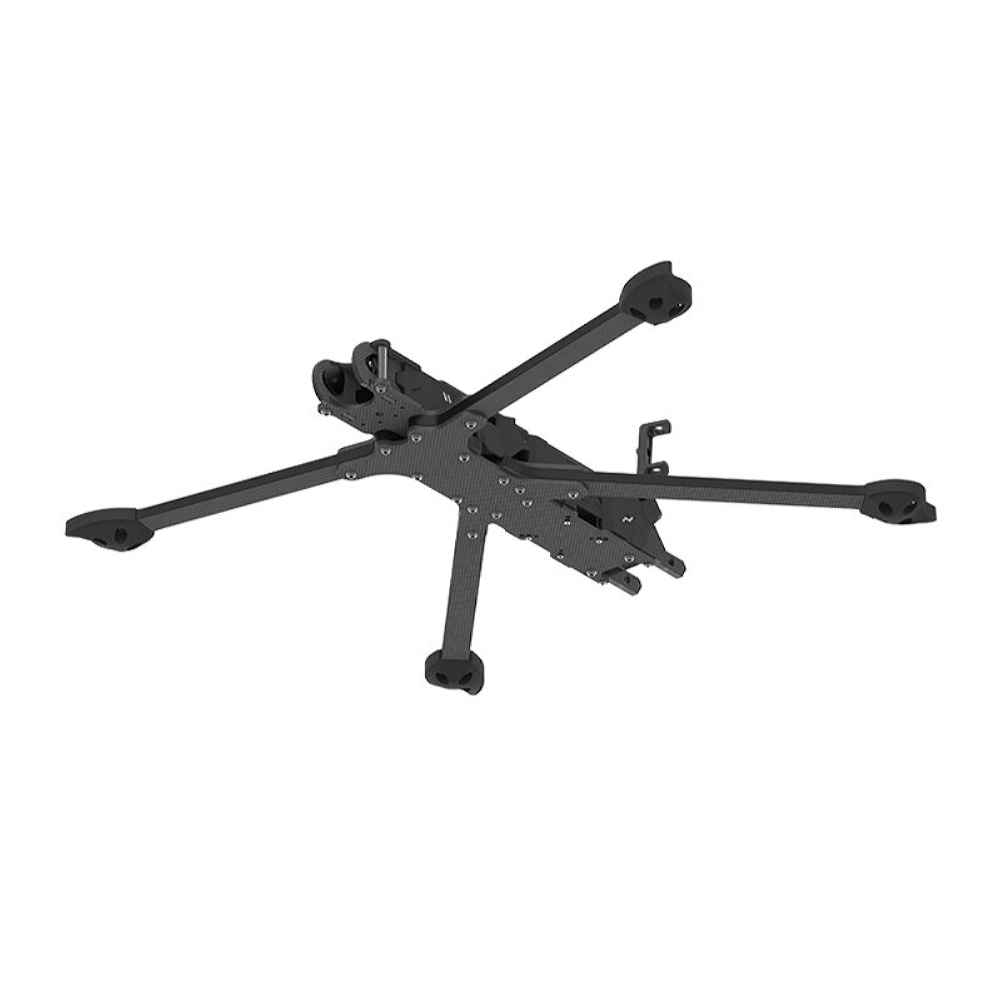

iFlight Chimera9 ECO 405mm Wheelbase 6mm Arm Thickness 9 Inch Long Range Frame Kit for DIY RC Drone FPV Racing
Experience the ultimate in long-range FPV flight with the iFlight Chimera9 ECO Frame Kit. Featuring a generous 405mm wheelbase and robust 6mm arm thickness, this frame is designed for DIY RC drone enthusiasts seeking extended flight times and expansive range. The Chimera9 can accommodate larger batteries, whether top or bottom-mounted, with a 6-cell configuration recommended for leisurely cruising. Its DeadCat geometry ensures stability, while the frame’s durable construction supports advanced flight components. Compatible with a variety of mounting options, this frame is perfect for those aiming to explore new heights and distances.
Description:
The KING of Long Range FPV! A super-efficient iFlight 9inch Long-Range bird that can go where you couldn’t go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended for slow cruising.
Specifications:
Brand: iFlight
Model: Chimera9 ECO
Product Name: 405mm Wheelbase 9 Inch Long Range Frame Kit
Geometry: DeadCat(DC)
Wheelbase: 405mm
Frame Dimension: L360*W235*H34 mm
Frame Body Dimension: 34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Maximum Flight Stack Height: 21mm
Max VTX Height: 30mm
Flight Stack Mounting: 30.5*30.5mm 嫉3mm
VTX Mounting: 30.5*30.5 嫉3mm / 25*25 嫉1.6mm / 20*20 嫉2mm
Motor Mounting: 16x16mm / 19*19mm 嫉3mm
Weight: 377g
Recommend Parts ( Not Included)
FC & ESC: 30.5×30.5mm iFlight BLITZ ATF435 FC & E55S 55A BL_S 4IN1 ESC Stack
Brushless Motor: iFlight XING-E 2809 800KV Cinelifter Motor
Propeller: Foxeer NEW Cyclone T9046 9046 9 Inch Propeller
Analog VTX: iFlight BLITZ 5.8GHz PIT/25mW/400mW/1000mW/2500mW MMCX VTX
Digital HD: DJI O3 Air Unit Digital HD System
Lipo Battery: iFlight Fullsend 22.2V 8000mAh 6S Li-ion Battery XT60 Plug
Packing Included:
1 x Chimera9 ECO Frame Kit
1 x Single Antenna TPU for DJI O3
1 x Screw Bag
1 x TPU Set
1 x Anti-Slip Battery Pad
2 x Battery Strap
4 x AMASS MR30 Plugs
NOTE:
The vertical antenna mount will be in the box when shipped and needs to be installed by the customer.
Package Included:
1 x Chimera9 ECO Frame Kit
1 x Single Antenna TPU for DJI O3
1 x Screw Bag
1 x TPU Set
1 x Anti-Slip Battery Pad
2 x Battery Strap
4 x AMASS MR30 Plugs
