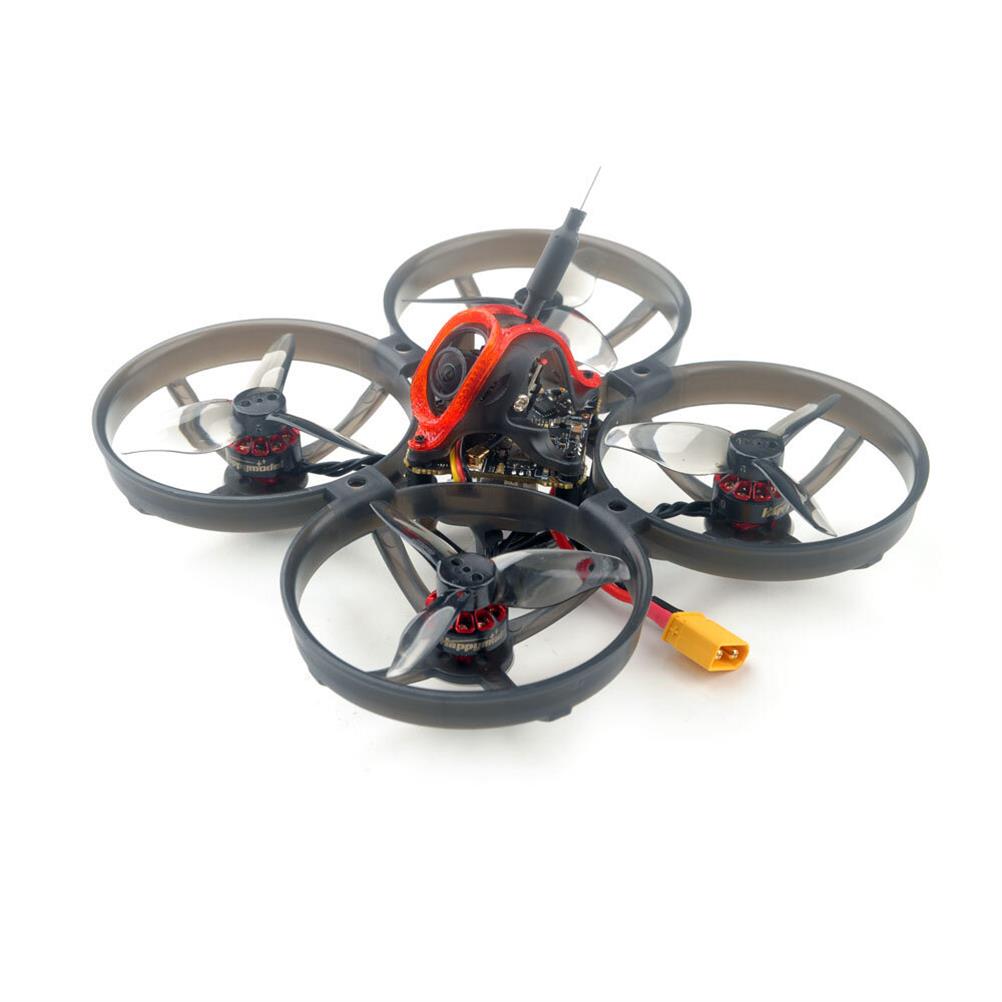

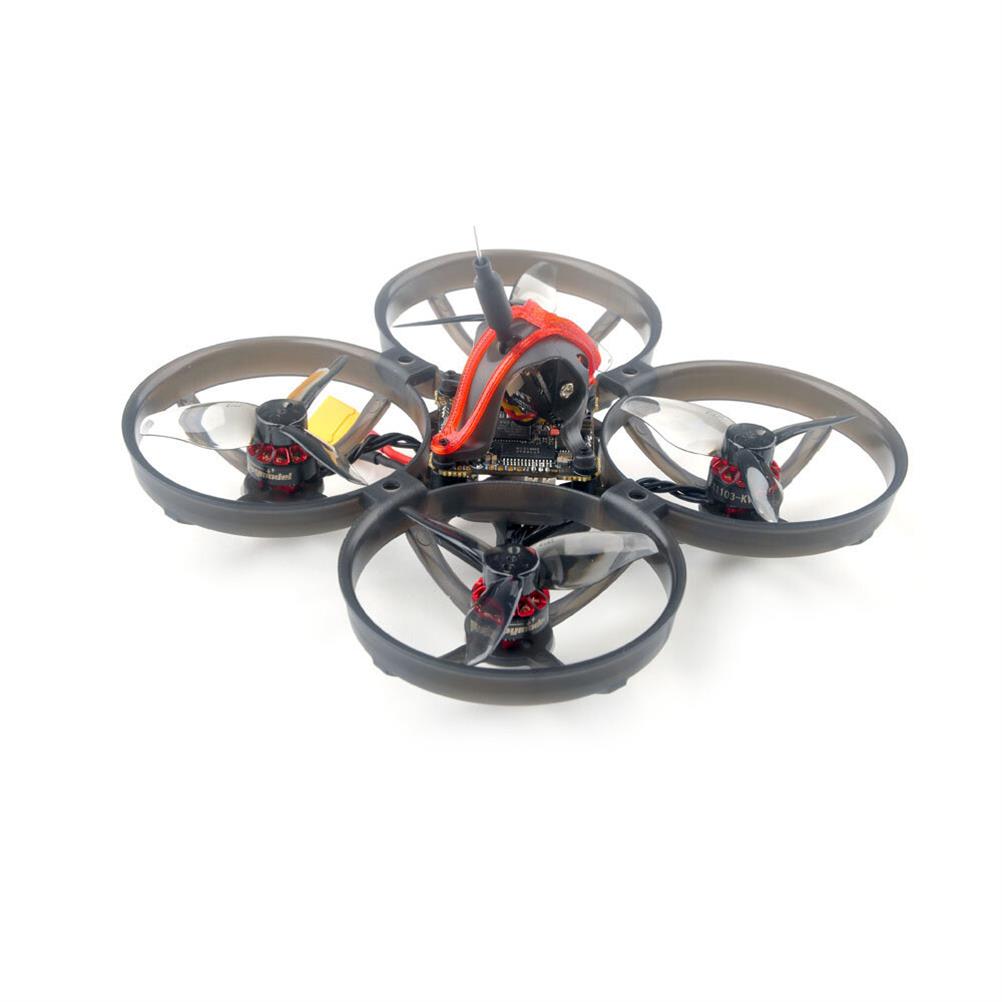

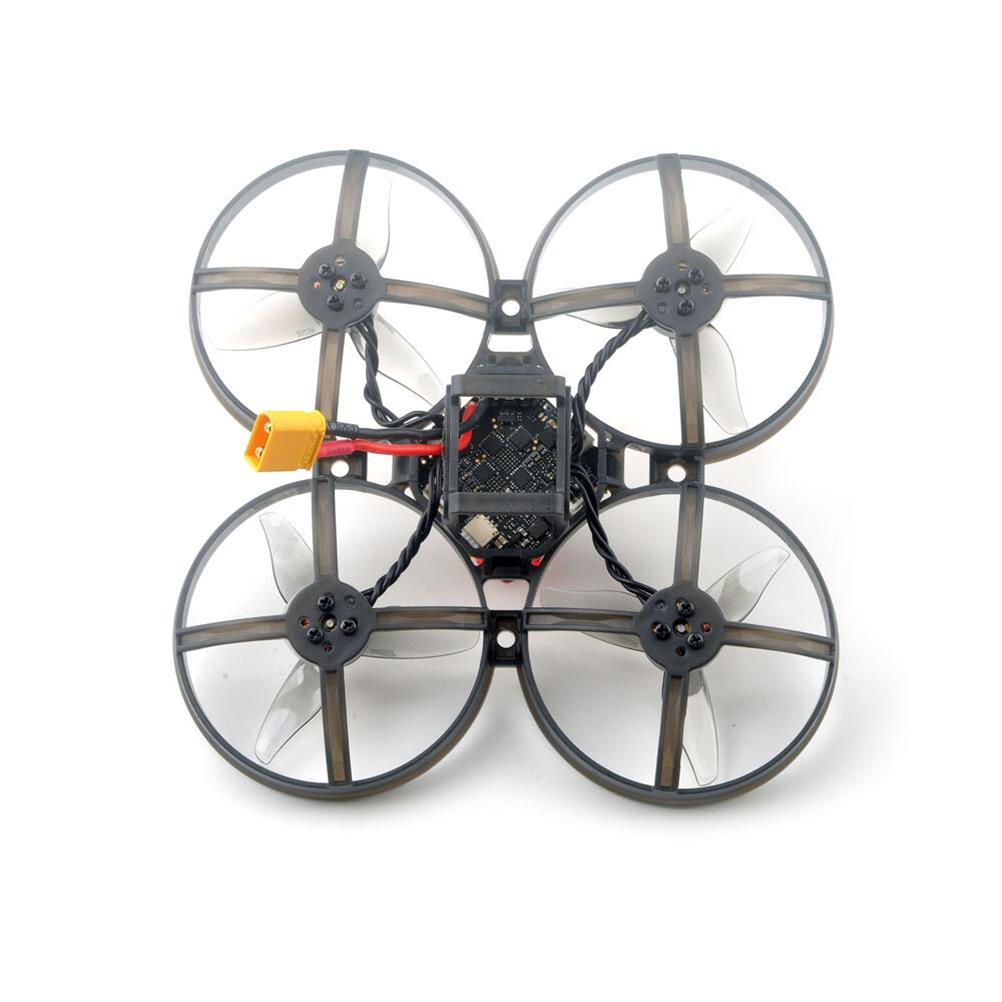

Happymodel Mobula8 85mm Micro FPV Racing Drone, 1-2S, 2 Inch Whoop, X12 ELRS Pro v1.1 Flight Controller, Backyard Freestyle

Description

Happymodel Mobula8 1-2S 85mm Micro FPV Racing Mobula 8 2 inch micro RC Drone Whoop for backyard freestyle

The Happymodel Mobula8 is a compact 85mm micro FPV racing drone designed for backyard freestyle. Equipped with the X12 ELRS Pro v1.1 flight controller, it features an onboard 2.4G ELRS receiver controlled by an ESP32 chip. The drone supports a 1-2S battery input, delivering smooth and powerful performance with its EX1103 KV11000 motors. It includes a 5.8G OpenVTX for video transmission and a CaddxFPV Ant camera for clear visuals. The Mobula8 is compatible with ExpressLRS V3.x.x TX Module and offers options for different receiver protocols. Ideal for hobbyists seeking high performance in a compact size.

Notice:
Add new UART ELRS 2.4G Receiver Version.
It comes with a new X12 ELRS Pro v1.1 flight controller, onboard vtx and onboard uart elrs receiver are controlled by ESP32 chip , now you have a free set of UART and you can flash single ExpressLRS firmware for the Mobula8 ELRS .

Flight Controller

X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
Sensor: ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
Built-in UART ExpressLRS v3.0.0
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Firmware target: Z_H_30
Default protocol: DSHOT300
Bluejay firmware ready

Onboard uart ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V3.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: Serial_based CRSF
Compatible with ExpressLRS V3.x.x TX Module
Could flash single ELRS receiver firmware by Wifi
ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx

Onboard 5.8g OPENVTX

Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

Features:
X12 ELRS Pro v1.1 5-IN-1 AIO flight controller built-in 2.4G ELRS V3.0 and OPENVTX
VTX Power up to 400mw
ELRS V3.0 (Default), could flash elrs firmware for the receiver by wifi
EX1103 KV110000 motors
CaddxFPV Ant FPV camera
Smooth and powerful
Compatible for 1S-2S Lipo/LIHV battery
Recommend 2S 450mah/550mah/650mah battery (Not include)
Specifications: ( Manual for UART ELRS / ELRS / Frsky / PNP or TBS version )Brand Name: HappymodelItem Name: Mobula8 1-2S 85mm Micro FPV whoop droneWheelbase: 85mmSize: 120mm*120mm*50mmWeight: 43gReceiver option:2.4G ELRS SPI(Support ELRS v2.0, provide firmware could compatible with elrs v3.0)SPI Frsky D8/D16 not compatible with EMAX E6 radioSPI Flysky AFHDS2A PNP (without onboard receiver)TBS version(with external TBS CRSF NANO RX)

EX1103 KV11000 brushless motor

Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:朴1.5mm
Motor Dimension(Dia.*Len):朴13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)

Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

X12 5-IN-1 AIO flight controller

X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS
X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689 or ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Firmware target: Z_H_30
Default protocol: DSHOT300
Support Bluejay firmware

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn＊t flash separately ExpressLRS firmware
Could flash FC firmware to support ExpressLRS v3.0 TX module

Onboard SPI Frsky D8/D16 receiver Versio

SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8/D16 modelChannels: 8ch/16ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support

Onboard SPI Flysky receiver Version

SPI BUS receiver
Protocol: AFHDS-2A
Channels: 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support

PNP Version
(without onboard receiver)

Full UART1 for external Receiver
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
IR1 pad(invert RX1) used for SBUS input

External TBS CRSF Nano receiver version

Original TBS Receiver ,CRSF Protocol , Official TBS transmitter compatible

Onboard 5.8g OPENVTX

Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

Caddx ANT 1200tvl camera

Image Sensor: 1/3∪ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Weight: 2g (N.W.)

Package Included:
1 x Happymodel Mobula8 RC Drone
