Description

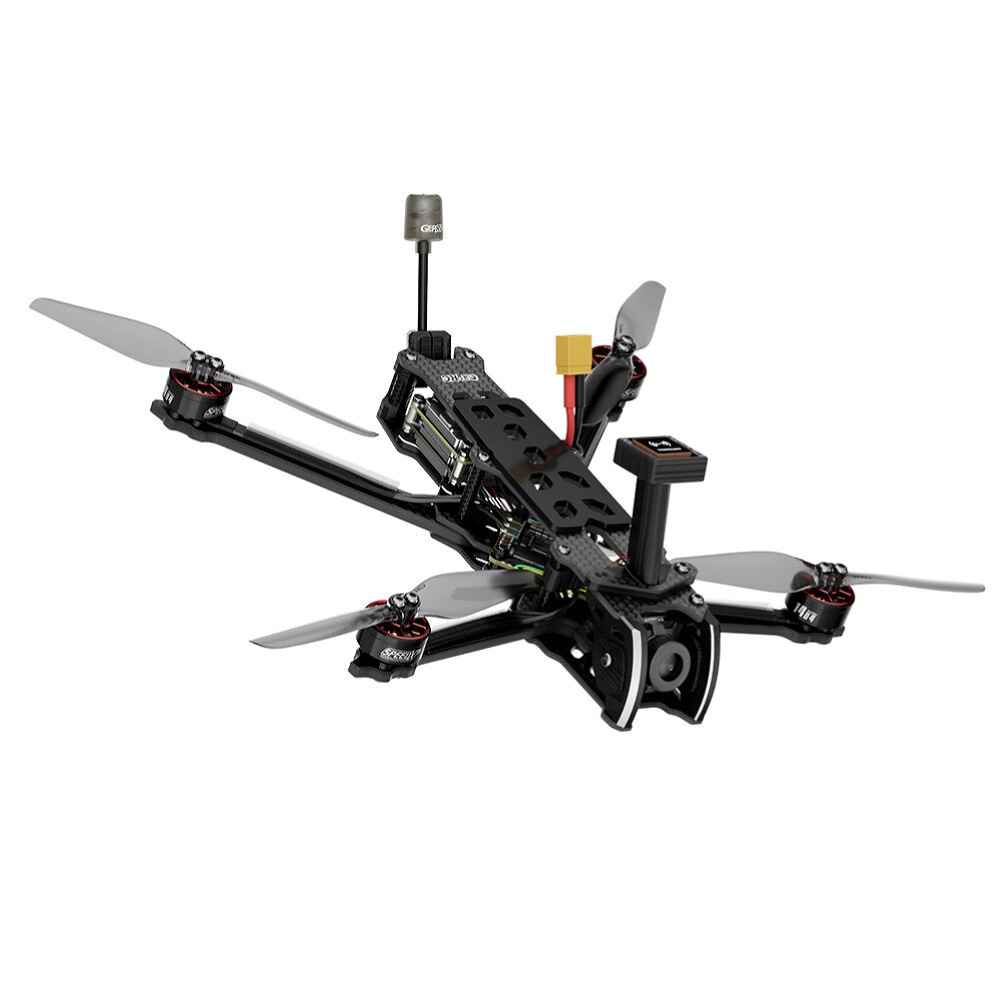

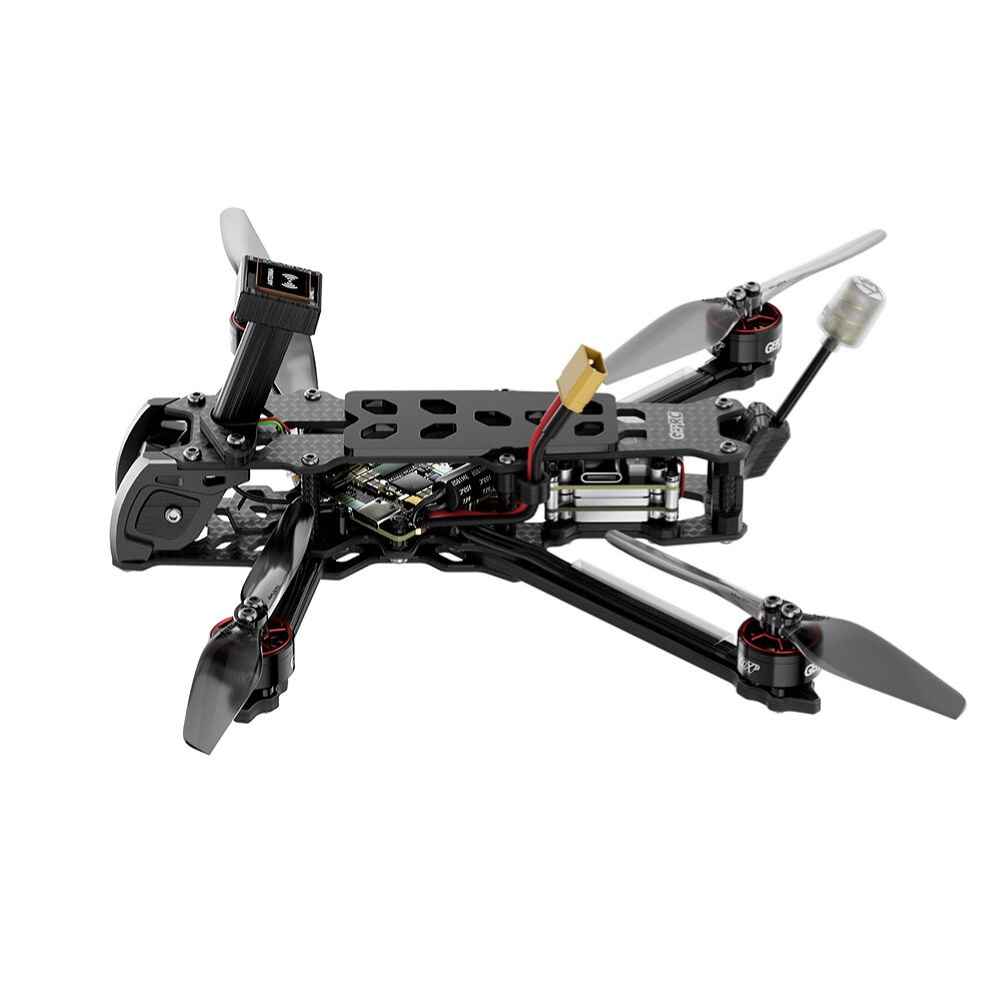

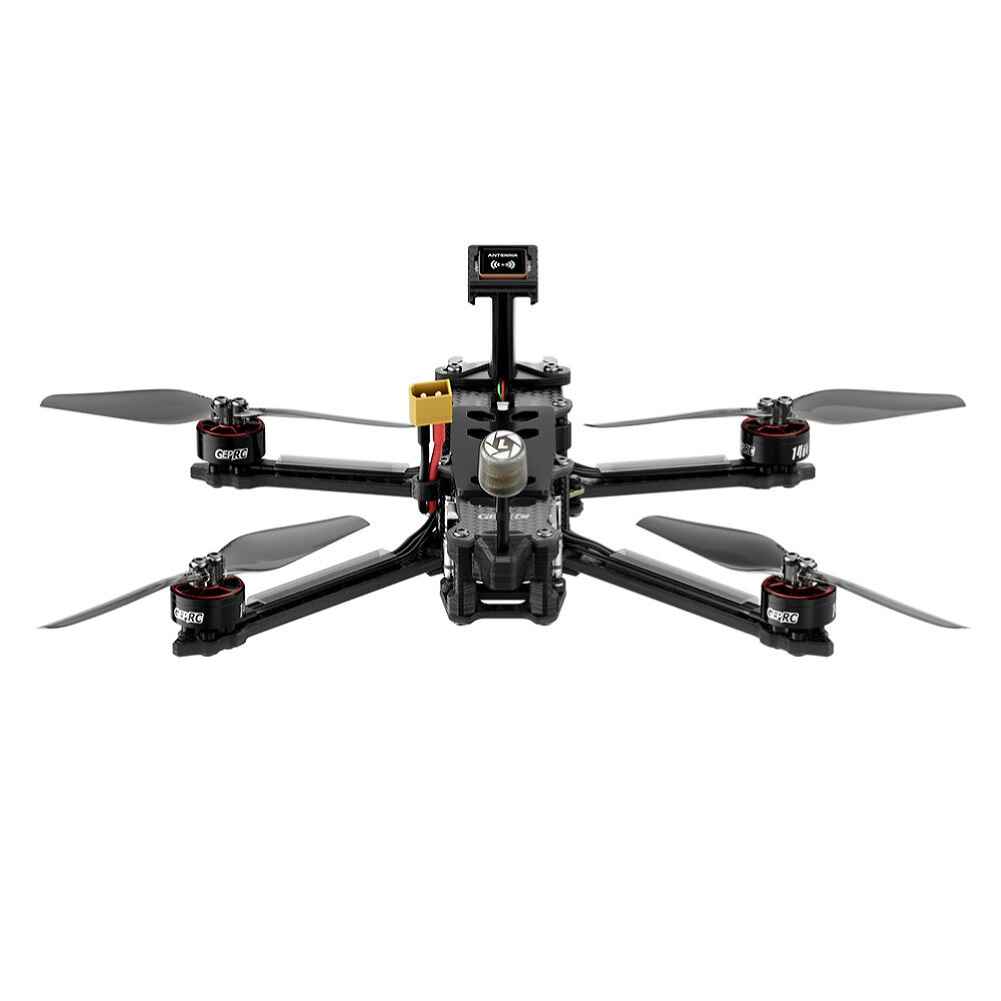

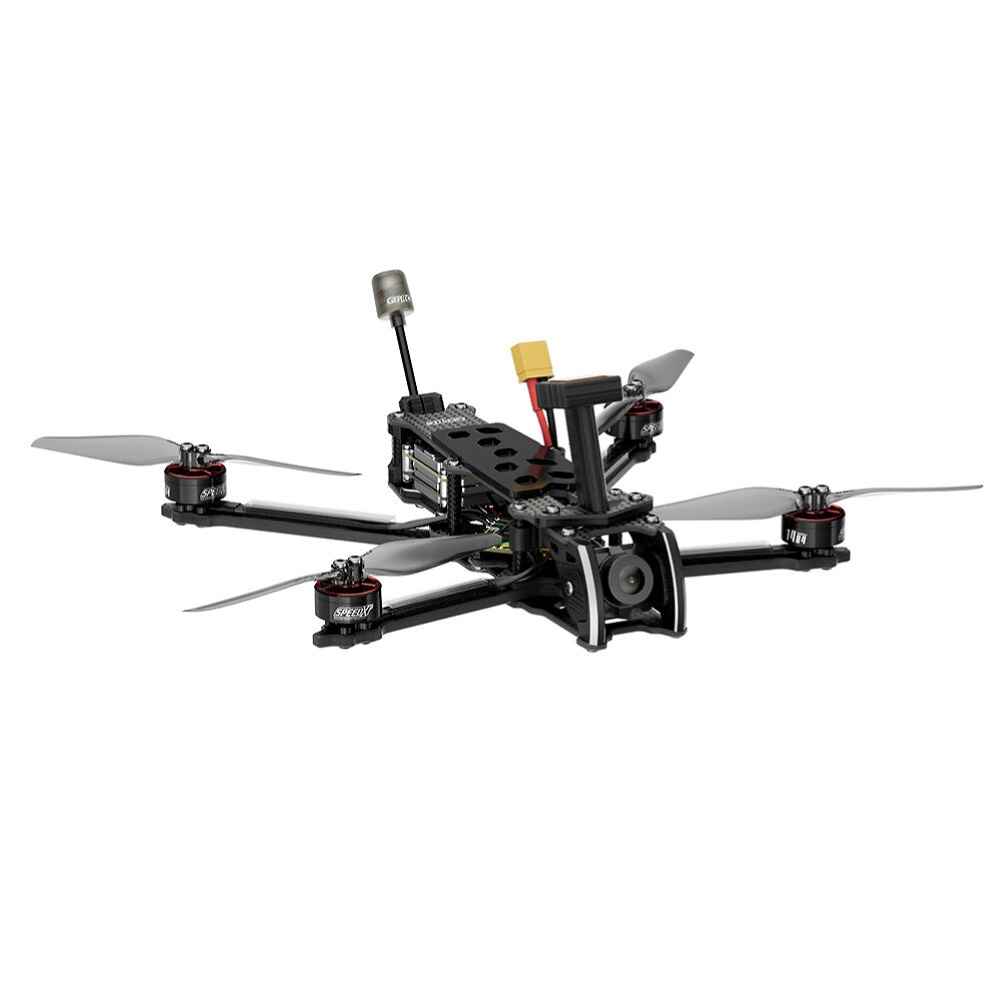

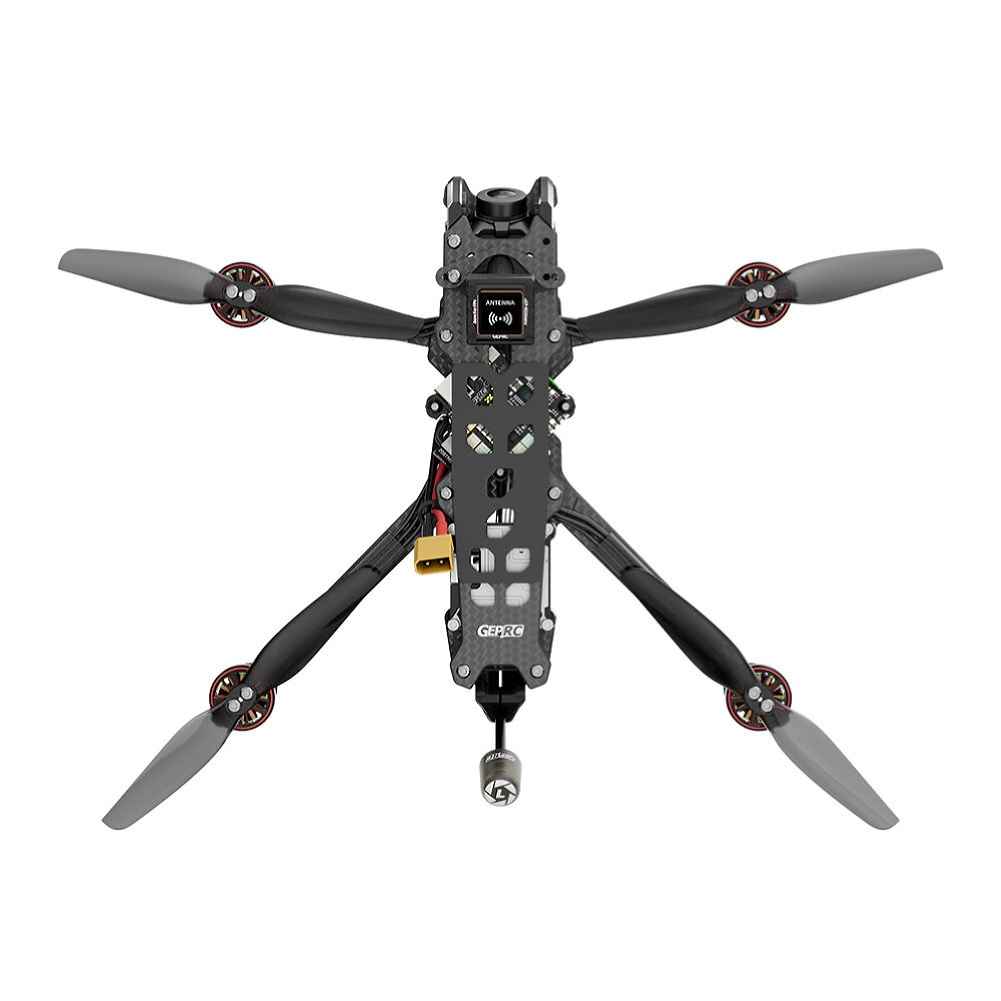

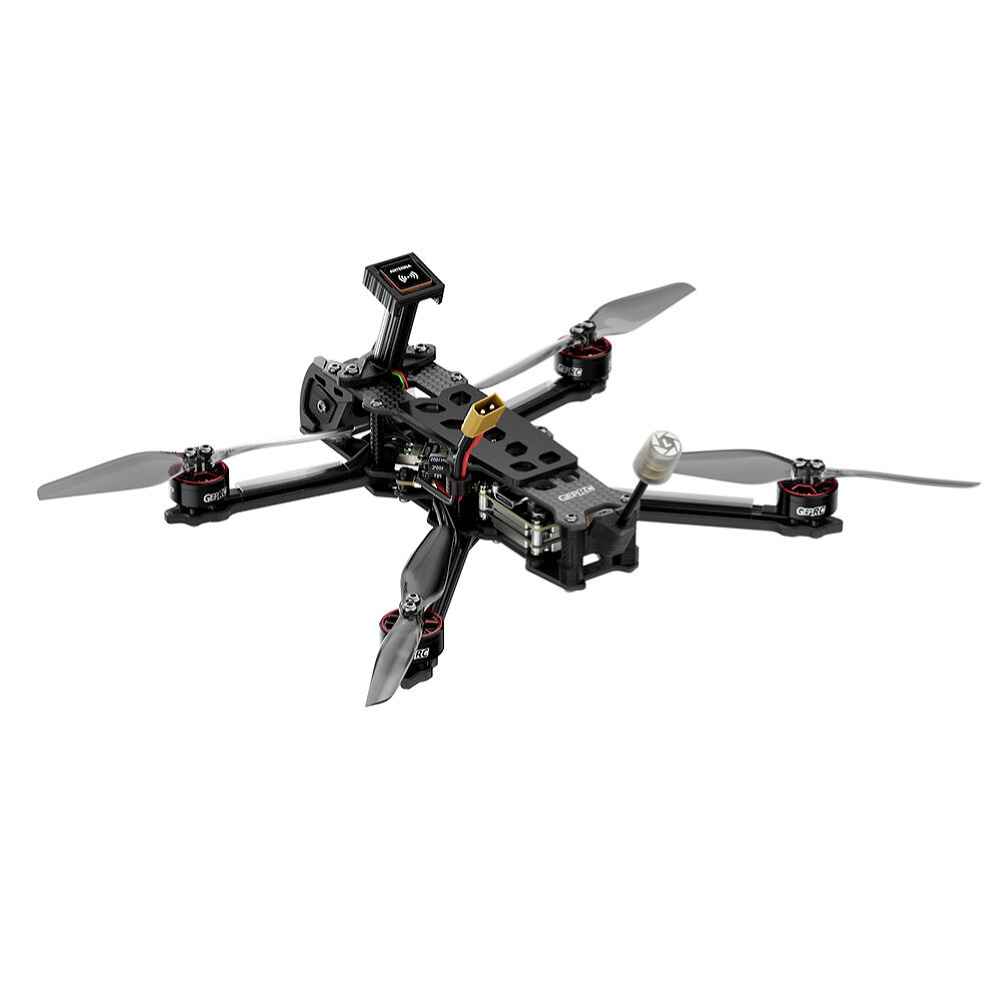

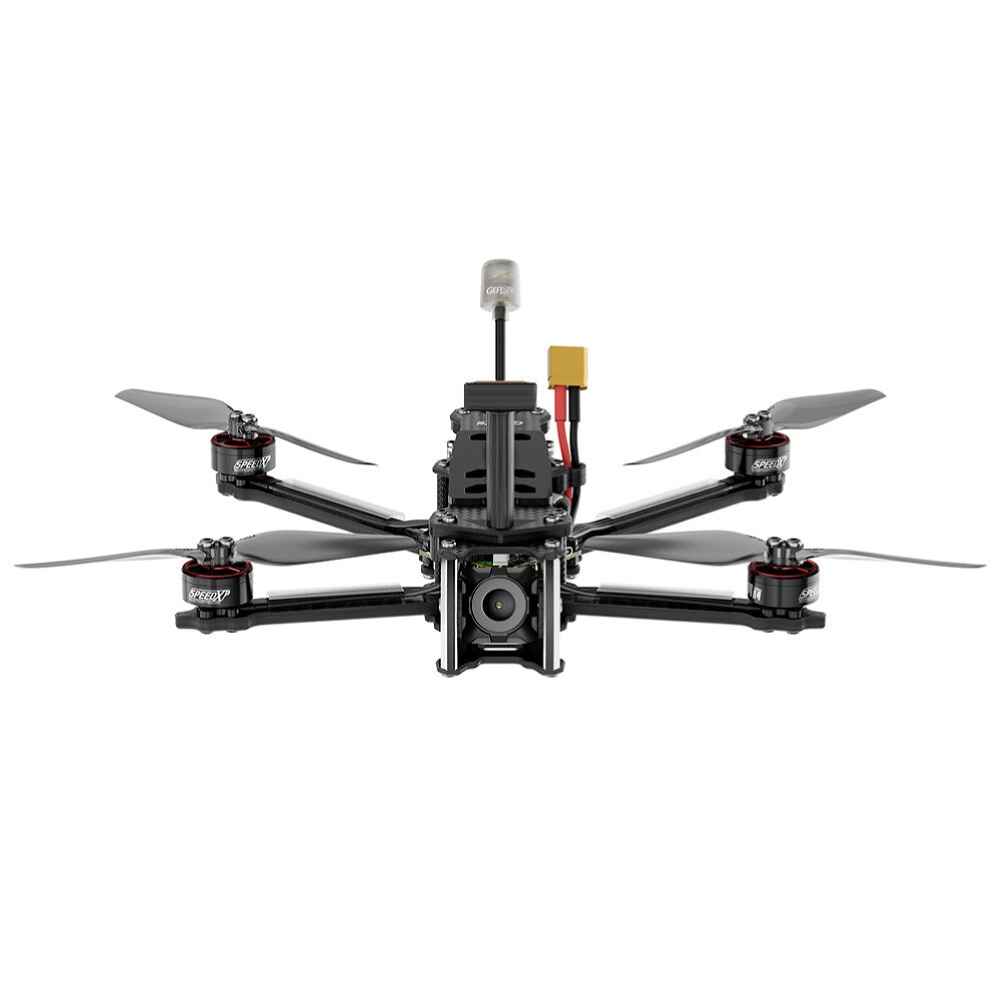

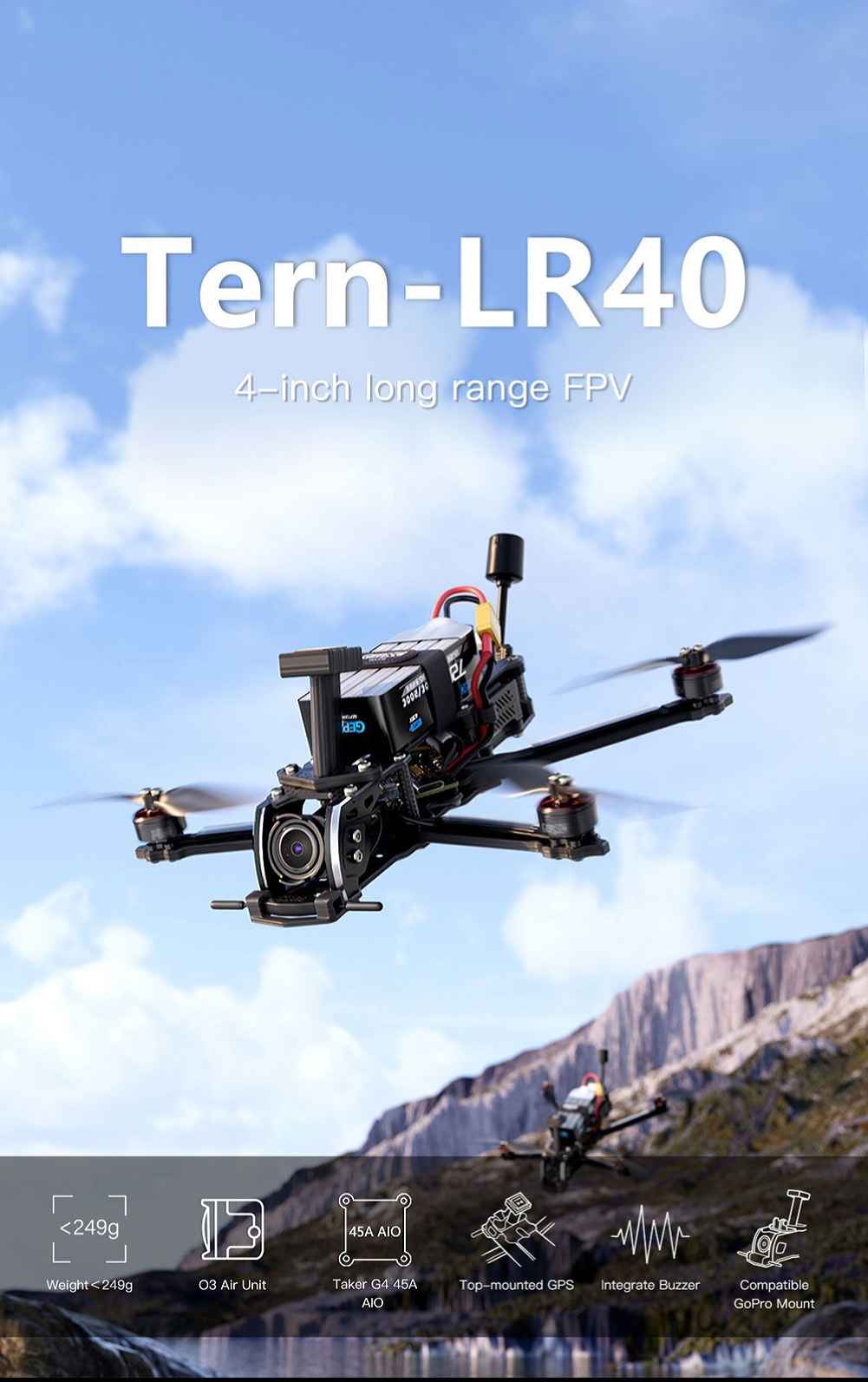

GEPRC Tern LR40 Analog 4 Inch 4S Long Range FPV Racing Drone PNP BNF with Taker G4 45A AIO 1W VTX Caddx Ratel2
The GEPRC Tern LR40 is a 4-inch long-range FPV racing drone known for its outstanding performance and reliability. It features a lightweight design using aviation-grade 7075 aluminum, keeping its weight under 249g. The drone is equipped with the Taker G4 45A AIO flight controller, offering superior computing power. Its top-mounted GPS minimizes electromagnetic interference, ensuring stable rescue functions. The DC-type structure allows for unobstructed aerial photography, and the drone includes a battery low voltage alarm. With the GEP-M10nano GPS, satellite search is swift, and rescue mode is reliable. The Tern LR40 supports GoPro mounts for versatile shooting options.
Summary:
-In the GEPRC family, we have welcomed a new member: Tern-LR40. This is a 4-inch long range FPV with excellent performance and reliability. It adopts a DC-type structure. Its careful lightweight design uses aviation-grade 7075 aluminum parts. Light and rigid.
-Equipped with Taker G4 45A AIO flight control, which has higher computing power redundancy. The use of a top-mounted fixed GPS can avoid the impact of its own electromagnetic interference on flight, and the rescue function is more stable.
-The Tern-LR40 is like a bird with spread wings, flying freely through the sky without being restrained. Choosing it is not only a high-quality flight, but also an artistc journey.
Features:

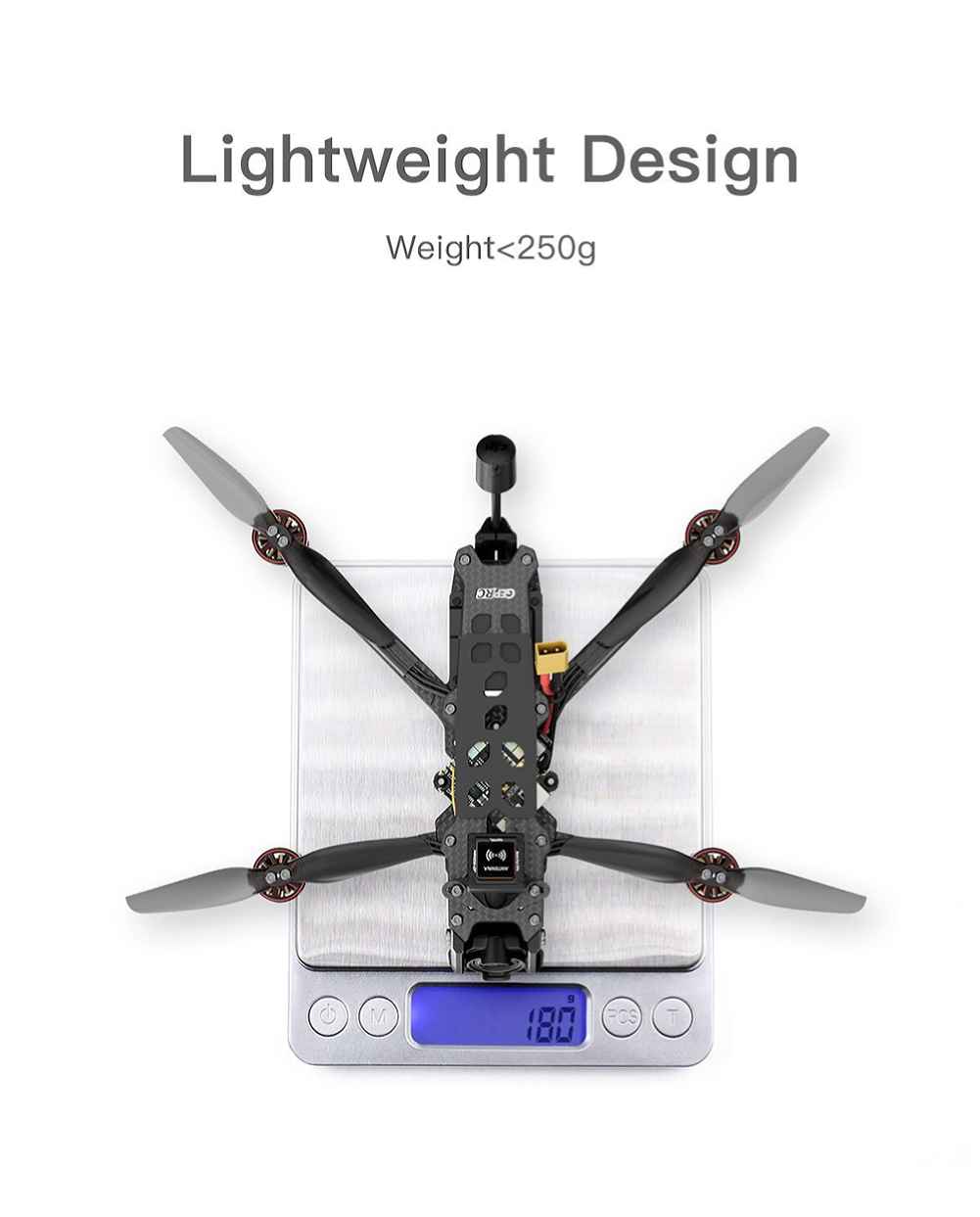

-New lightweight design, weight under 249g.

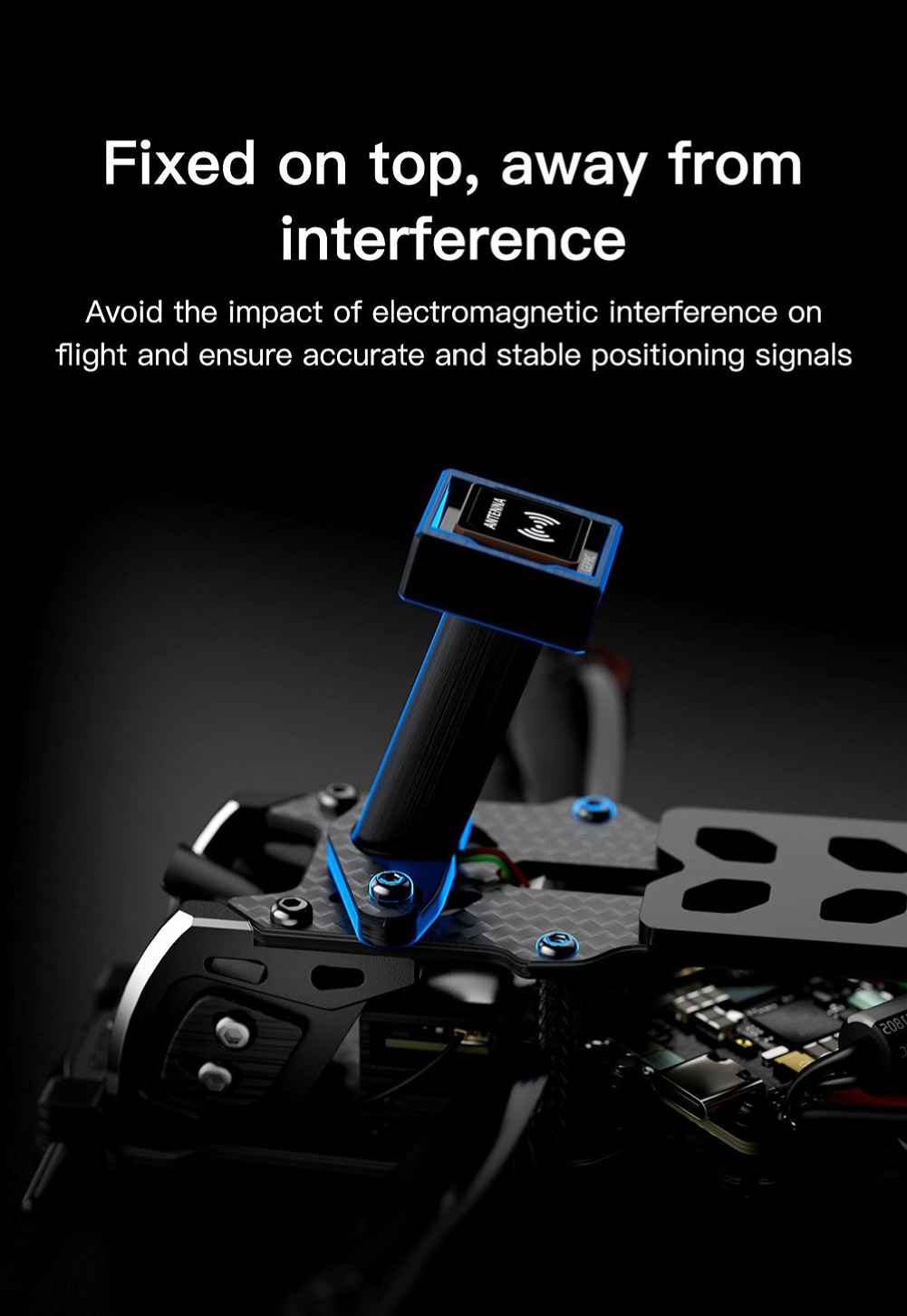

-Expand interference GPS fixation method and stay away from interference sources
-DC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.
-Install BB ring to set the battery low voltage alarm

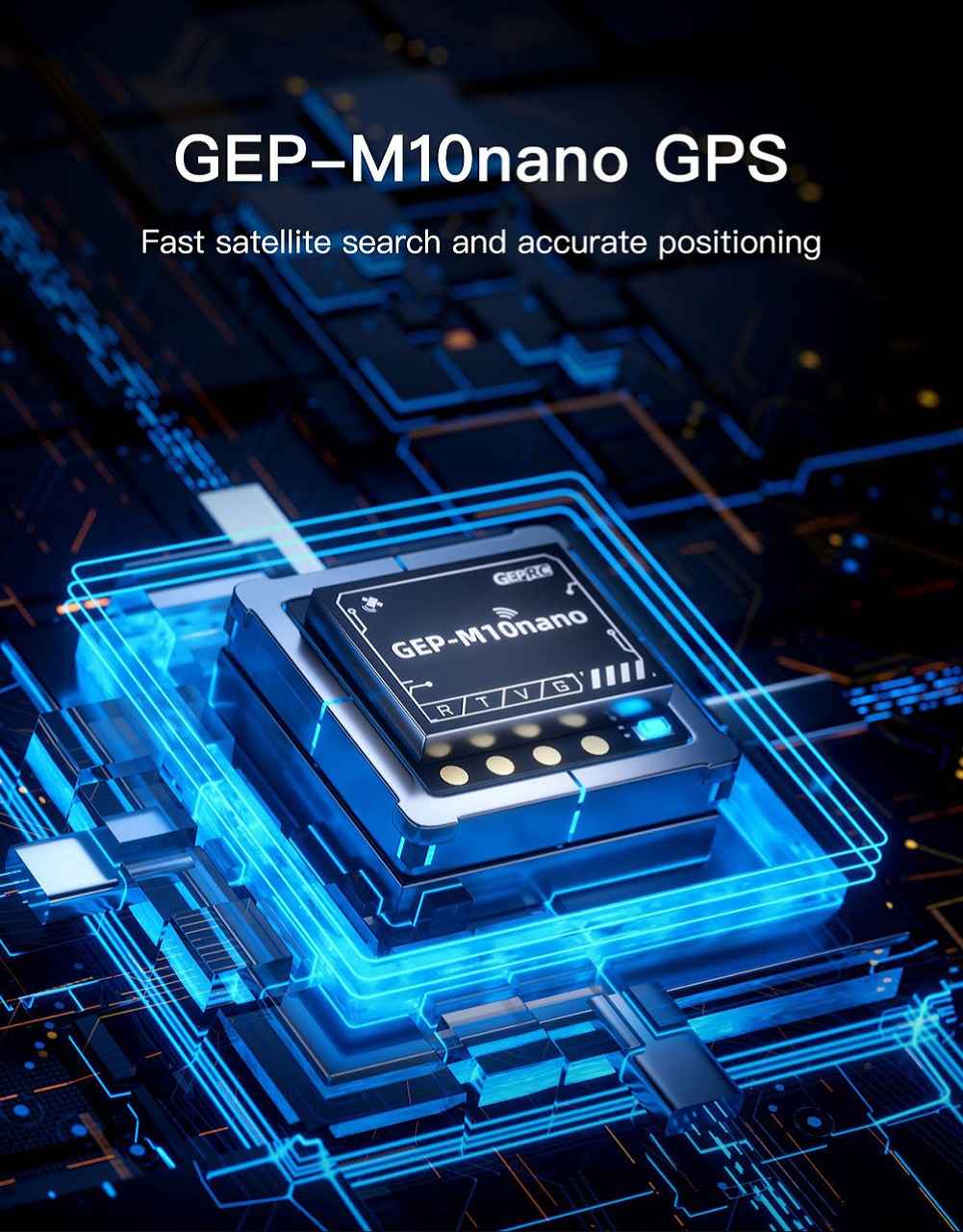

-Using GEP-M10nano GPS, the satellit search speed is faster and the rescue mode is more stable.
-Compatible gopro mount installation, expandable shooting creation.

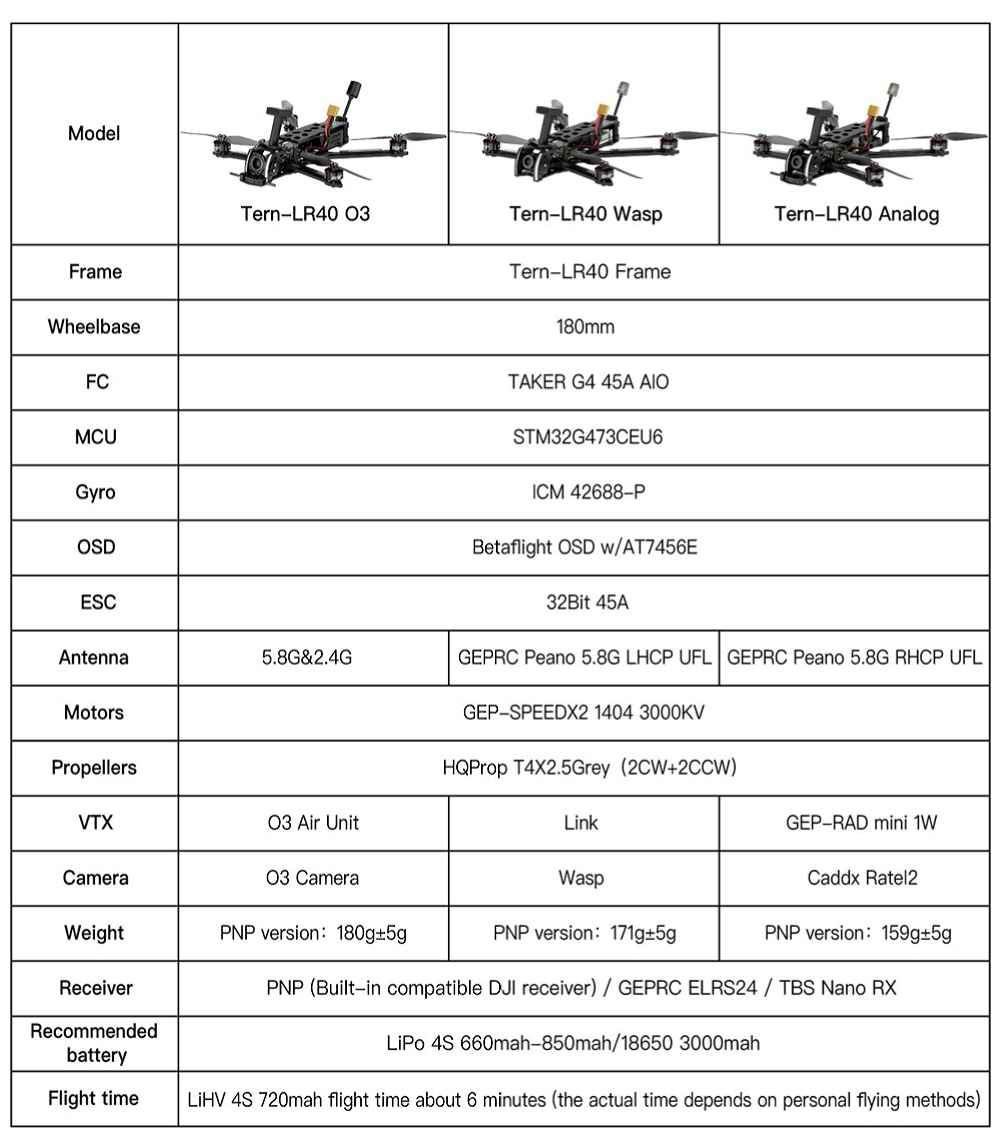

Specifications:
Brand: Geprc
Model: Tern LR40

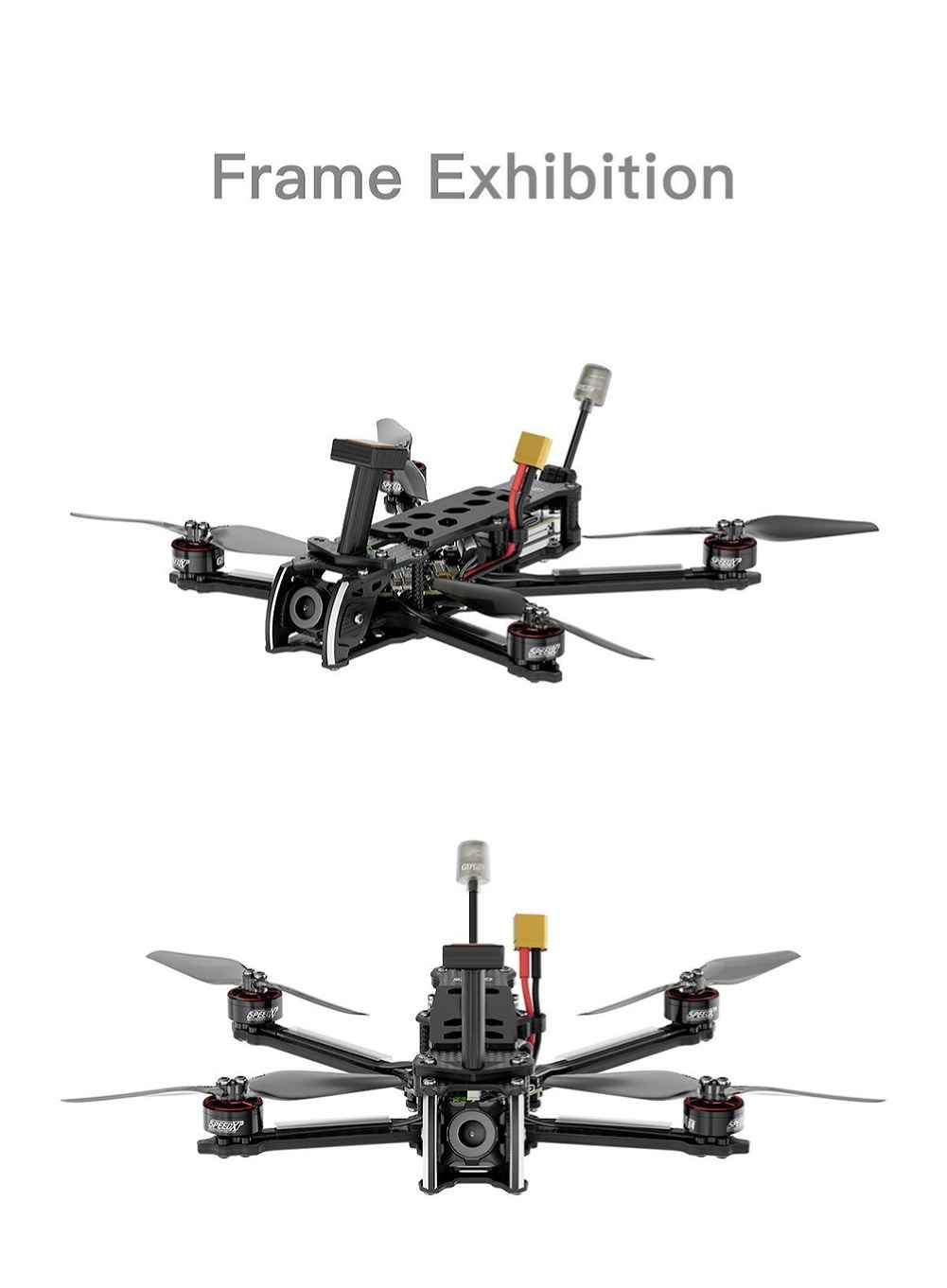

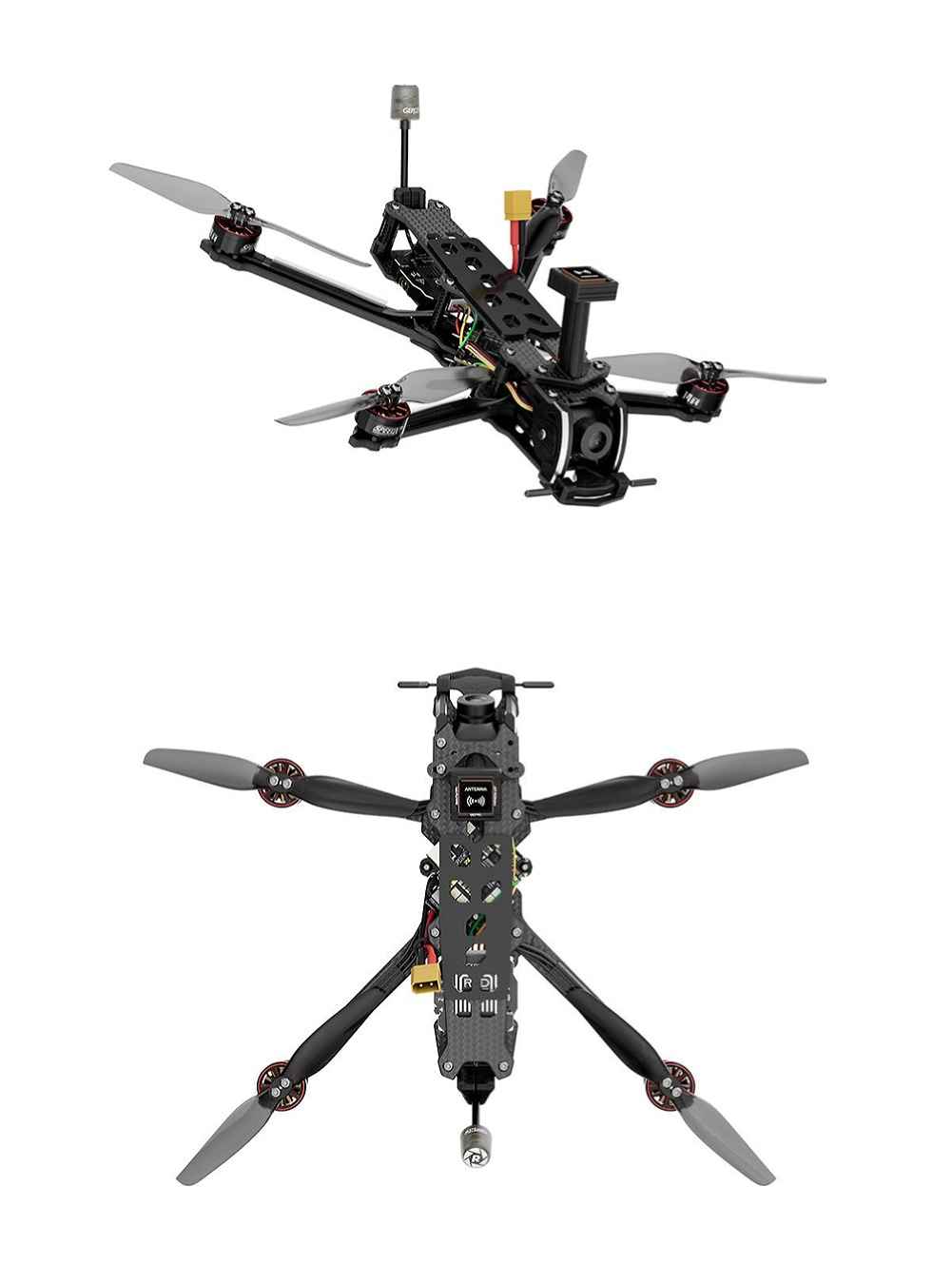

Frame: Tern LR40 frame
Top plate: 1.5mm
Middle plate: 2.0mm
Bottom plate: 1.5mm
Arm thickness: 3.5mm

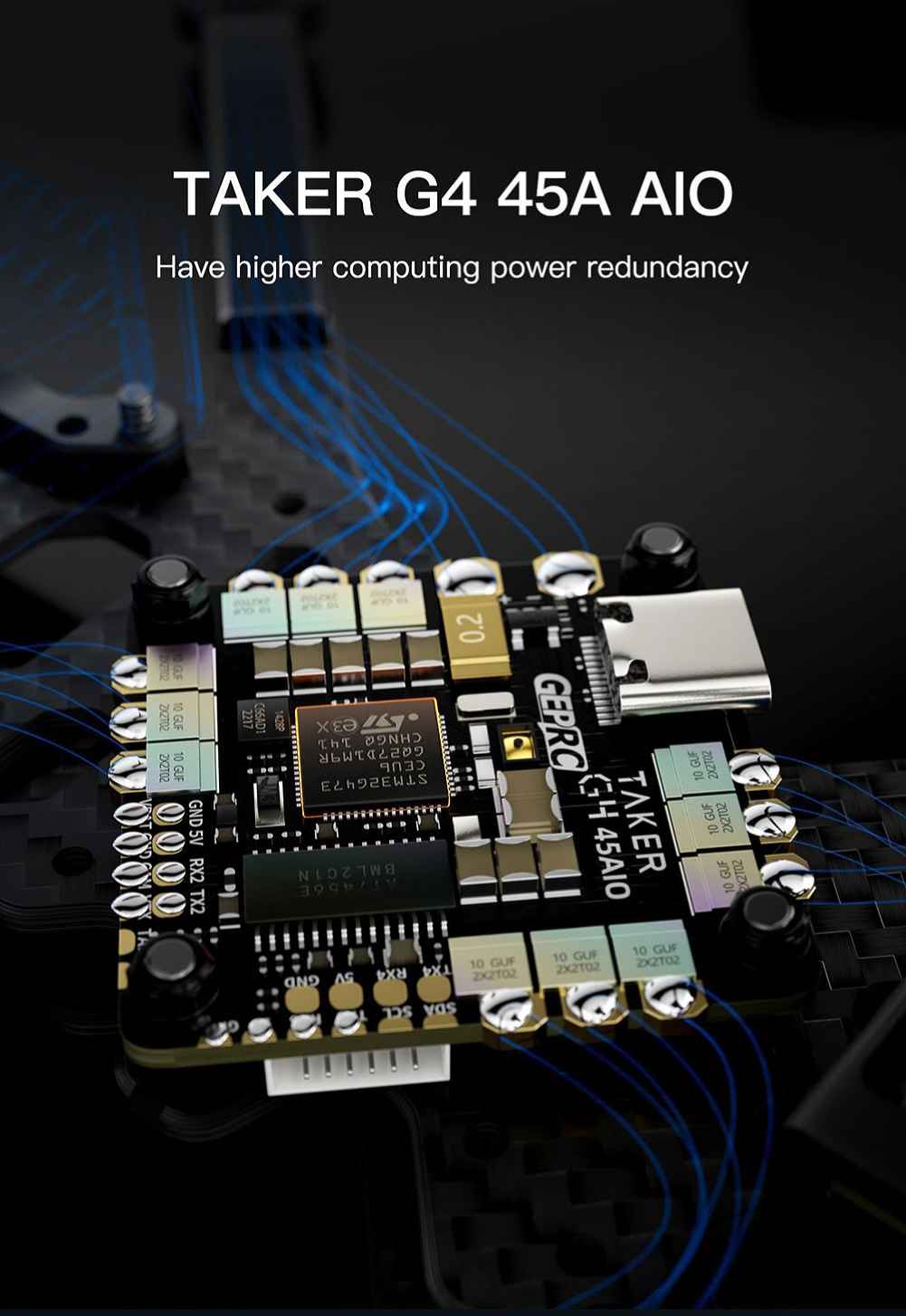

FC: Taker G4 45A AIO
MCU: STM32G473CEU6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E
ESC: 32Bit 45A

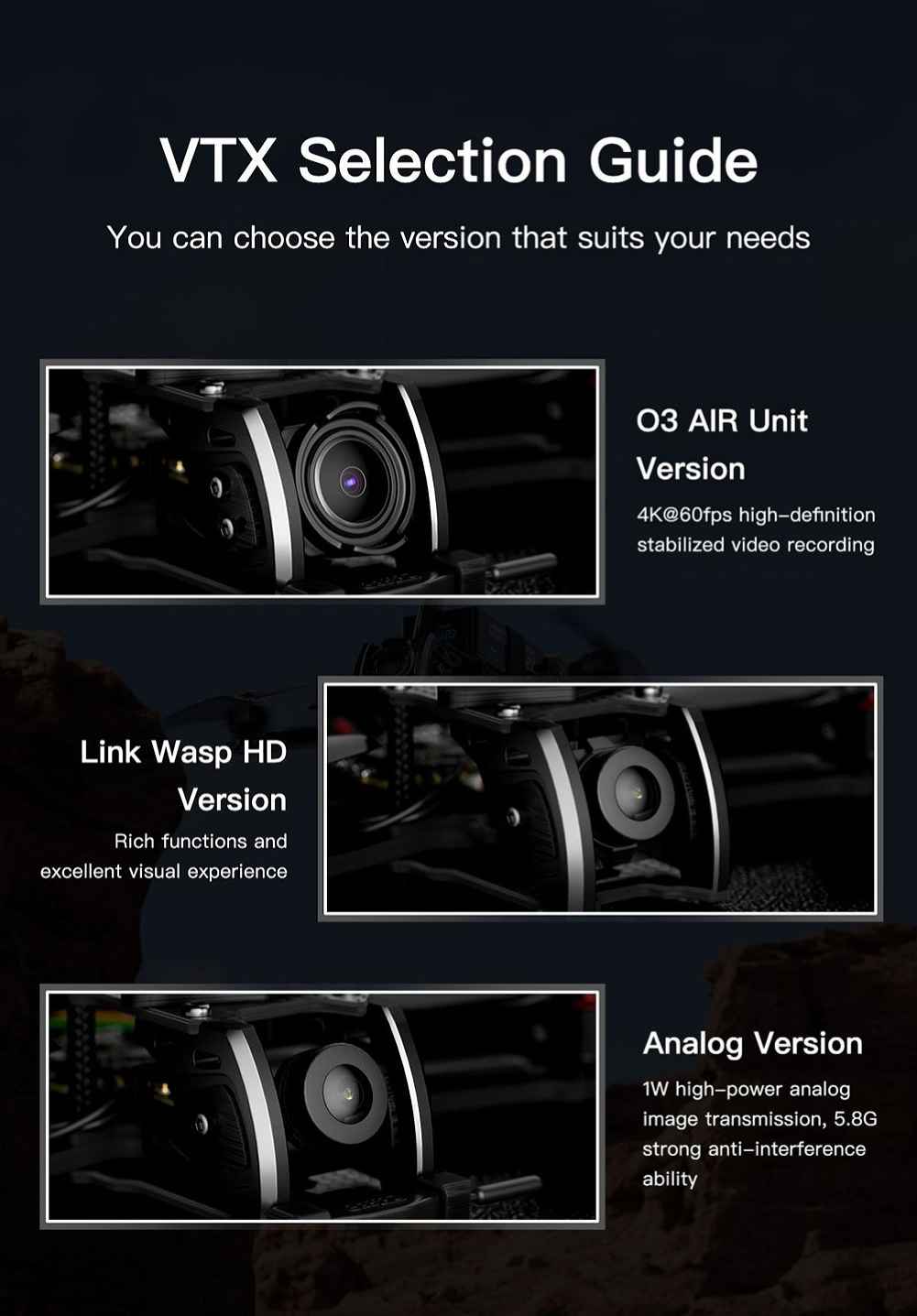

VTX: RAD mini 1W

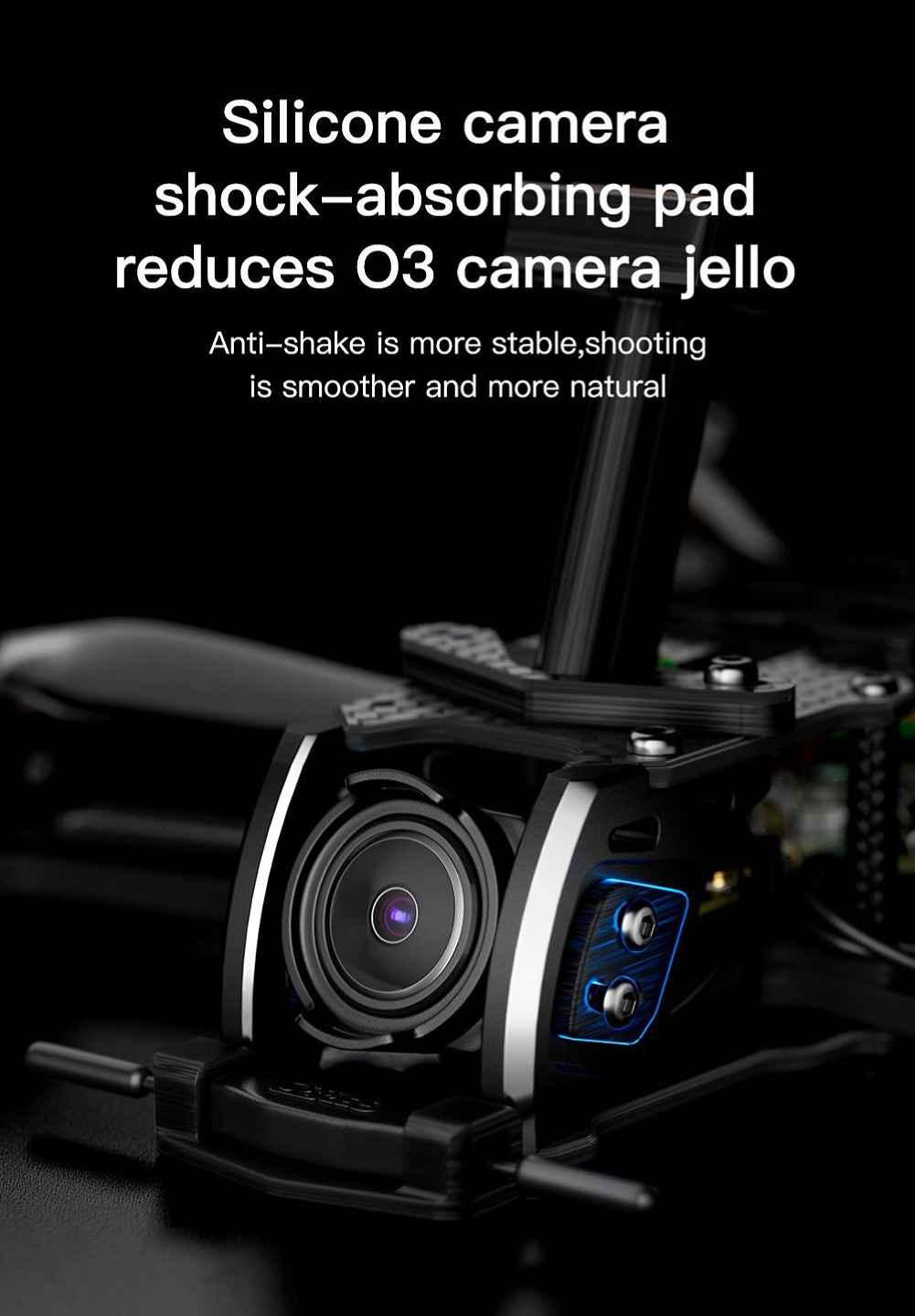

Camera: Caddx Ratel2
Antenna: GEPRC Peano 5.8G RHCP UFL
Connector券XT30
Motors: GEP-SPEEDX2 1404 3000KV
Propellers: HQProp T4X2.5Grey (2CW+2CCW)
Tern -LR40 Analog ELRS24 version weight: 159g呼5g
Receiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX
Recommended battery: LiPo 4S 660mah-850mah/18650 3000mah
Flight time: 10-25min

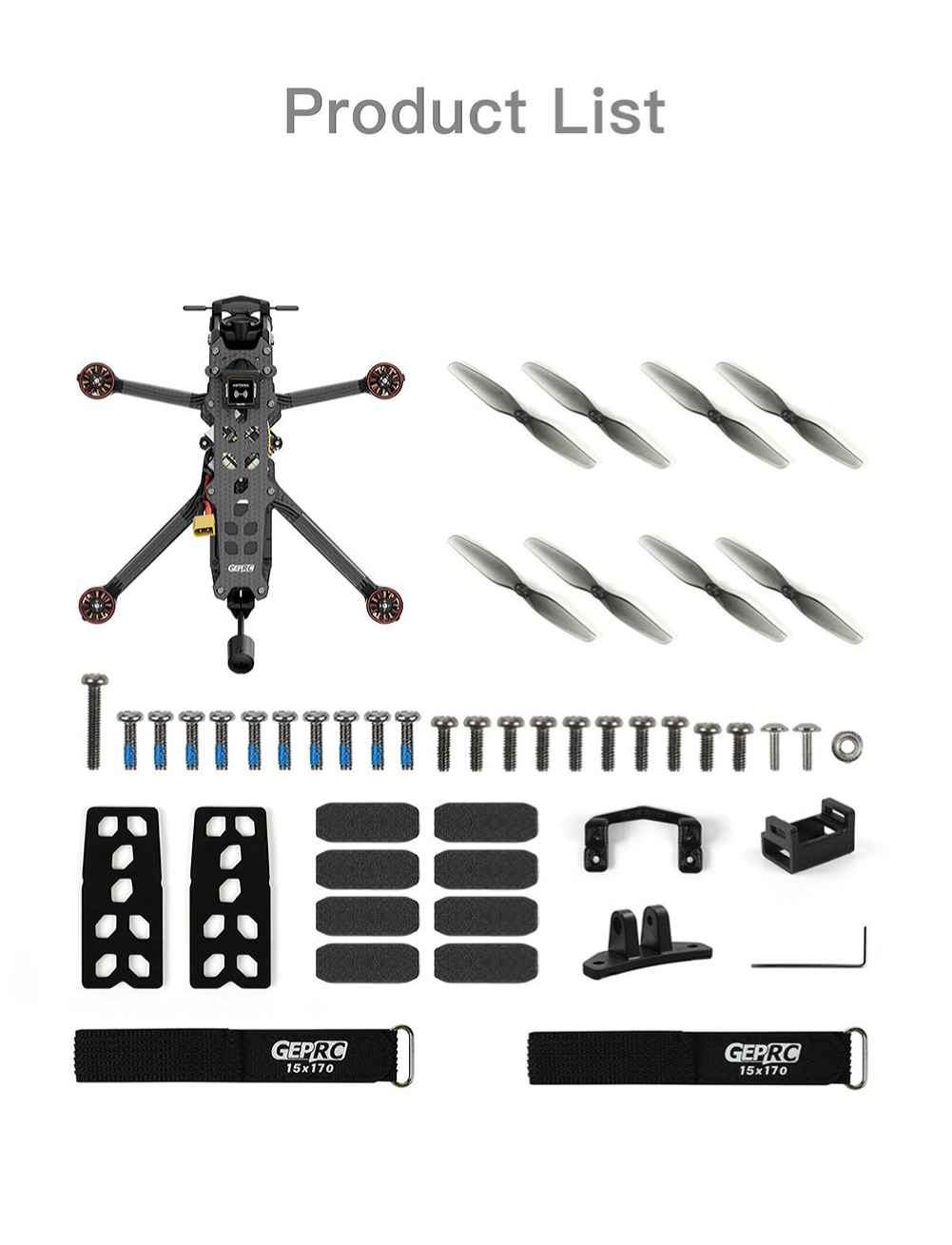

Includes:
1x Tern-LR40
2x HQProp T4X2.5Grey (2CW+2CCW)
2x battery anti-slip mat
1x screw pack
4x Battery strap M15*170mm
1x L-shaped screwdriver 1.5mm
1x Camera mount holder for Gopro
1 x T-type Antenna mount
1 x RC Printed
Package Included:
1 x Tern-LR40 2 x HQProp T4X2.5Grey (2CW+2CCW) 2 x Battery anti-slip mat 1 x Screw pack 4 x Battery strap M15 170mm 1 x L-shaped screwdriver 1.5mm 1 x Camera mount holder for GoPro 1 x T-type Antenna mount 1 x RC Printed
