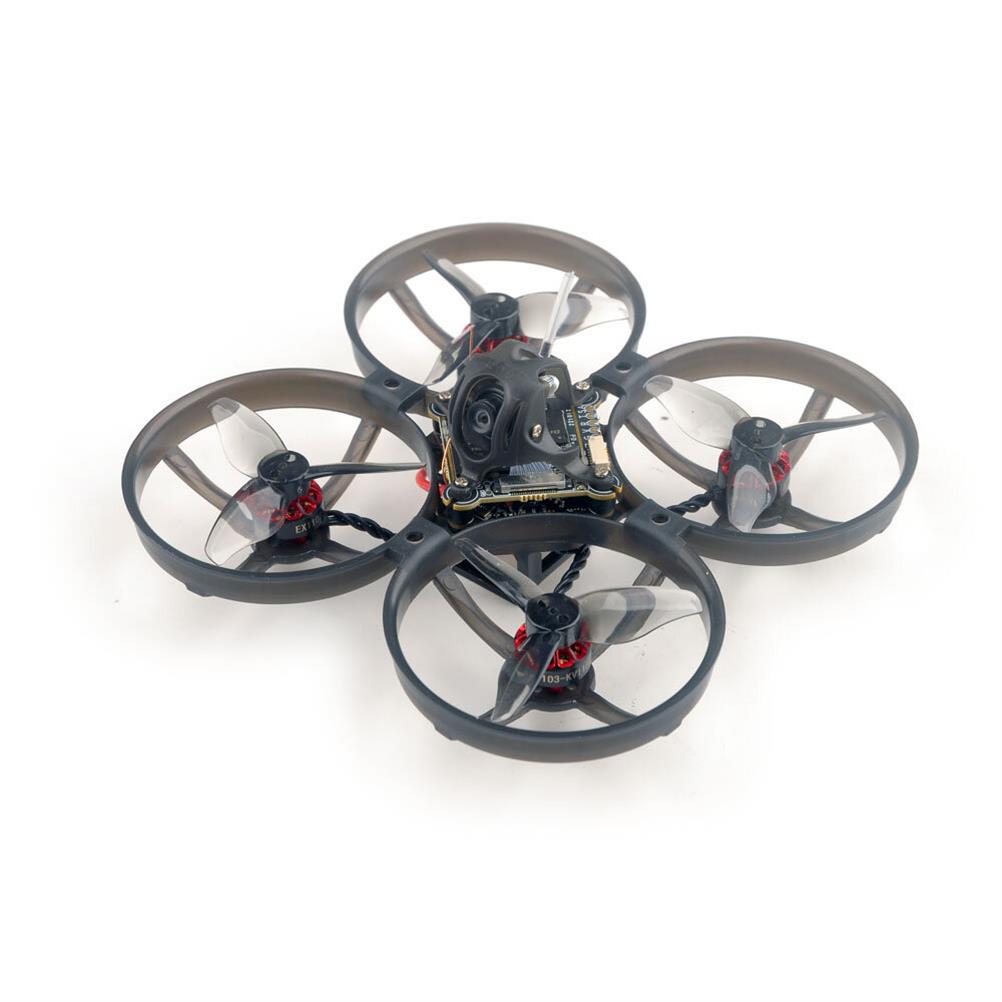

Happymodel Mobula8 Digital HD 2S 85mm Whoop FPV Racing Drone ELRS BNF with DJI O3 Air Unit, HDZero, Walksnail System

Description

Happymodel Mobula8 Digital HD 2S 85mm Whoop FPV Racing Drone ELRS BNF with DJI O3 Air Unit / HDZero / Walksnial Digital System

The Happymodel Mobula8 Digital HD 2S 85mm Whoop FPV Racing Drone offers an exhilarating FPV experience with its new CrazyF405 ELRS HD flight controller and built-in UART ExpressLRS receiver. Equipped with a 12A 4IN1 BLheli_S ESC, it ensures smooth and powerful flights. This drone supports multiple digital systems including DJI O3, Walksnail, and HDZero, providing high-definition video transmission. It features the EX1103 11000KV brushless motor and Gemfan Hurricane 2023 tri-blade propellers, ensuring efficient performance. The Mobula8 is designed for seamless integration with DJI FPV Goggles and remote controllers, enhancing your racing experience.

Notice: for DJI O3 and Lite for DJI O3 Version, now add TBS Receiver for option. ( DJI O3 + TBS / Lite for DJI O3+TBS)
Aug. 9th,2023

Version

Lite for DJI O3

DJI O3

HDZero

WalkSnail

Lite for DJI O3+TBS

DJI O3+TBS

Receiver

Onboard
UART ELRS RX
ELRS V3.0

Onboard
UART ELRS RX
ELRS V3.0

Onboard
UART ELRS RX
ELRS V3.0

Onboard
UART ELRS RX
ELRS V3.0

External
TBS CRSF Nano RX

External
TBS CRSF Nano RX

Specification:
The New Mobula8 Digital HD Micro FPV whoop comes with a new flight controller which is specific for Digital HD CINEWHOOP. Built in UART ExpressLRS receiver and 12A 4IN1 BLheli_S ESC.
The same Brushless motor and Gemfan 2023 propeller like the Mobula8 Analog version. Comes With DJI O3, Walksnail avatar and HDZERO VTX option. Smooth flight and High definition video transmission would bring us exited FPV experience.
Features:
Digital HD FPV experience
New CrazyF405 ELRS HD flight controller
Powerful and Smooth
UART ExpressLRS receiver
Built-in blackbox for Gyroflow and PID Tune

Motor

Mode: EX1103 11000KV
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:朴1.5mm
Motor Dimension(Dia.*Len):朴13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Propellers

Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

Flight Controller

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270 (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200

Onboard UART
ExpressLRS 2.4GHz Receiver:

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

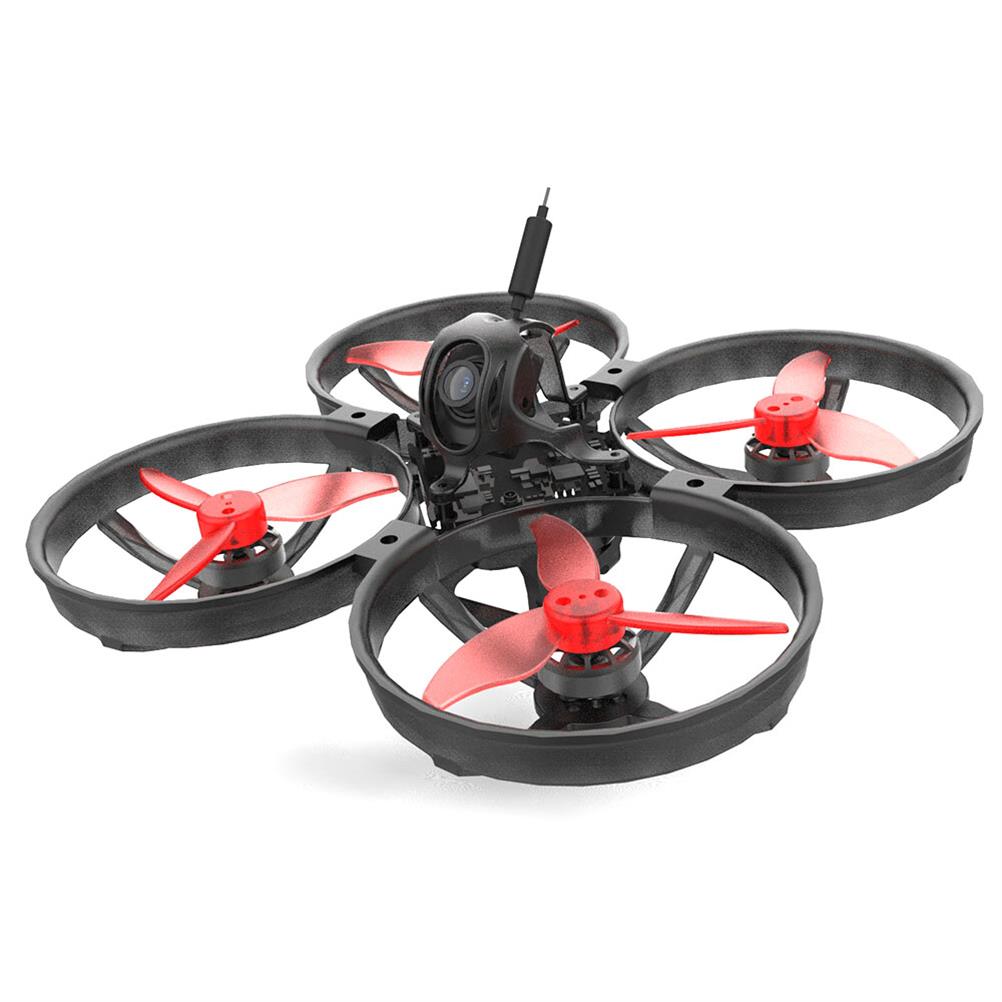

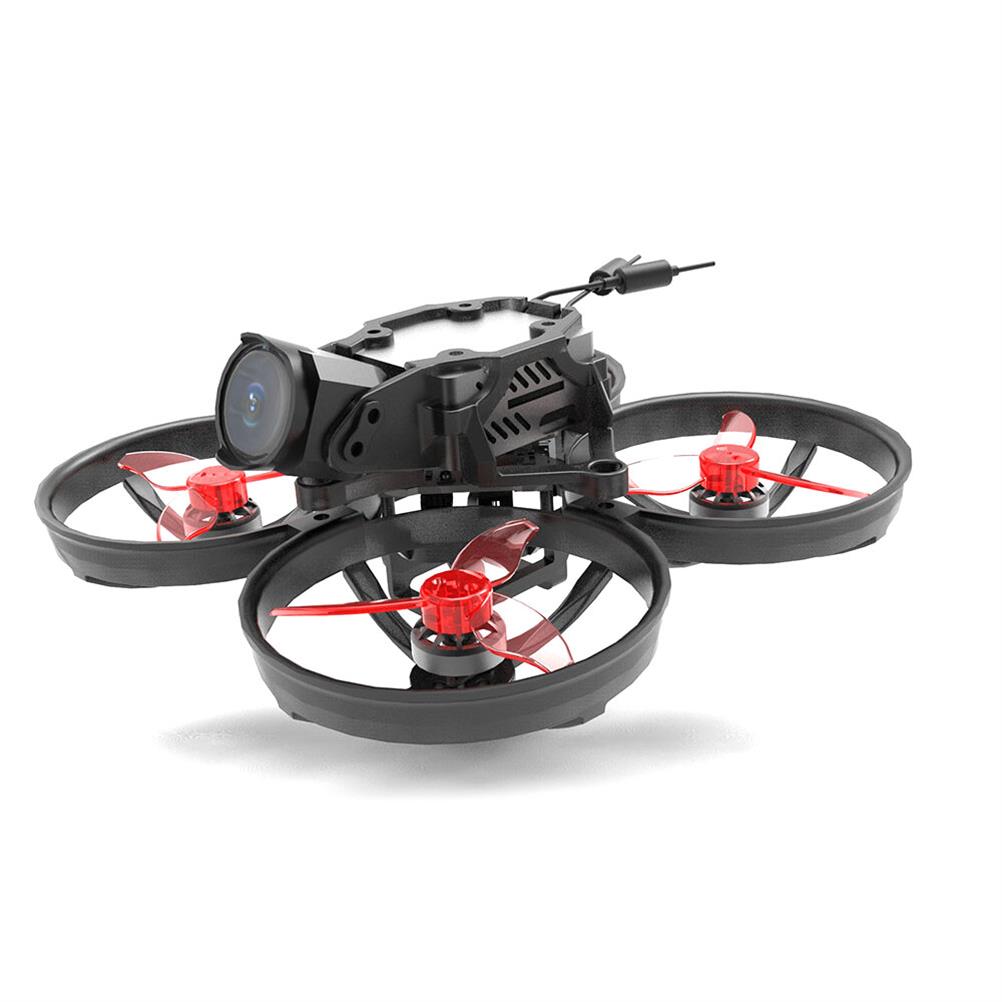

DJI O3 Version

VTX & Camera: DJI O3 Air Unit
Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2

Walksnail Version

Camera: Avatar lite camera
VTX: Avatar mini 1s module

HDZero Version

HDZero Nano Lite Camera & HDZero Whoop Lite VTX

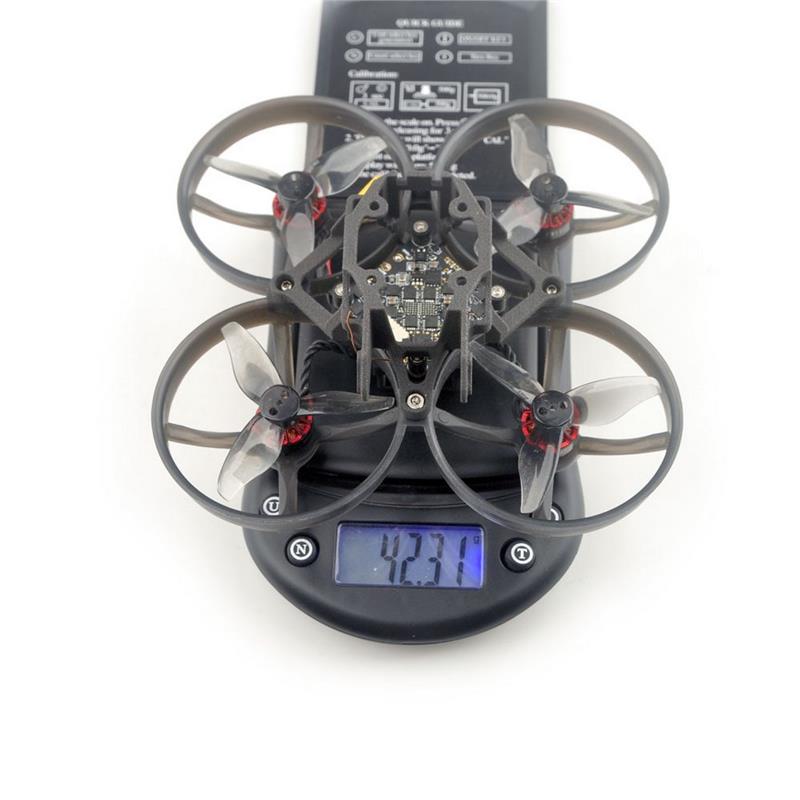

Lite Version

NO VTX, NO Camera

Package Included:
Mobula8 Frame x1
CrazyF4HD ELRS flight controller x1
EX1103 KV11000 brushless motor x1
Gemfan Hurricane 2023 tri-blade propellers (4cw+4ccw) x1
Option1: DJI O3 Air unit x1
Option2: Walksnail avatar HD Mini 1S lite kit x1
Option3: HDZERO Whoop Lite bundle x1
Option4: No VTX and camera version x1
Canopy x1
Screw driver x1
